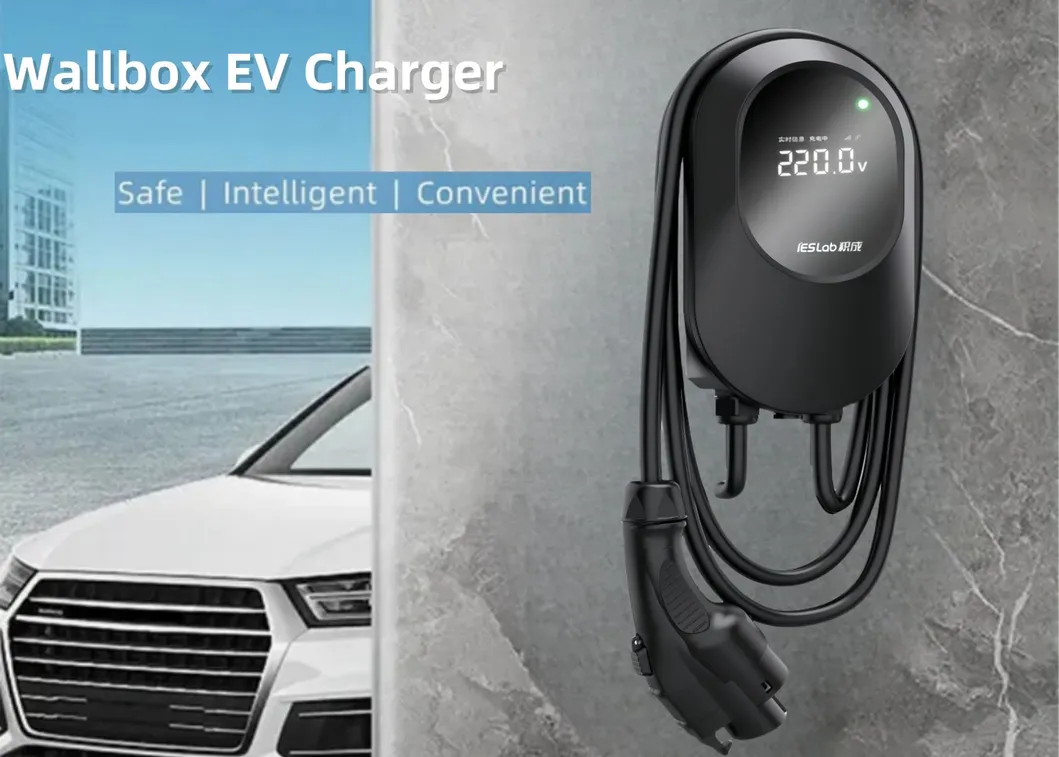

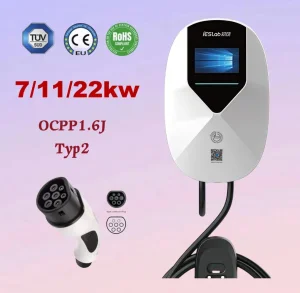

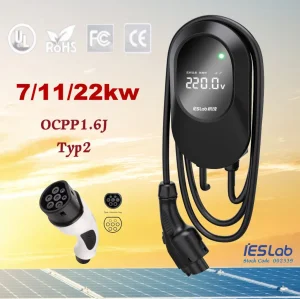

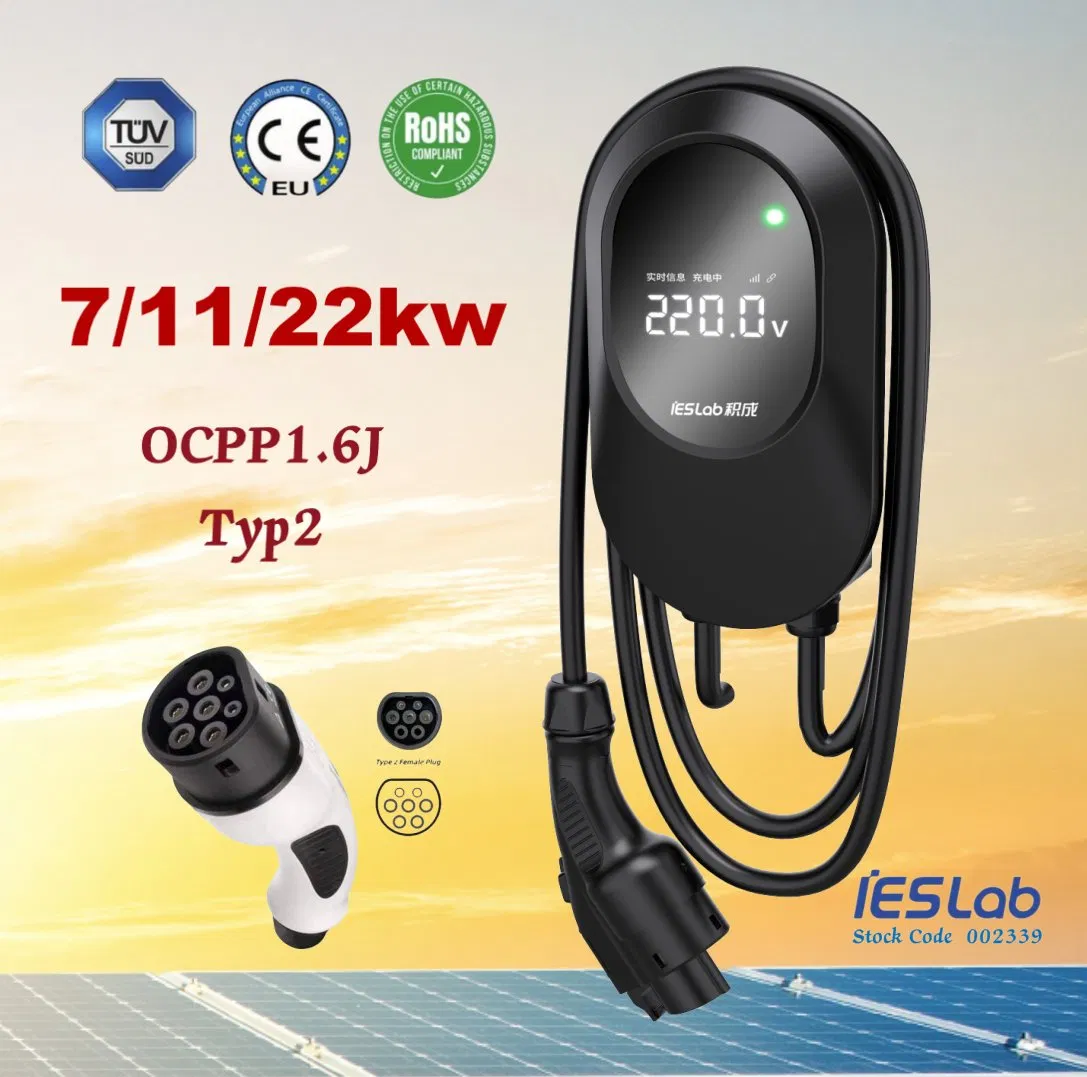

AC Charging EV Charger Points Electric Vehicle AC Charging Points

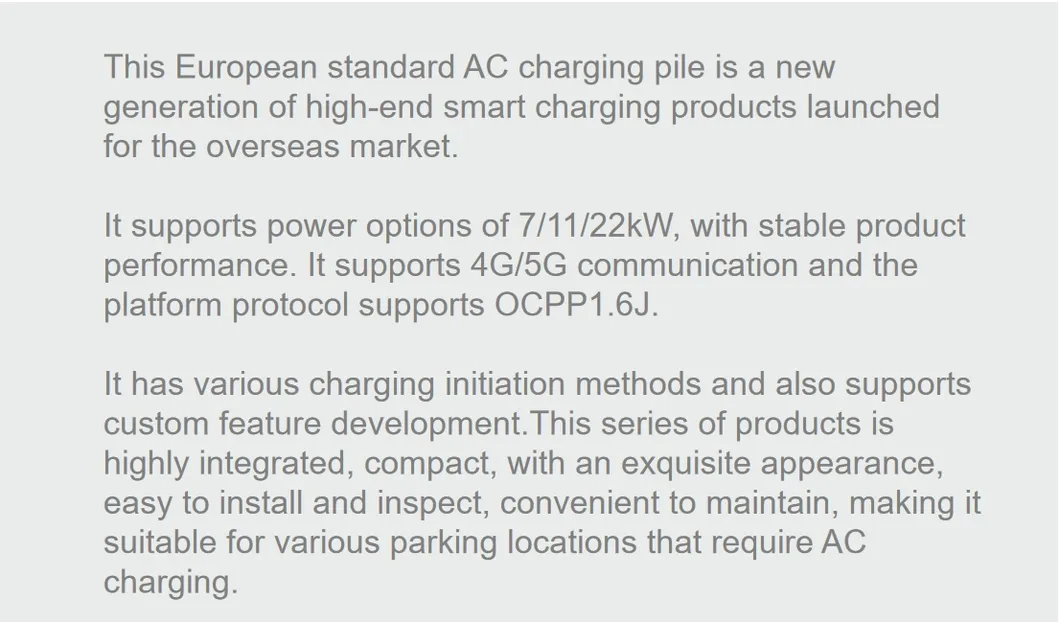

Product Description
1
Basic Info
Model NO.
7/11/22kw AC Charger
Interfaces
One Pile with One Charge
Location
Indoor and Outdoor
Installation
Wall Mounted
Charge Method
Normal Charge
Warranty
2 Years
Certification
CE, TUV, Ukca, RoHS, ISO
Protection Rating
IP54
Rated Input Voltage
7kw: 230VAC; 11/22kw: 400VAC
Housing Material
PC with Anti-UV Treatment
2
Product Parameters
| Technical Specifications | |
|---|---|
| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions | 87mm x 190mm x 330mm |
| Net Weight | 4.8kg / 5kg |
| Rated Output Current | 7kw: 32A (1-Phase); 11kW: 16A (3-Phase); 22kW: 32A (3-Phase) |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |
| Charging Mode | Mode 3 |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |
| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault, OCP, OTP |
| Connectivity | LAN Ethernet, Bluetooth, WiFi, 4G |
| Communication Protocol | OCPP 1.6j |
| User Interface | Digital Screen / Home APP |
| Operating Temperature | -30°C to 50°C |
3

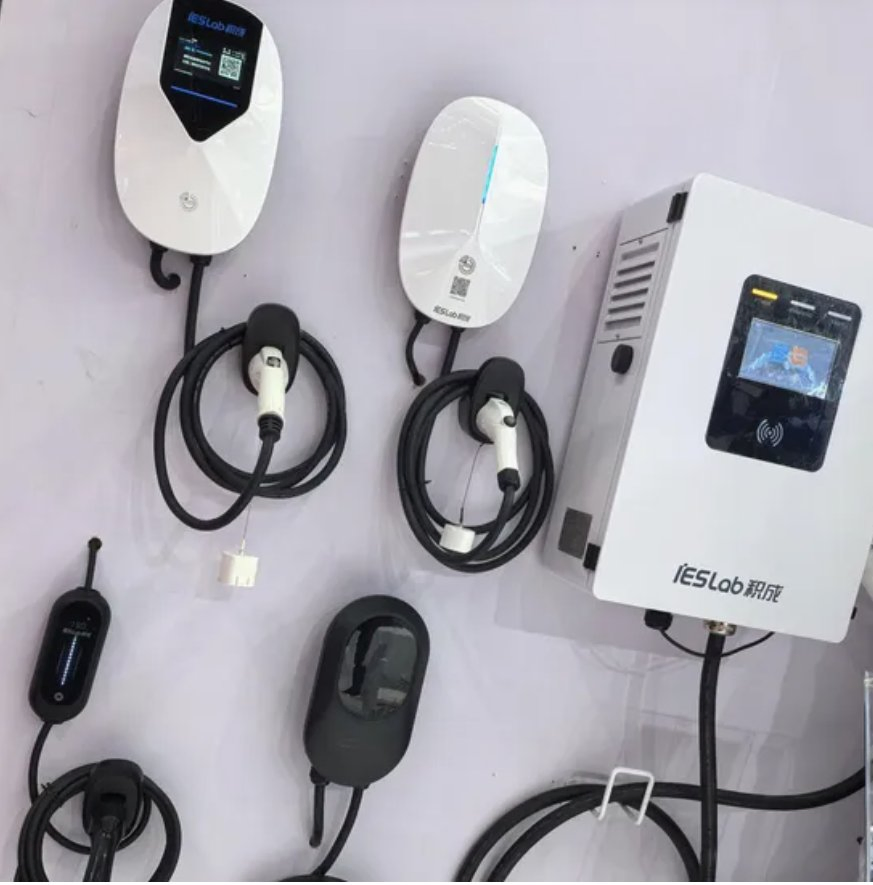

Main Products & Certifications
4

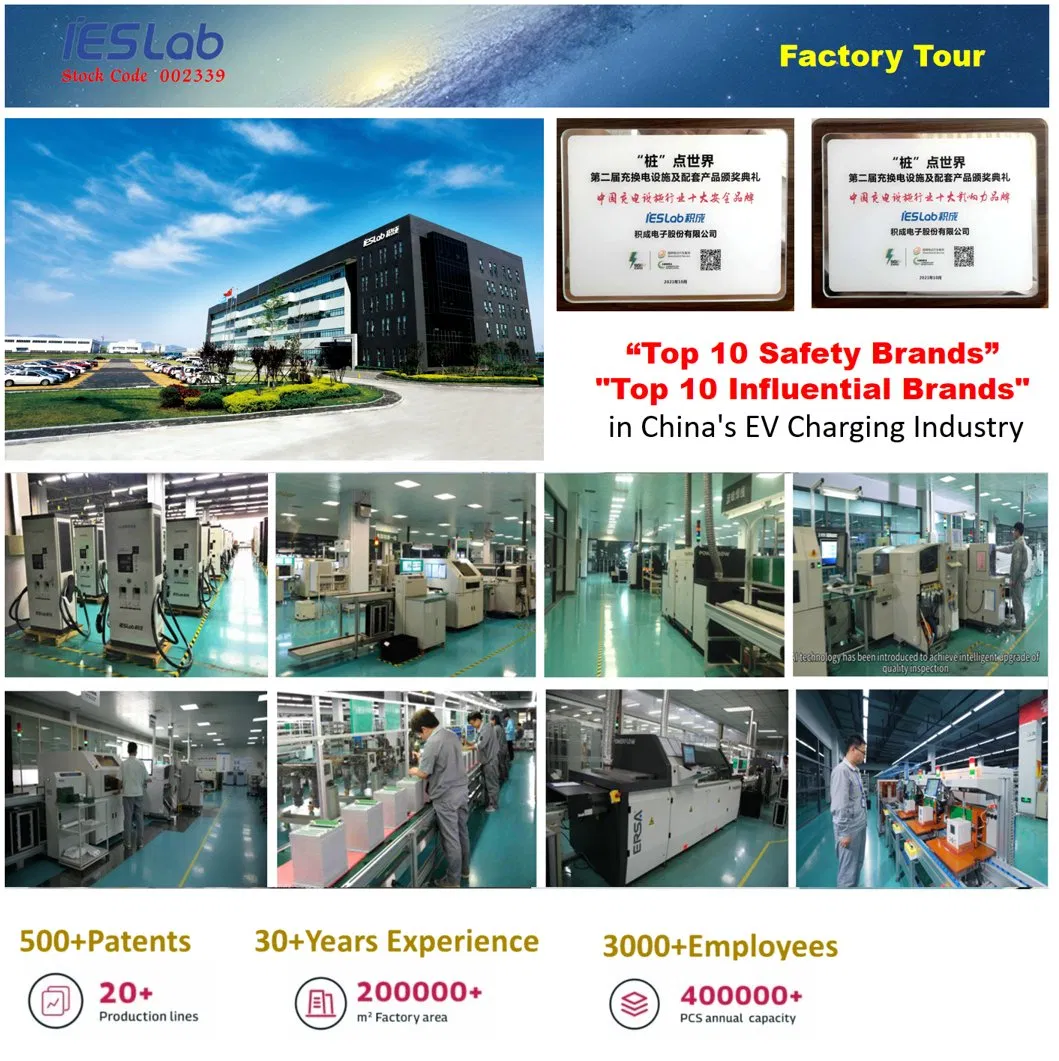

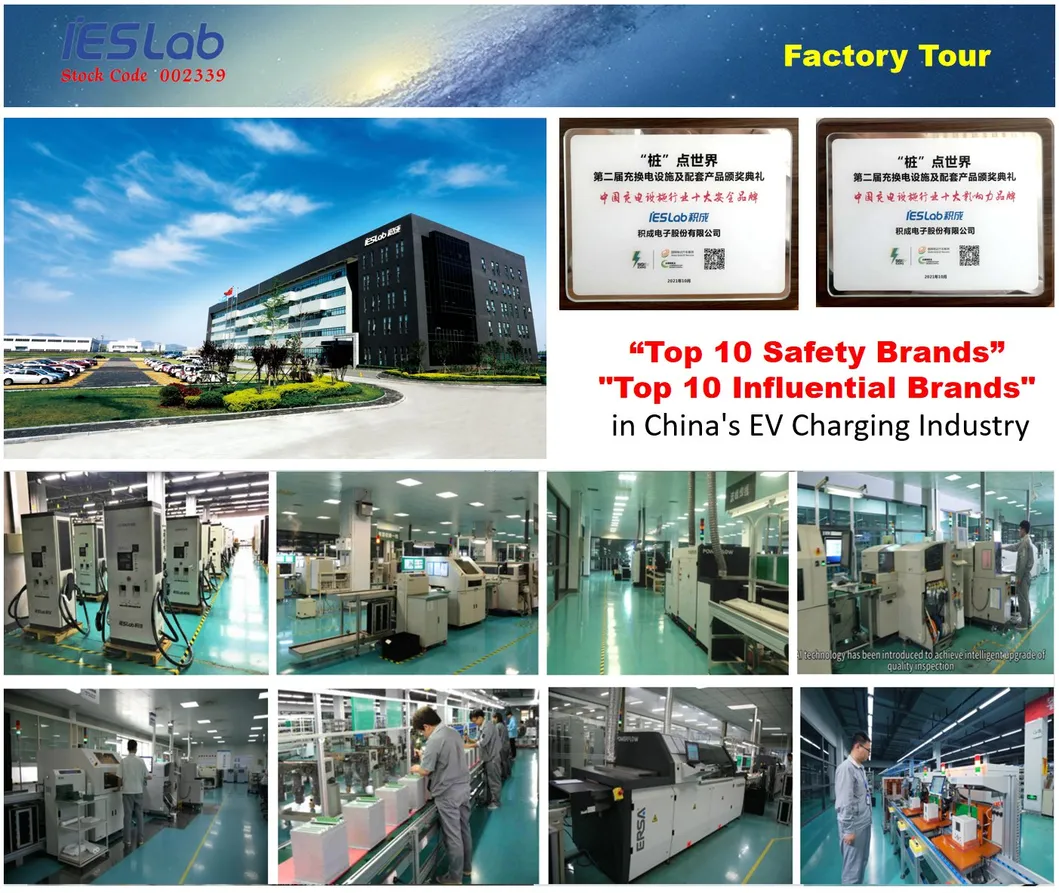

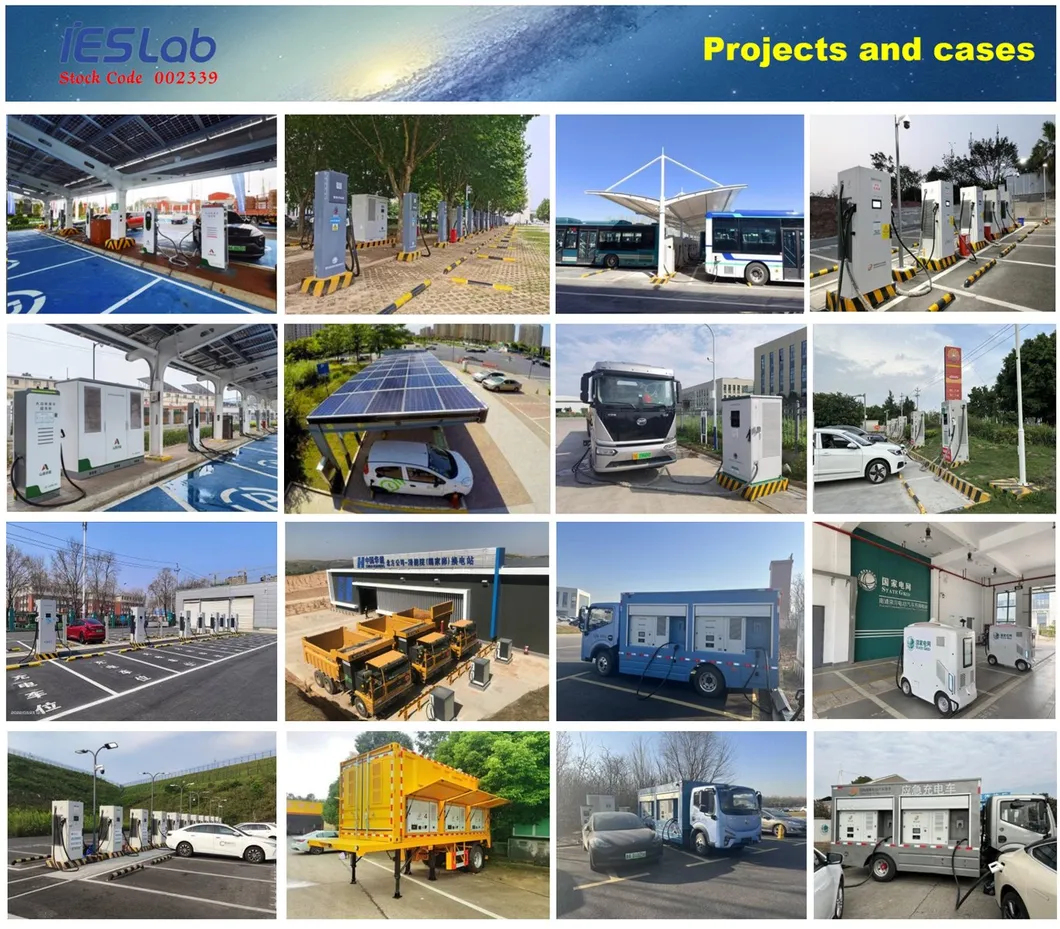

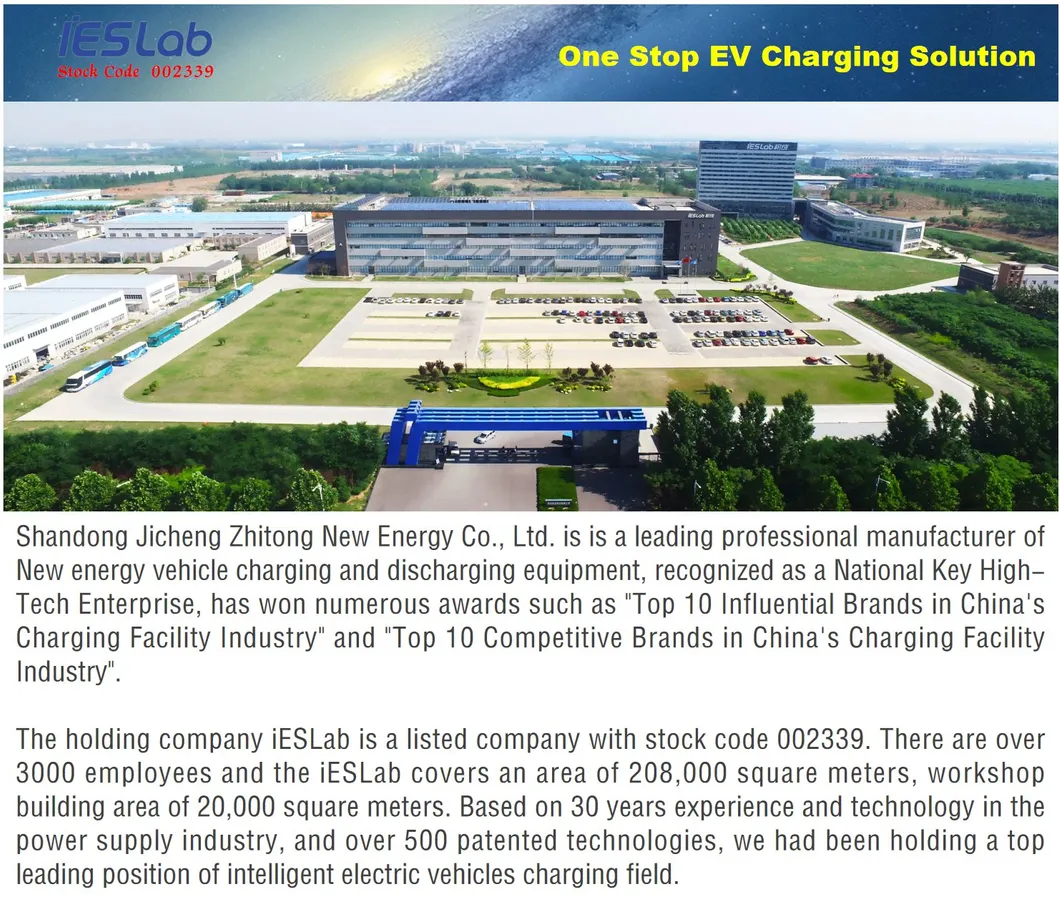

Factory & Projects
?
Frequently Asked Questions
What are the available power ratings for this AC charger?
The charger is available in 7kW (single-phase), 11kW (three-phase), and 22kW (three-phase) configurations to suit different vehicle and grid requirements.
Is the charger suitable for outdoor use?
Yes, it features an IP54 protection rating and the housing is made of PC with Anti-UV treatment, making it durable for both indoor and outdoor installations.
What type of charging connector does it come with?
The unit comes with a 5-meter tethered IEC Type 2 lead, which is the standard for European electric vehicles.

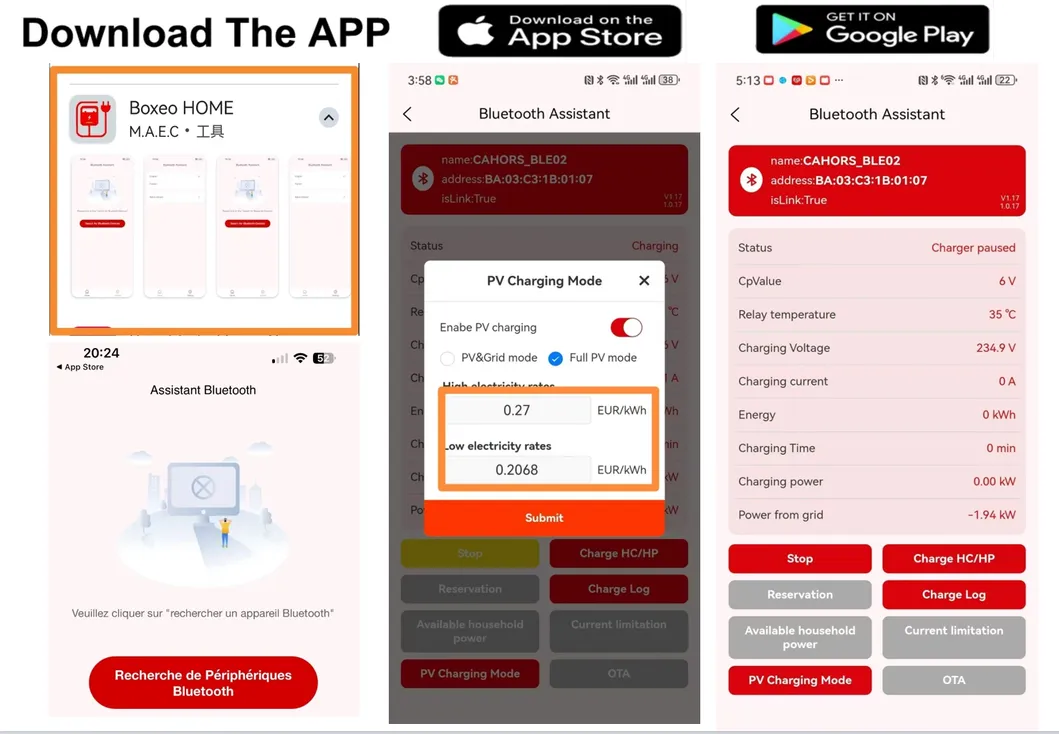

Does it support smart app connectivity?
Yes, it supports data connections via Bluetooth, WiFi, and 4G, allowing for back-end service integration through OCPP 1.6j or a dedicated Home APP.

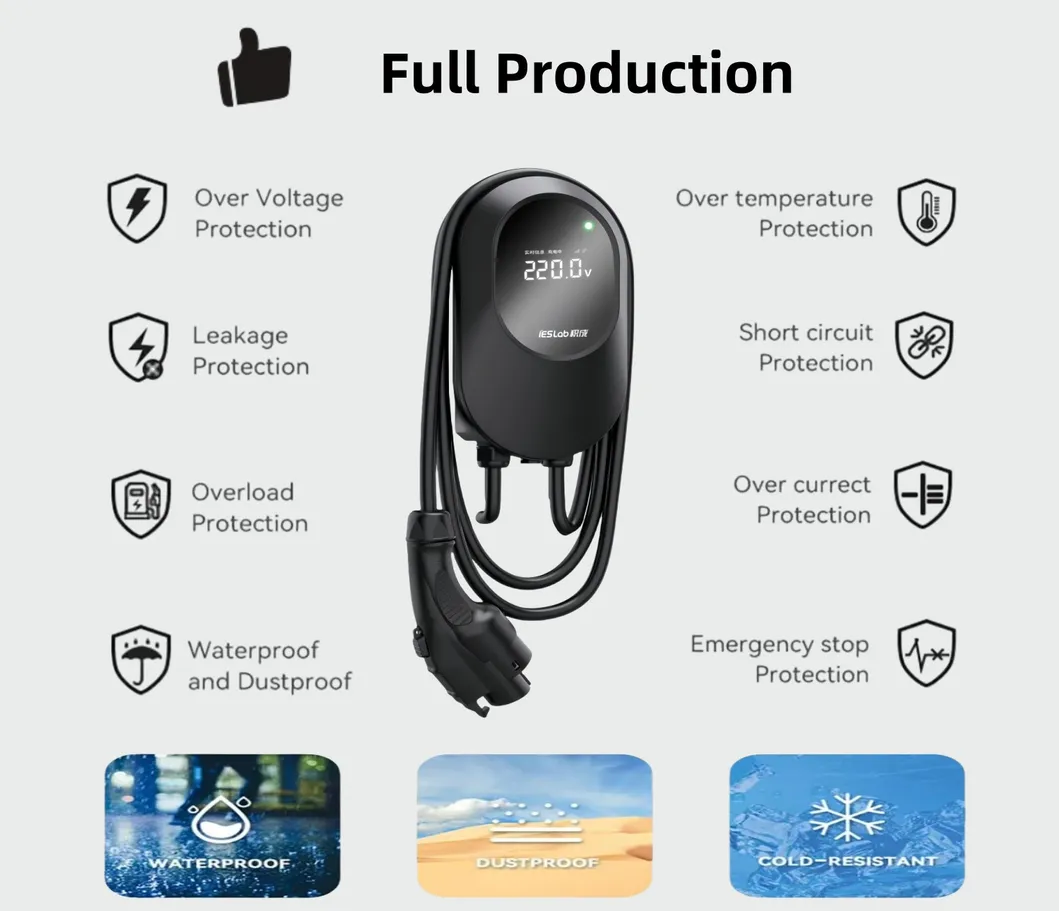

What safety protections are built into the device?
The charger includes comprehensive electrical protection: Under Voltage (UVP), Over Voltage (OVP), RCD (DC 6mA), Surge Protection (SPD), Ground Fault Protection, Over Current (OCP), and Over Temperature (OTP).
Can access be restricted to specific users?
Yes, the device supports NFC authentication (ISO / IEC 14443A / MIFARE) for secure user access control.
