240kw-960kw Split Fast DC EV Charger 1 Power Cabinet + 2/4/6 Charging Piles Gbt/CCS/Chademo
Product Description
Basic Info.
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Display
7 Inch
Input
380V
Output
DC200-1000V
Ui Language
English, Russian, Japanese, Turkish, Germany, etc
Package
Wooden Case
Origin
Guangdong, China
Product Description

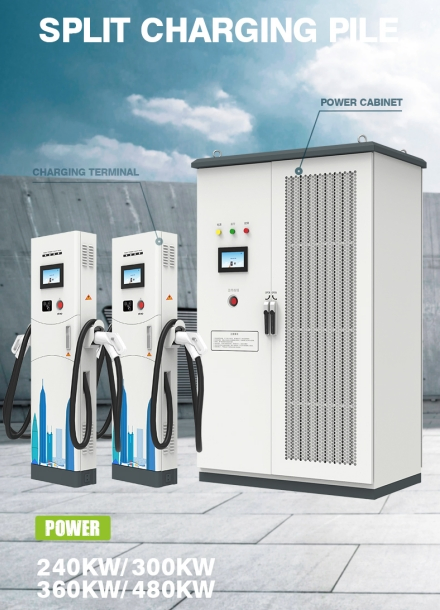

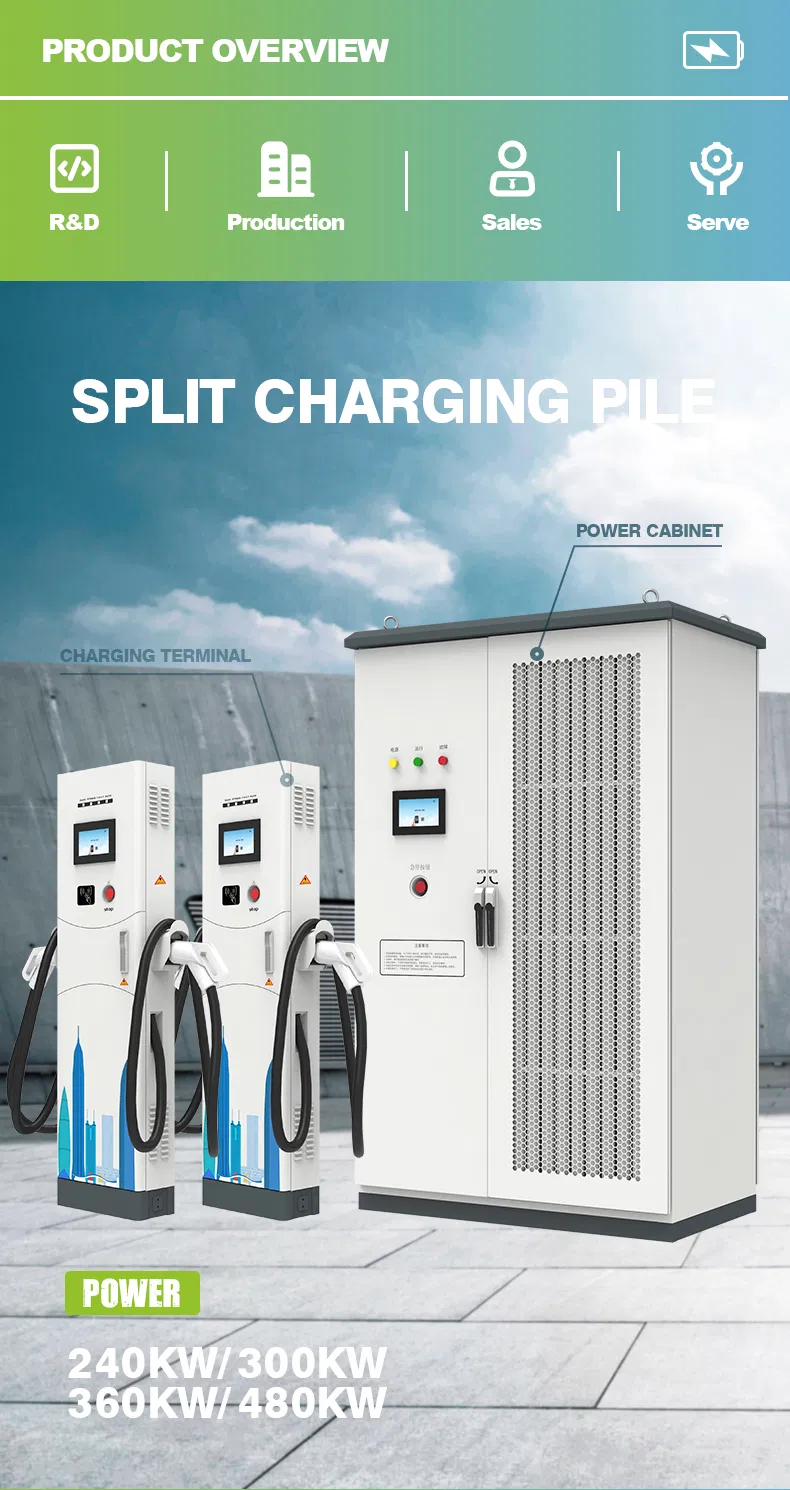

240KW, 360KW, 480KW Split Type EV Charging Station
1

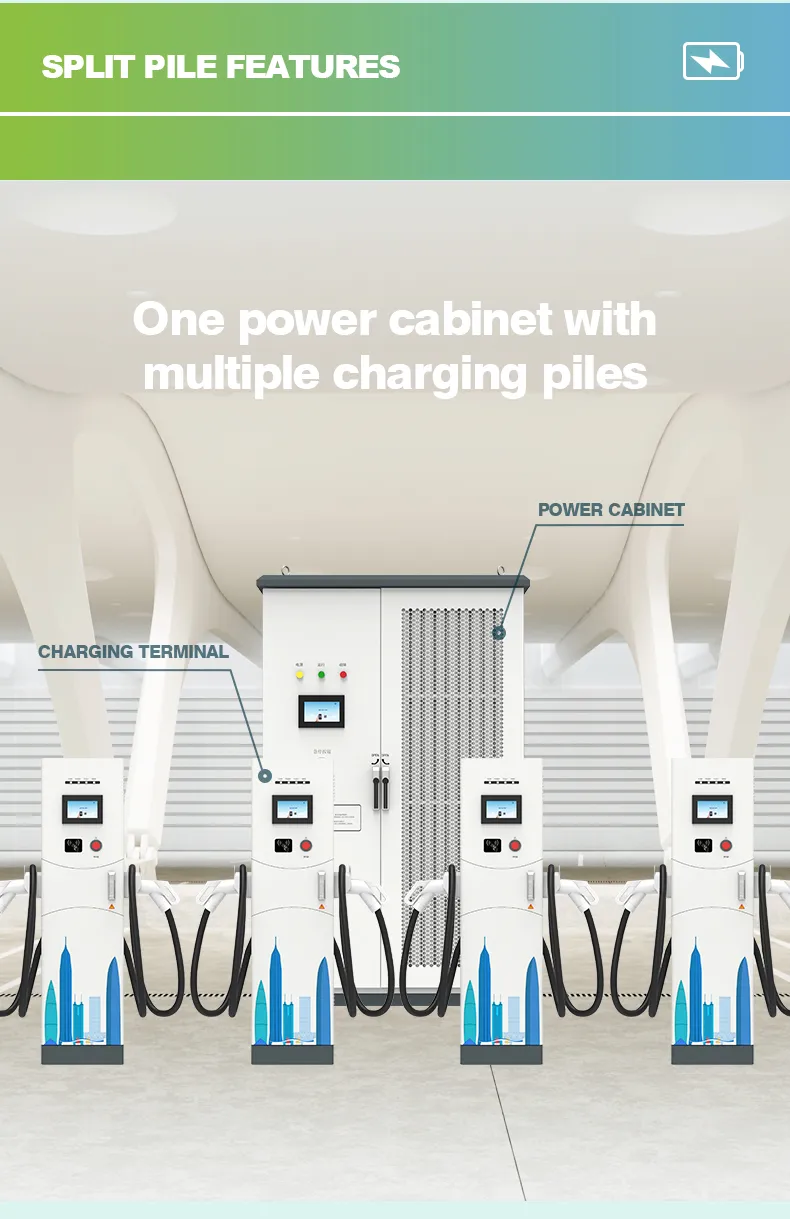

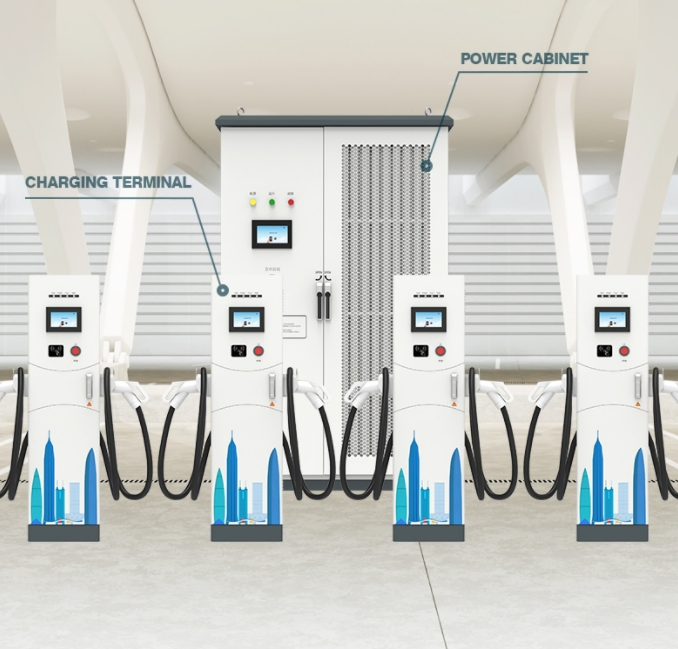

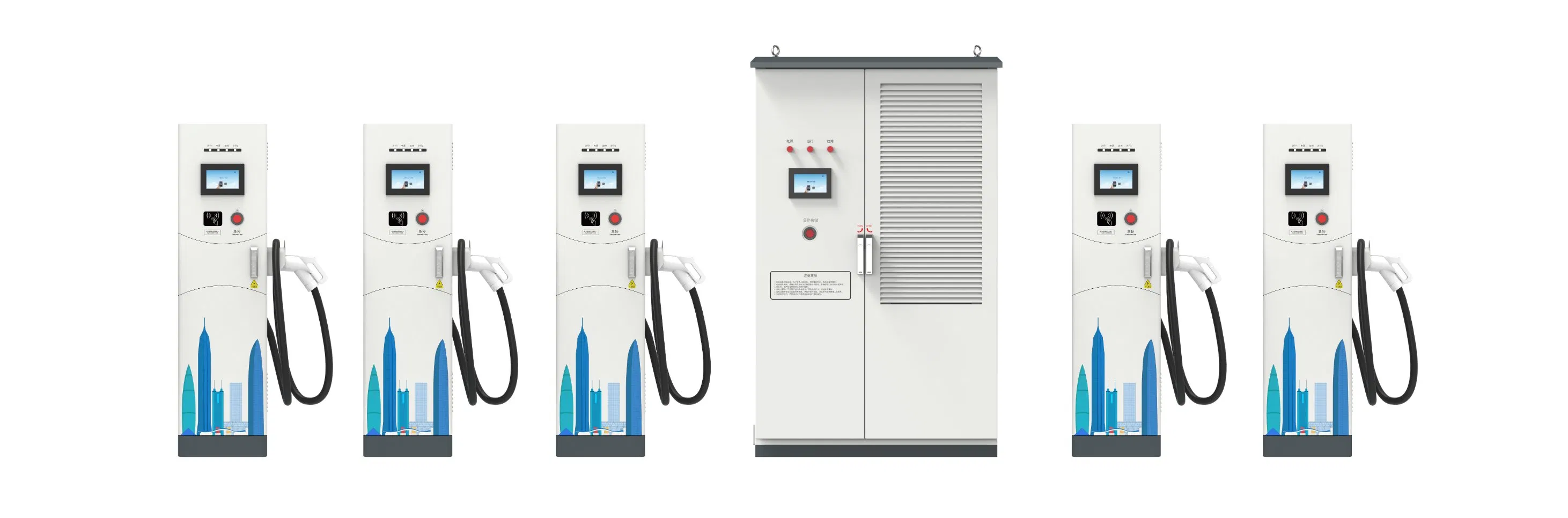

Flexible Configuration: 1 Power Cabinet & 4-8 charging terminal machines with separate heat dissipation.
2

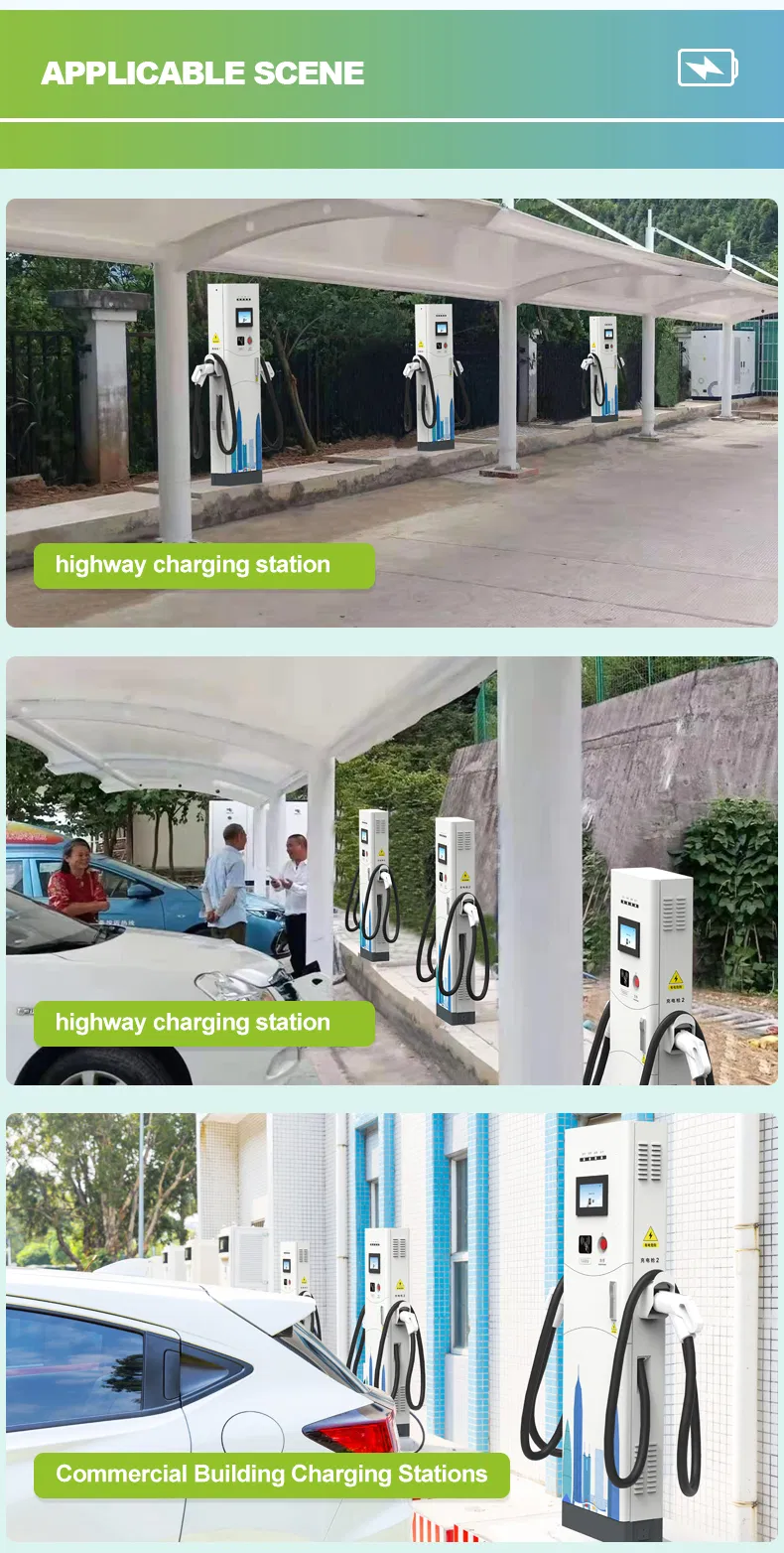

Multi-Scenario: Ideal for Enterprise parks, logistics parks, Bus/Taxi stations, and Highways.
3
Dynamic Power: Ultra high power with dynamic allocation to support high-demand electric vehicles.
4
Smart Interaction: Friendly 7-inch color touch screen interface for simple operation.
5

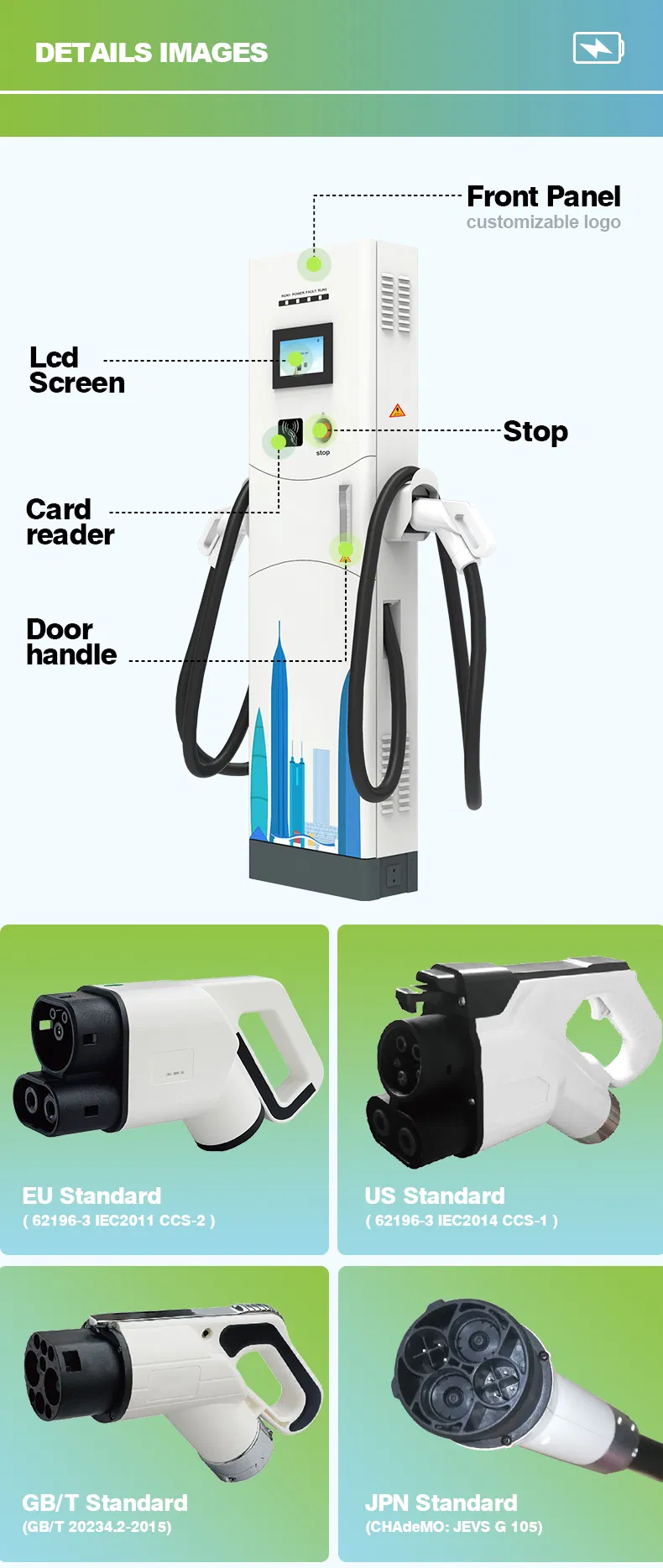

Global Standards: Supports CCS-2, CCS-1, CHAdeMO, and GB/T connectors.
6
Connectivity: Support for 3G/4G, Ethernet, and wireless telecommunication with OCPP1.6J.
Product Parameters
| NO. | Parameters | Requirements | |
|---|---|---|---|
| General Requirements | |||
| 1 | EV Charger Type | DC | |
| 2 | Charger Capacity | 360KW | 480KW |
| 3 | Product Model | DCF360F | DCF480H |
| 4 | Mounting | Ground-Mounted | |
| Input & Environmental | |||
| 5 | AC Supply System | Three-Phase, 5 Wire | |
| 6 | Input Voltage | AC380V±15% | |
| 8 | Temp Range | -25 to 55°C | |
| 9 | Humidity | 5 to 95% | |
| Electrical Performance | |||
| 11 | Current Limit | ≥110% | |
| 12 | Pressure Precision | ≤±0.5% | |
| 14 | Power Factor | ≥0.99 | |
| Mechanical & Output | |||
| 15 | IP Ratings | IP 54 | |
| 18 | Number of Outputs | 6 | 8 |
| 19 | Voltage Range | DC200-1000V | |
| 20 | Max Current | 200 Amp | |

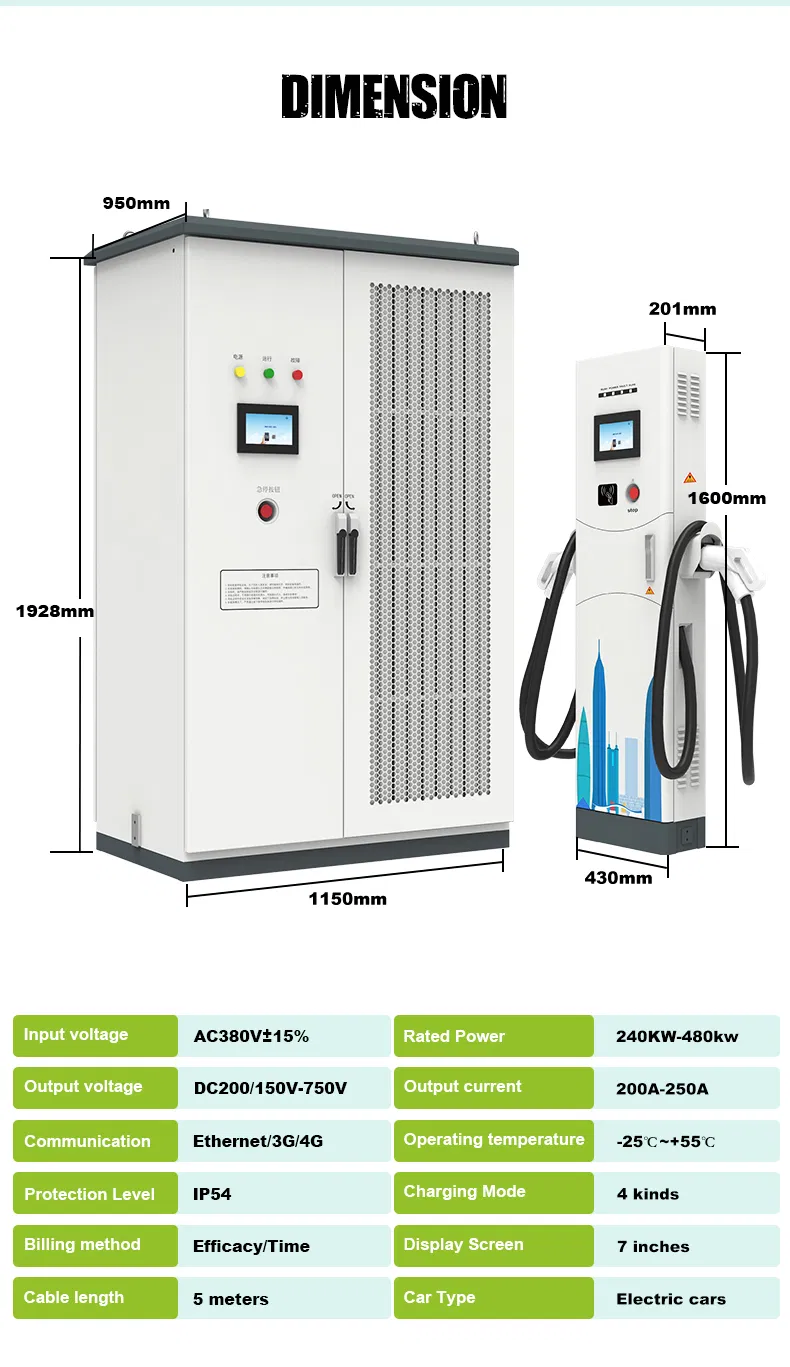

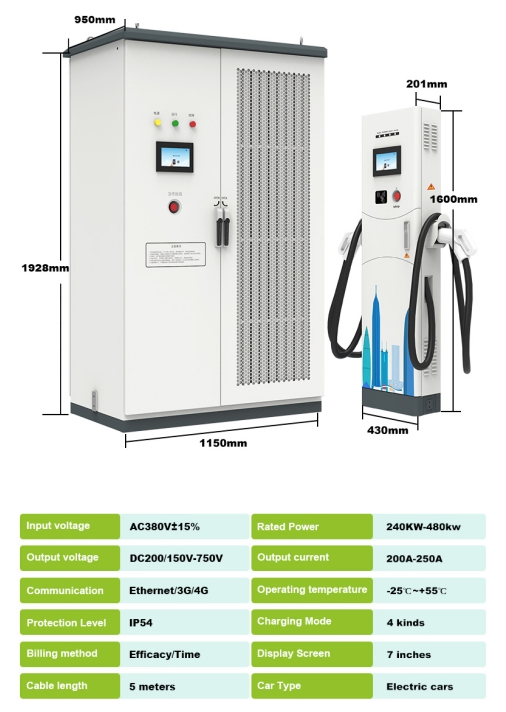

Detailed View
Frequently Asked Questions
What power capacities does this split-type charging station offer?
The system is available in 240KW, 360KW, and 480KW configurations to meet various fast-charging needs.
How many vehicles can be charged simultaneously?
Depending on the configuration, one power cabinet can support 4 to 8 charging terminals, allowing multiple vehicles to charge at once.
Which charging standards are supported?
The station supports multiple global standards including CCS-2, CCS-1, CHAdeMO, and GB/T connectors.
Is the charging station suitable for outdoor environments?
Yes, it features an IP54 rating with excellent waterproof and dust-proof performance, designed for high environmental adaptability.
What management protocols are supported?
The station supports the OCPP 1.6J protocol (optional) for seamless communication with Central Management Systems (CMS) via Ethernet, 4G, or Wi-Fi.
What is the output voltage range?
The station provides a wide output voltage range of DC 200V to 1000V, making it compatible with various EV battery architectures.
