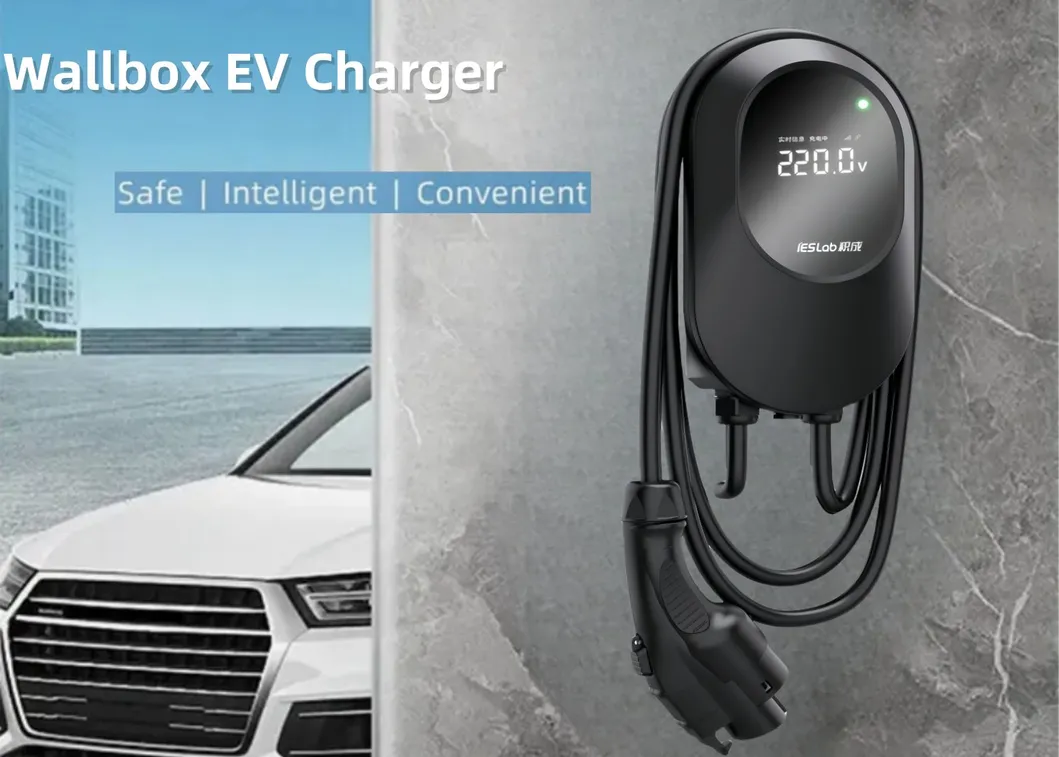

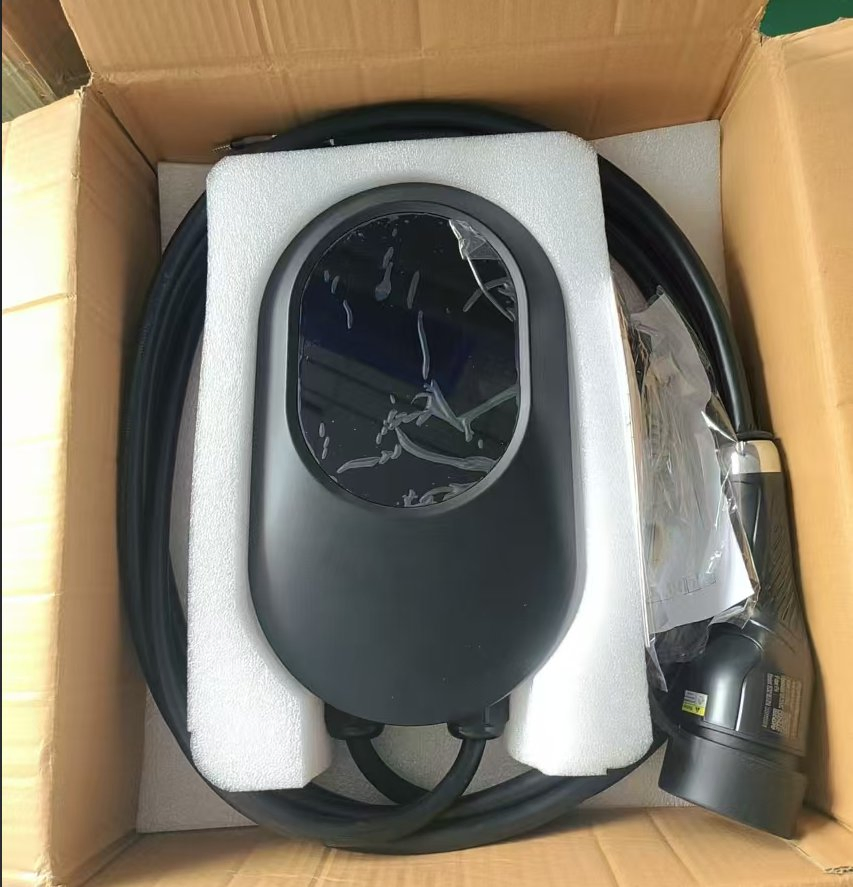

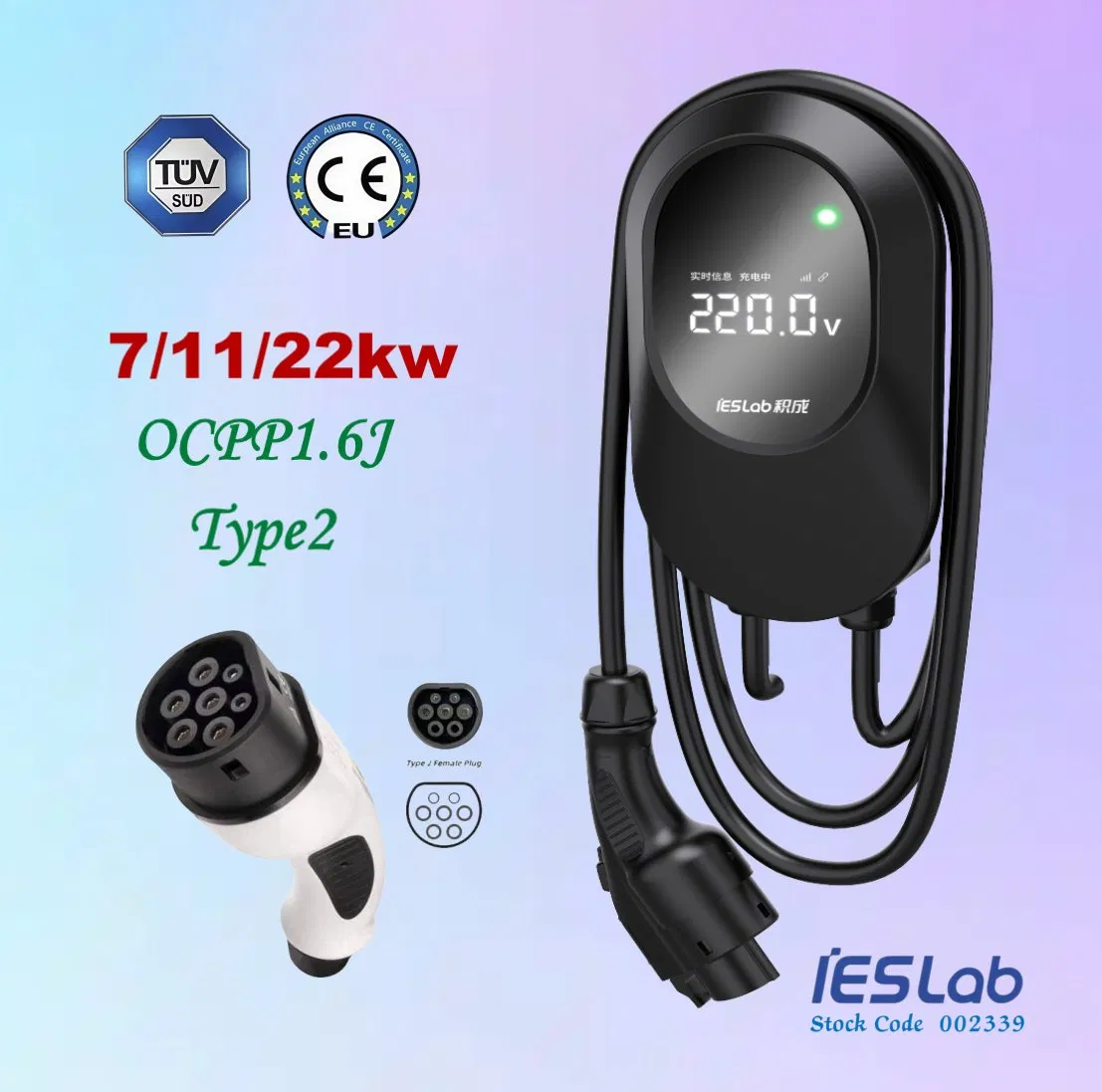

7/11/22kw EV Charging Station 22kw 3-Phase Wholesale EV Charger for Electric Vehicle Home Car Charging Point
Product Description
📋Overview & Basic Info
Model NO.7/11/22kw AC Charger
InterfacesOne Pile with One Charge
InstallationWall Mounted
Warranty2 Years
CertificationCE, TUV, Ukca, RoHS, ISO
ProtectionIP54
Net Weight5kg
HousingPC with Anti-UV
⚙️Product Parameters
| Parameter | Specification |
|---|---|
| Product name | Wall-Mounted EU Standard AC Charger |
| Overall Dimensions | 87mm x 190mm x 330mm |
| Rated Input Voltage | 7kw: 230Vac; 11/22kw: 400Vac |
| Rated Output Current | 7kw: 32A; 11kW: 16A; 22kW: 32A |
| Standard Compliance | IEC 61851-1, IEC 61851-21-2 |
| Charging Mode | Mode 3 |
| Charging Connector | 5 Meter Tethered IEC Type 2 Lead |

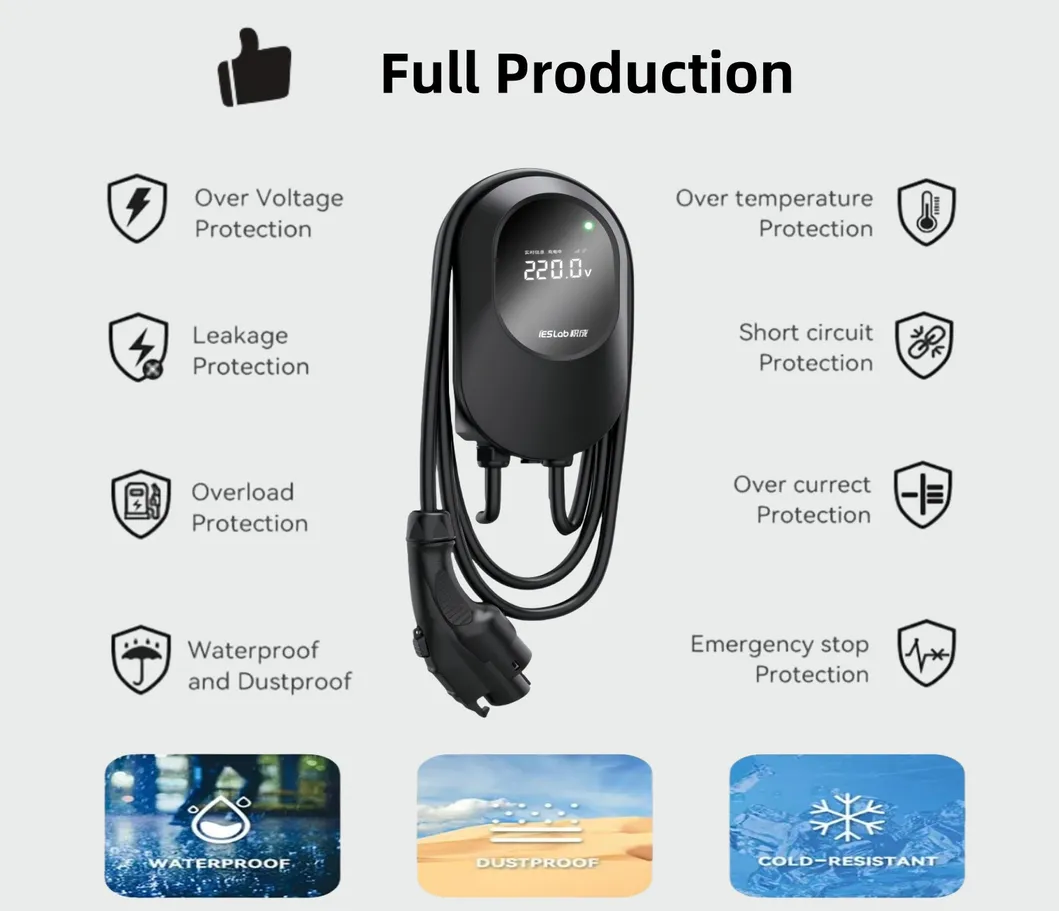

| Electrical Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault, OCP, OTP |

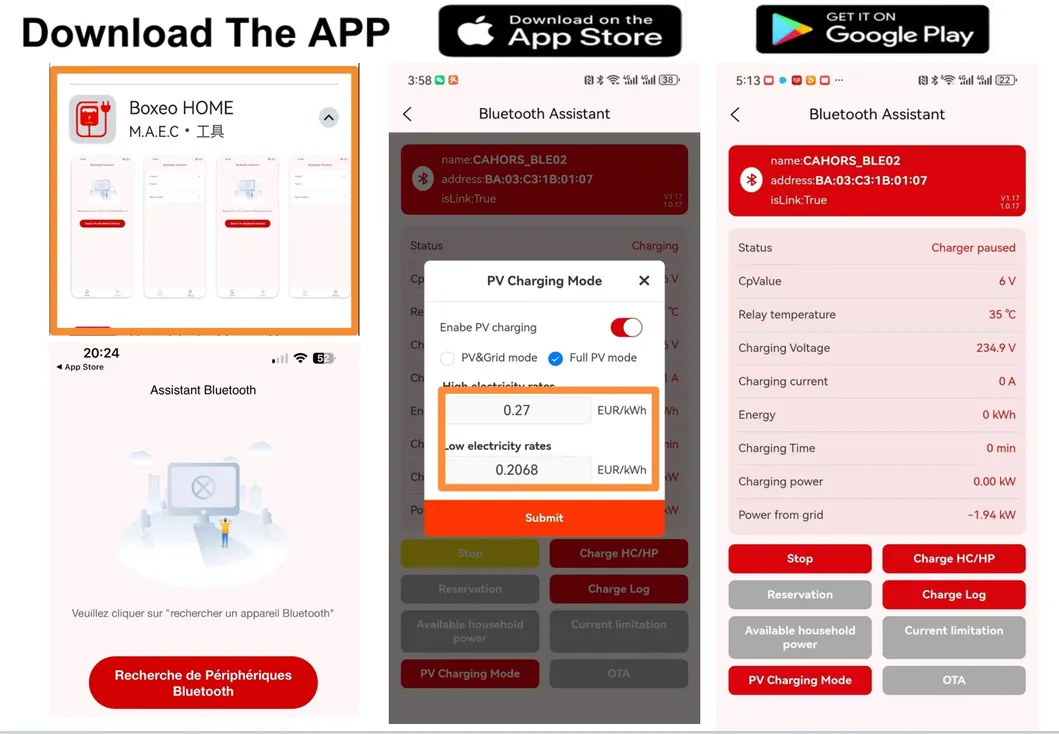

| Connectivity | LAN Ethernet / Bluetooth / WiFi / 4G |
| Operating Temp | -30°C to 50°C |
| Communication | OCPP1.6j |

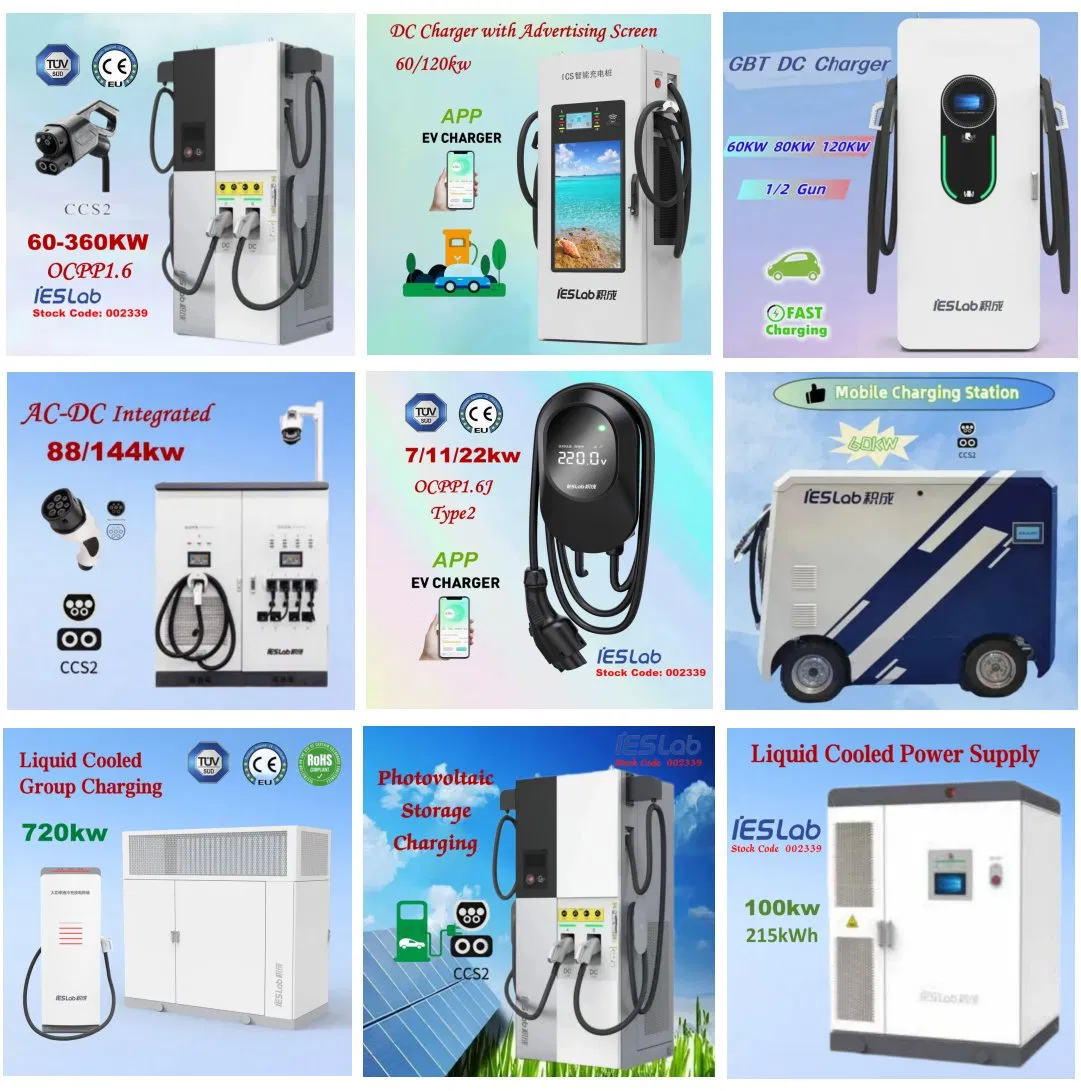

🔋Main Products

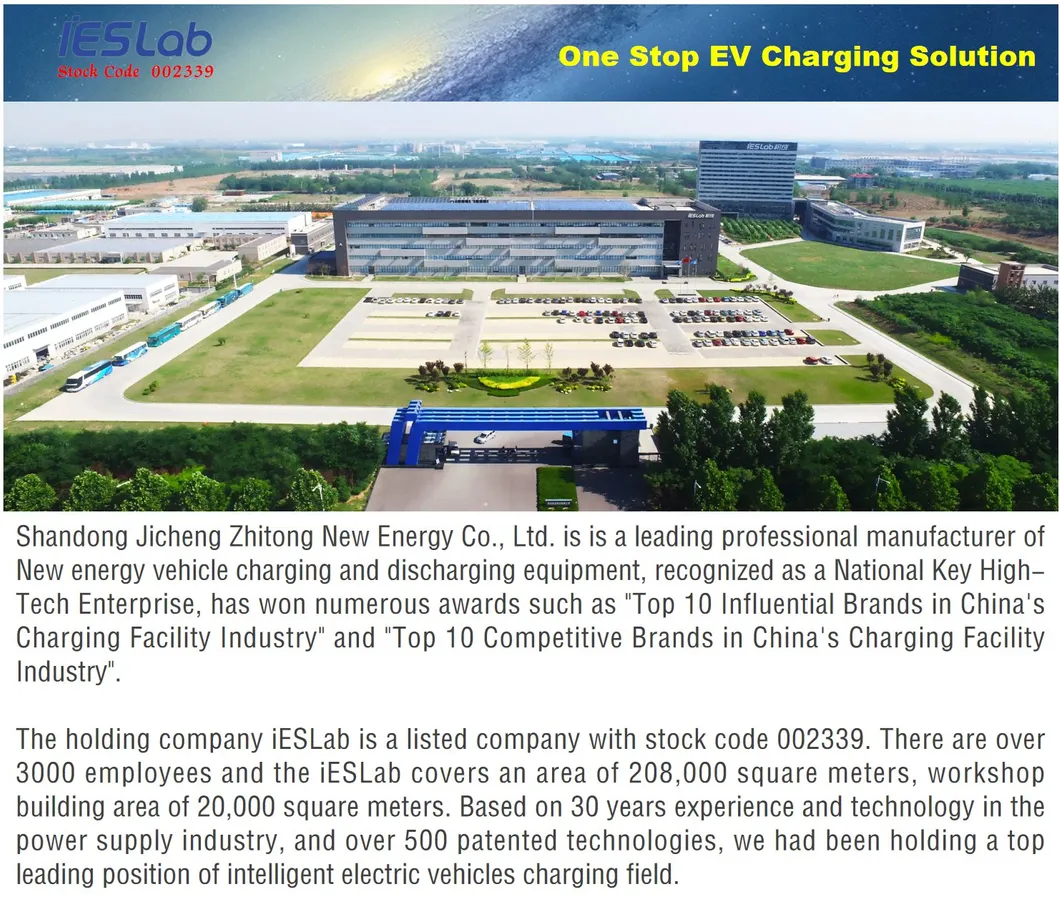

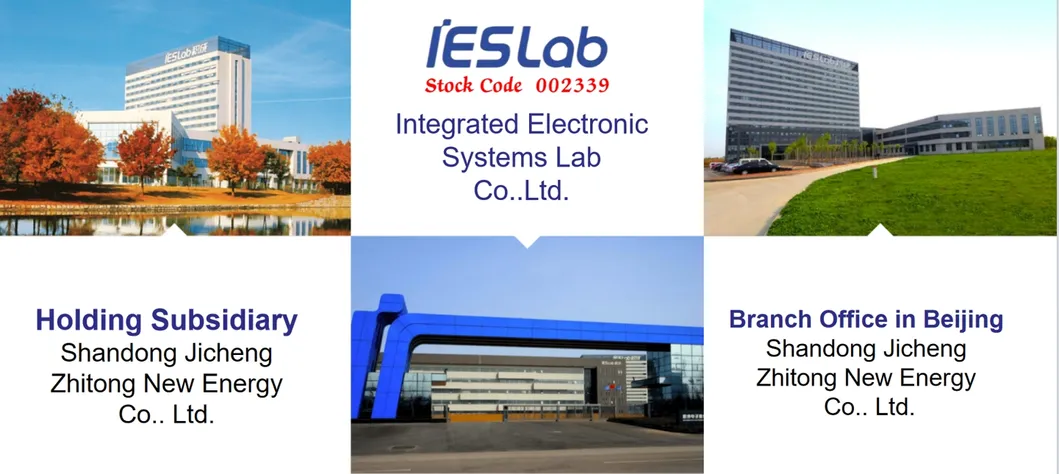

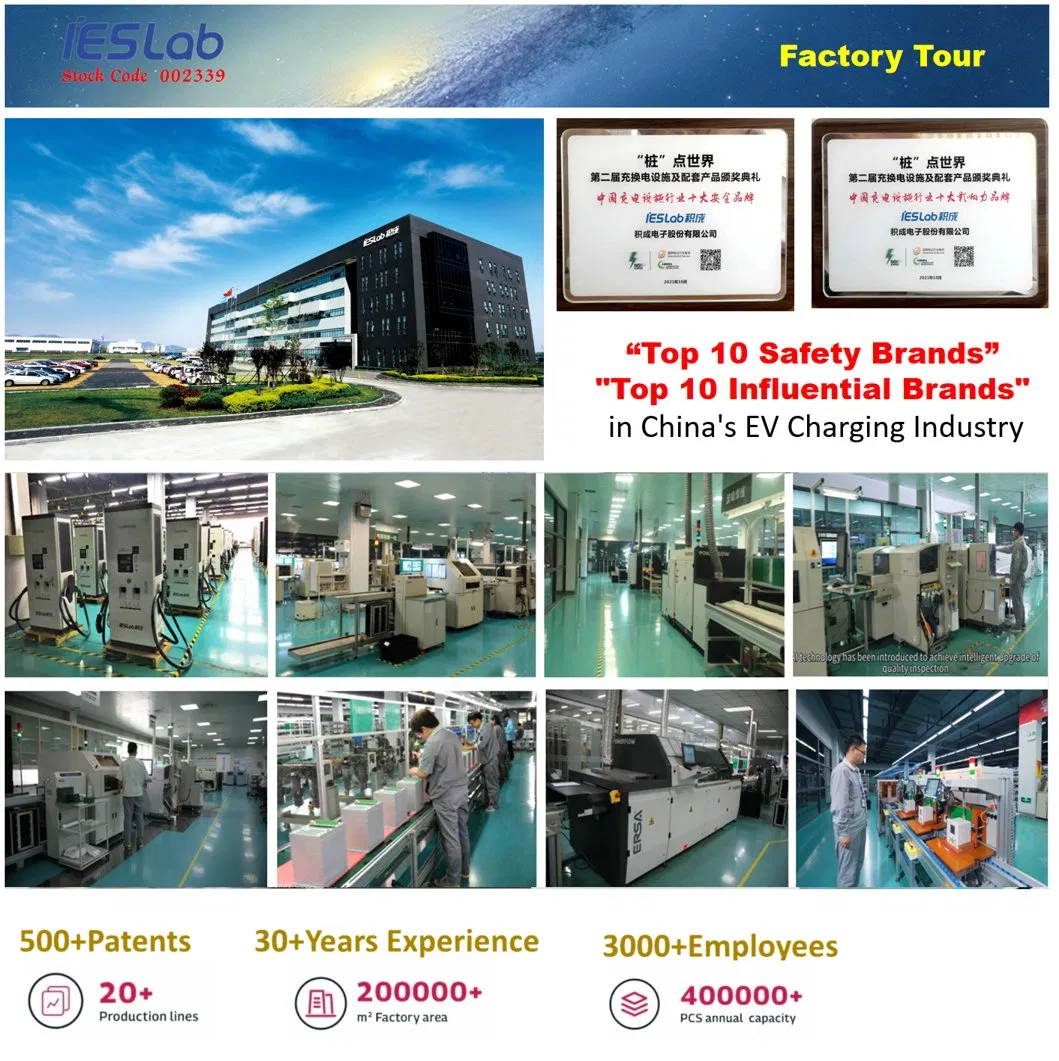

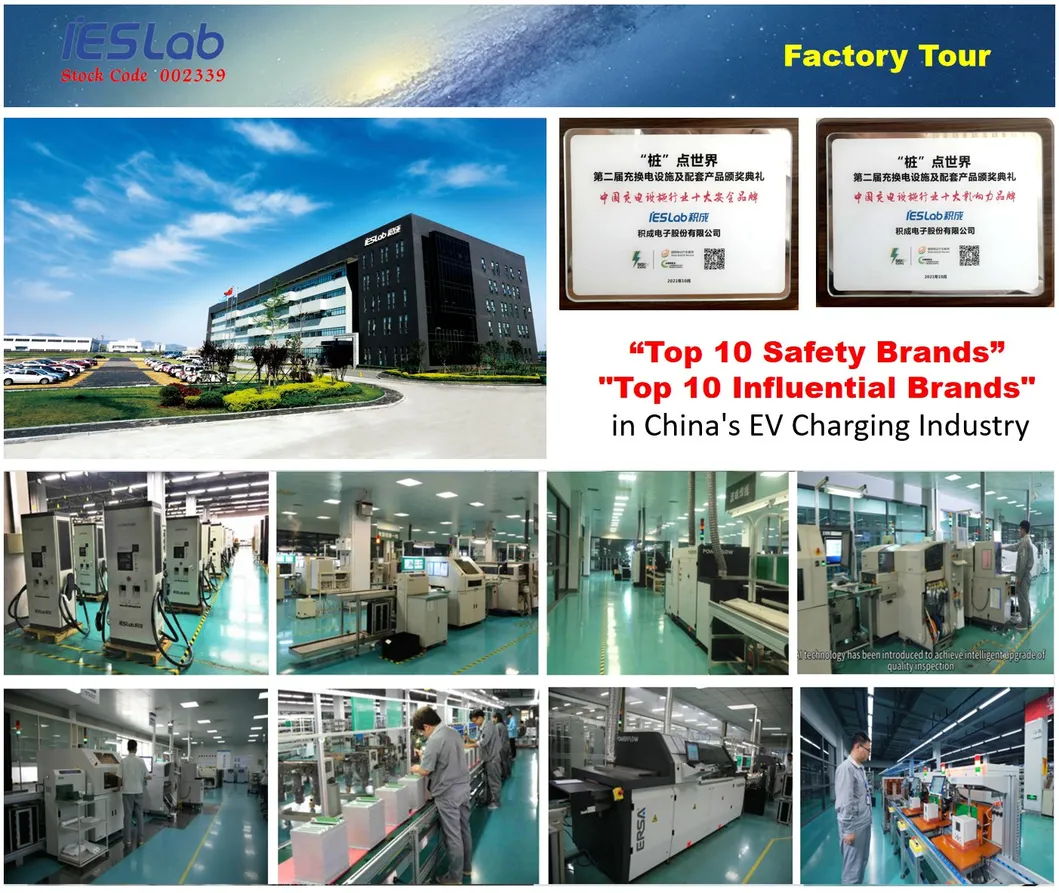

📜Certifications & Factory

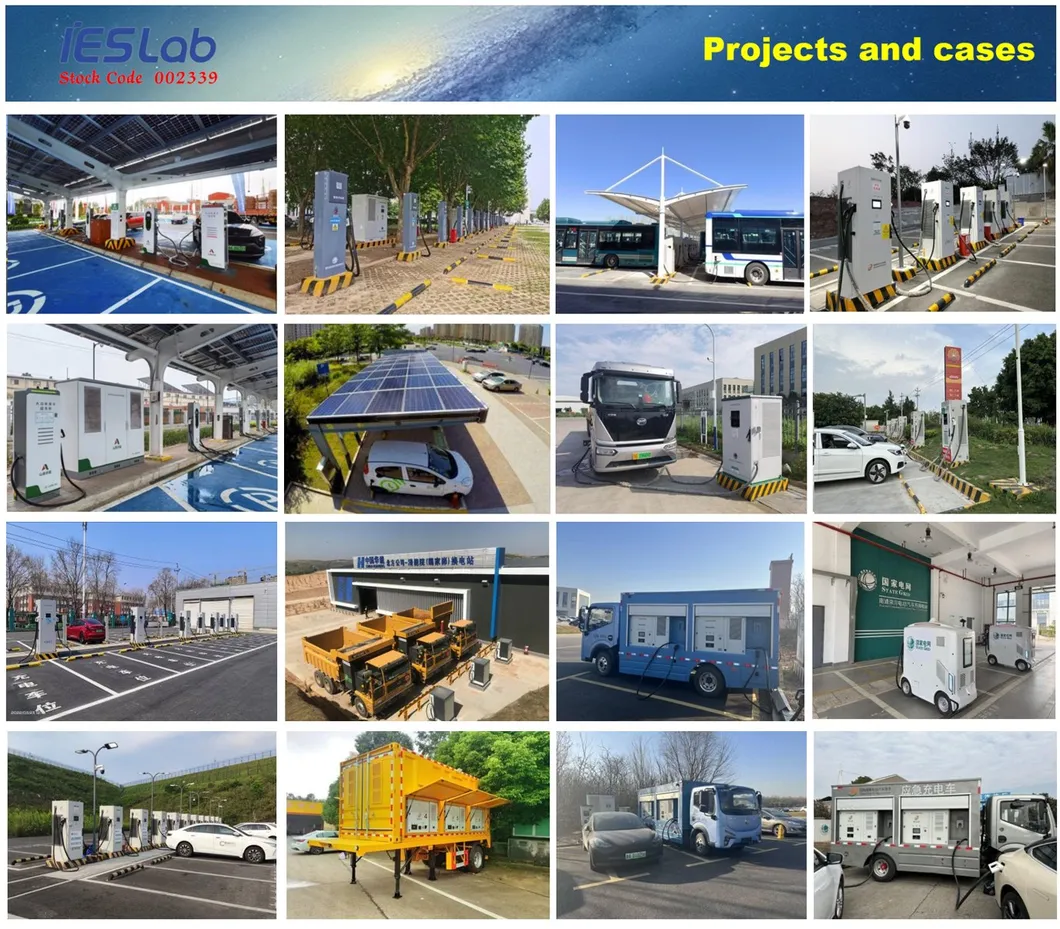

🏗️Projects and Cases
❓Frequently Asked Questions
Q1: Are you a factory or a trading company?
A: We are a professional manufacturer with 30 years of R&D and production experience in the electrical industry.
Q2: Do you test all of your chargers before shipping?
A: Yes, all major components are tested before assembly, and each individual charger undergoes full functional testing before being shipped.
Q3: What is the warranty policy for the EV chargers?
A: We provide a comprehensive two-year warranty. During this period, we offer technical support and replacement parts for any quality-related issues.
Q4: Can you produce chargers according to specific samples?
A: Yes, we can manufacture products based on your physical samples or technical drawings, including the creation of necessary molds and fixtures.
Q5: What is your monthly production capacity?
A: Our current production capacity is approximately 5,000 units per month to ensure timely delivery for wholesale orders.
Q6: Is it possible to visit the manufacturing facility?
A: You are highly welcomed to visit our factory at any time to inspect our production lines and quality control processes.
