VoltNode Charger
1 / 5

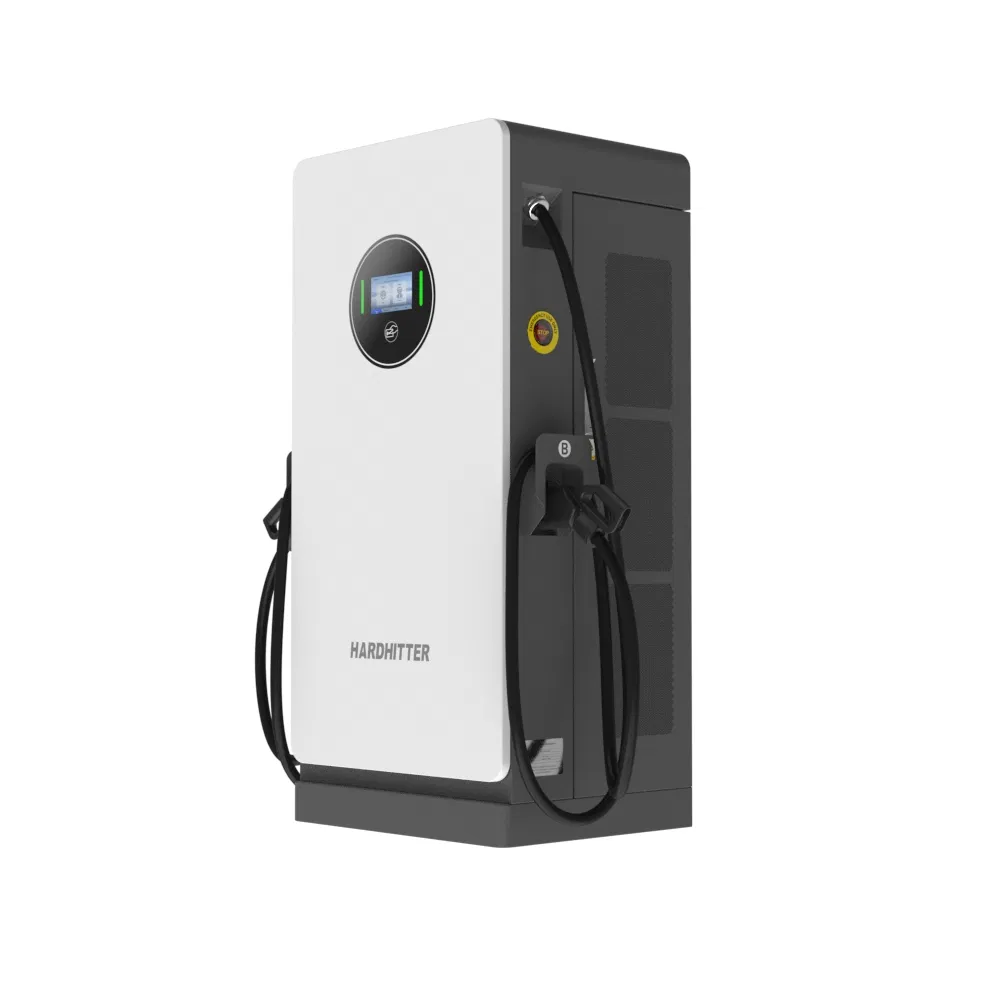

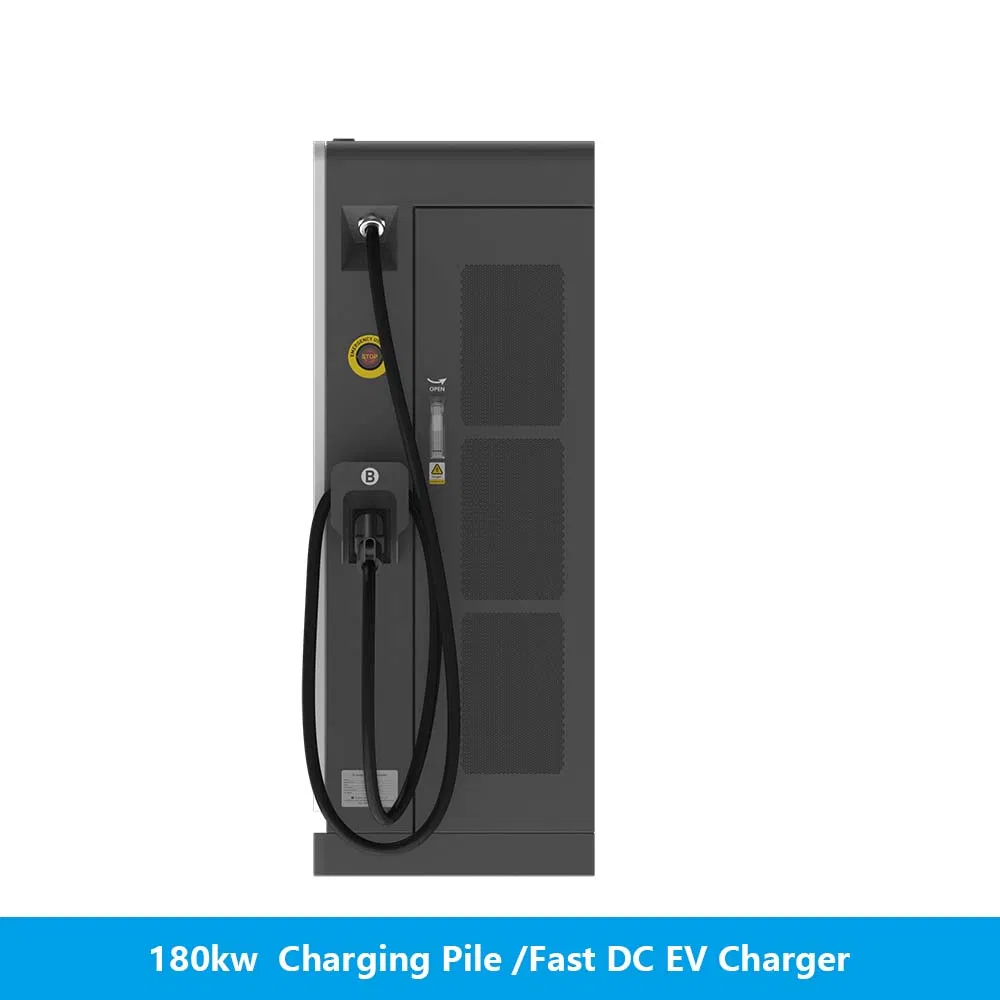

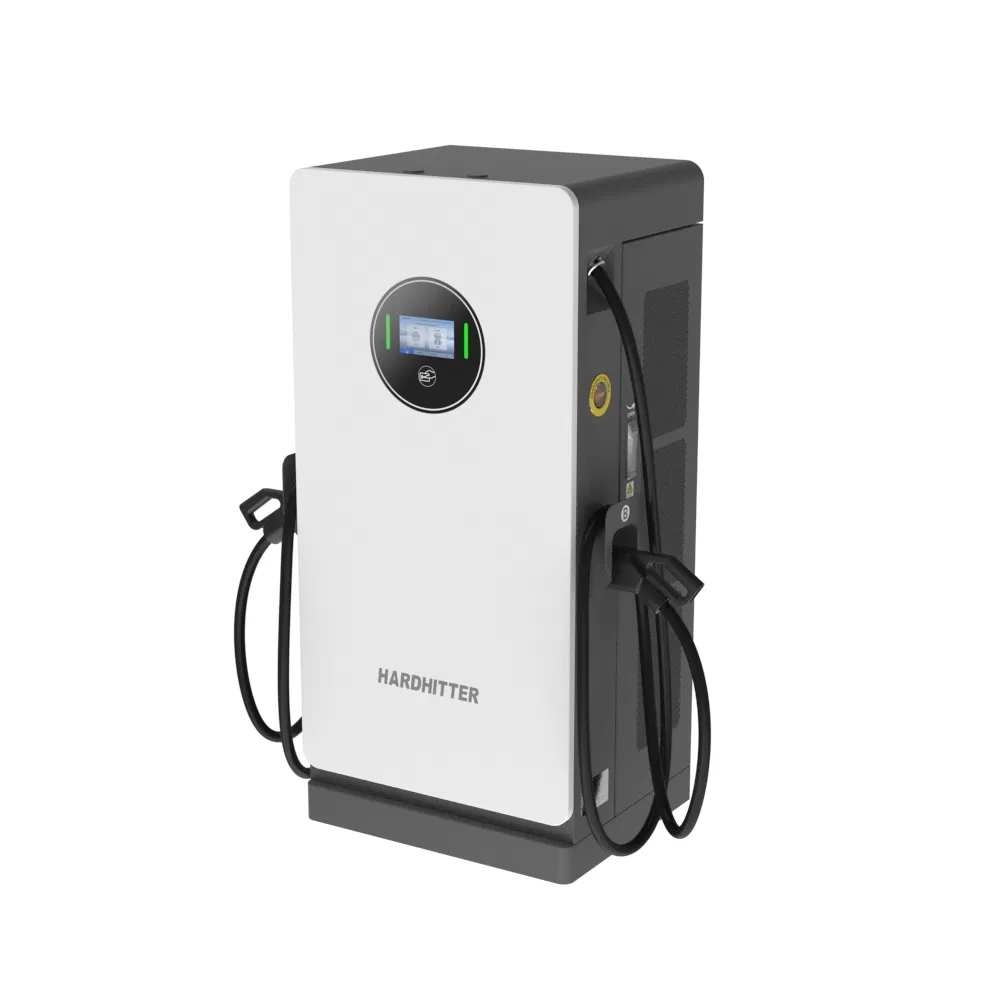

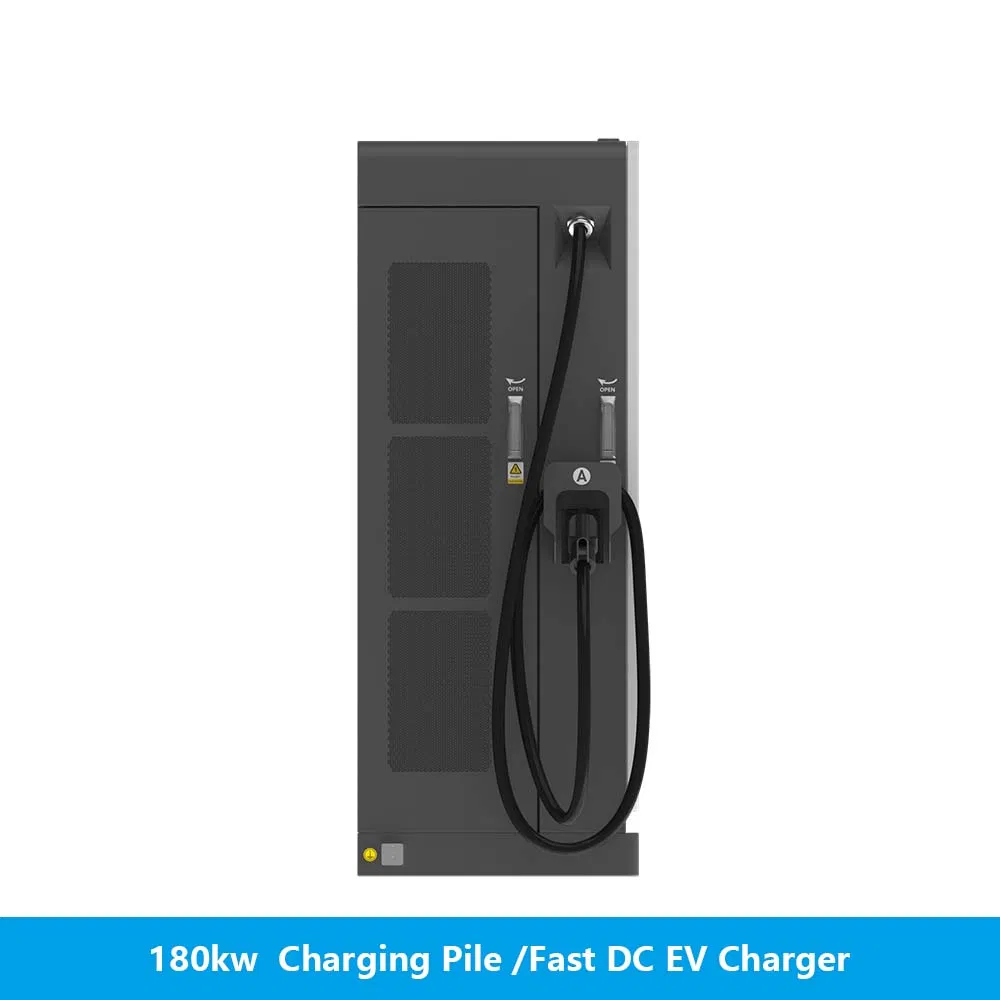

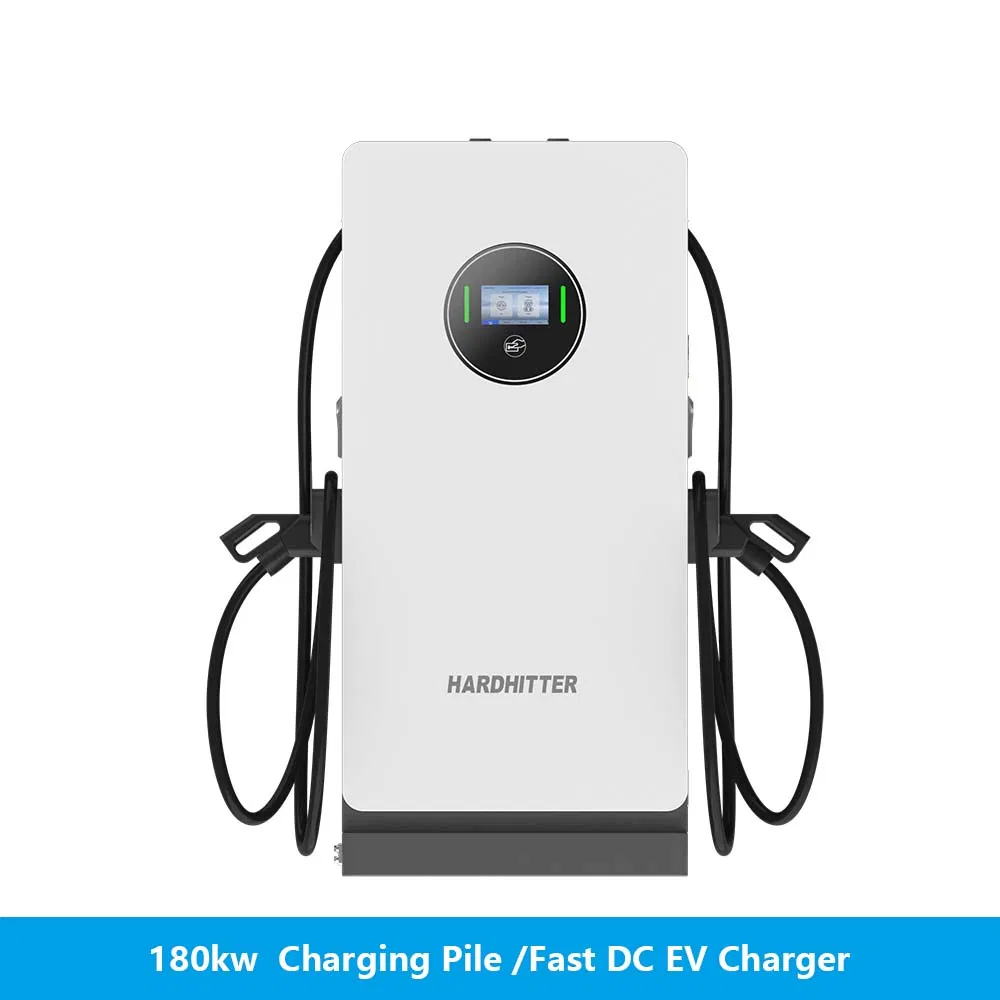

Advanced 180kw DC Charging Pile for Evs with CCS2 Gbt Interface, Ideal for Modern Fast Charging Networks
Product Description
📋
Basic Information
Model NO.
HQC23-180/1000/500-Y02
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Rated Power
180kw
Input Voltage
AC380V±10%
Protection Level
IP55
Gun Cable Length
Car:4.5m / Bus:6m
⚙️
Technical Parameters
| Output Voltage | 200~1000V |
| Efficiency | ≥95% (Load rate≥50%) |
| Start Mode | Swipe Card, Scan Code, Plug and Charge, Remote Start, Button Start |
| Operation Temperature | -40°C~+60°C |
| Altitude | ≤2000m |
| Dimensions | W810mm * H1700mm * D600mm |
| Weight | 289kg (Without modules) |
| Communication | Ethernet / 4G |
| Protocol | Proprietary Protocol, OCPP1.6 (2.0 optional) |
⭐
Key Features
- High-efficiency dustproof mesh with IP55 protection. Glue-pouring process for power modules ensures high reliability and long system life.
- Supports GB/T, CCS2, and CHAdeMO charging interfaces which can be freely combined.
- Configurable 7-inch true color touch screen, card reader, and POS machine for diverse user interactions.
- Versatile startup methods including scan code, RFID swipe, plug-and-play, and timed charging.
- Dual gun charging capability for a single vehicle, ideal for buses and heavy truck applications.
- Front door maintenance design allows for space-saving installation against walls.
🏭
Production & Quality Control
❓
Frequently Asked Questions
How about your Lead time?
Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do your products have quality certification?
Yes, we have a strict quality control system. Our EV charging products have passed CE and TUV certifications to ensure the best quality.
How long is the warranty?
The warranty for our products is 12 months upon receipt of your shipment under normal operating circumstances.
Can you provide customized services?
Yes, we have been involved in OEM and ODM projects since 2012 and can provide professional customized solutions for our clients.
Can the EV charger charge all electric vehicles on the road?
Yes, our models work with all electric vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to work with our chargers.
Does the EV Charger need any apps or internet?
Some models are standalone (using RFID cards or plug-and-play), while others are Wi-Fi connected and compatible with Apps and OCPP 1.6j applications.
