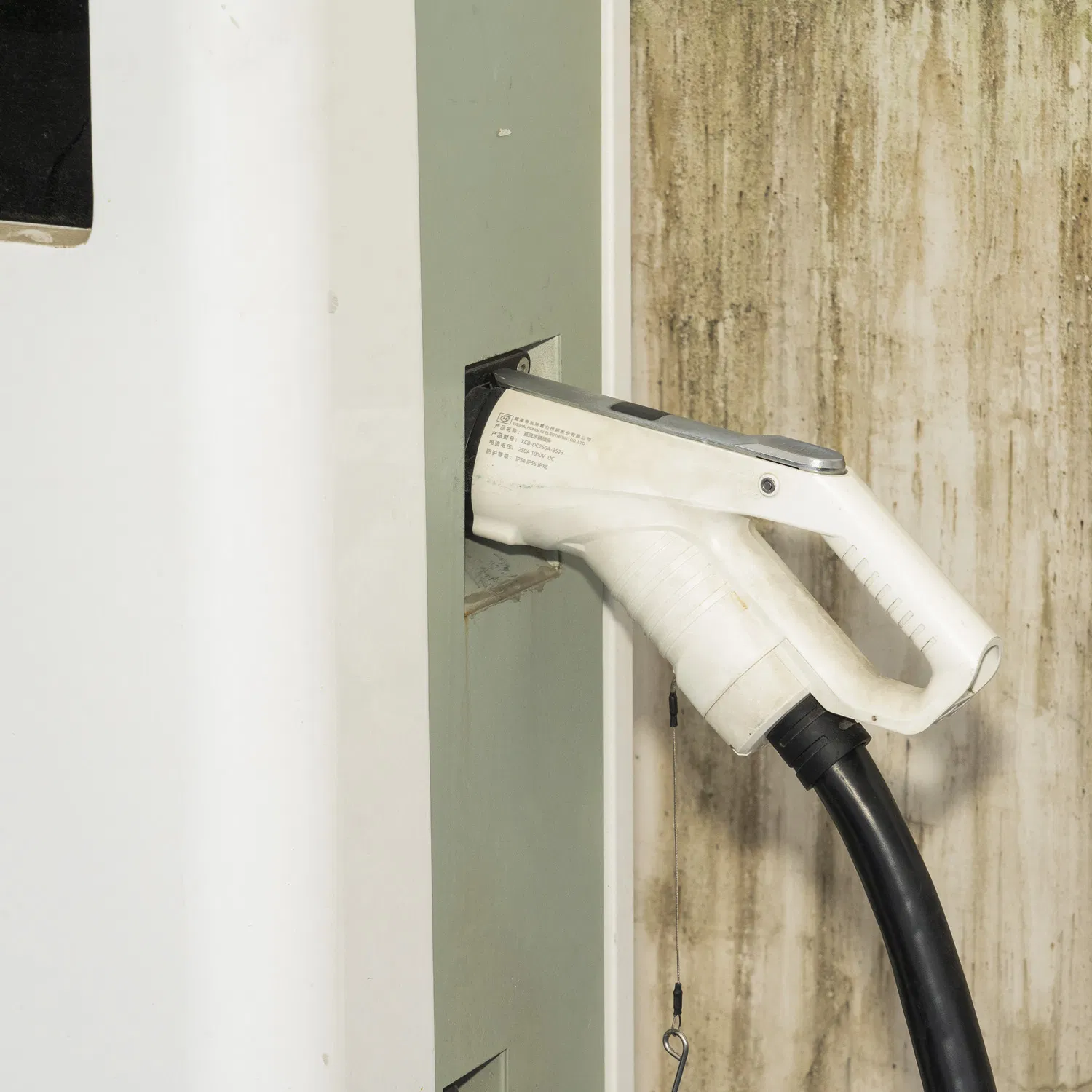

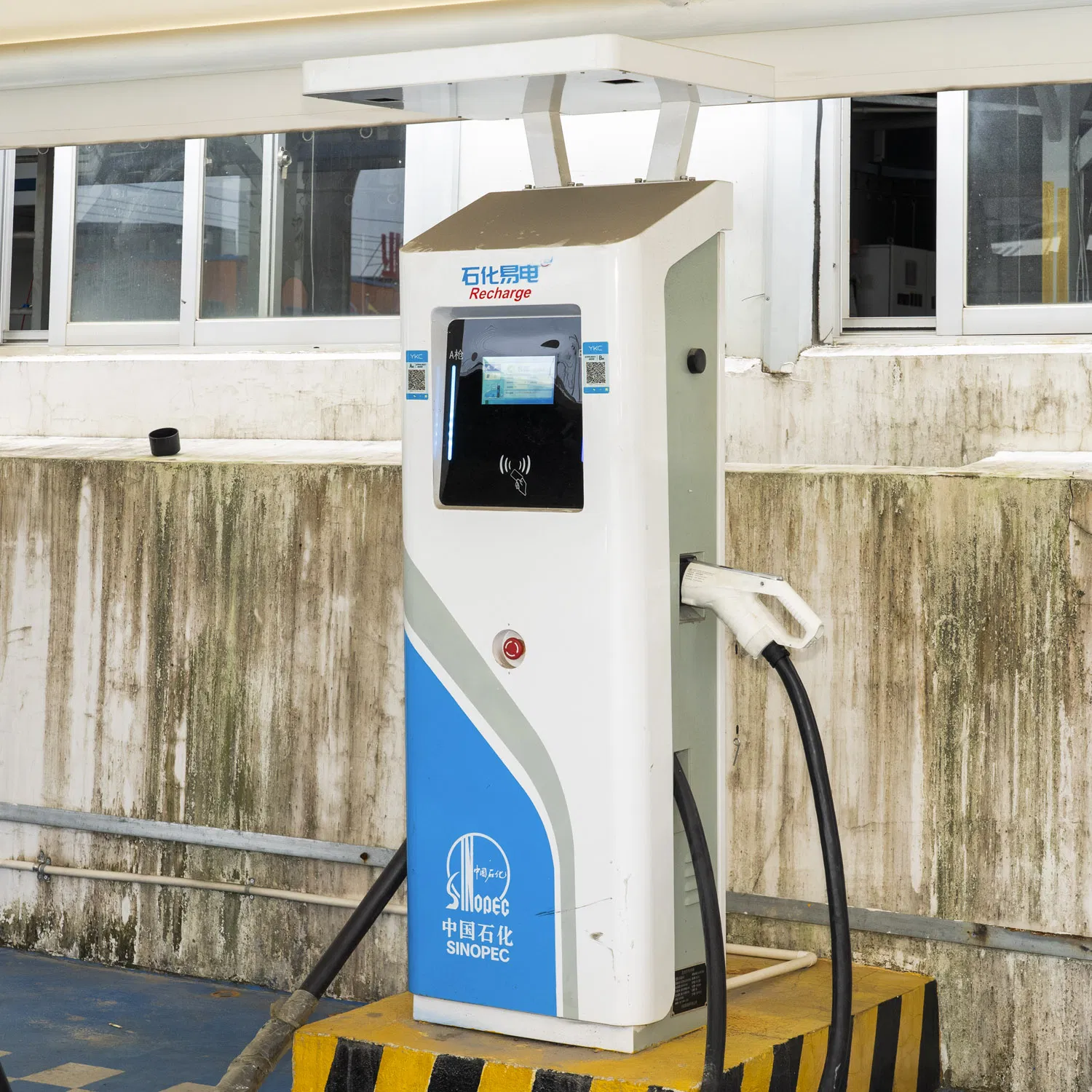

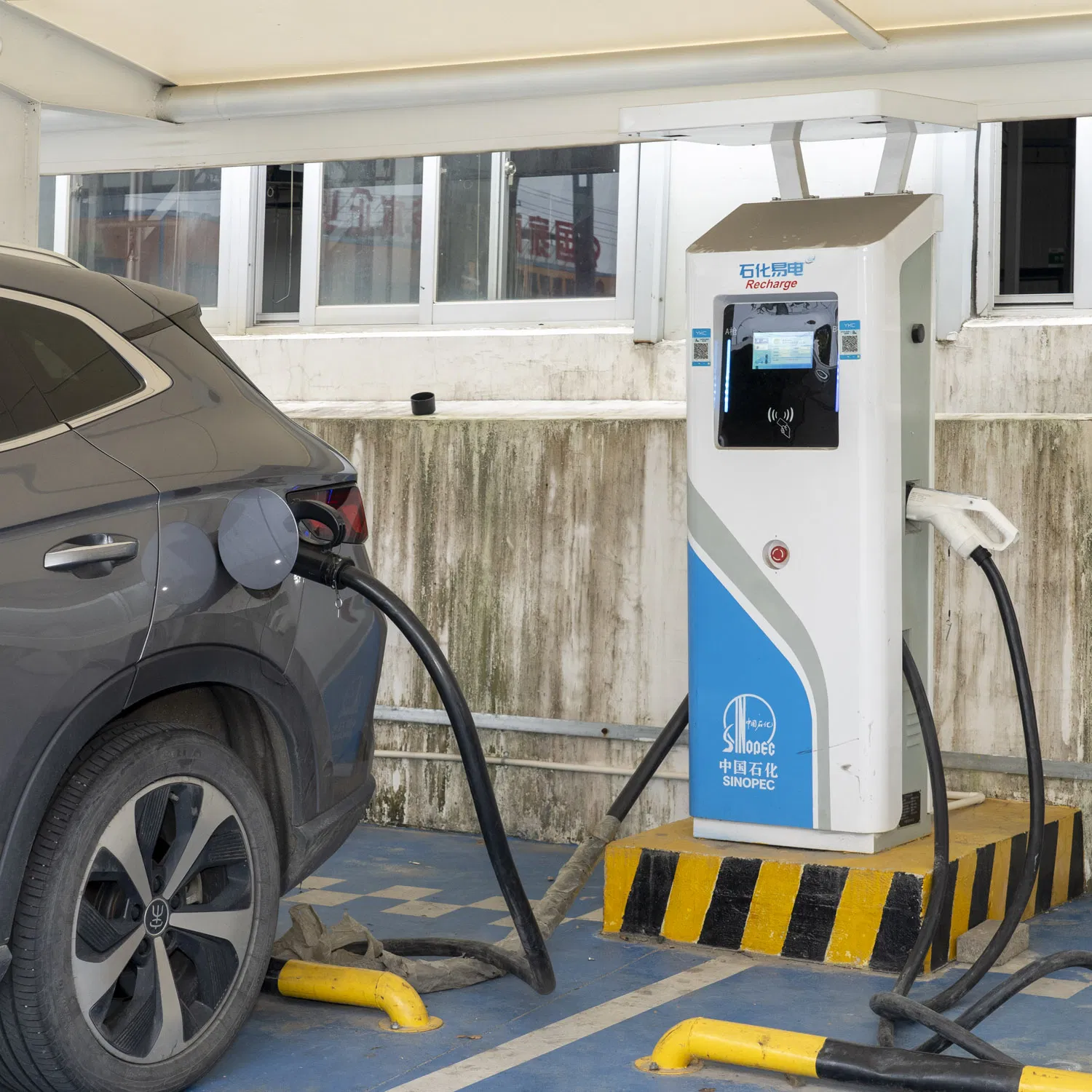

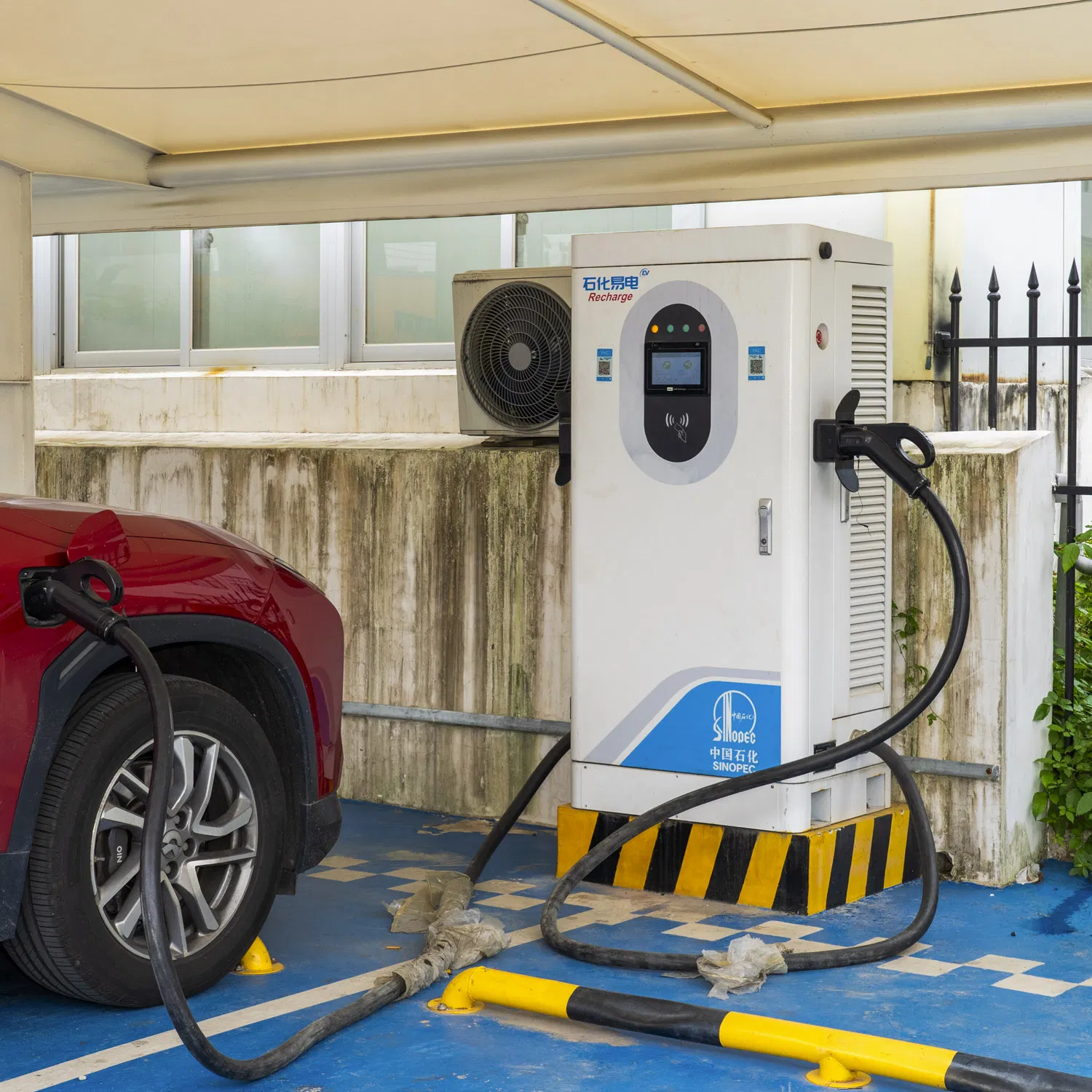

120kw Floor-Standing American Standard DC Fast Charging Pile
Product Description
📊
Basic Information
Output Power
501 - 1000W
Grid Type
Grid Inverter
Output Type
Single
Circuit Topologies
Push-Pull Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Input Voltage
70~280VAC
Output Voltage
220VAC-240VAC
Inverter Efficiency
93%
Warranty
Three Years
Application
Home, Industrial, Commercial
Origin
China
🖼️
Product Display
⚙️
Technical Specifications
| Parameter Item | Description / Value |
|---|---|
| Model & Rated Power | Rated Power: 160kW / 240kW |
| Electrical I/O | Input: AC 380V±15%, 45-60Hz; Output: DC200-1000V, 5-800A |
| Performance Metrics | Efficiency: >95% | Power Factor: 0.99 (above 50% load) |
| Dimensions | Product Size: 820×60×1800mm | Cable Length: 5m |
| Transfer Time | 10ms (Personal Computers) / 20ms (Home Appliances) |
📝
Product Features

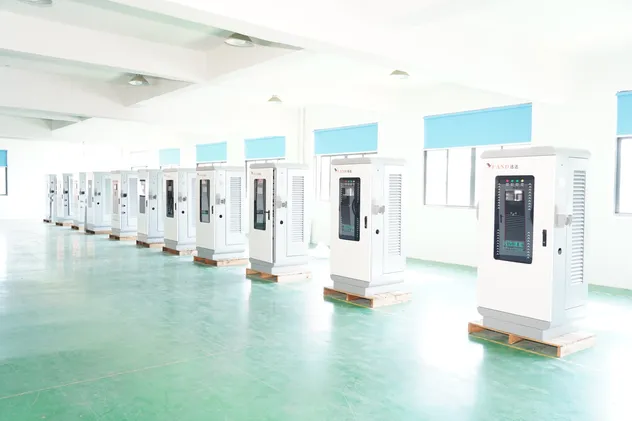

Focusing on high-power fast charging equipment, our solutions provide efficient energy replenishment for electric vehicles. The equipment is manufactured using fully automatic production lines with strict quality inspection processes, ensuring a qualification rate of 99.8%. We provide customized charging solutions, covering equipment supply, installation, and maintenance services for global markets.
▶
❓
Frequently Asked Questions
What is an electric vehicle (EV) charging pile and how does it work?
An EV charging pile is a dedicated device that supplies electrical energy to vehicle batteries. It connects to the grid, regulates voltage and current according to the vehicle's Battery Management System (BMS), and delivers DC or AC power safely.
What is the difference between AC charging and DC fast charging?
AC piles (3.6kW–22kW) are slower and use the vehicle's onboard charger, ideal for home/office. DC fast piles (50kW–480kW) supply power directly to the battery, bypassing the onboard charger for rapid replenishment in public areas.
How do I choose the right power rating for my needs?
Check your vehicle's max supported charging power. For home use, 7kW–11kW is standard. For commercial stations, 120kW+ is recommended to allow vehicles to charge from 20% to 80% within approximately 30 minutes.
Are these charging piles compatible with all electric vehicle brands?
Most piles are designed to meet international standards such as CCS, CHAdeMO, or Type 2, making them compatible with the majority of electric vehicles on the market today.
What safety protections are integrated into the equipment?
The units include comprehensive protection against over-voltage, under-voltage, over-current, short circuits, leakage, and lightning strikes to ensure user and vehicle safety.
What is the typical maintenance requirement for DC fast chargers?
Regular inspections of the charging cables, connectors, and cooling systems are recommended. The software can often be updated remotely to ensure compatibility with new vehicle models.
