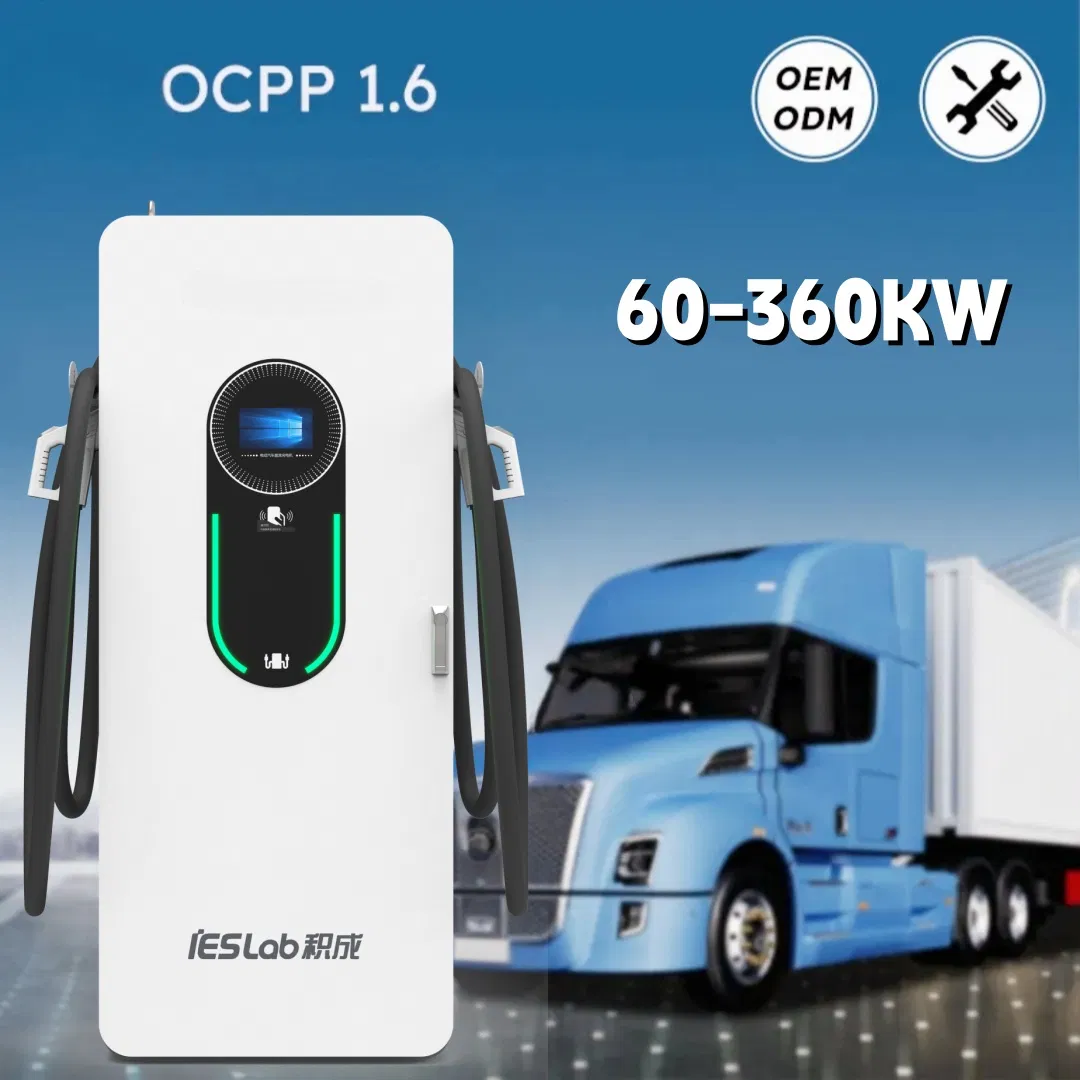

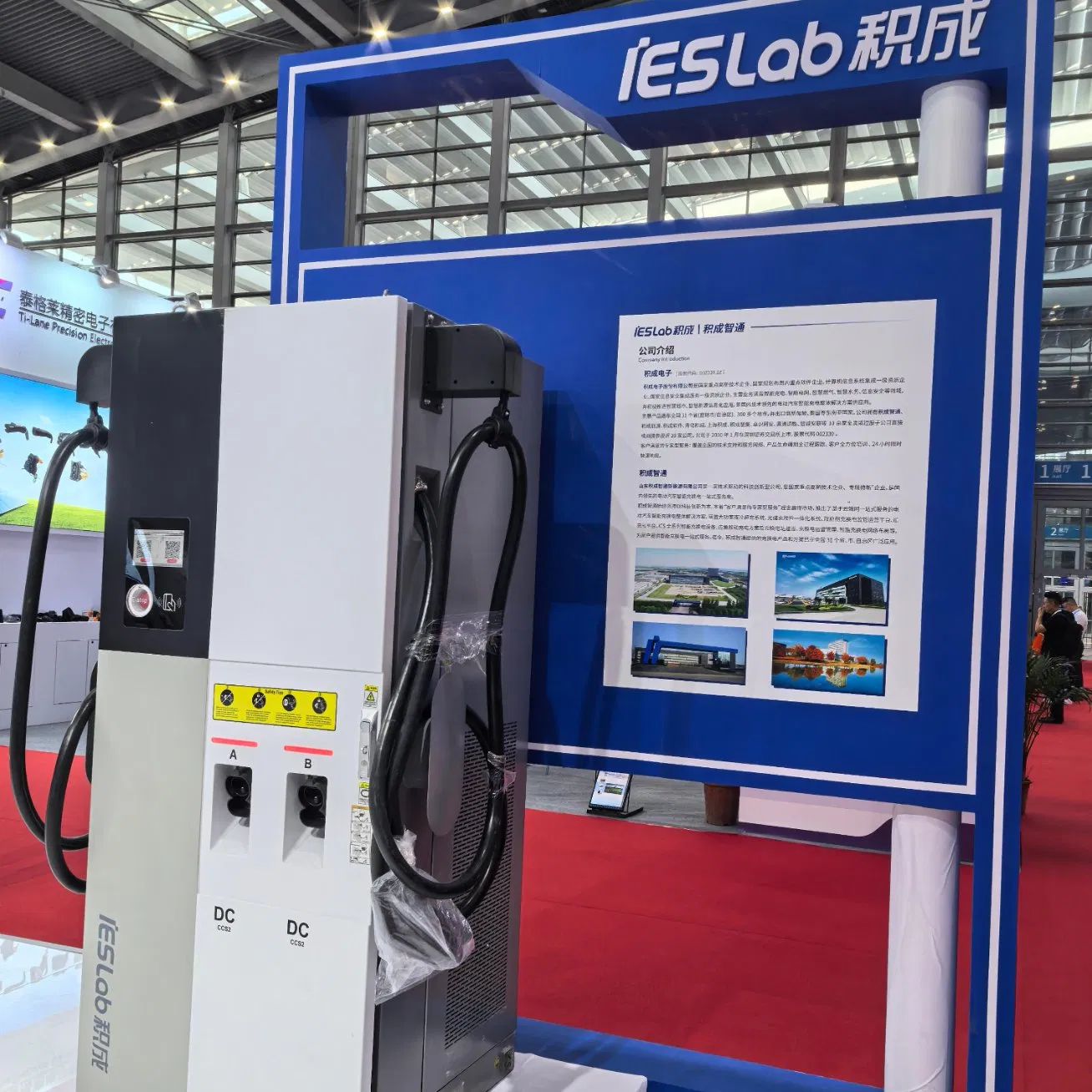

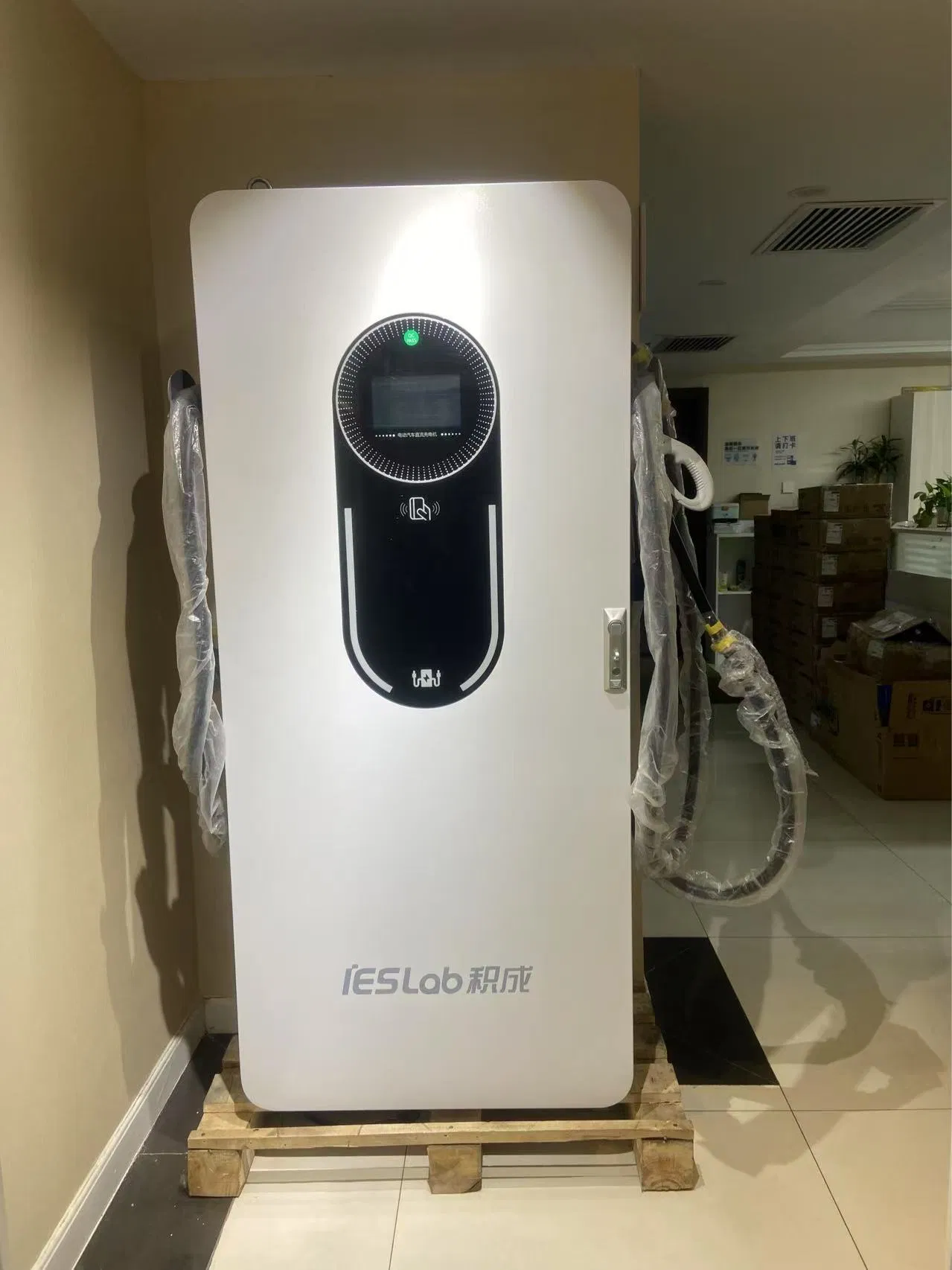

60kw 80kw 120kw 160kw 180kw 240kw 320kw 360kw Wall Mobile Rapid Fast Solar Powered DC Electric Vehicle Car Battery EV Charger
Product Description
📋
Basic Information
Model NO.
iES-ICS6260E-1/2-60-360
Location
Public Use, Private Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
RFID, APP Control, Credit Card, Plug & Play
Output Power
60kw-360kw
Protection Rating
IP54
Output Voltage
200V-1000V
Rated Output Current
200A/Port
Standard Compliance
IEC 61851-1, IEC 61851-21-2
Network
Wired / 4G
Gun Cable Length
5 Meters (Customizable)
Certification
CE, TUV, RoHS, ISO
Operating Temp
-20℃ ~ 50℃
After-Sales Service
2 Years Warranty
⚡
Product Description

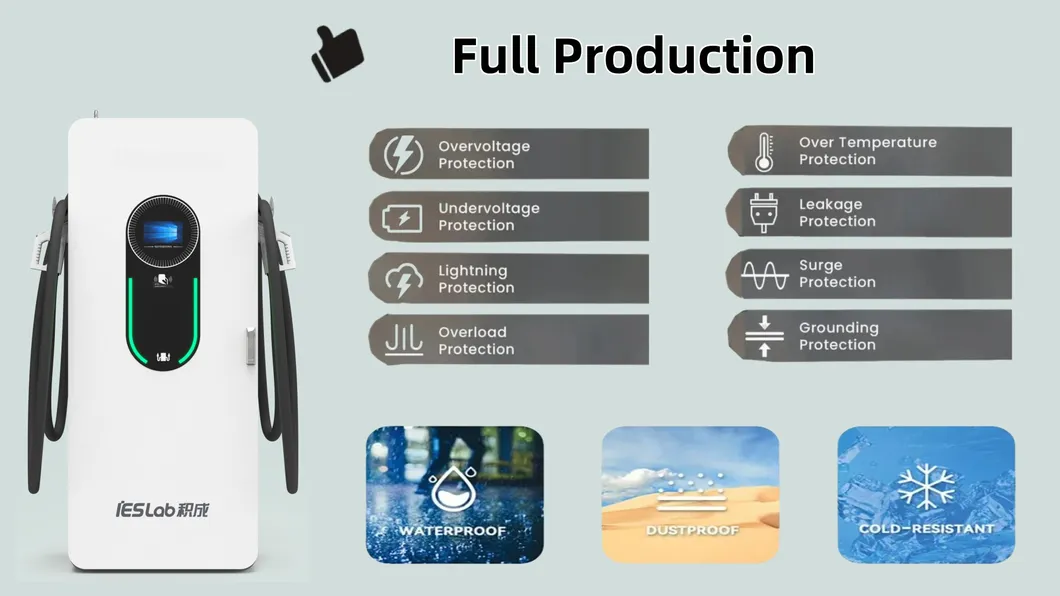

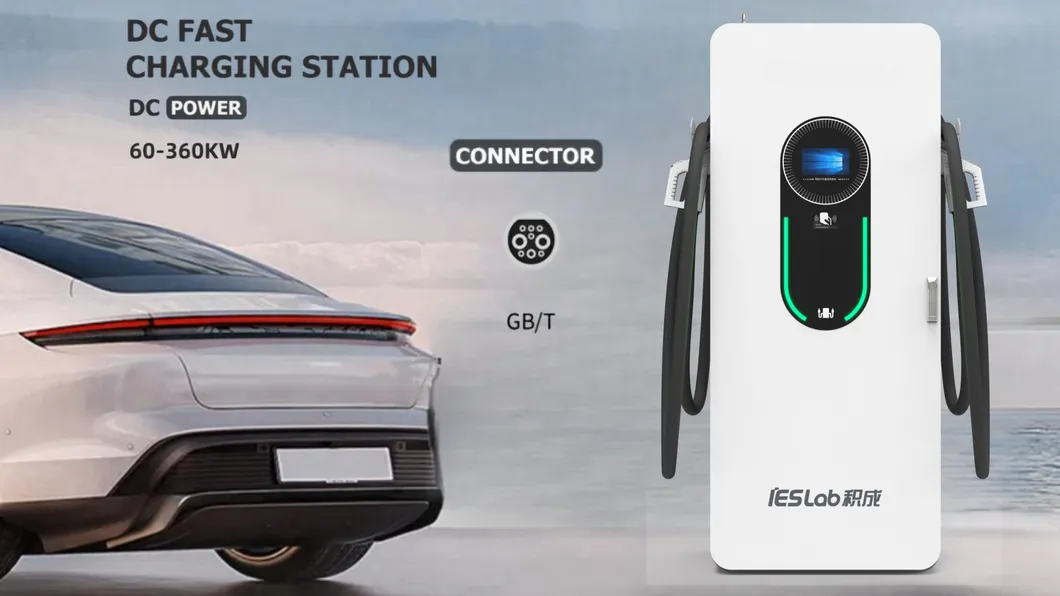

This 60kW ~360KW integrated DC charger is dustproof and waterproof. Support OTA remote intelligent diagnosis and upgrade. It has comprehensive protection functions such as overvoltage, undervoltage, short circuit, and overtemperature. It also supports emergency stop and automatic restart functions, suitable for installation in a variety of environments.
📊
Technical Parameters
| GBT DC Product Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Product Name | Integrated DC Charger | |||||||
| Output Power | 60KW | 80KW | 120KW | 160KW | 180KW | 240KW | 320KW | 360KW |
| Model | 60KW-1/2 | 80KW-1/2 | 120KW-2 | 160KW-2 | 180KW-2 | 240KW-2 | 320KW-2 | 360KW-2 |
| Max Output Current | 200A/Port | 250A/Port | ||||||
| Installation | Floor-standing | |||||||
| Display Screen | 7-inch color LCD (optional) | |||||||
| Dimensions | 75*45*160cm | 75*70*190cm | 100*100*180cm | |||||
| Input Voltage | AC380V ± 15% | |||||||
| Protection | IP54 | |||||||
🏆

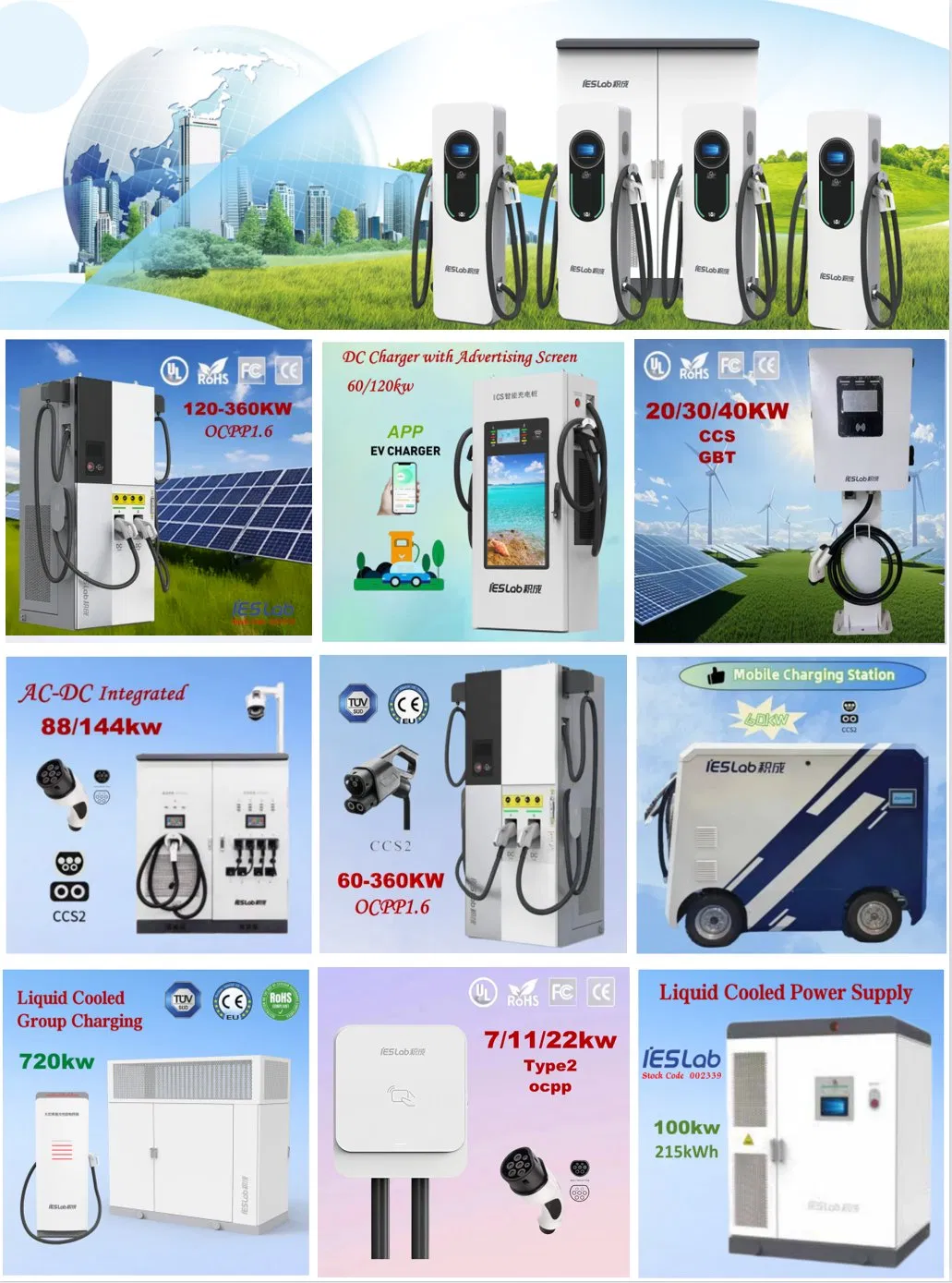

Main Products & Certifications
🏭

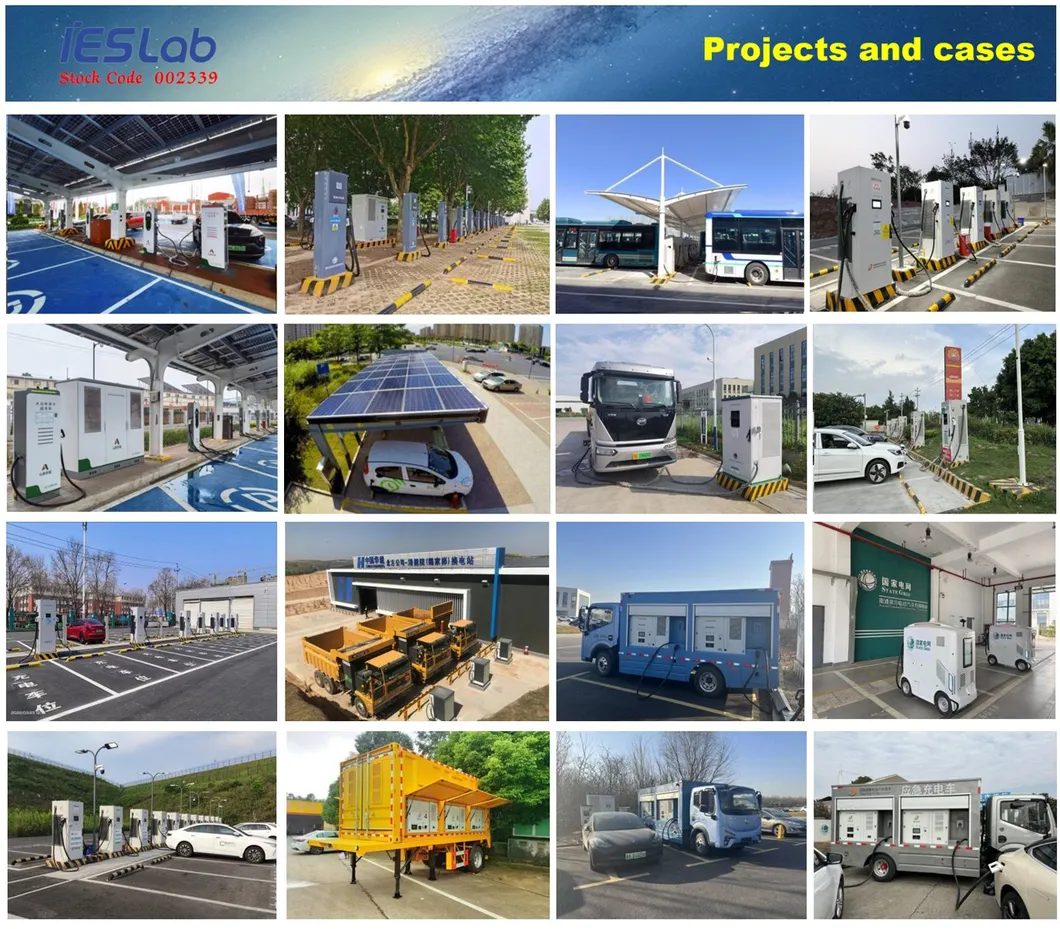

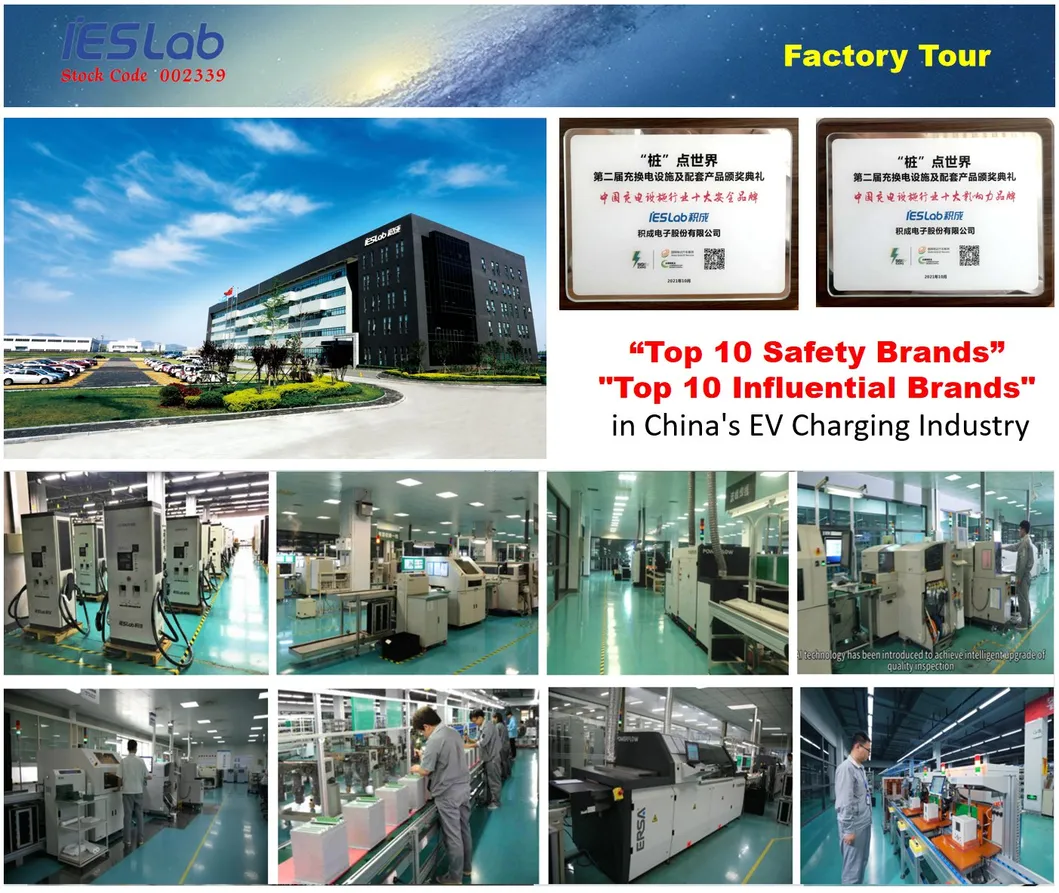

Factory & Application Cases
❓
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A: We are professional manufacturer with 20 years of R&D and production experience. You are highly welcomed to visit our factory at any time!
Q2: Is customization acceptable?
A: Yes, you can customize the appearance, power, payment method, and more. Our team will tailor the solution to your specific needs.
Q3: What is the warranty policy?
A: We provide a 2-year warranty. During this period, we offer technical support and replacement parts for any quality-related issues.
Q4: Do you test all chargers before shipping?
A: Yes, all major components are tested before assembly, and every single charger undergoes full functional testing before being shipped.
Q5: Is the charging station easy to install?
A: Our charging stations feature a modular design for fast and convenient installation. We also provide comprehensive installation and usage training.
Q6: Can you produce according to samples?
A: Yes, we can produce based on your samples or technical drawings, including building necessary molds and fixtures.
