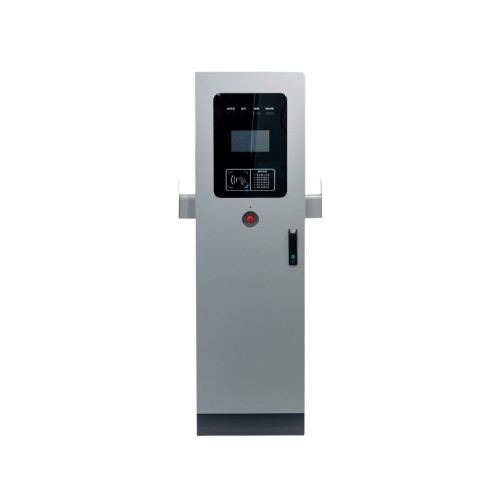

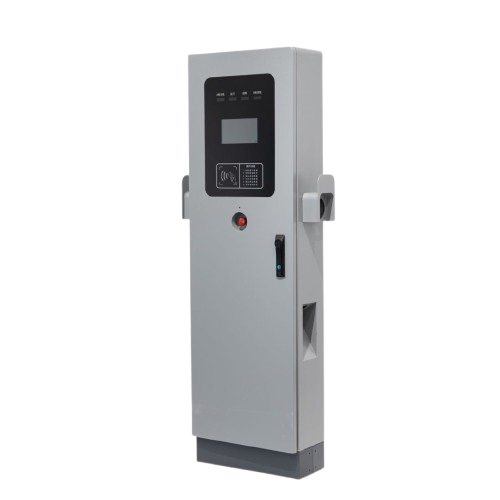

High-Power 360-960kw Solar-Powered DC Charger Delivers Floor-Mounted Split-Type EV Charger Station
Product Description
Basic Specifications
Model NO.
360-960kW
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Transport Package
Wooden Case
Origin
China
Product Overview
Technical Parameters
| Category | Parameter | DC-360/6 | DC-480/8 | DC-720/12 | DC-960/12 |
| General | Power | 360KW | 480KW | 720KW | 960KW |
| Input Voltage | 380VAC±15% | ||||
| Output Voltage | 200-1000Vdc | ||||
| Plugs | 6 | 8 | 12 | 12 | |
| Terminal | Output Current | 800A | |||
| Connector | CHAdeMO / CCS1 / CCS2 / GBT | ||||
| LCD Display | 7-inch touch screen | ||||
| Safety | Protection | IP65 (Control), IP55 (Power/Terminal), IK10 Impact Protection | |||
Technical Profile
The facility operates as a green and environmentally friendly new energy enterprise, integrating the production of new energy charging piles, electric vehicle charging station solutions, and the integration of photovoltaics and energy storage. As a technical leader in the manufacturing of electric vehicle charging infrastructure, the operation focuses on power transmission and distribution control equipment, aiming to create the safest and most efficient vehicle charging networks.
Operation & Troubleshooting
Charging Fails or Stops Automatically:

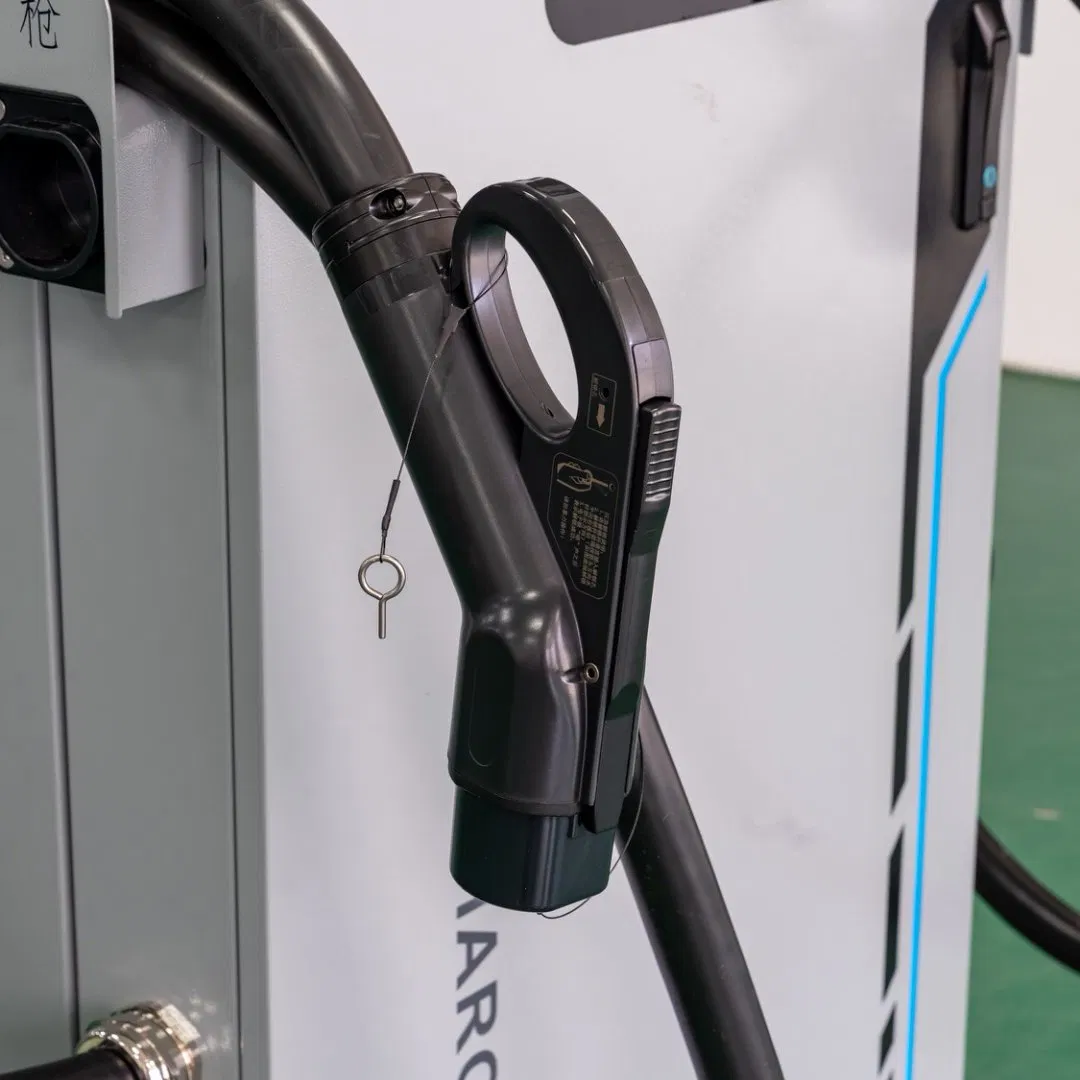

- Physical Connection: Ensure the charging gun is fully inserted; check for foreign objects or oxidation.
- Communication: Verify handshake between vehicle BMS and the pile; ensure operator authentication is complete.
- Safety Triggers: Check for insulation test failure or electronic lock malfunction.
Frequently Asked Questions
What is the maximum output power of this charging station?
The system is modular and supports high-power output ranging from 360kW up to 960kW, depending on the specific model and power cabinet configuration.
Which charging connector standards are supported?
Our charging terminals are compatible with major global standards including CHAdeMO, CCS1, CCS2, and GBT.
How many vehicles can be charged simultaneously?
Depending on the configuration (DC-360 to DC-960), the system can support between 6 to 12 charging interfaces from a single power cabinet unit.
Is the charging station suitable for extreme outdoor weather?
Yes, the units feature IP65 and IP55 ingress protection and IK10 impact protection, with an operating temperature range of -20°C to +50°C.
What communication protocols does the backend use?
The charging station supports OCPP 1.6J protocol via Wi-Fi, 4G, or LAN connections for seamless backend integration and management.
What safety protections are built into the system?
The system includes comprehensive protection against over/under voltage, over-current, short circuits, over-temperature, and anti-reverse polarity.
