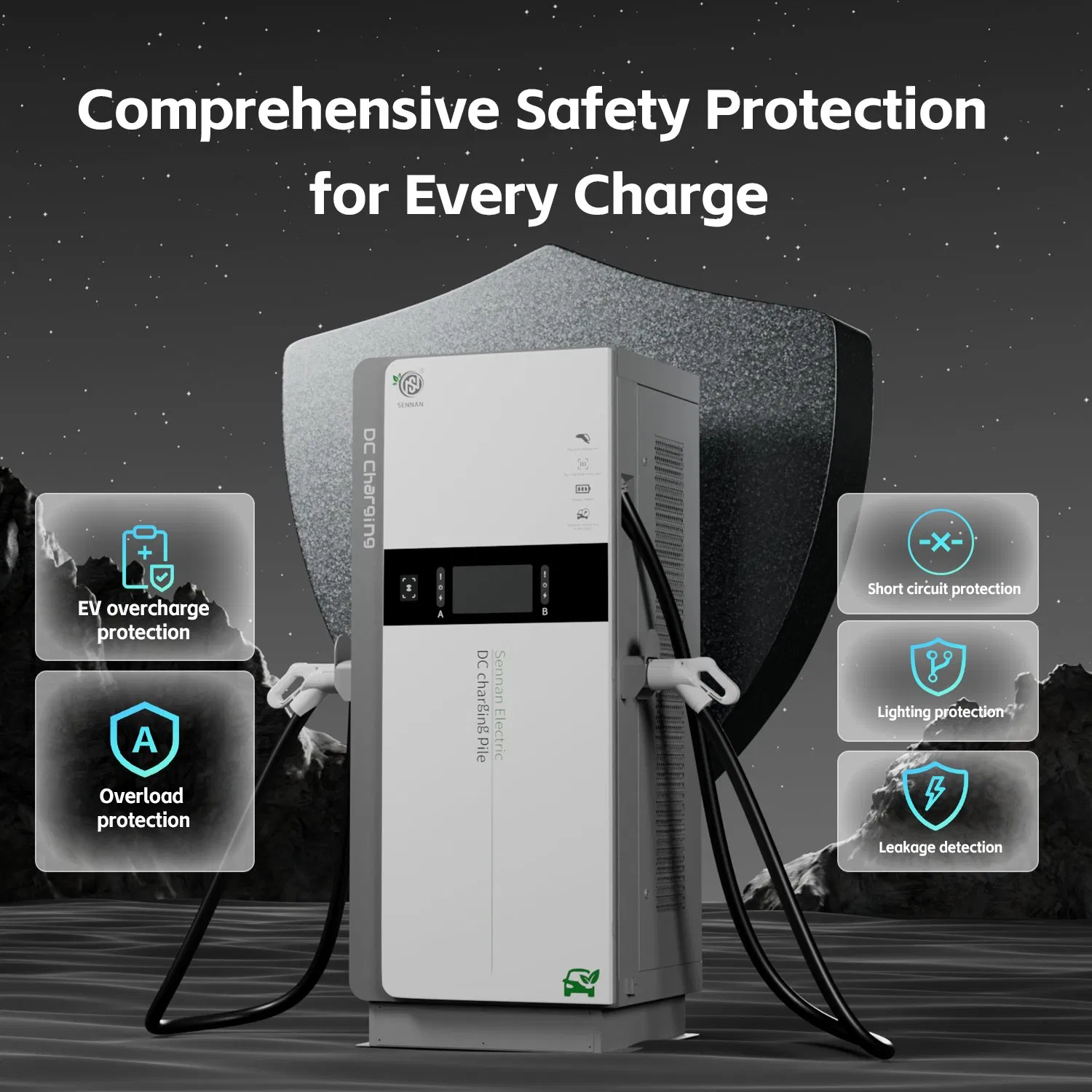

Solar Powered DC Electric Car EV Charger Public Commercial Use Level 3
Product Description
📋
Basic Information
Model NO.
SNEV-1000/60-F-1-A1
Location
Public Use
Interfaces
Multiple Charges

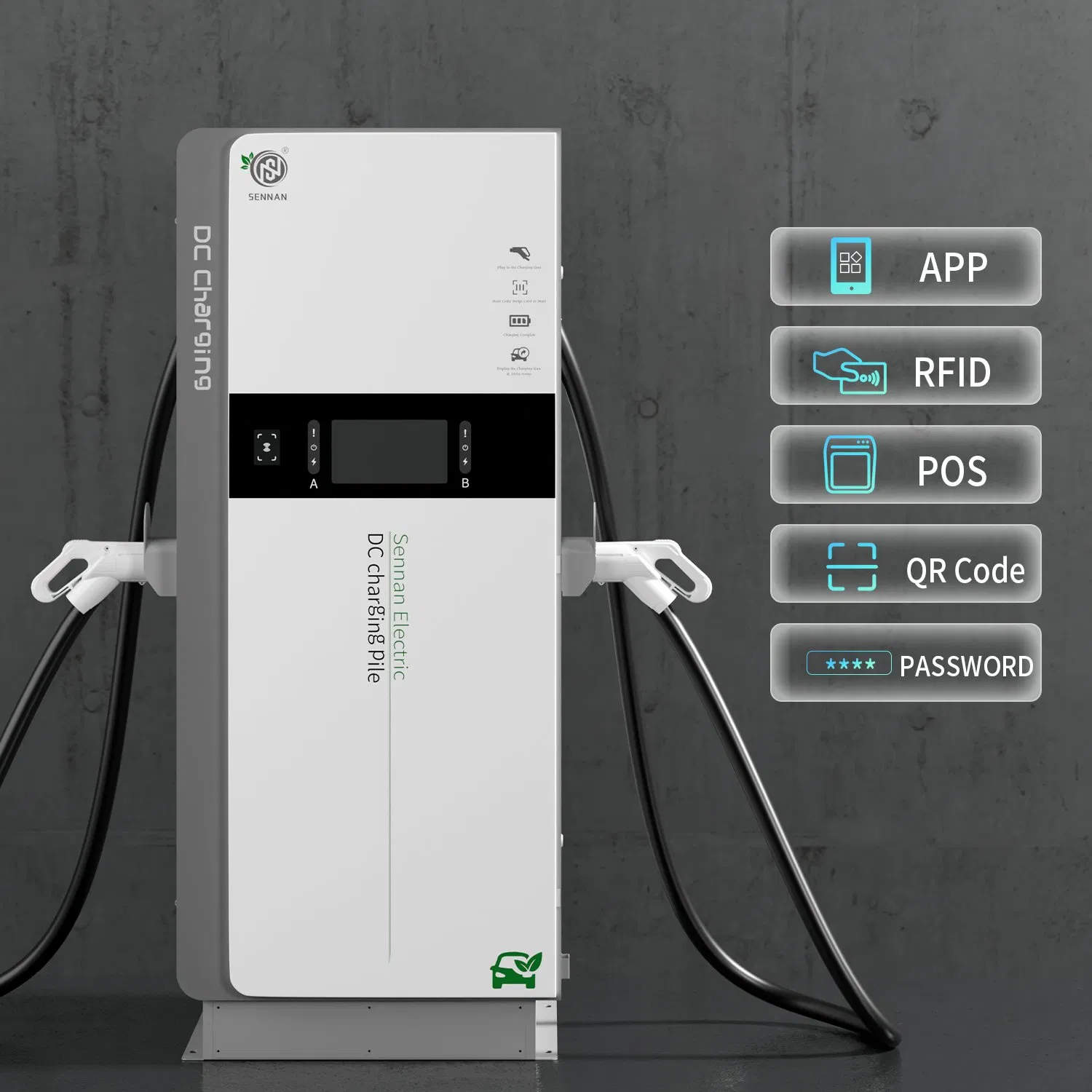

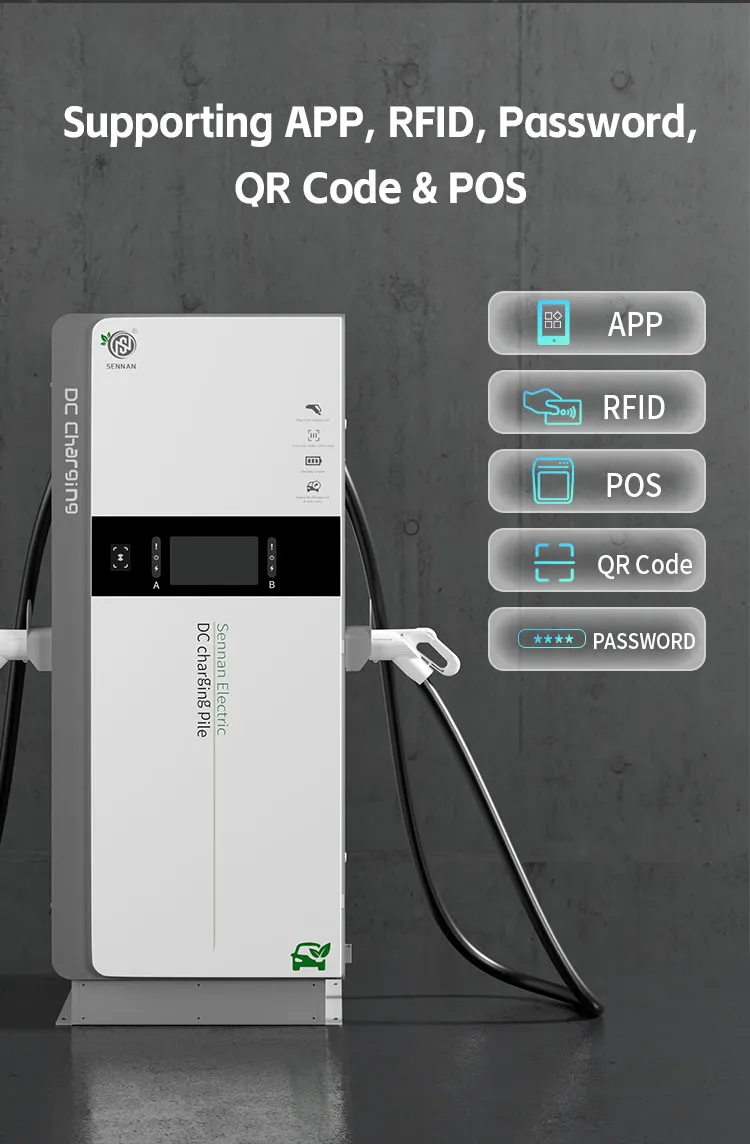

Start Mode
Credit Card, Mobile Remote, RFID
Input Voltage
380VAC
Charging Gun
2 Guns
IP Rating
IP55
LCD Display
10 Inches Touch Screen
Protocol
Ocpp 1.6
Connectivity
4G, Ethernet, WiFi, Bluetooth
Output Voltage
200~1000V DC
Operating Temp
-30℃~+65℃
📊
Technical Specifications

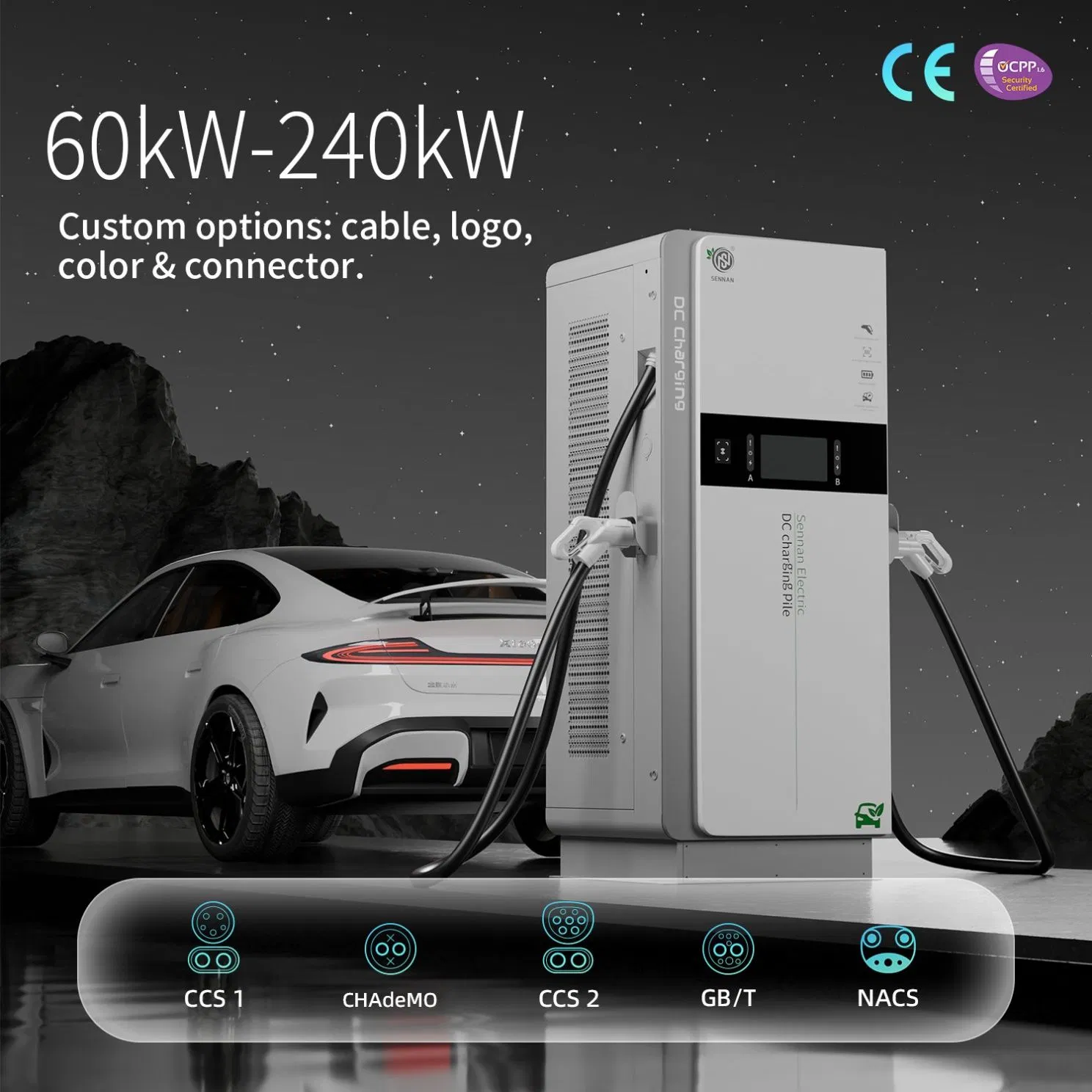

| Item | 60KW Station | 80KW Station | 120KW Station | 160KW Station | 180KW Station | 240KW Station |
| Model Number | SNEV-1000/60-F-1-A1 | SNEV-1000/80-F-2-A1 | SNEV-1000/120-F-2-A1 | SNEV-1000/160-F-2-A1 | SNEV-1000/180-F-2-A1 | SNEV-1000/240-F-2-A1 |
| Input Voltage | 380VAC / 50/60Hz | |||||
| Output Power | 60KW | 80KW | 120KW | 160KW | 180KW | 240KW |
| Output Voltage | 200~1000V DC | |||||

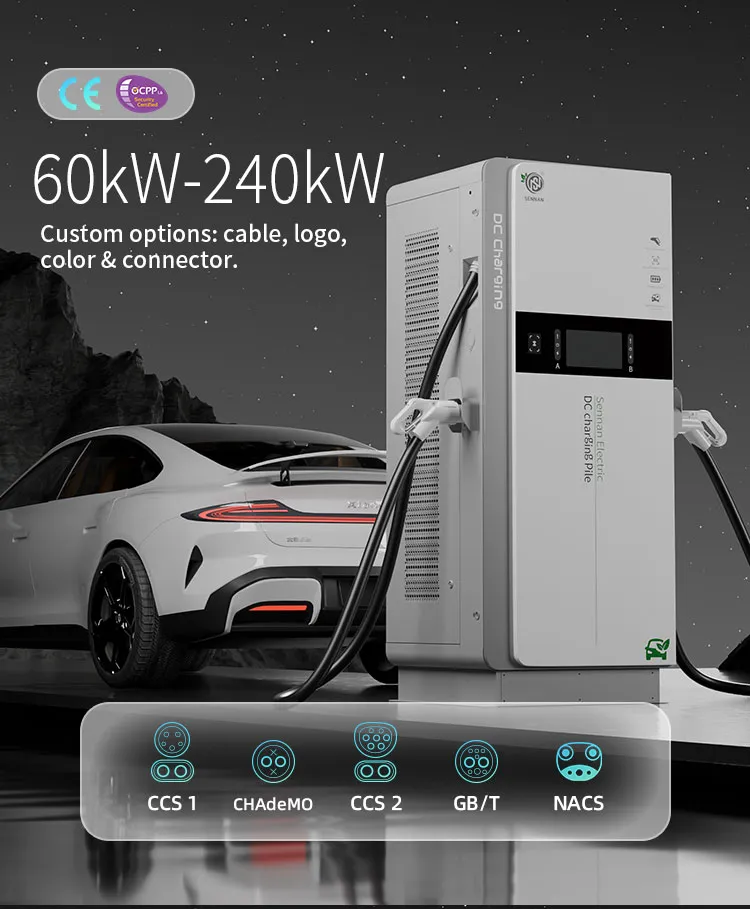

| Connector Type | CCS1, CCS2, CHAdeMO, NACS, GB/T | |||||
| Operating Altitude | <2000M | |||||
🖼️

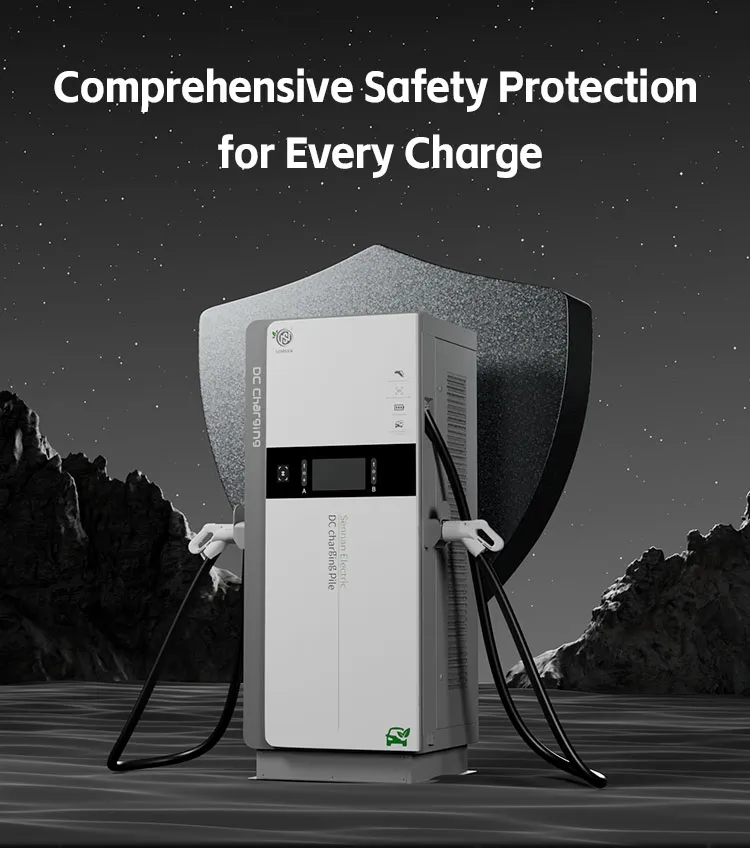

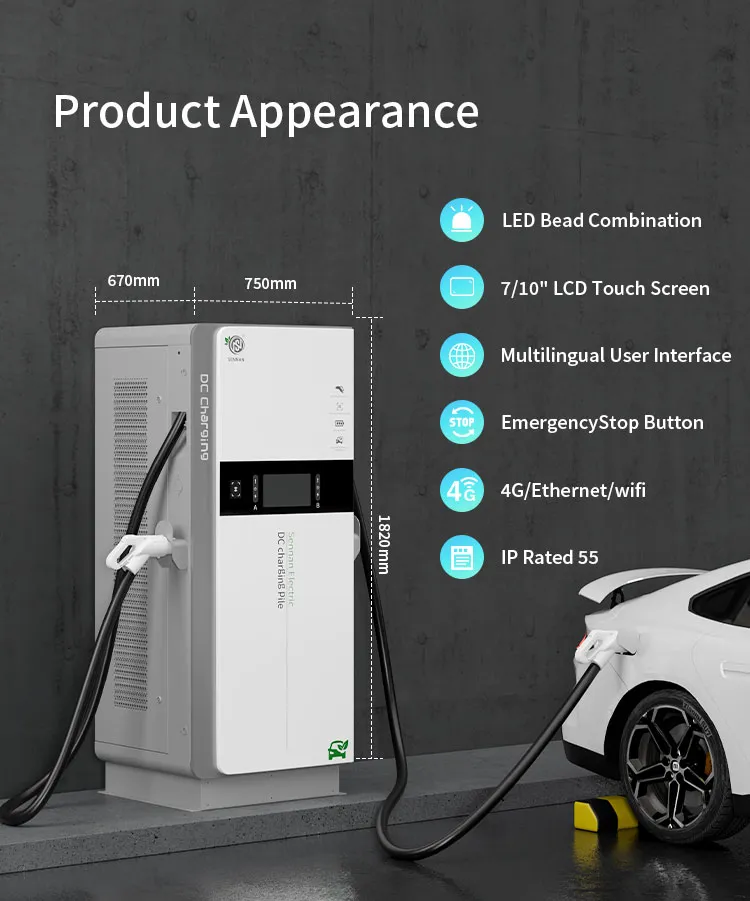

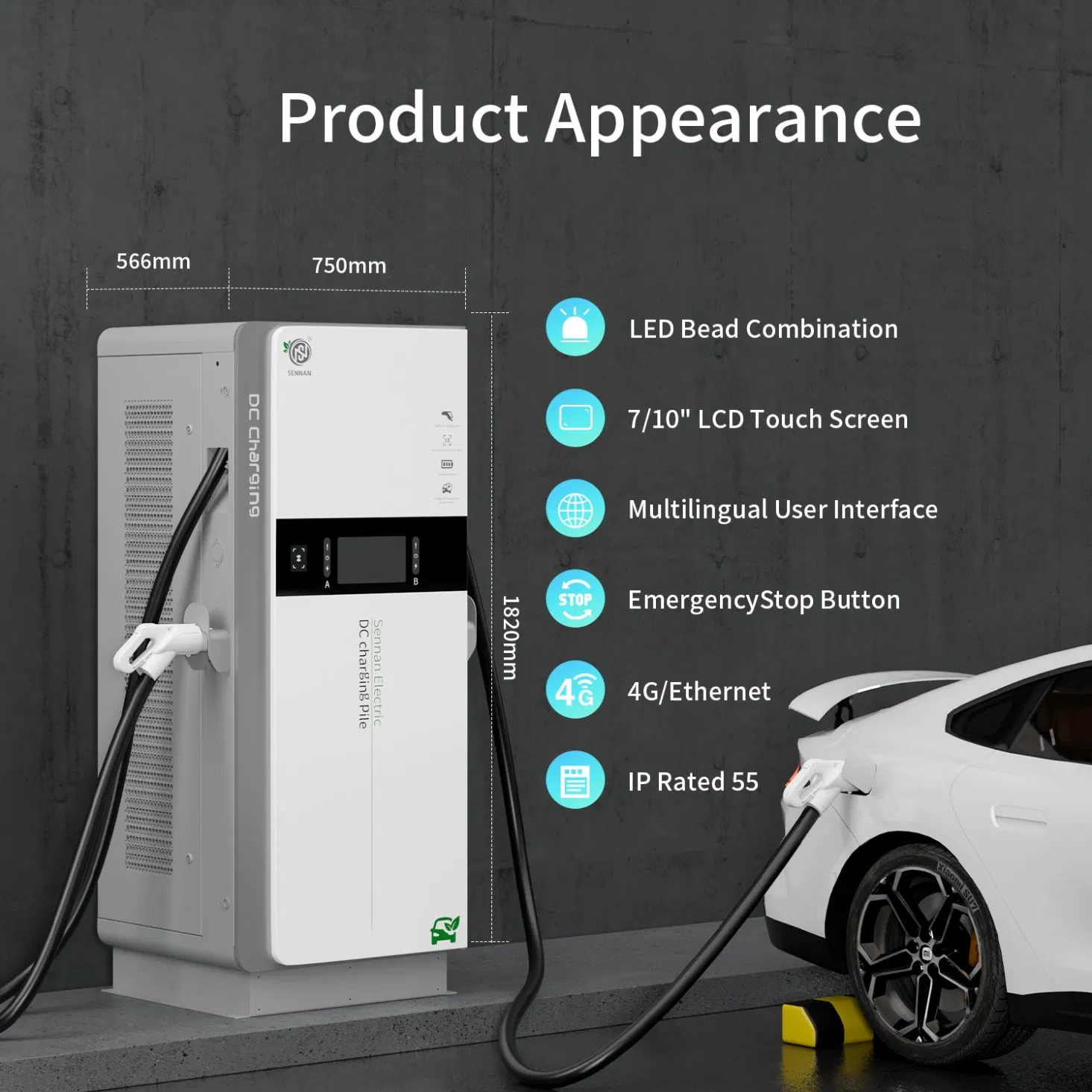

Product Display
❓
Frequently Asked Questions
What is OCPP?
OCPP stands for Open Charging Point Protocol. It is a network protocol that allows the EV charger to connect to a management system in a PC, enabling remote management of chargers, online cards, and positioning.
Can a 2-gun charger charge two cars simultaneously?
Yes. For example, with a 120kw DC charger, each gun will output 60kw when charging two cars. If only one car is charging, it can reach the full 120kw maximum output.
What car brands can be recharged?
All major brands can be recharged. Compatibility depends on the connector standard used in your country (CCS1, CCS2, CHAdeMO, NACS, or GB/T).

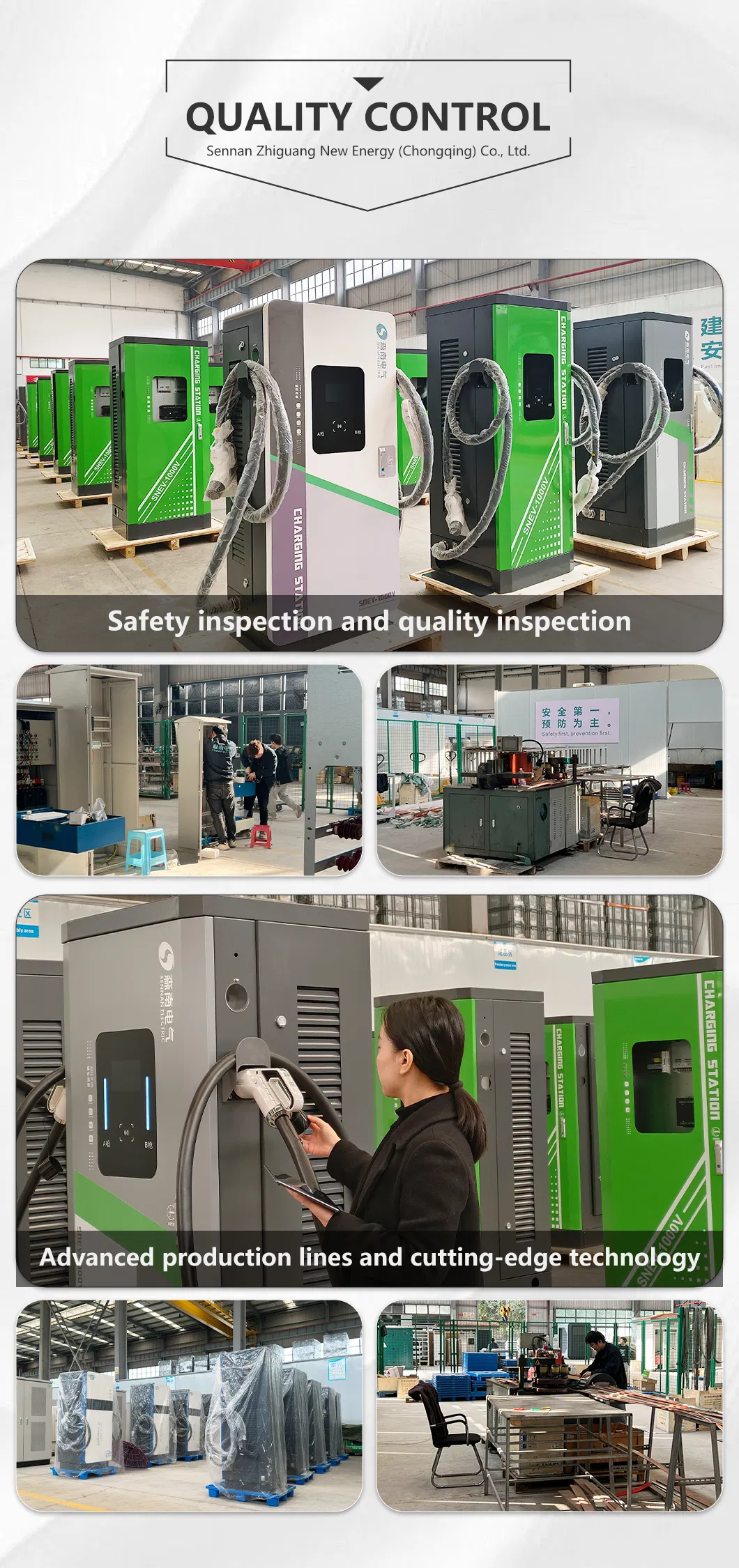

Do you test all goods before delivery?
Yes, we conduct 100% testing on all products before they are dispatched.
What kind of after-sales support do you offer?
We provide lifetime technical support. Our engineers are available for 24-hour online technical assistance to ensure smooth operation.
Can you assist with customs clearance?
Yes, we cooperate fully with customers to handle customs procedures and provide all necessary clearance documentation.
