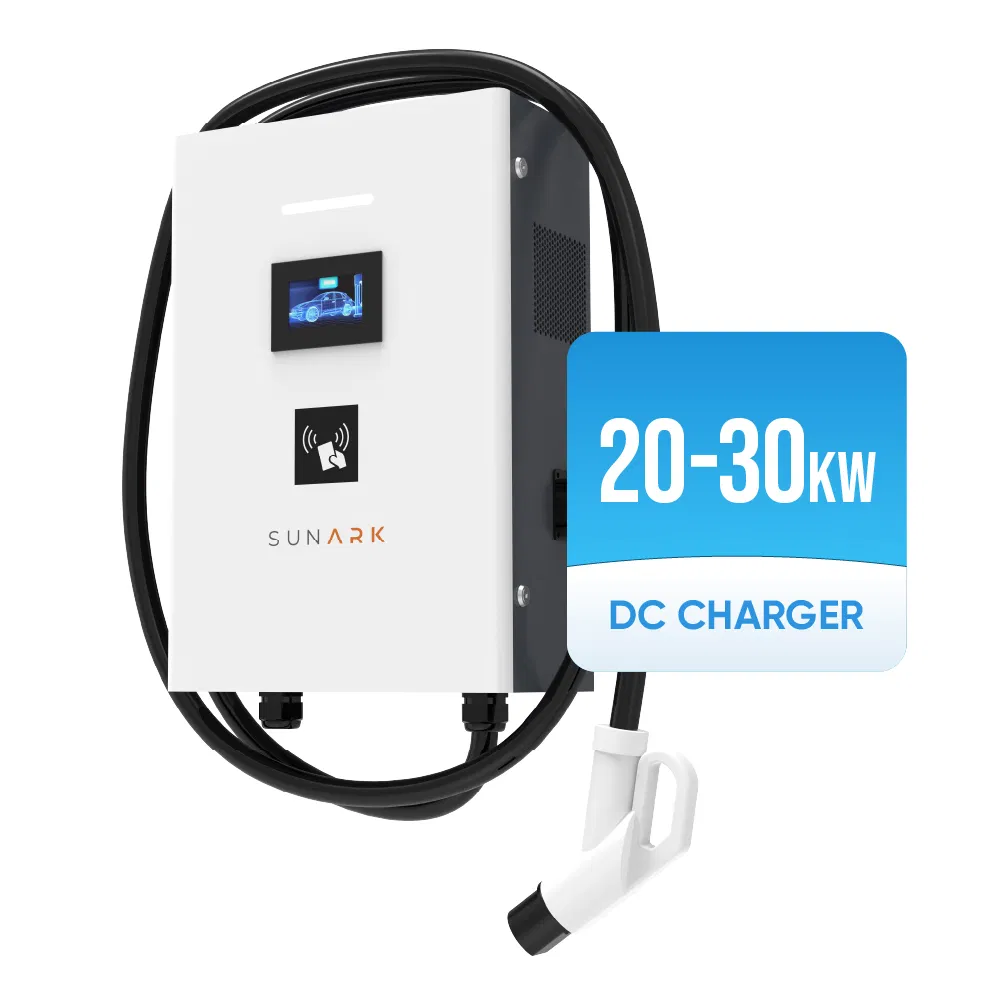

Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station
Product Description
⚡ Basic Information
Model NO.
EV Charger DC 20-30KW
Location
Private Use Public Use
Charging Interfaces
One Pile with Multiple Charges
EV Charger Type
DC
Charger Capacity
20/30kw
Mounting
Wall-Mounted/Pile Type
Cooling
Air-Cooled
IP Ratings
IP 54
Display
7 Inches Touch Screen with Shell
Authentication
Qr Code/RFID Card /Password Login
Communication
Ocpp 1.6j / Ethernet/3G/4G/WiFi
Certificate
IEC 62196, IEC 61851, SAE J1772
Origin
China
📘 Product Overview
| Technical Specifications | ||
|---|---|---|
| Capacity | 20KW | 30KW |
| AC Supply System | Three-Phase, 5 Wire AC system (380V±15%) | |
| Output Voltage | DC200-750V / DC150-500V(JIS) | |
| Max Output Current | 80 Amp | 125 Amp |
| Power Factor | ≥0.99 (above 50% load) | |
| Protection | Over Current, Over/Under Voltage, Surge, Leakage, Short Circuit, Over Temp | |

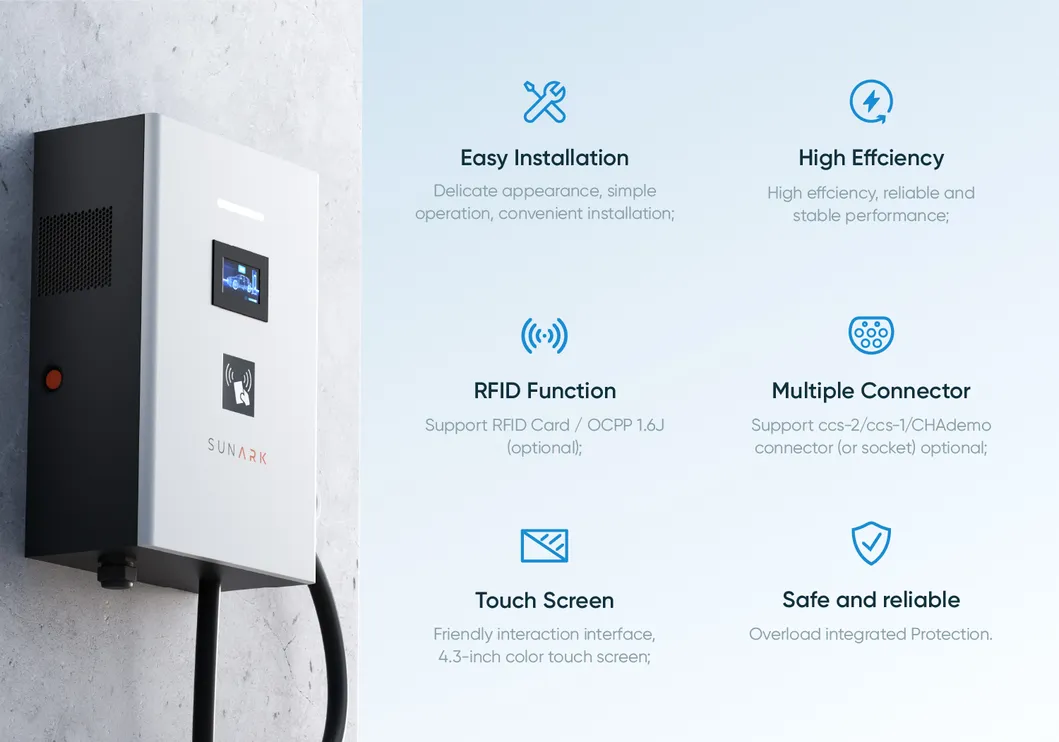

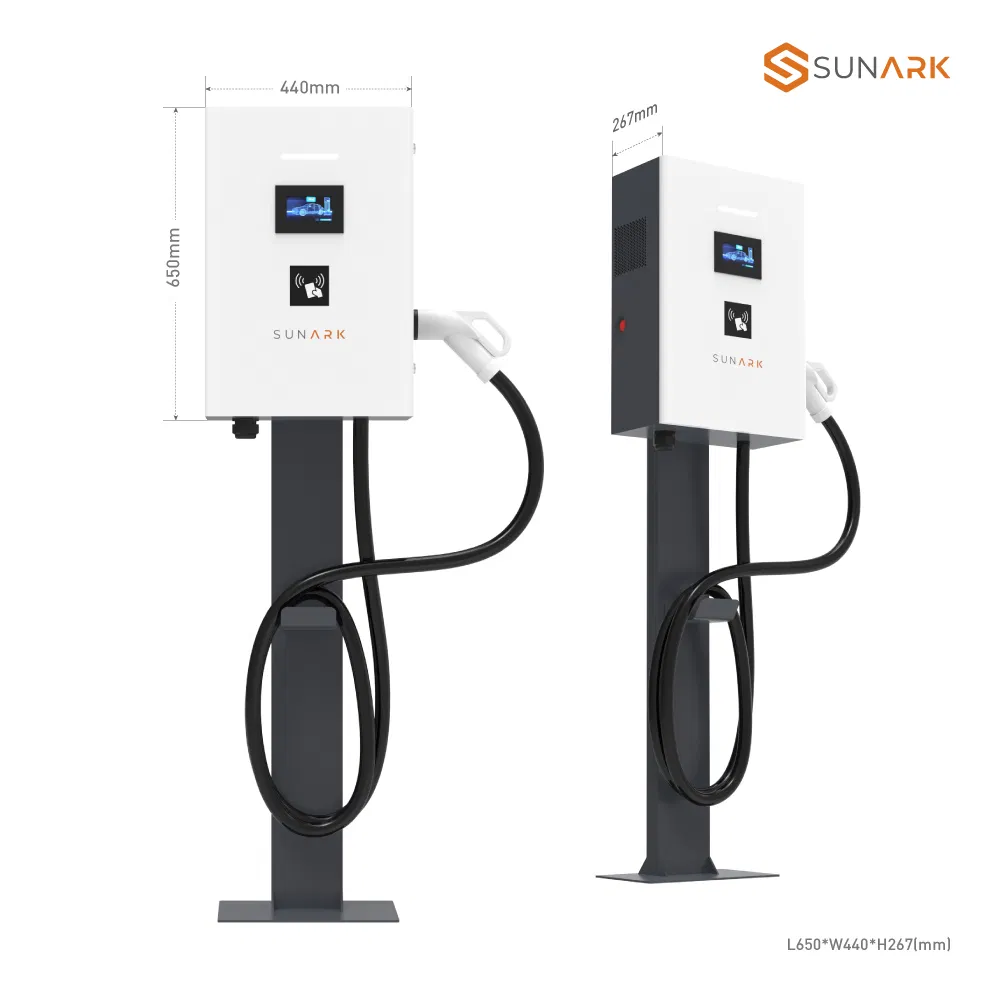

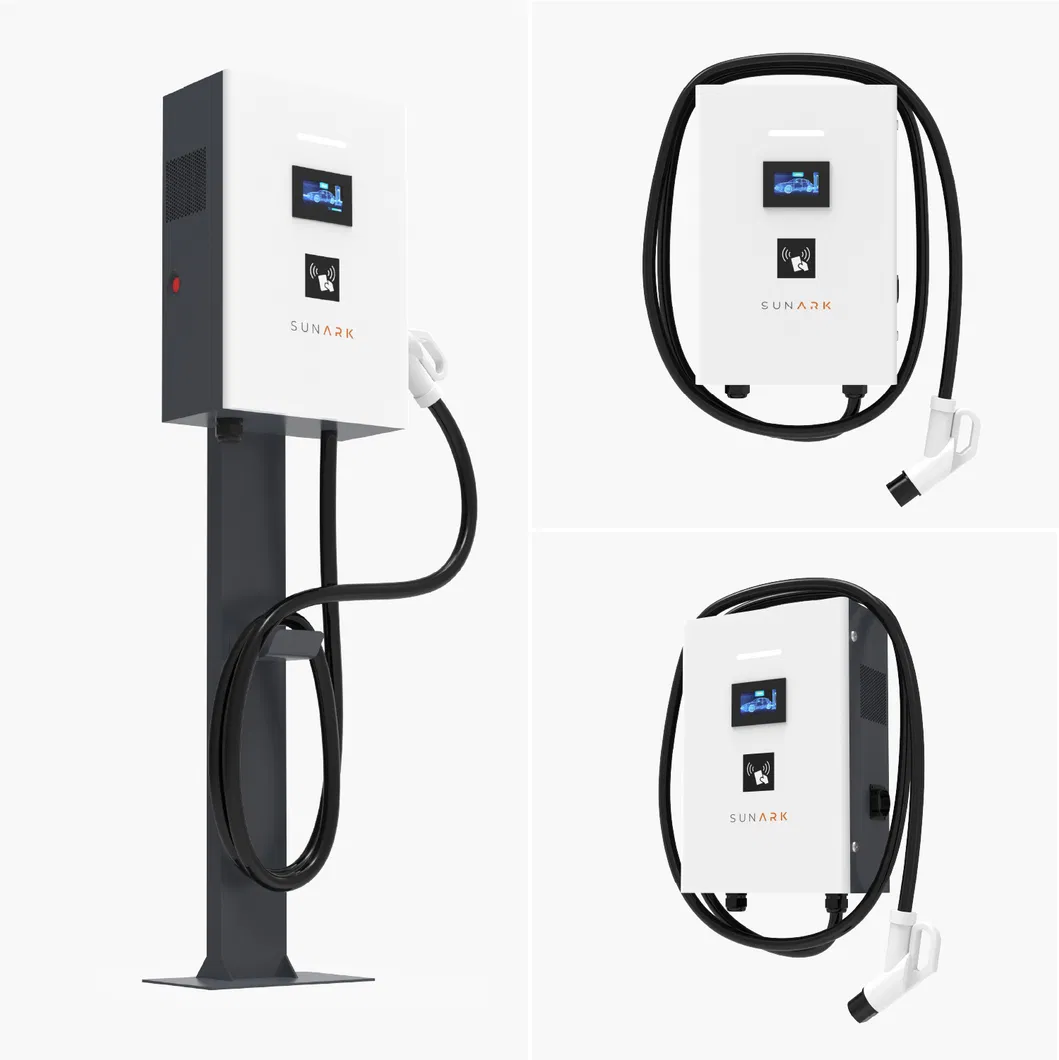

📸 Detailed Photos

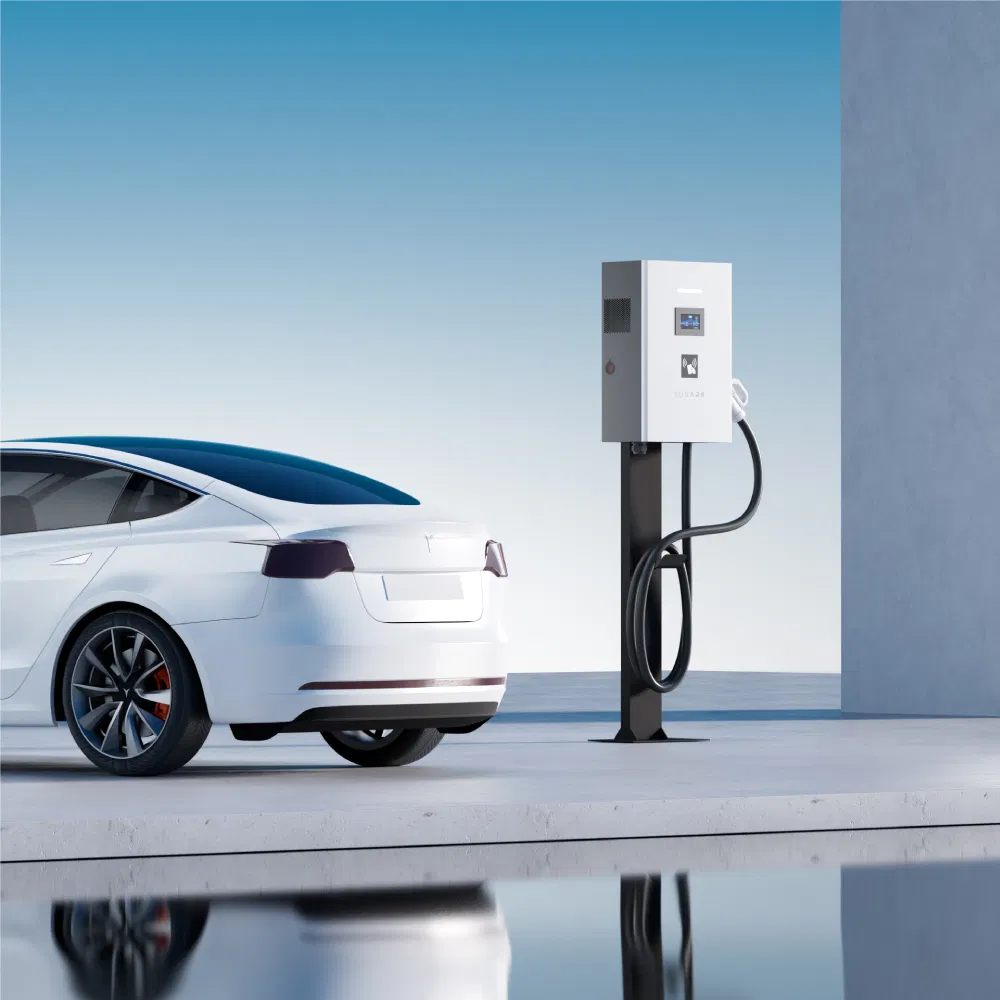

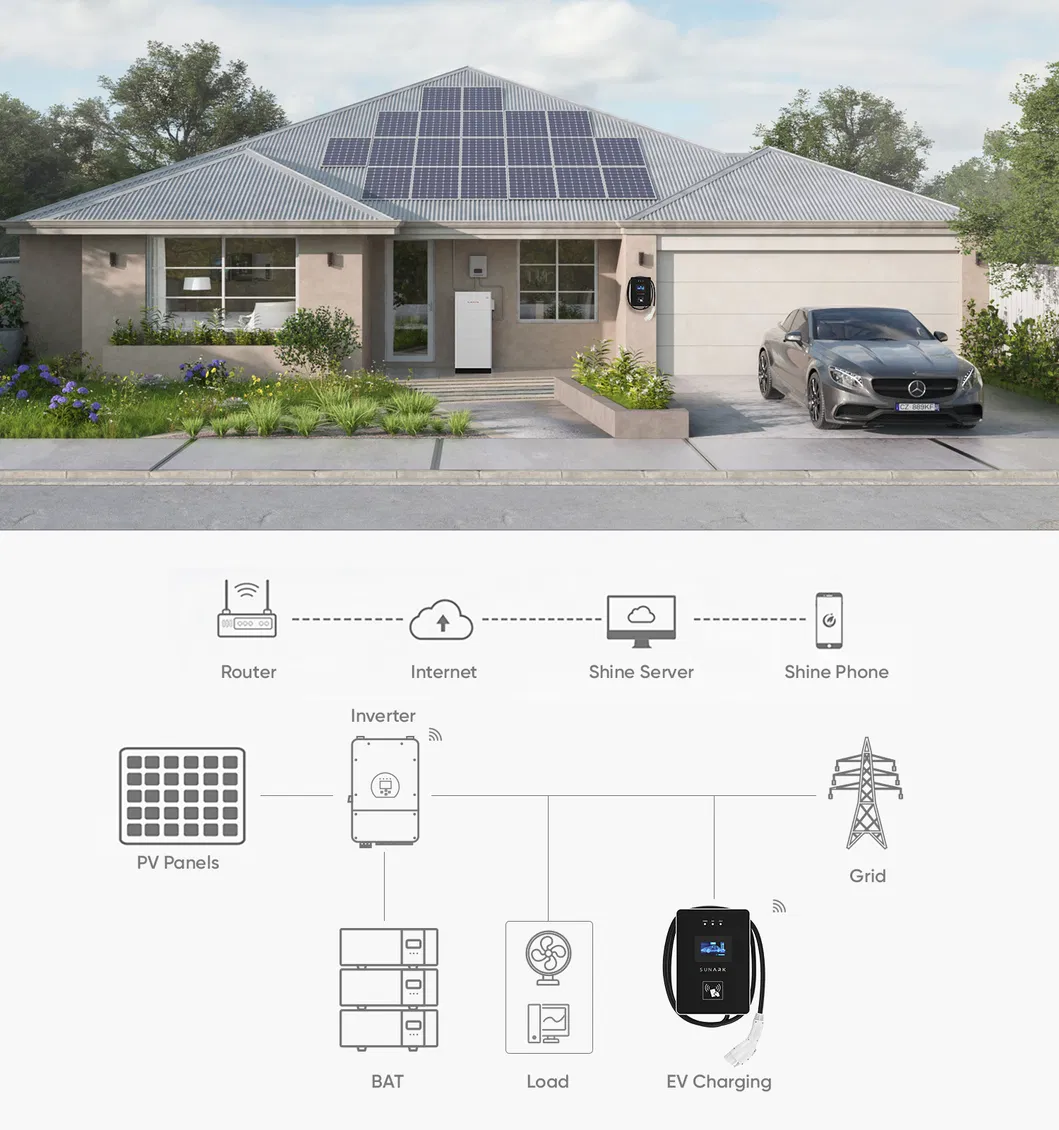

🎯 Applications

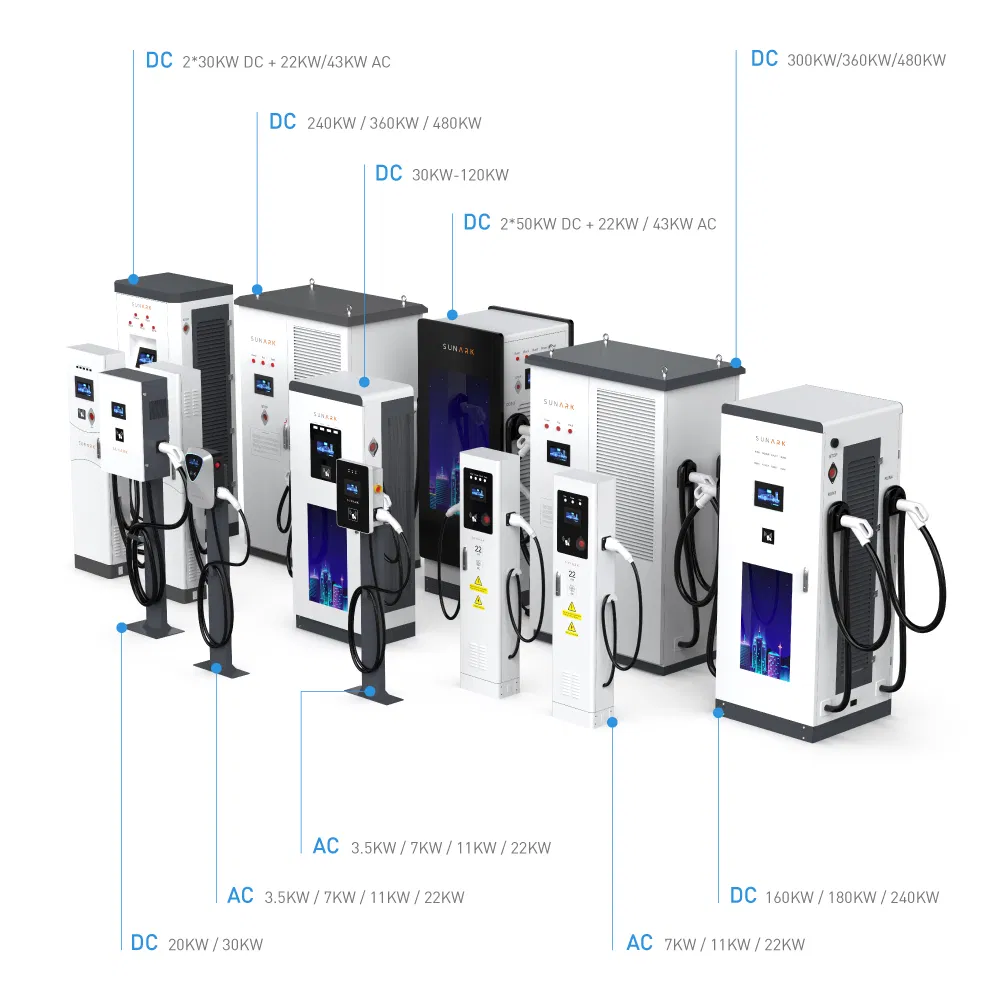

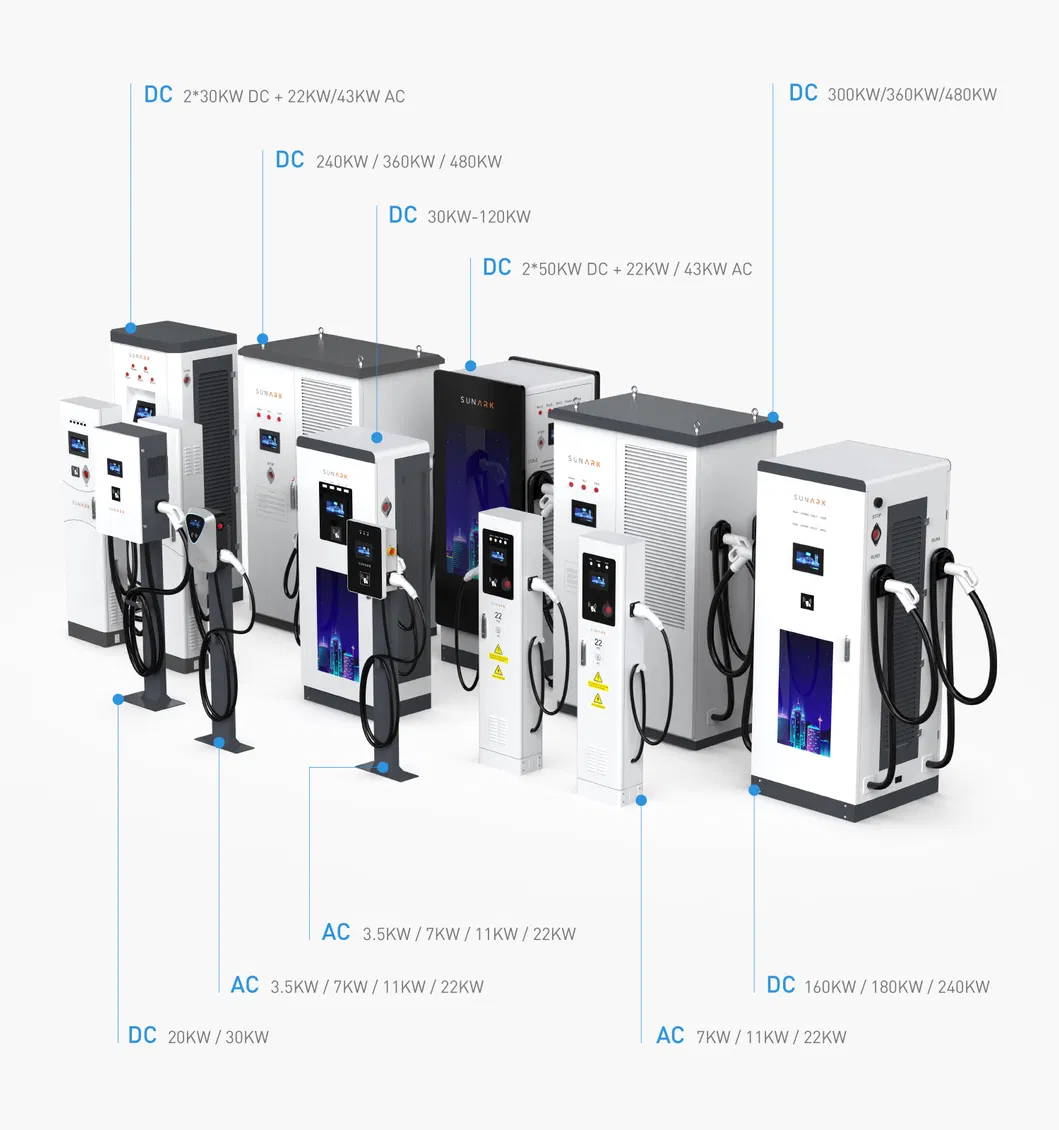

📋 Products Series

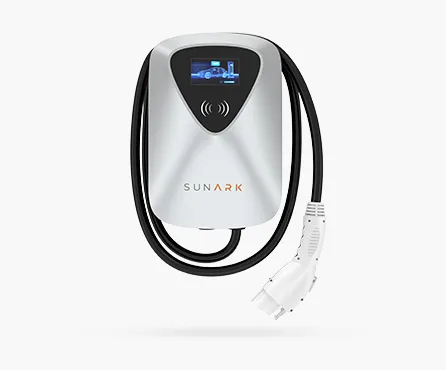

AC 3.5-22KW Series
Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A

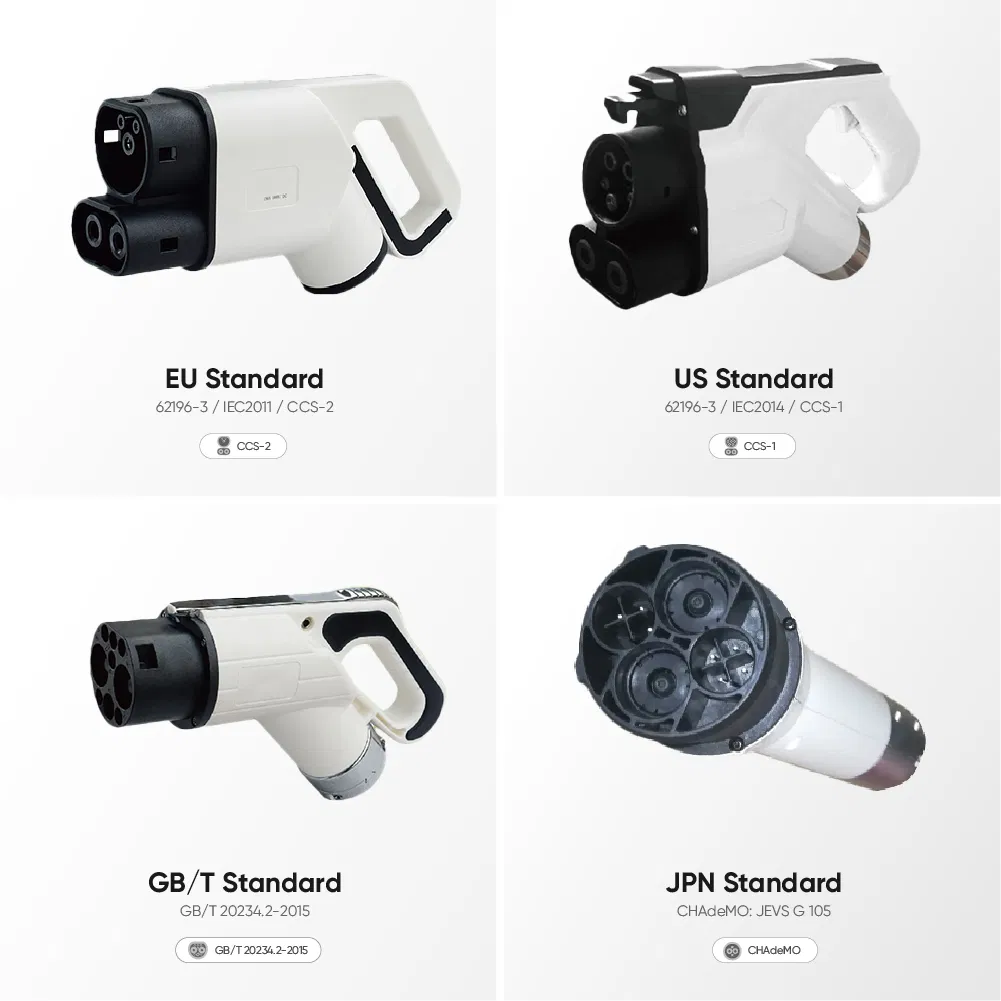

Connector: CCS1/2, CHAdeMO
DC 20-30KW Series
Rated Power: 20/30KW
Output Current: 80/125A
Output Voltage: 200~750V
DC 30-80KW Series
Rated Power: 30/40/50/60/80KW
Output Current: 125/150/200A

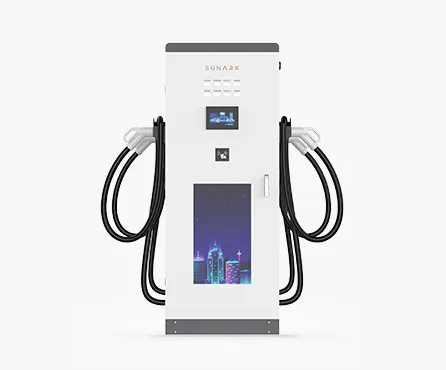

High Power DC Series (90-240KW)
Rated Power: 90KW to 240KW
Features: Dual 200A Outputs, CCS1/2 & CHAdeMO compatibility.

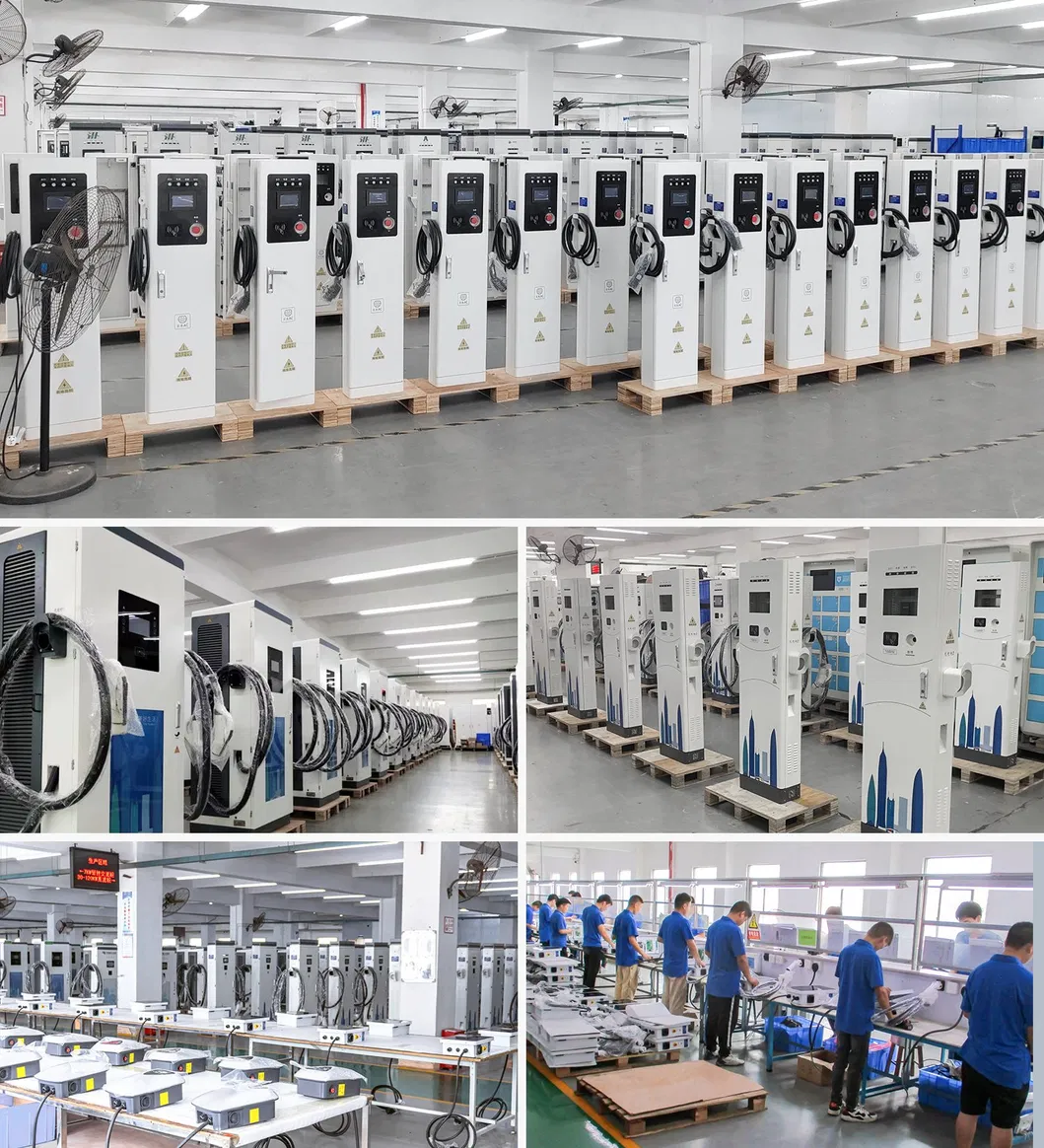

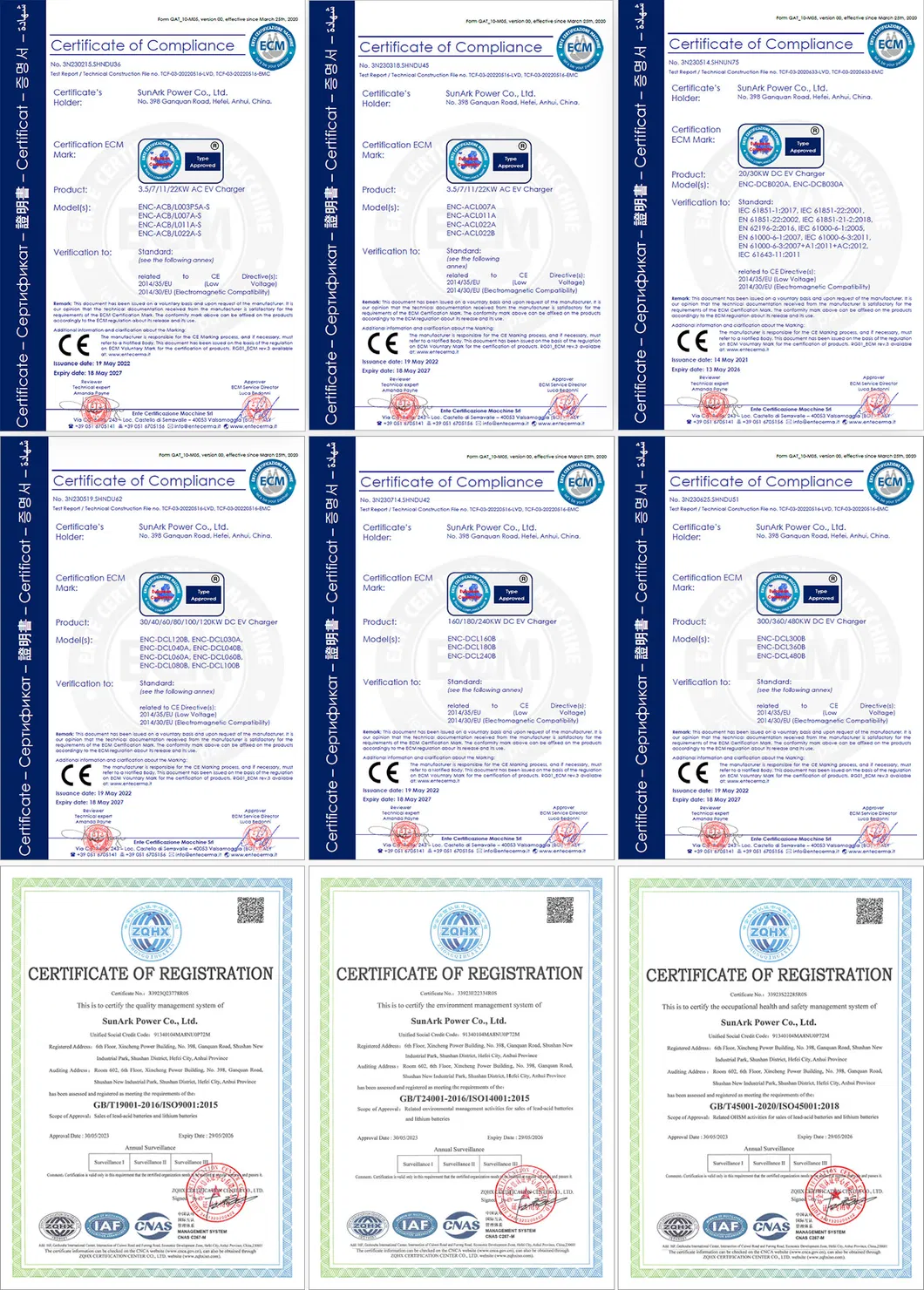

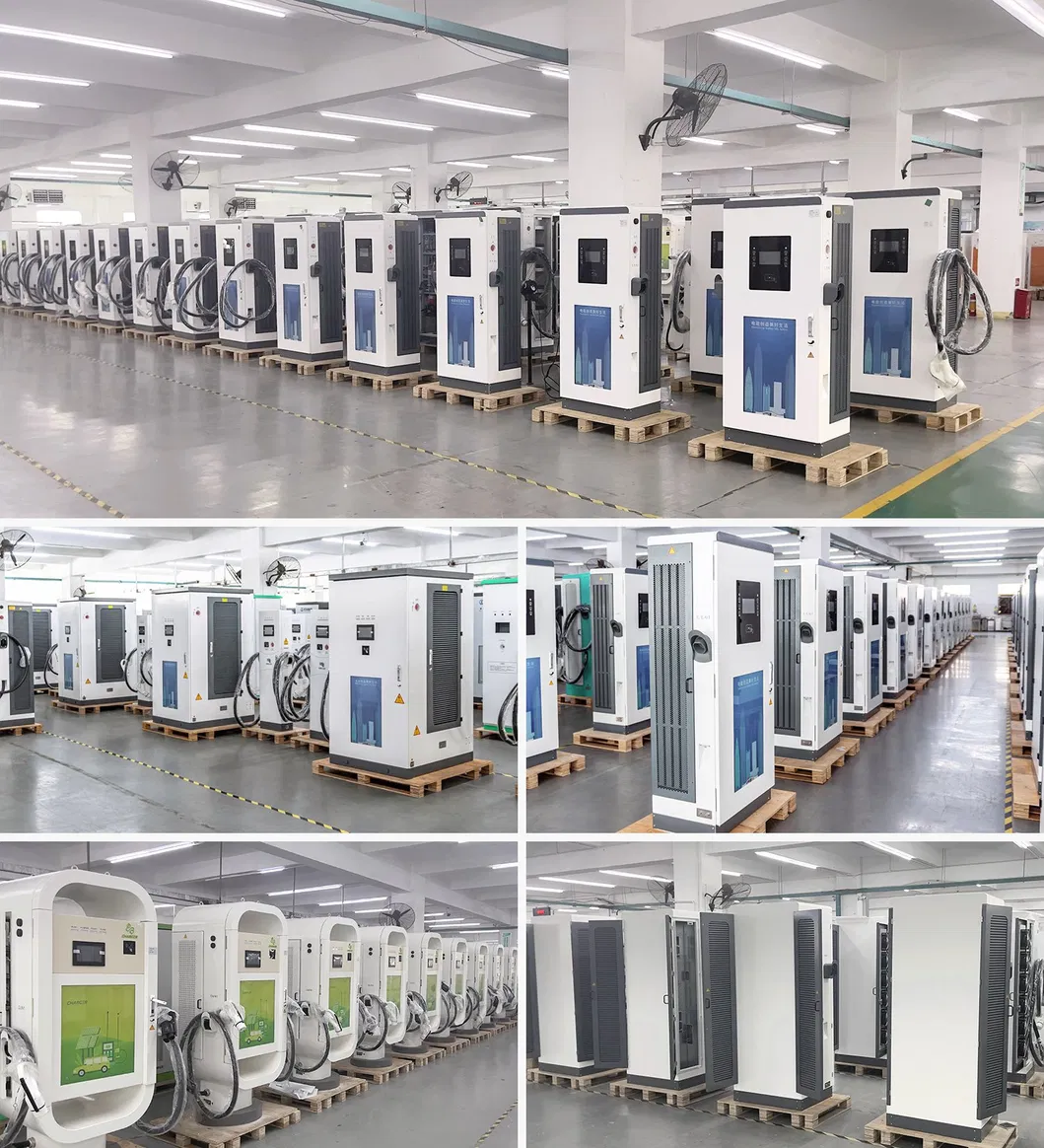

🏭 Factory & Certificates
🏢 Profile
❓ Frequently Asked Questions
1. What is the difference between DC and AC charging?
AC charging uses the vehicle's onboard charger to convert power, while DC charging provides power directly to the battery, allowing for much faster charging speeds suitable for public and commercial use.
2. Is the 20-30KW DC charger suitable for outdoor installation?
Yes, the charger is IP54 rated, which means it is protected against dust ingress and water splashes, making it durable for both indoor and outdoor environments.
3. Which electric vehicles are compatible with these chargers?
Our chargers are compatible with vehicles following IEC 62196, IEC 61851, SAE J1772, and CHAdeMO standards, covering the majority of modern electric vehicles.
4. What safety features are built into the charging station?
The system includes multiple safety protections: over-current, over-voltage, under-voltage, residual current, surge protection, leakage protection, short circuit, and over-temperature monitoring.
5. Does the charger support remote management?
Yes, it optionally supports the OCPP 1.6J protocol, allowing it to communicate with a Central Management System (CMS) via Ethernet, 4G, or WiFi for monitoring and billing.
6. How can users authenticate themselves to start charging?
The 7-inch touch screen interface supports various authentication methods including QR Code scanning, RFID cards, and secure password login.
