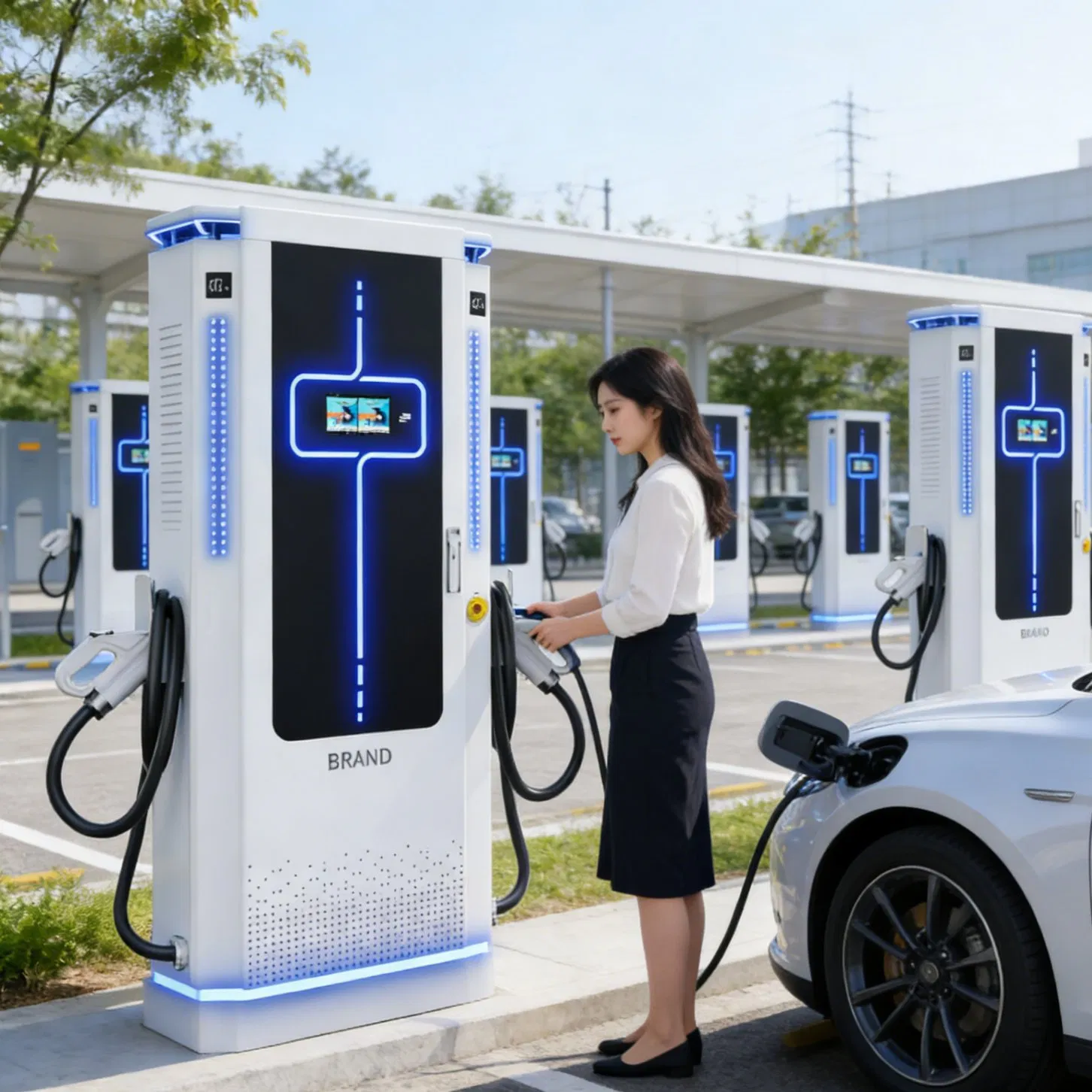

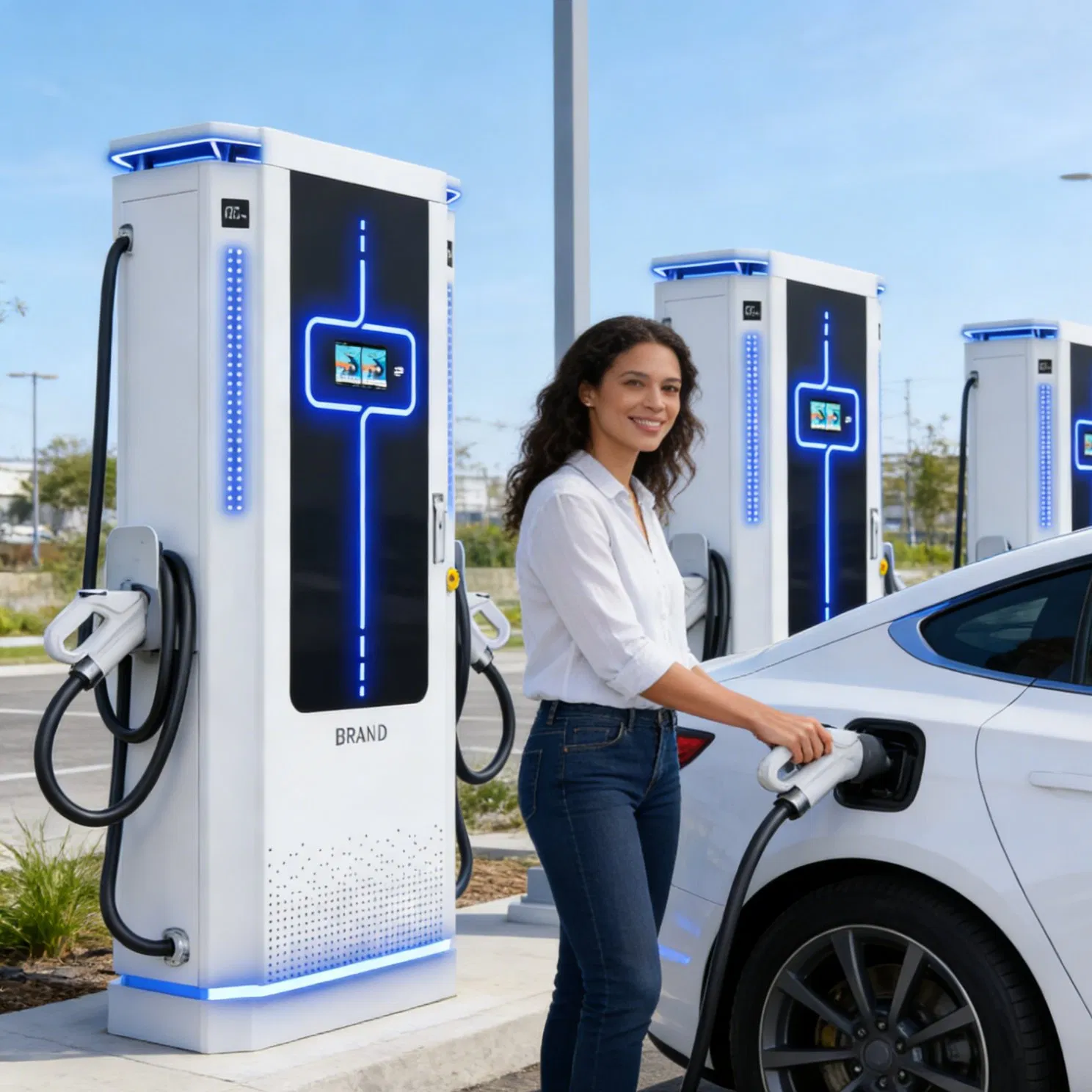

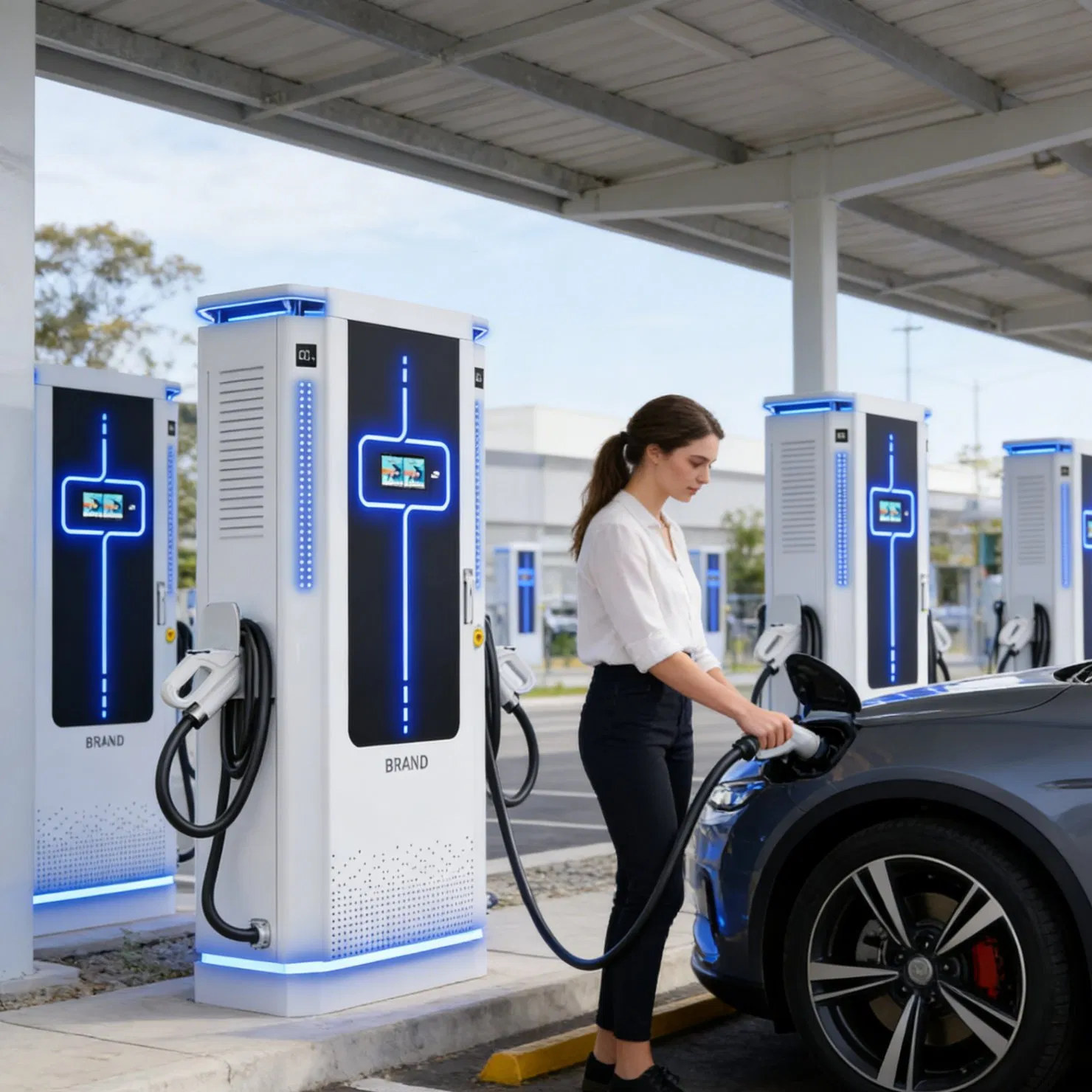

Solar-Powered 60kw DC EV Charger for Australian Outback with off-Grid Capability

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
60KW-600KW
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Rated Power
40kw To 600kw
Weight
194kg-274kg
Gun Barrel Length
5 Meters / 7 Meters
Charging Guns
2 individual
Body Size
750X410X1700(mm)
Interface
7-Inch LCD Touch Screen + LED
Connection
4G / Ethernet
Protection Level
IP54
Origin
China
Production Capacity
50,000 Units Per Year
Product Description

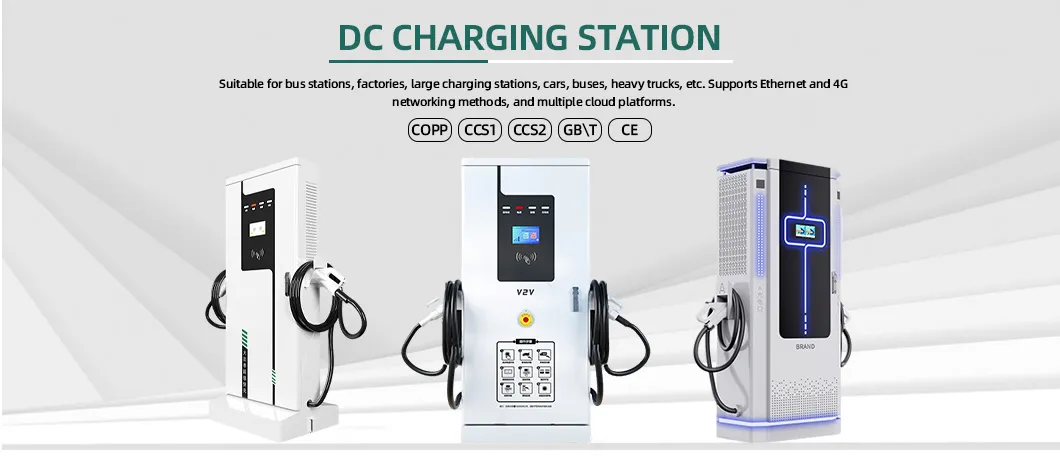

DC EV Charger Overview

Product Introduction: Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

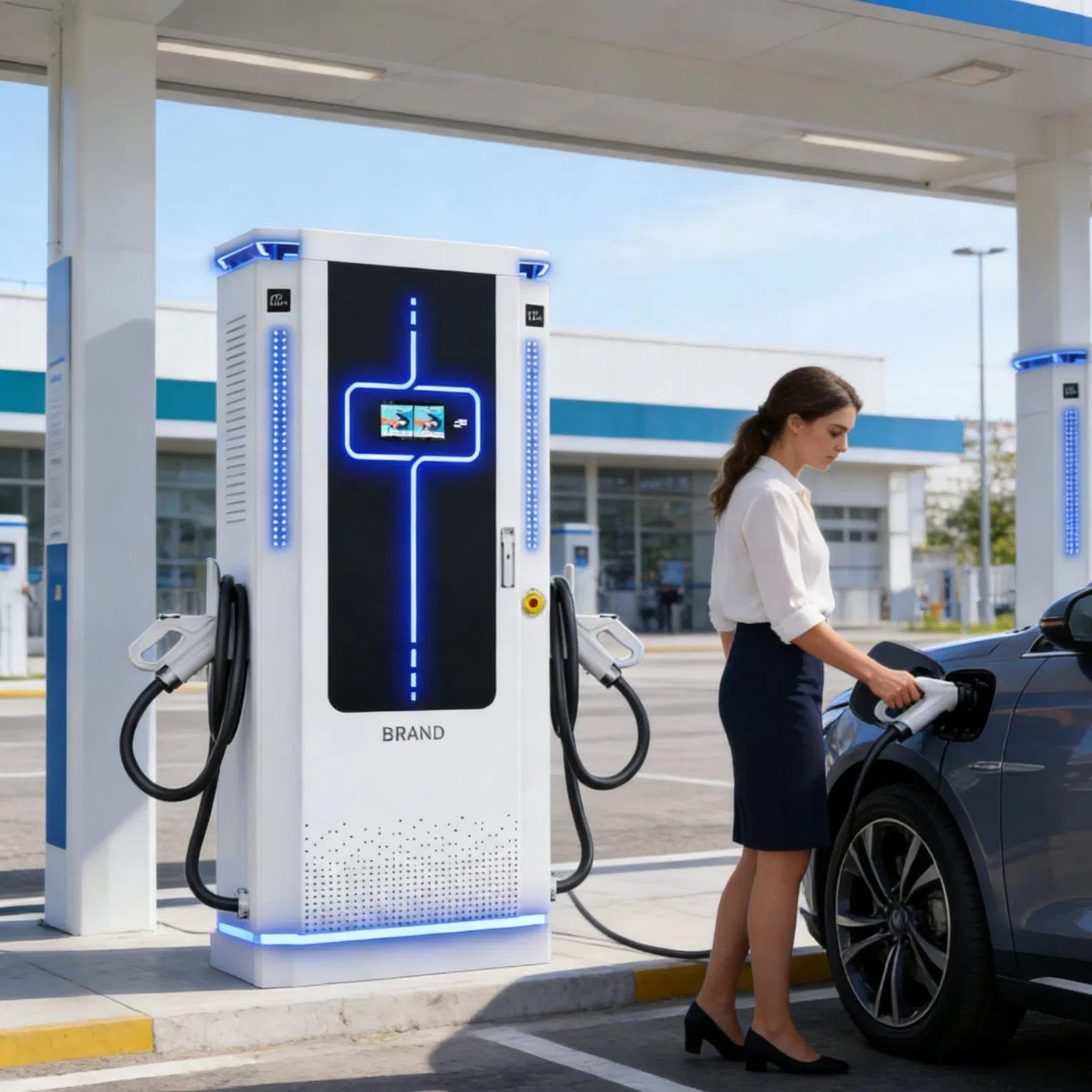

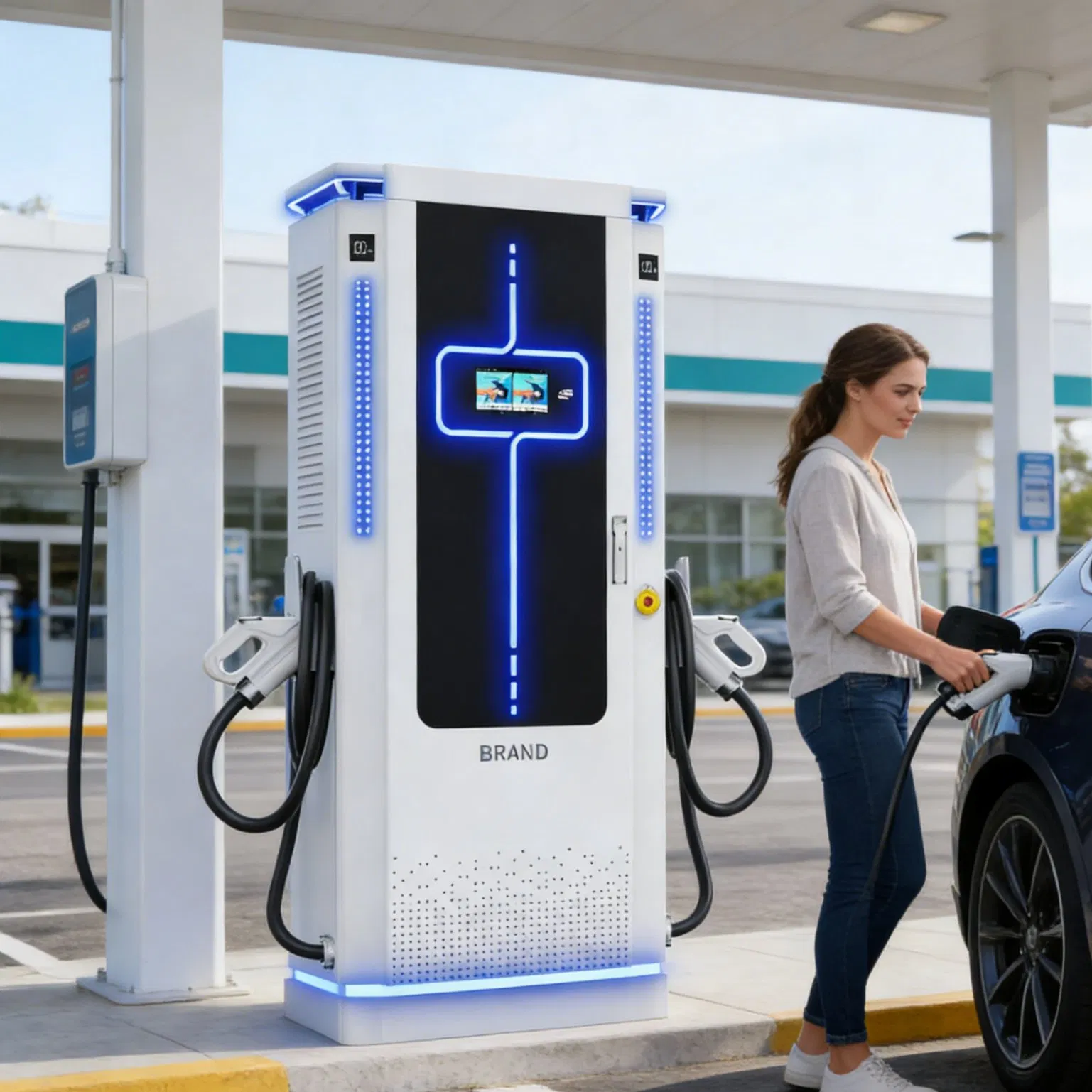

Solar-Powered DC EV Charger

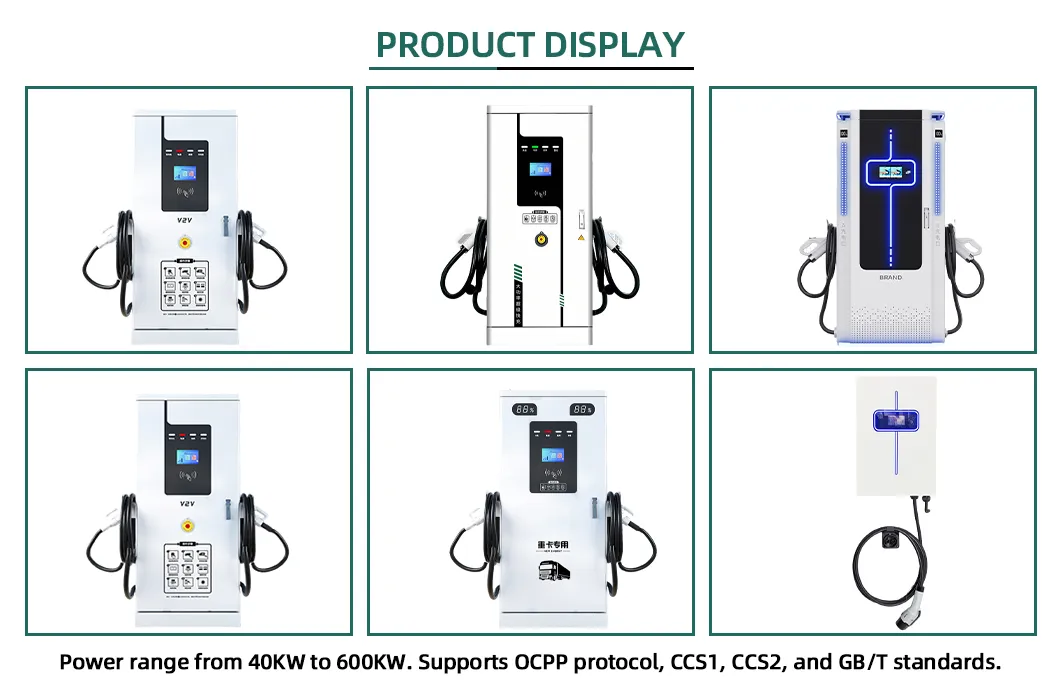

DC EV Charger Features

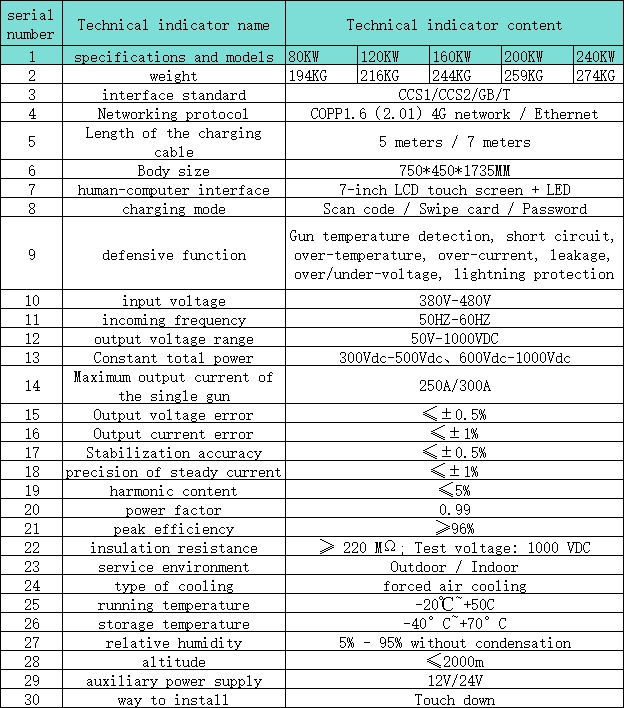

Charger Details 1

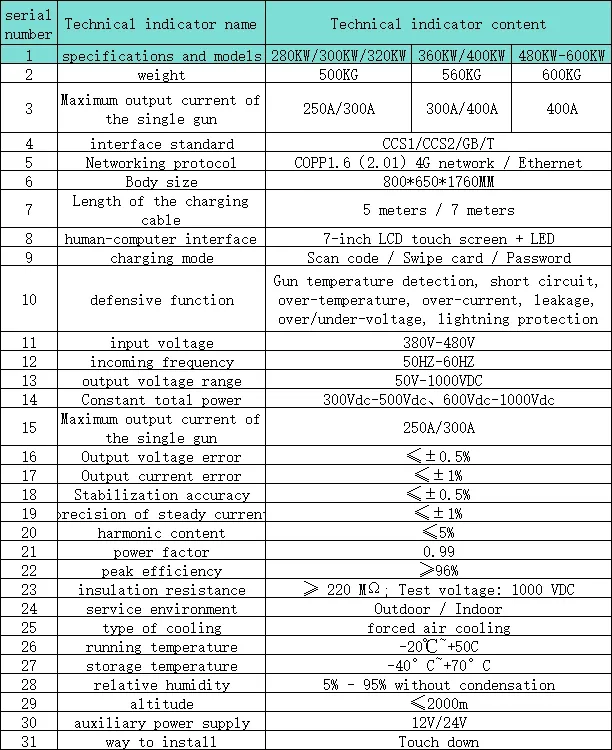

Charger Details 2
📊 Technical Specifications
Product model40KW-600KW External dimension750x410x1700(mm)
Rated power40KW-600KW Weight194KG-274KG
Design criterionCCS1, CCS2, GB/T Gun barrel length5 meters
Charging guns2 individual HMI7-inch LCD touch screen + LED
Protection LevelIP54 Connection4G / Ethernet
Charging modeScan code, Swipe card, VIN code, Password Start methodSwiping card, Scanning code
Defensive functionTemp detection, Short circuit, Over-current, Leakage, Lightning protection Cloud platformOCPP 1.6 (2.01)
🎬 Product Video Demonstration
🏢 Professional Profile
Certifications

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights, certificates such as those for honest businesspeople, and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises both at home and abroad.

Exhibition and Partnerships
📦 Packaging & Shipping
Packaging Process

We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.

Frequently Asked Questions
Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What products can you buy from us?
We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage, and Solar System products.
Can you customize the design and add our logo?
Yes, we can implement your design and place your logo on the products.
What are your payment terms?
T/T 30% as deposit, and 70% paid before delivery. We provide photos of products and packages before final payment.
How long is the delivery time?
Generally, it takes 7 to 35 days after receiving your advance payment, depending on the items and order quantity.
Do you test all goods before delivery?
Yes, we perform a comprehensive final inspection of all goods before they are dispatched.
