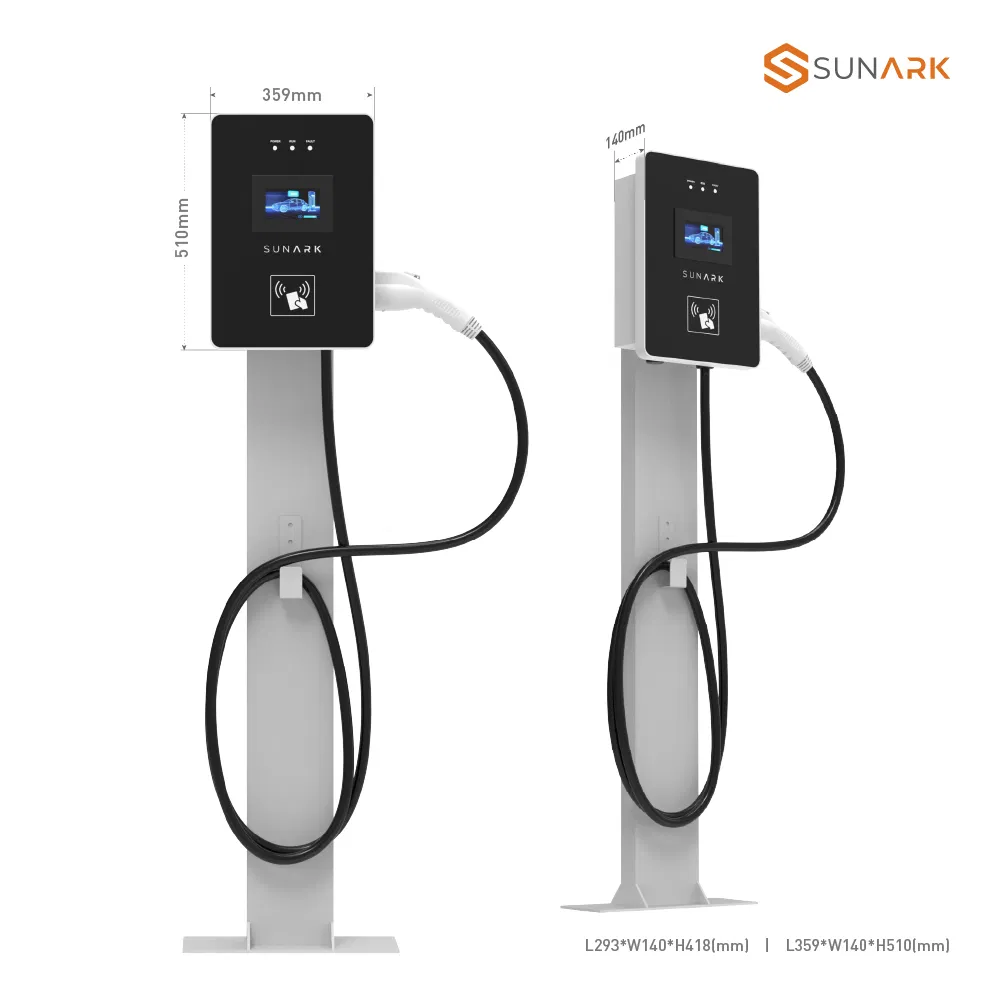

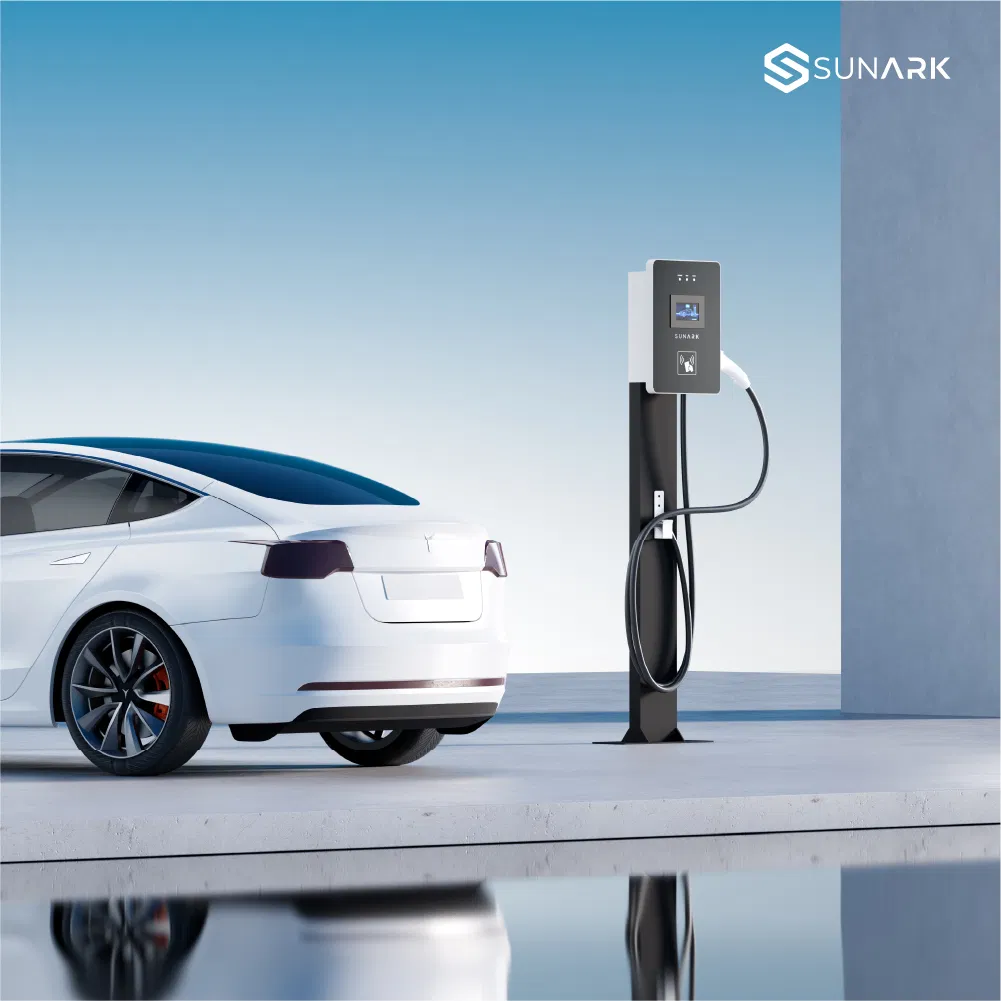

Solar Powered DC EV Charging Station 7kw 11kw 22kw Car Battery Charger Fast Charging
Product Description
Basic Information
Model NO.
EV Charger AC 3.5-22KW
Location
Private Use / Public Use
Installation
Wall Mounted
EV Charger Type
AC
Charger Capacity
3.5/7/11/22kw
Mounting
Wall-Mounted/Column Type
IP Ratings
IP 54 / IP 55

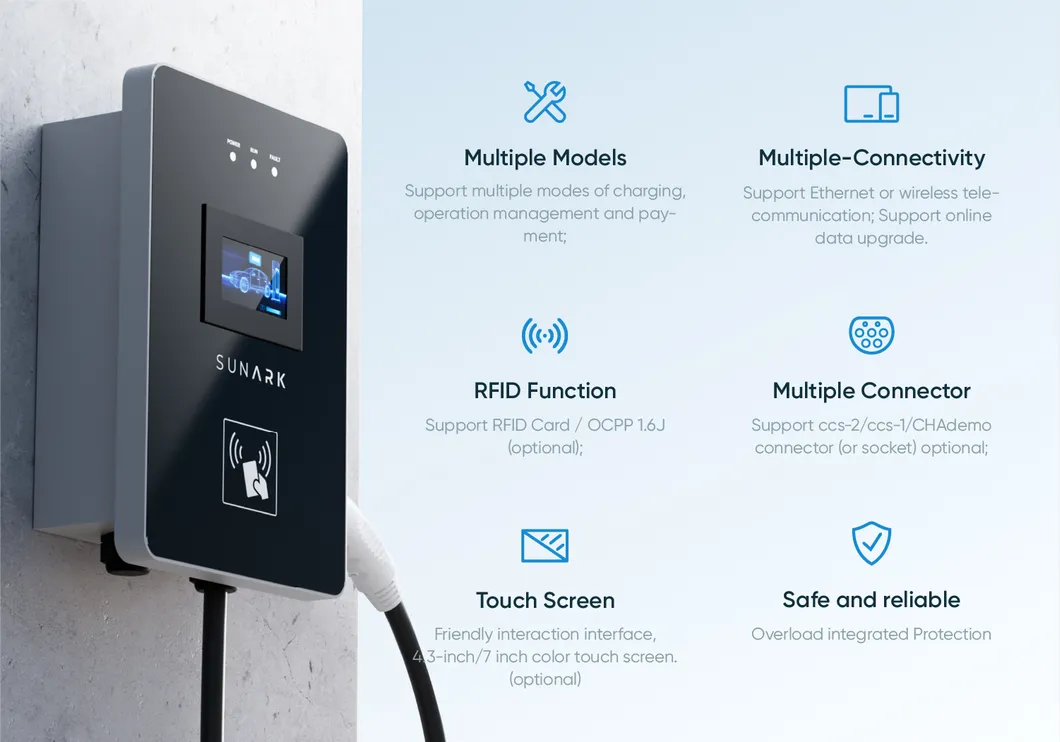

Display
4.3 Inch Touch Screen
User Authentication
APP / QR Code / RFID Card / Password
Protocol
OCPP 1.6J (Optional)
Communication
Ethernet/3G/4G/WiFi

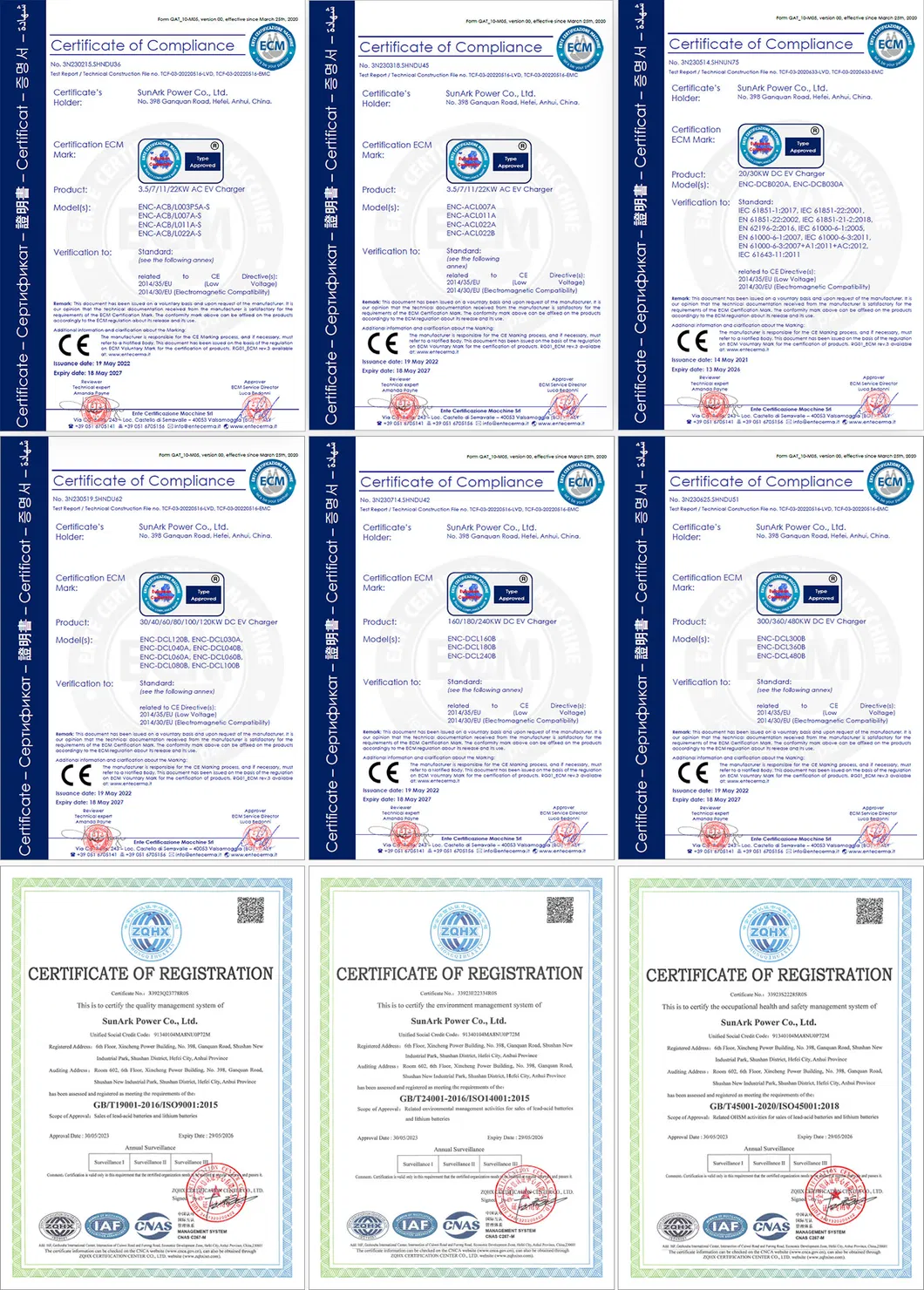

Certificate
IEC 62196, IEC 61851, SAE J1772
Product Description
| Technical Specifications | ||||
|---|---|---|---|---|
| Charger Capacity | 3.5KW | 7KW | 11KW | 22KW |
| AC Supply System | Single-Phase, 3 Wire | Three-Phase, 5 Wire / Single-Phase (ANSI) | ||
| Input Voltage | AC220V/240V ±15% | AC380V/240V ±15% | AC380V ±15% | |
| Max. Current | 16 Amp | 32 Amp | 16 Amp / 50 Amp | 32 Amp |
| Environmental | Temp: -25 to 55°C | Humidity: 5 to 95% | IP 55 Rating | |||

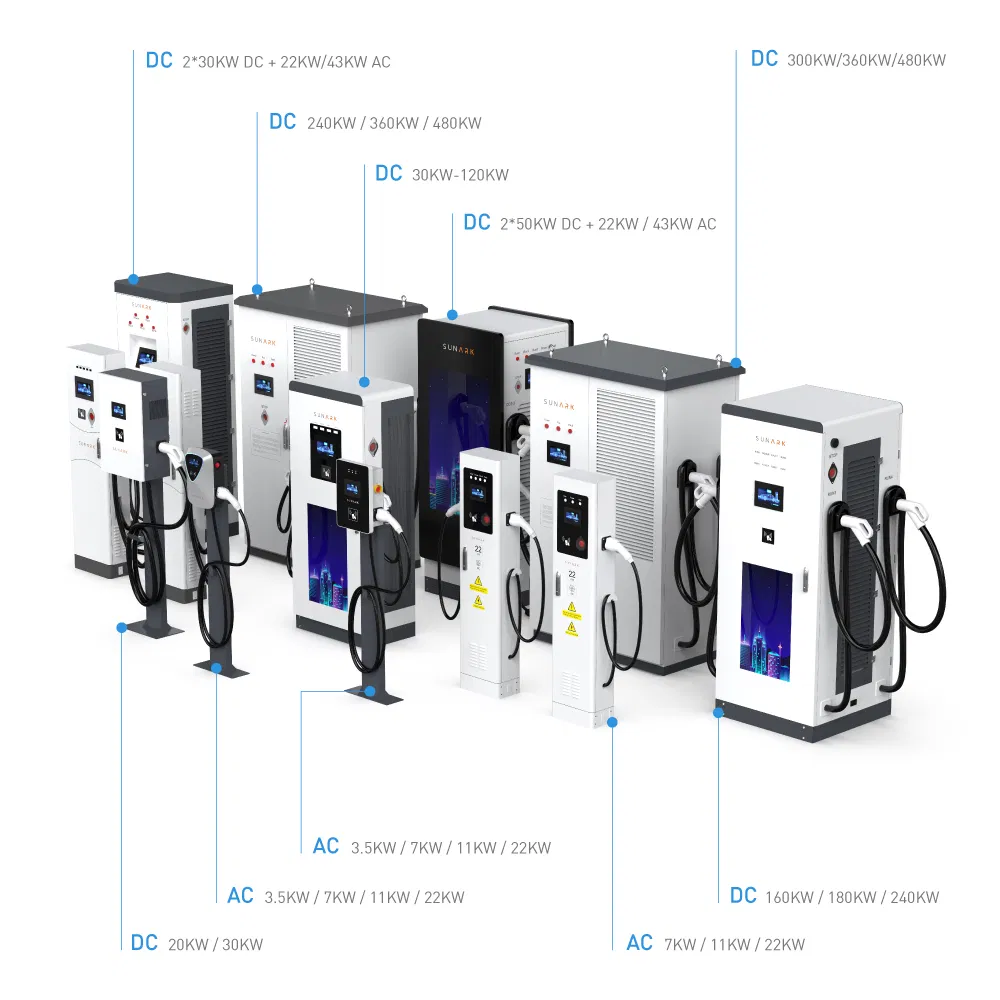

Product Series Overview

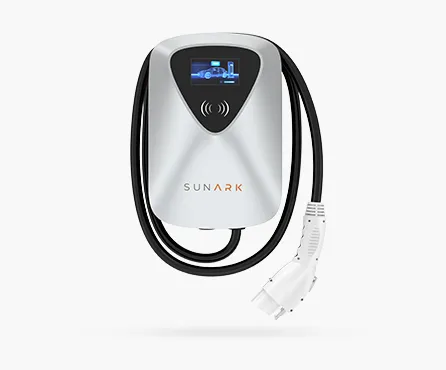

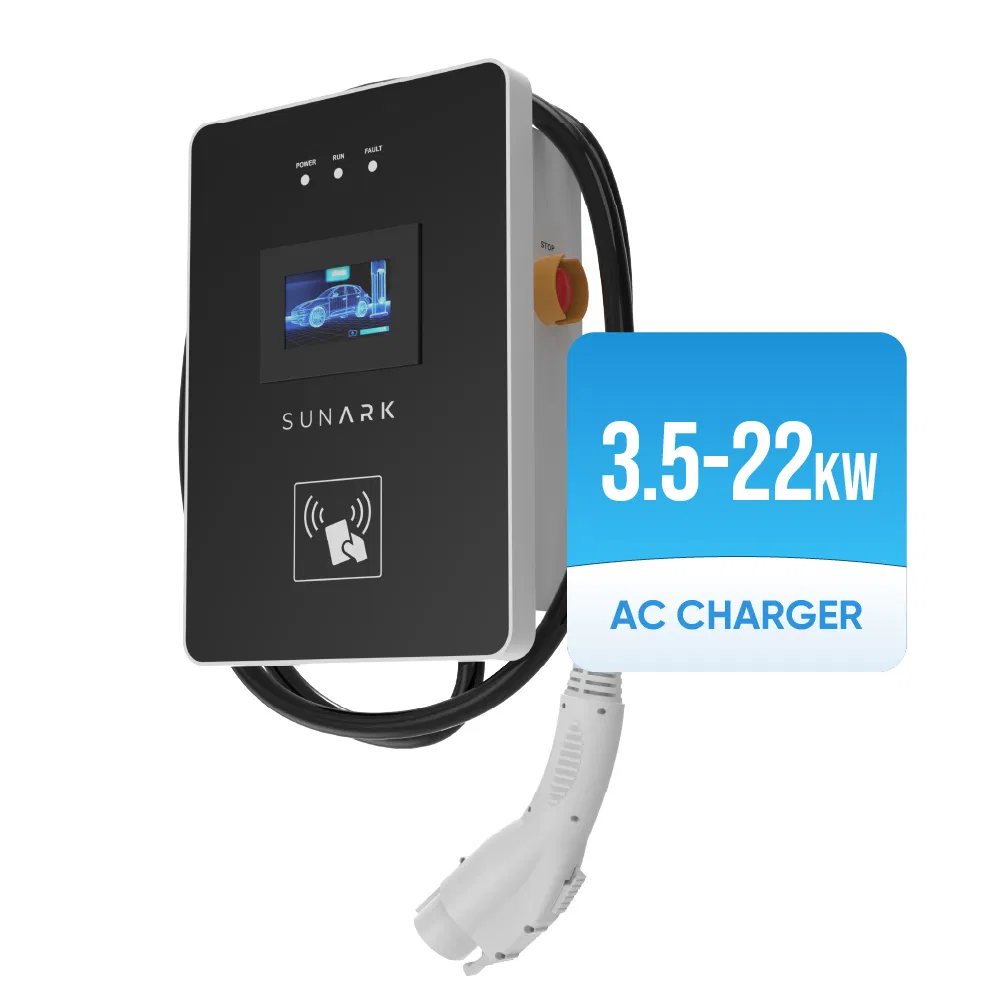

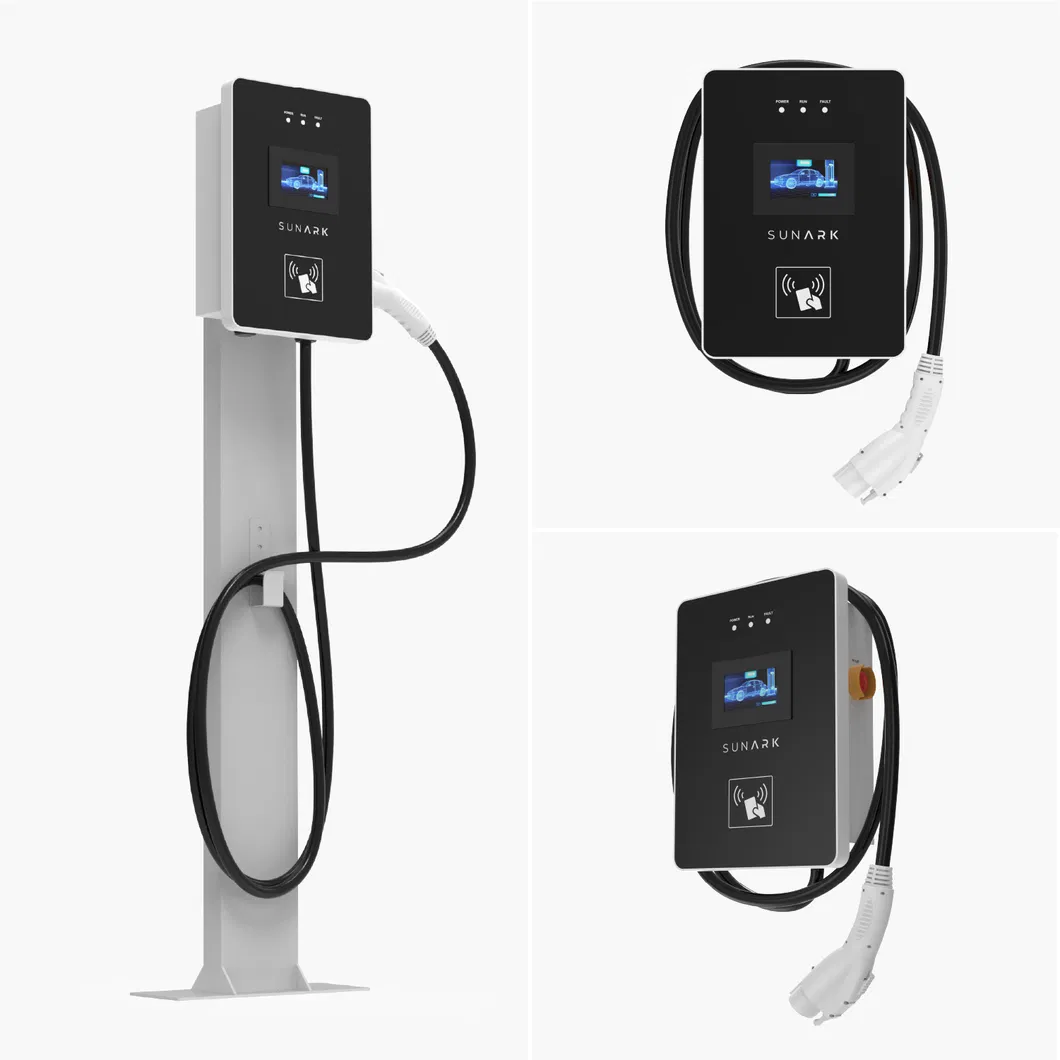

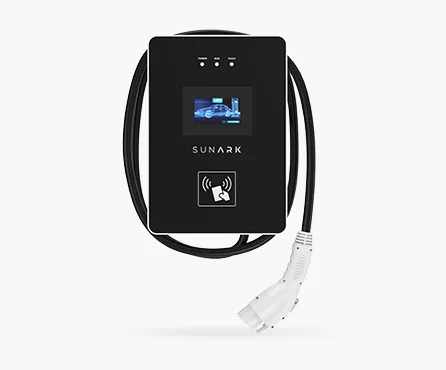

AC 3.5-22KW Wallbox
Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A
Connector: Type 1/2, CCS, CHAdeMO

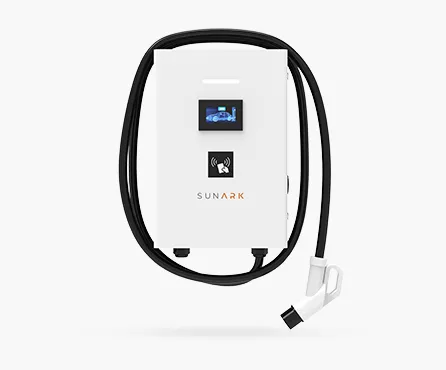

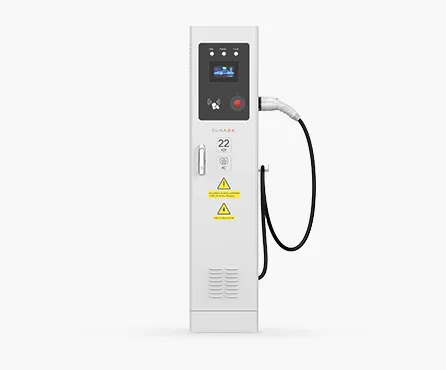

DC 20-30KW Fast Charger
Output Voltage: 200~750V, 150-500V
Output Current: 80/125A
Ideal for commercial small parking lots.

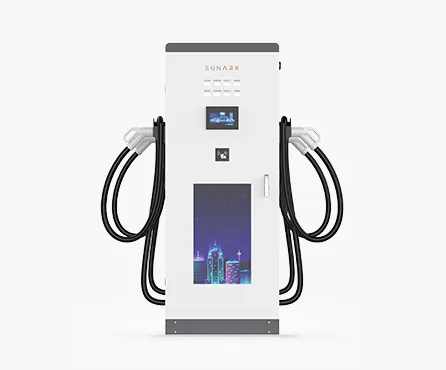

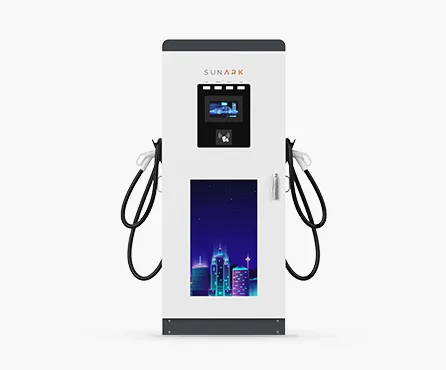

DC 90-240KW Ultra-Fast Station
Rated Power: 90/100/120/160/180/240KW
Dual Outputs: 200A*2
Voltage Range: 200~750V

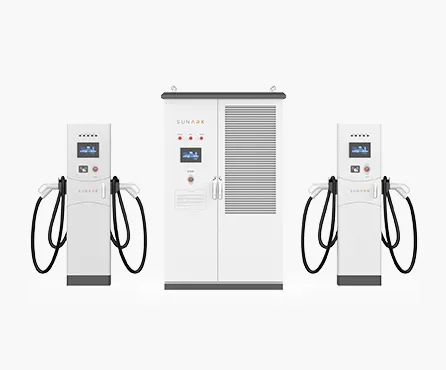

DC 240-480KW High Power Cluster
Multiple Connector Terminals: 2/3/4
Number of Outputs: 4/6/8
Designed for heavy-duty charging hubs.

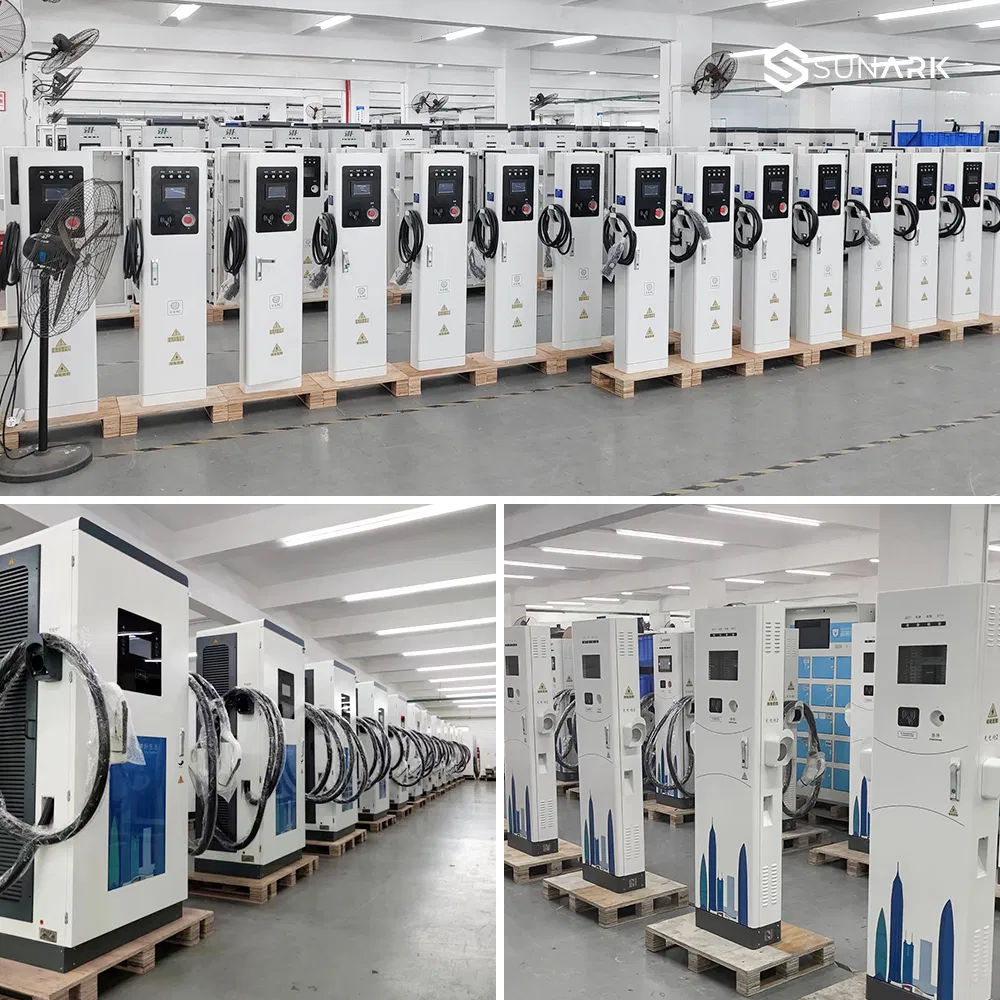

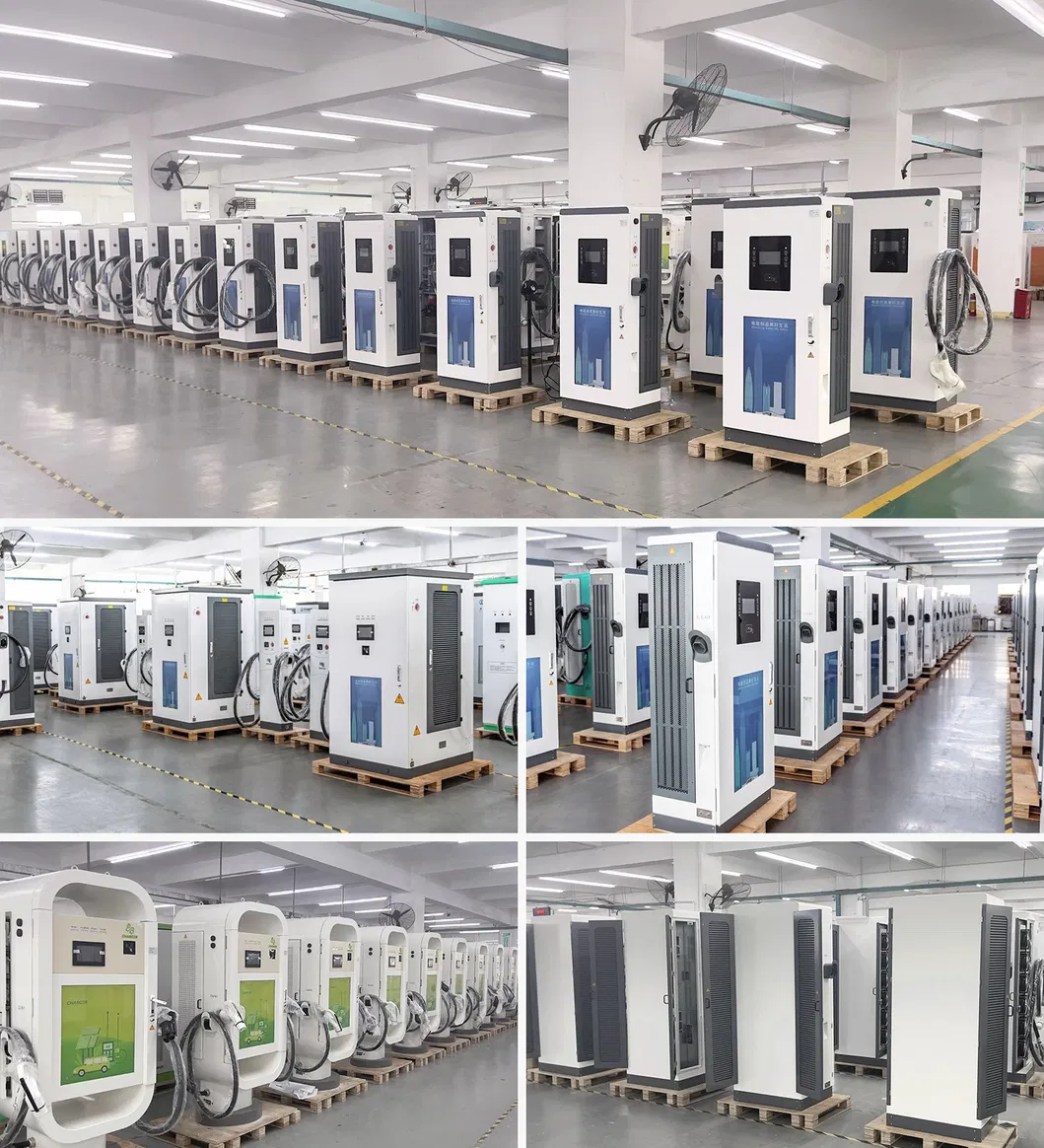

Manufacturing & Quality
A professional manufacturer since 2002, specializing in environmentally friendly power solutions. Utilizing advanced production equipment and testing measures to ensure long product life and high energy density. The performance of the equipment independently researched and developed has met and exceeded international standards.
Frequently Asked Questions
What is the available power range for these EV chargers?
We offer a comprehensive range from 3.5KW AC residential chargers up to 480KW DC ultra-fast industrial charging stations.
Are the chargers compatible with international electric vehicle standards?

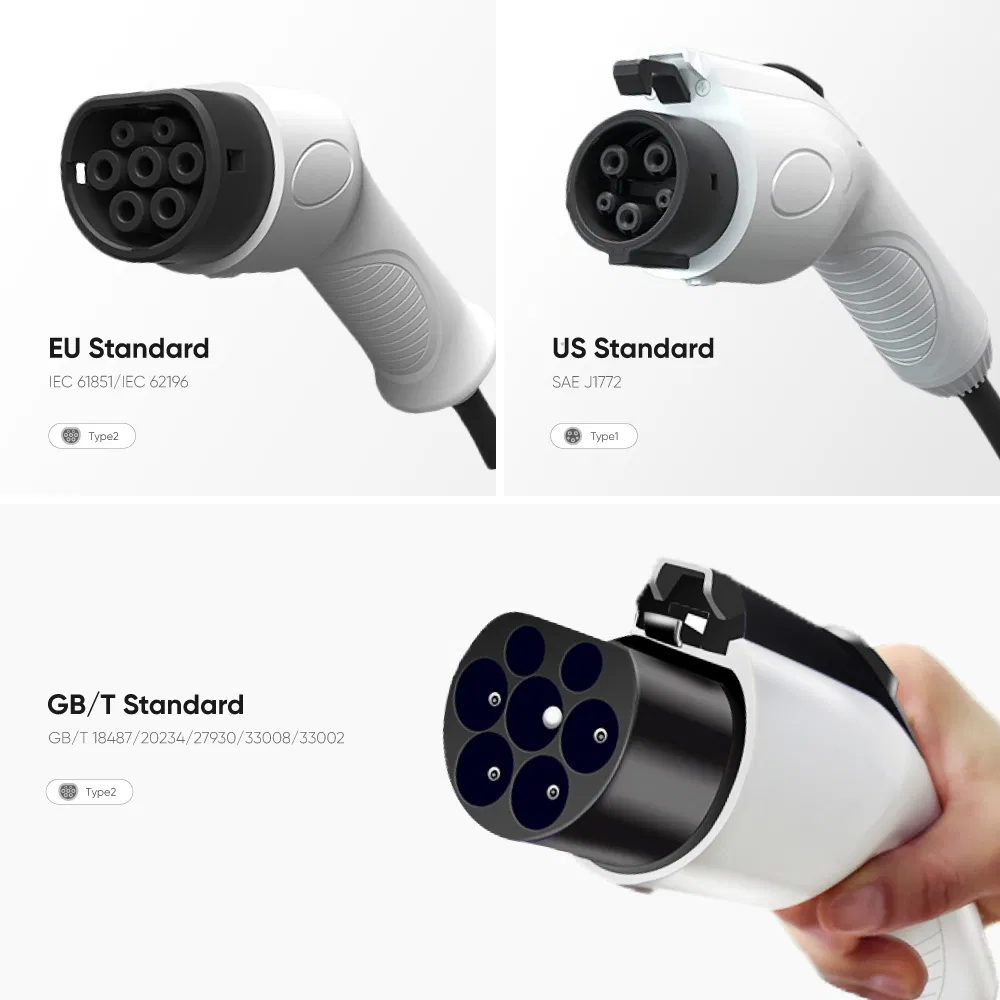

Yes, our chargers comply with major international standards including IEC 62196, IEC 61851, and SAE J1772, supporting CCS1, CCS2, and CHAdeMO connectors.
What safety protections are integrated into the charging units?
Units include over-current, under-voltage, over-voltage, residual current, surge protection, leakage protection, short circuit, and over-temperature protections.
Can these units be installed outdoors?
Absolutely. Our chargers are designed with IP54 and IP55 ratings, ensuring durability and safety in various outdoor weather conditions.
How can users authenticate and start a charging session?
Users can authenticate via a dedicated Mobile APP, QR Code scanning, RFID cards, or a password login system on the touch screen interface.
Do the chargers support network connectivity?
Yes, they support communication with Central Management Systems (CMS) via Ethernet, 3G/4G, or WiFi, utilizing the OCPP 1.6J protocol.
