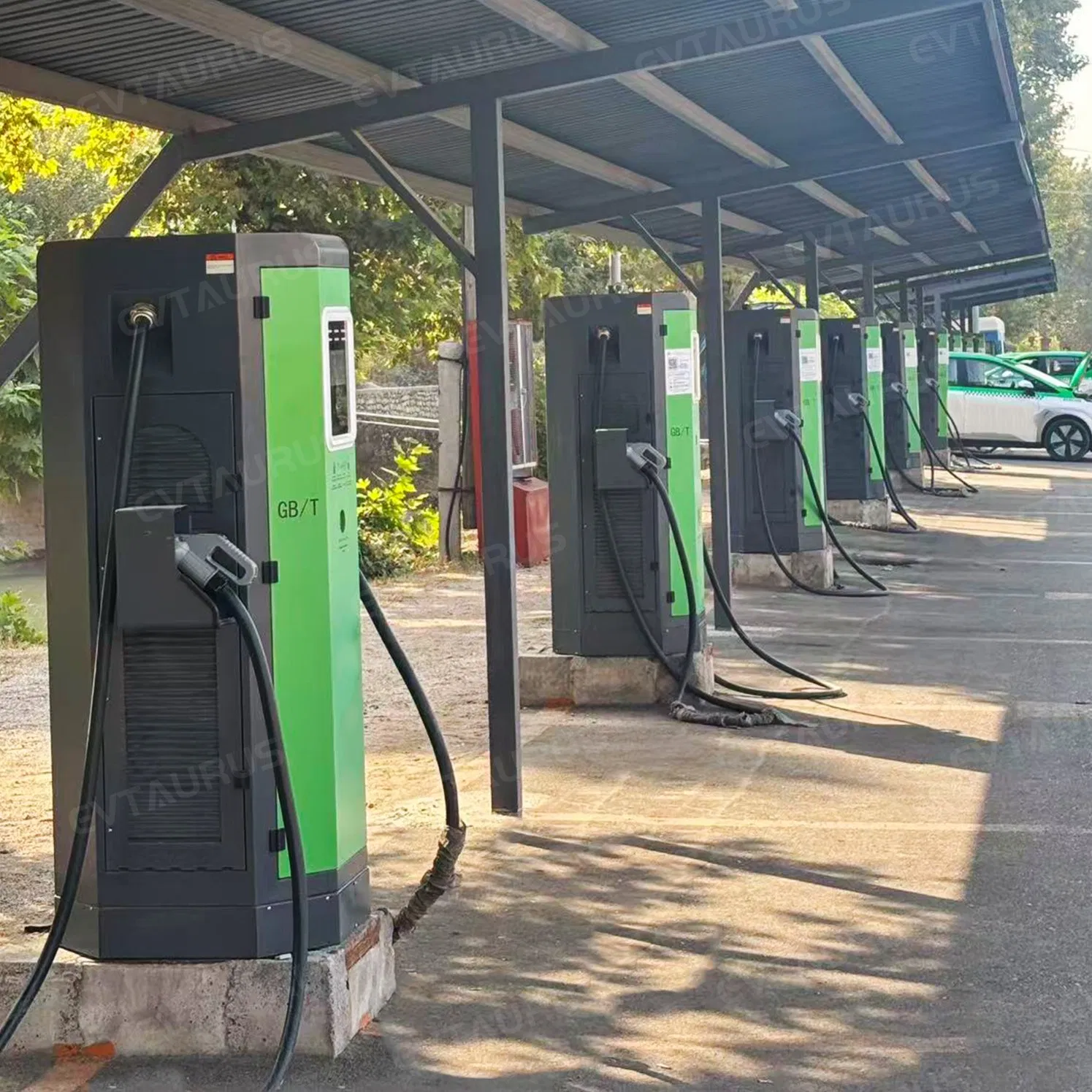

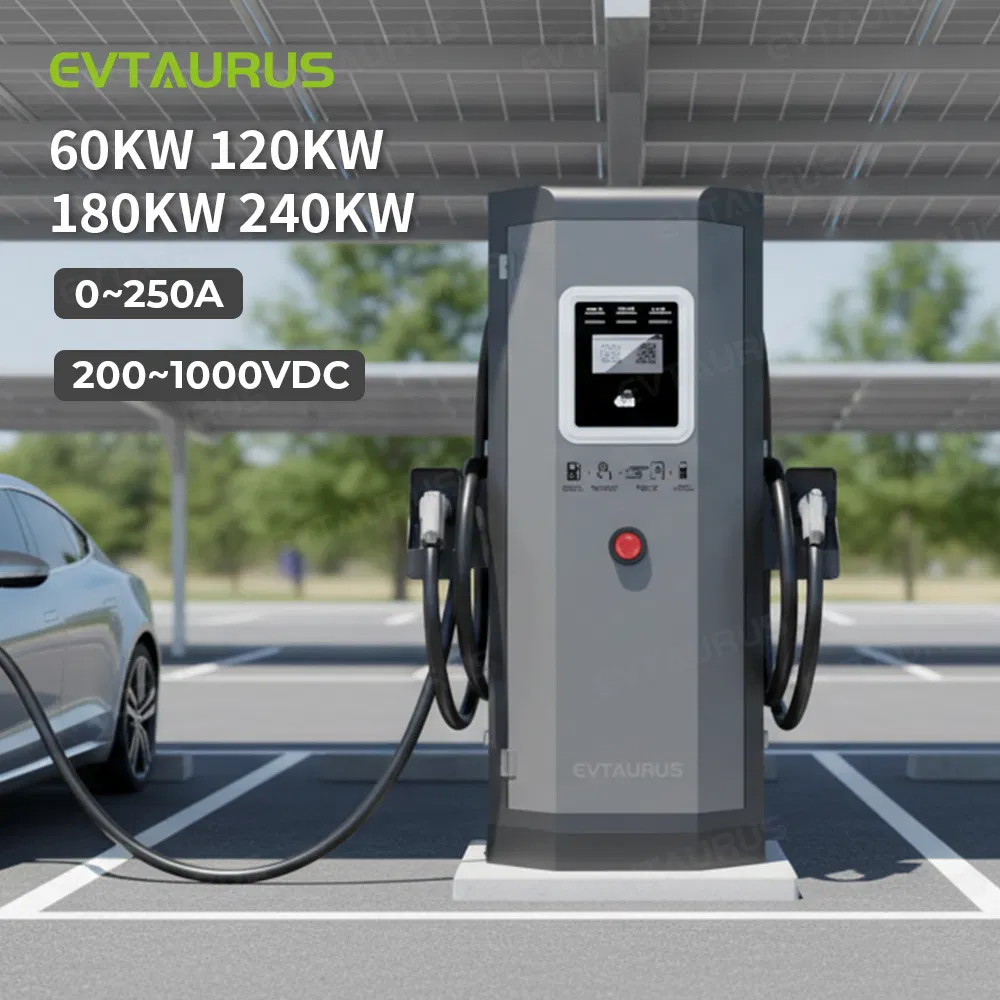

Ocpp Level 3 180kw 240kw Double Gun DC EV Solar Powered Electric Car Charger
Product Description
Basic Information
Model NO.
JT40C
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Charge Method
Quick Charge
Output Power
30/60/80/120/240kw
Color
White
Cable Length
5m (Customizable)
Warranty
2 Years
Package Size
50.00cm * 70.00cm * 185.00cm
Product Description

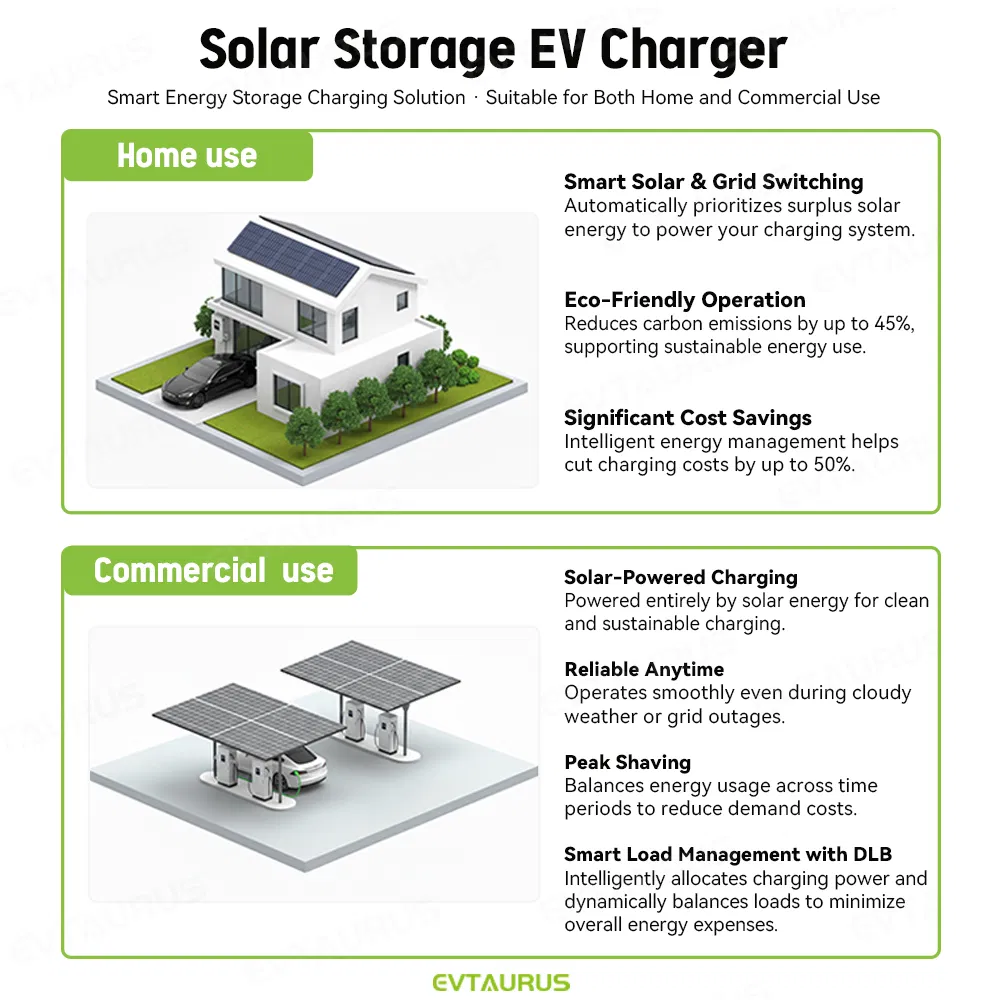

We support connecting to solar power systems.
Certifications

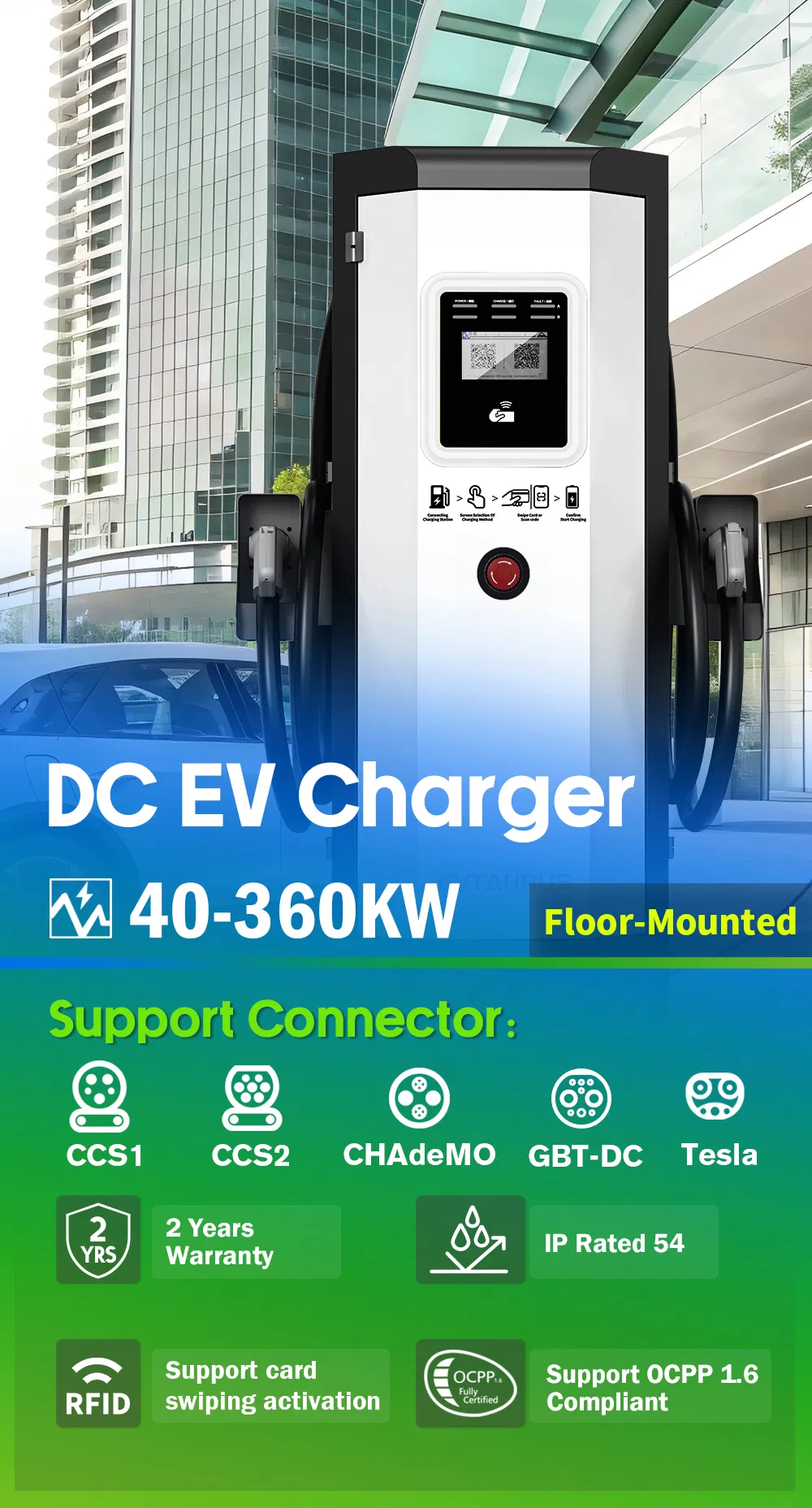

Technical Specifications
| Category | Feature | Details |
|---|---|---|
| Model Info | Product Model | JT40-C Series |
| Power Range | 40/60/80/100/120/150/160/180/240/300/320/360KW | |

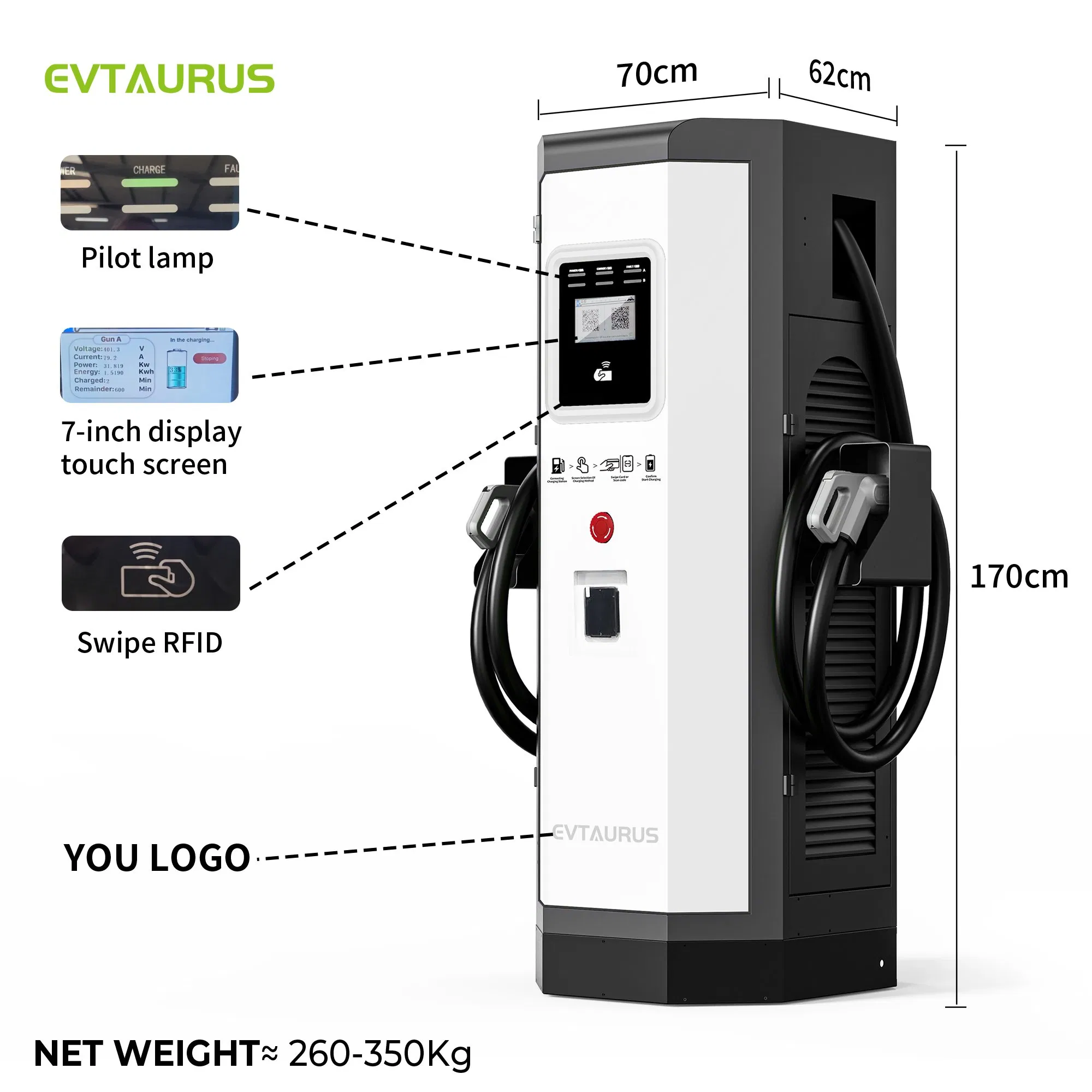

| Hardware | Display | 7 inch LCD color touch screen |
| Installation | Floor standing | |
| Dimension | 620mm*700mm*1700mm | |
| Input Voltage | AC380V±20% | |
| Output Voltage | DC200V to 1000V | |
| DC Plugs | CCS1/CCS2/CHAdeMO/NACS/GBT-DC | |
| Performance | Efficiency | ≥95% |
| Power Factor | ≥0.98 | |
| Protection | IP54 / Multiple Electrical Protections | |

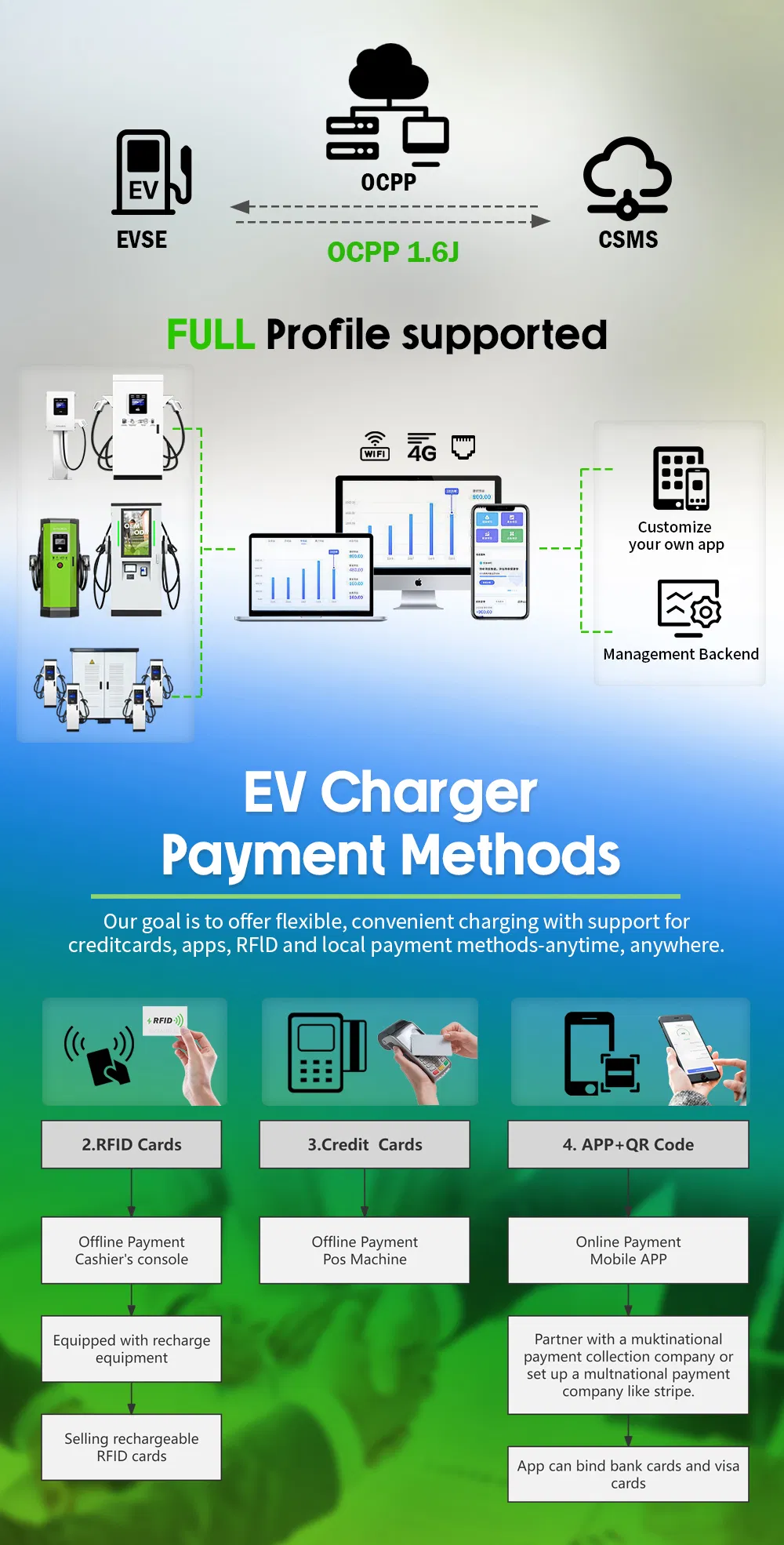

| Smart Features | OCPP Protocol | OCPP 1.6 (2.01 compatible) |
| Communication | Ethernet / 4G (Optional) |

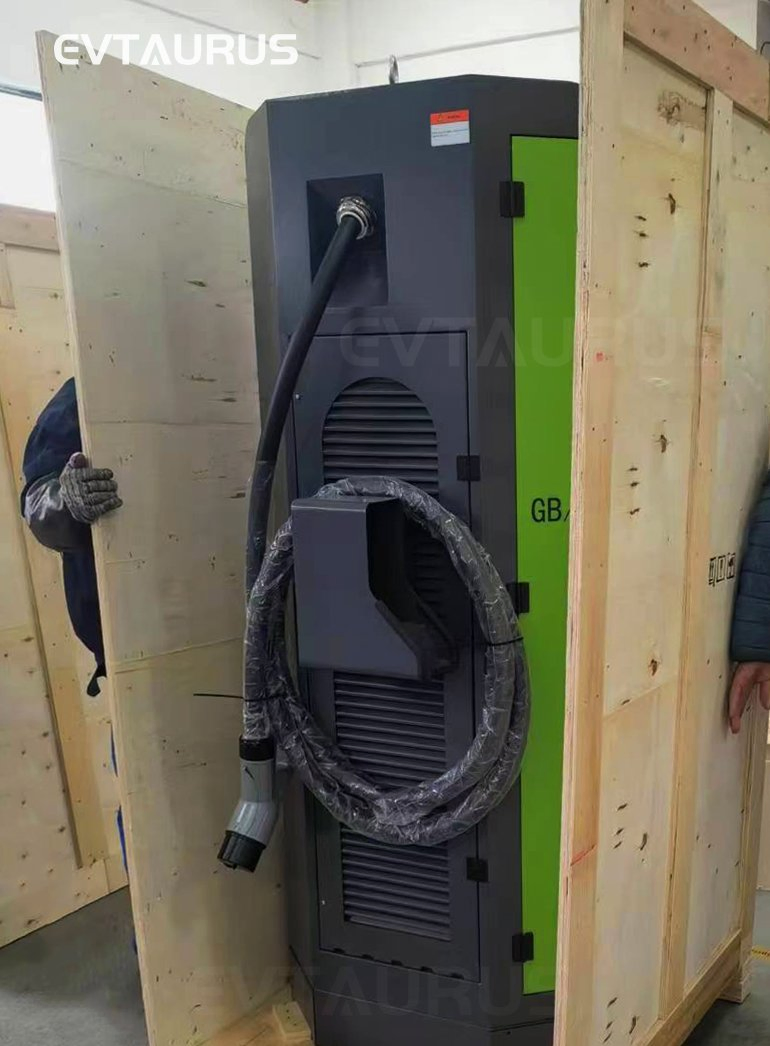

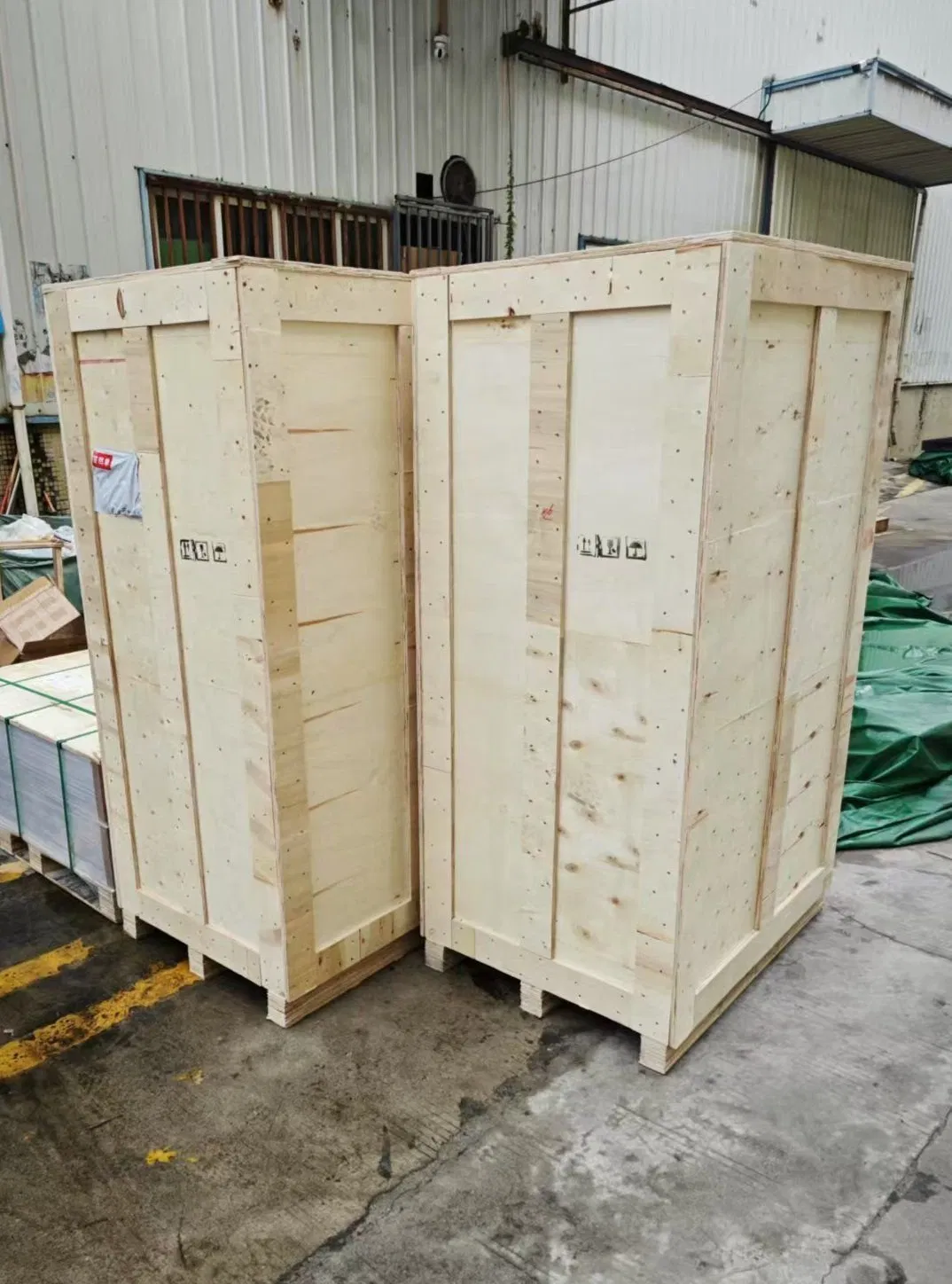

Packaging & Shipping
Installation & Service Process
1
Order Confirmation: Confirmation of charger model, power conditions, and address.
2
Local Installation: Detailed manuals and wiring diagrams provided for certified local electricians.
3
Technical Support: Real-time assistance via phone or video during setup.
4
Commissioning: Assistance with device testing and platform integration.
5
After-Sales: Long-term technical support and product warranty.

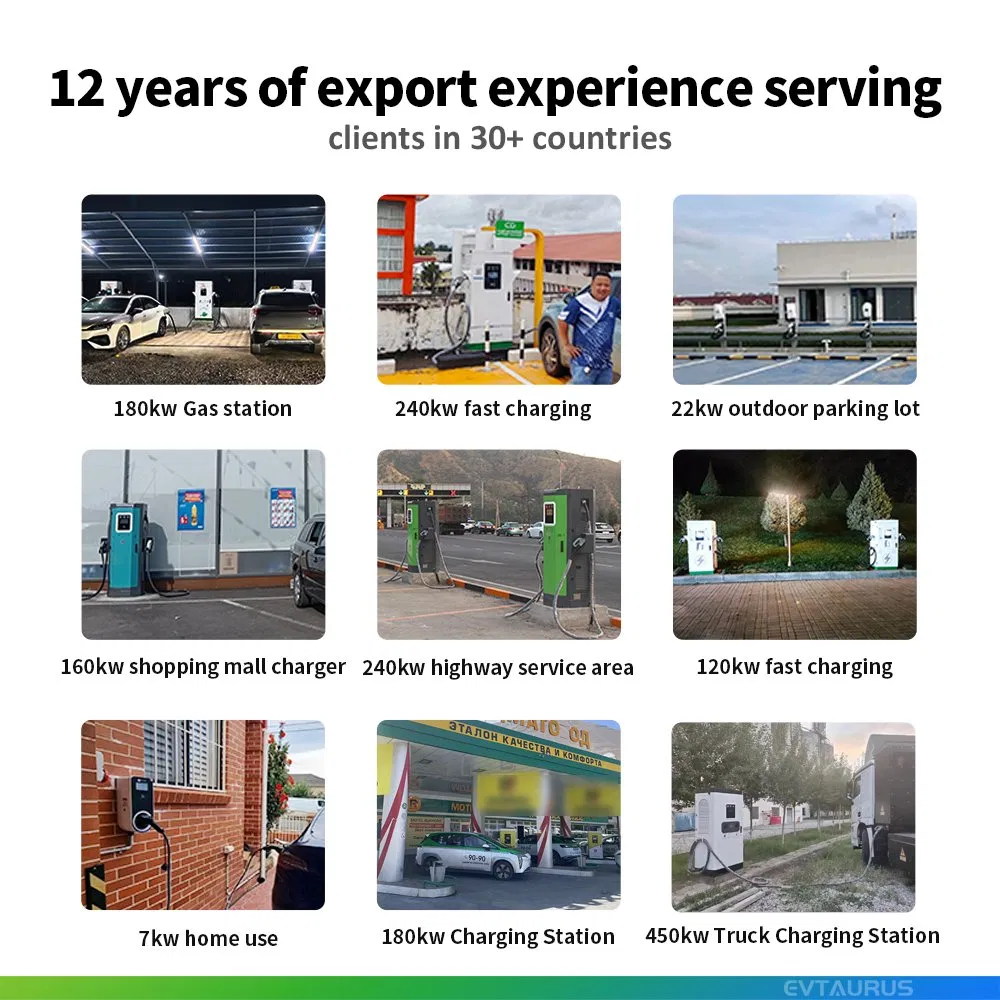

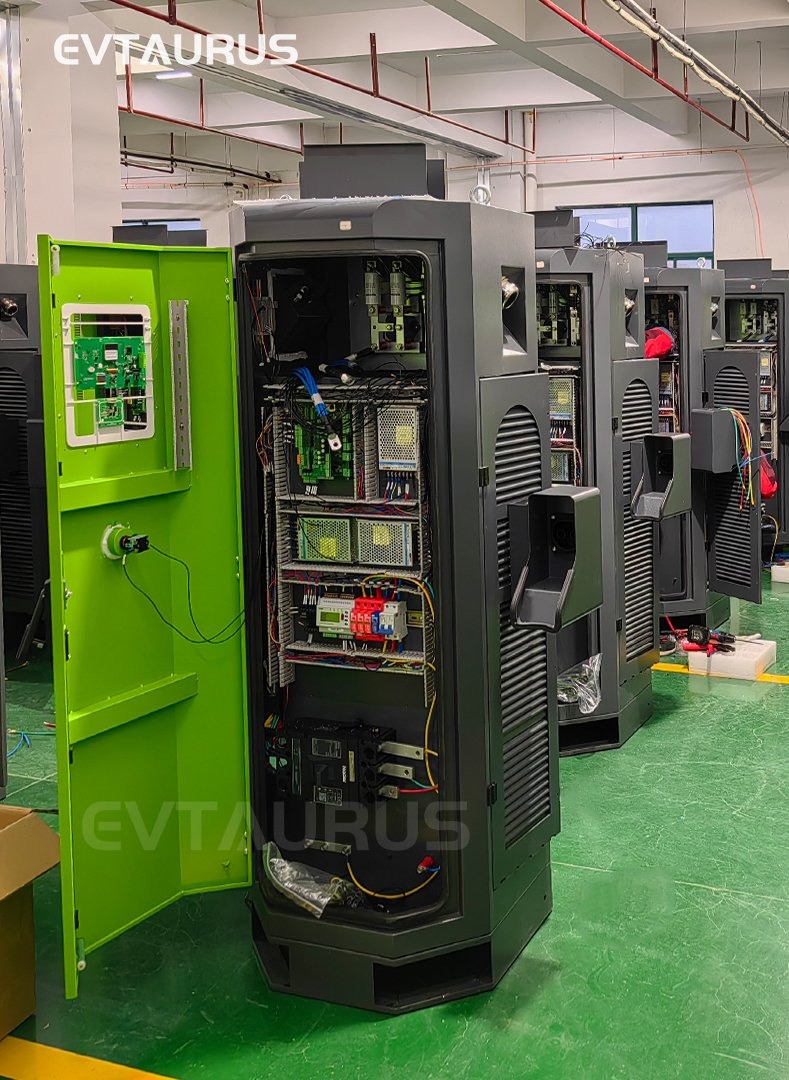

Professional Manufacturing
Specializing in the R&D, production, sales, and service of new energy vehicle charging equipment since 2013. With over 55 patents and international certifications including CQC and CE, we provide high-quality charging solutions globally. Our product range includes DC fast chargers, cables, connectors, and adapters designed for reliability and efficiency.
Frequently Asked Questions
What power outputs are available for this DC charger?
We offer a wide range of power options from 30kW up to 360kW to suit different commercial and public charging needs.
Which charging standards does the device support?
The charger is compatible with CCS1, CCS2, CHAdeMO, NACS (Tesla), and GBT-DC standards, making it suitable for almost all electric vehicles.

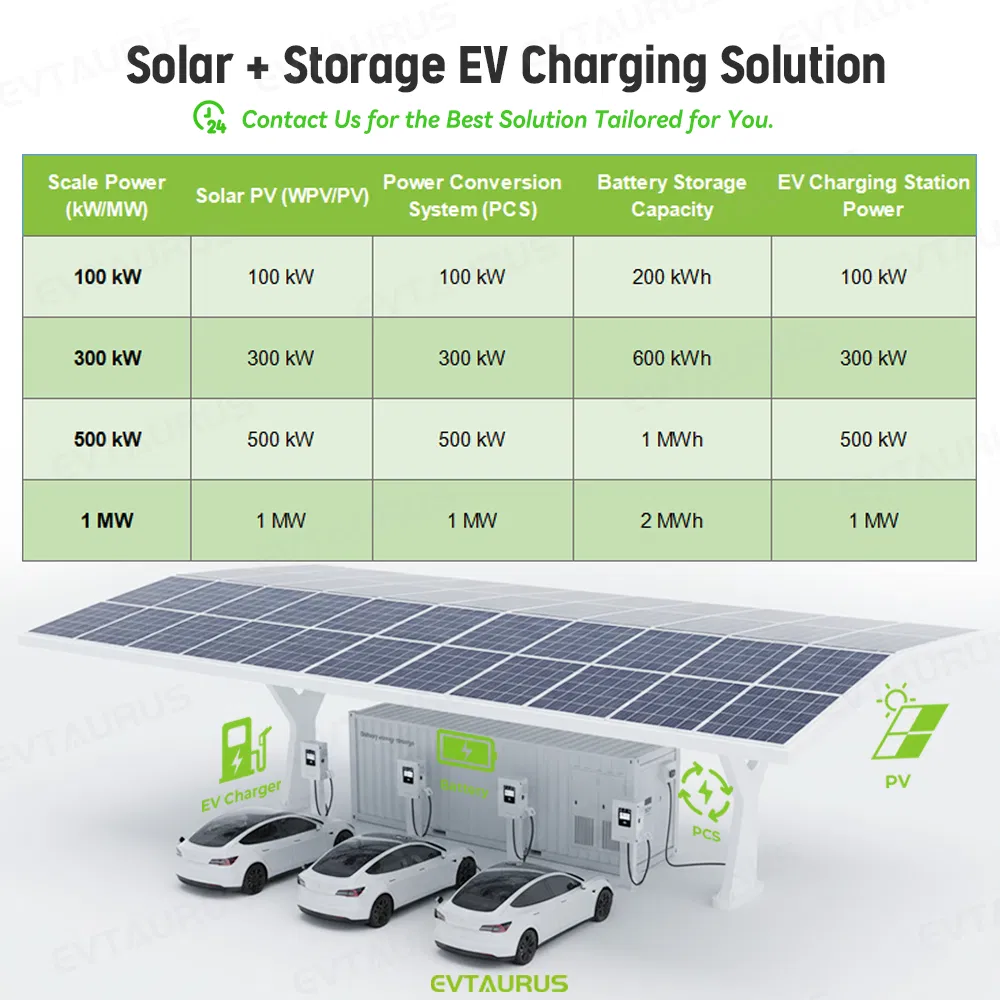

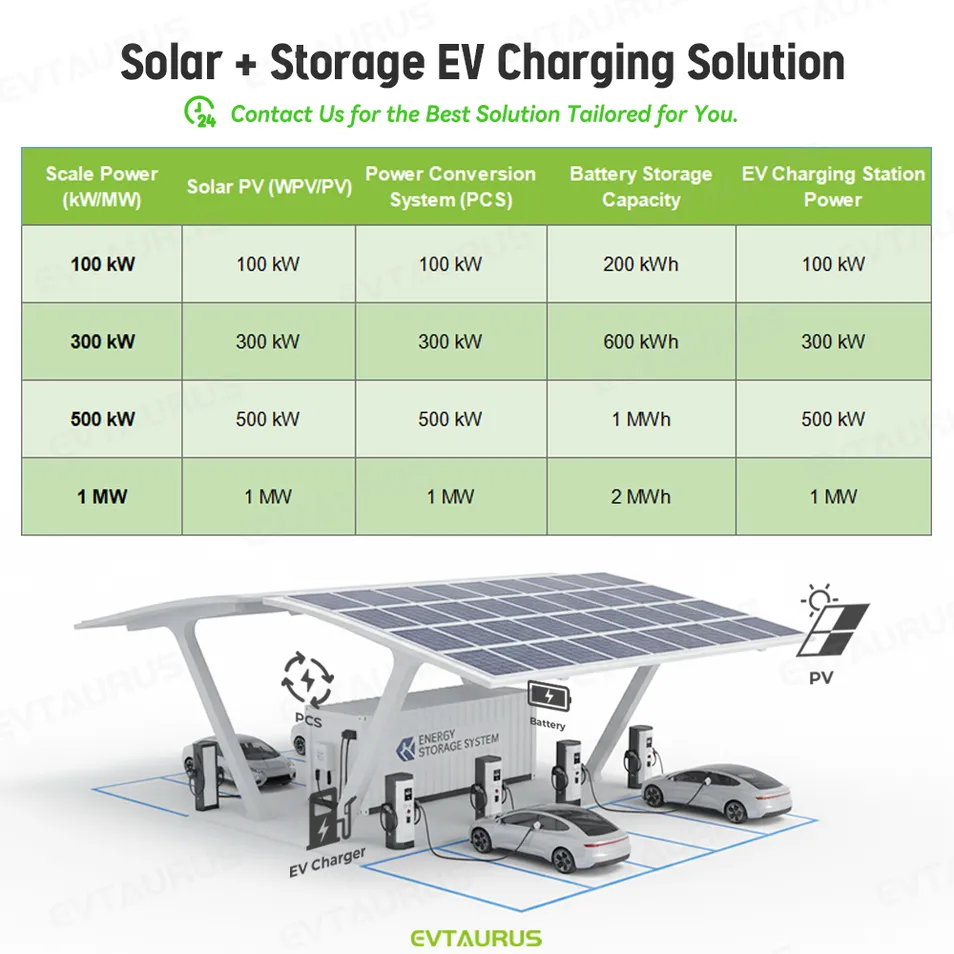

Can this charger be integrated with solar energy?
Yes, our system supports connection to solar power systems for sustainable and eco-friendly charging operations.
What payment methods can users use?
The charger supports multiple payment and start modes, including RFID cards, Mobile App (QR Code), and Credit Card POS machines.
Is the charging cable length customizable?
The standard cable length is 5 meters, but we can customize the length (e.g., 2m, 3m) based on your specific site requirements.
What is the warranty and technical support policy?
We provide a 2-year warranty and offer long-term remote technical support, including video assistance for installation and commissioning.
