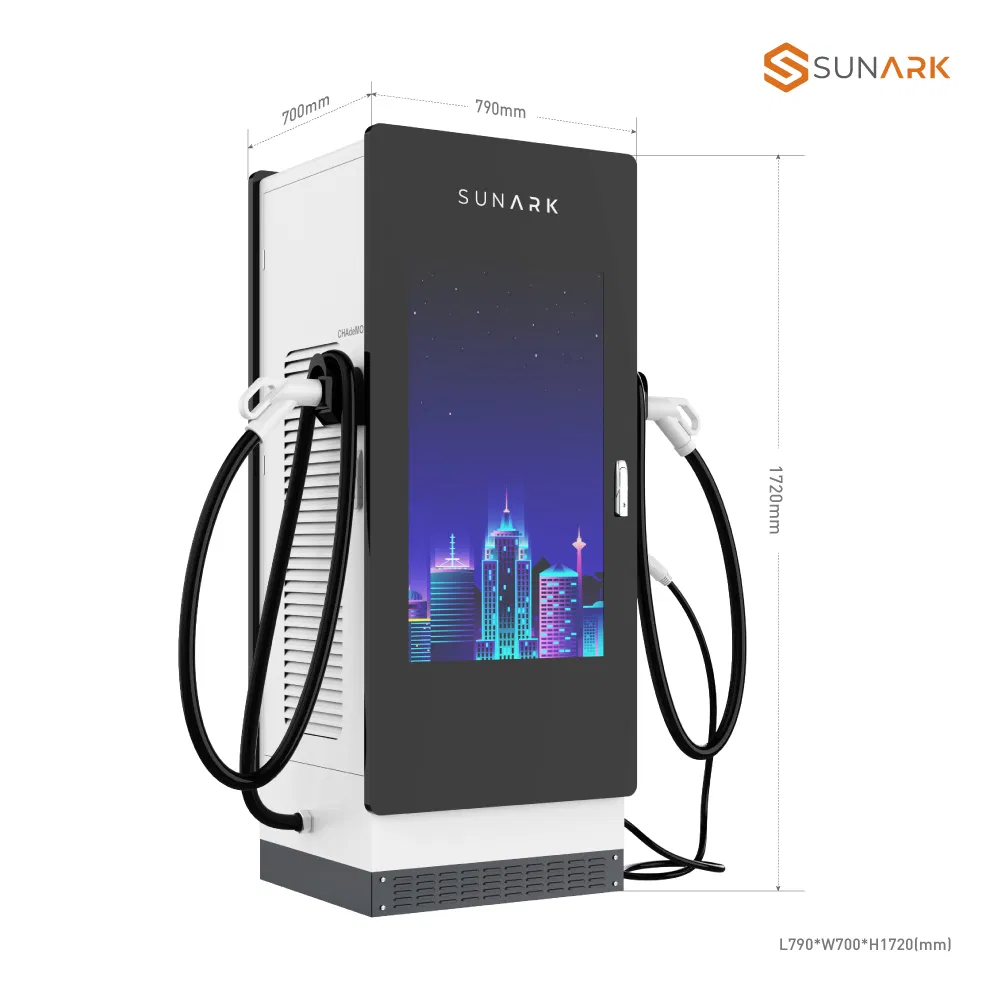

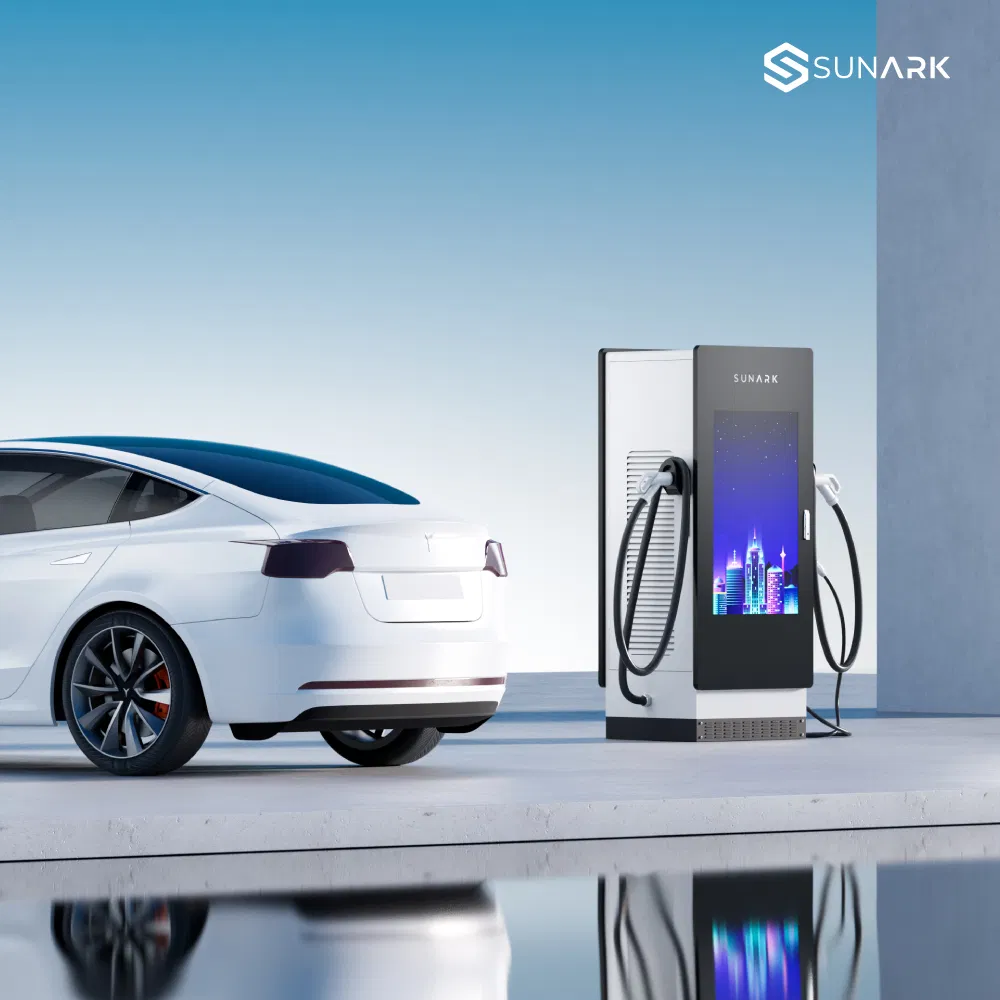

EV Fast Charging Stations 7kw 11kw 22kw Type 2 Solar Powered Electric Car Charger for Parking Lot
Product Description
Basic Information
| Model NO. | EV Charger DC/AC | Interfaces | One Pile with Multiple Charges |
| EV Charger Type | DC+AC | Charger Capacity | 30kw/50kw DC*2+22kw/43kw AC*1 |
| Mounting | Ground-Mounted | Cooling | Air-Cooled |
| IP Ratings | IP 54 | Display | 7 Inches Touch Screen with Shell |
| User Authentication | Qr Code/RFID Card /Password Login | Communication | Ocpp 1.6j / Ethernet/3G/4G/WiFi |
| Certificate | IEC 62196 2017, IEC 61851 2017, SAE J1772 | ||
Product Description
| Parameters | Requirements | |
|---|---|---|
| General Requirements | ||

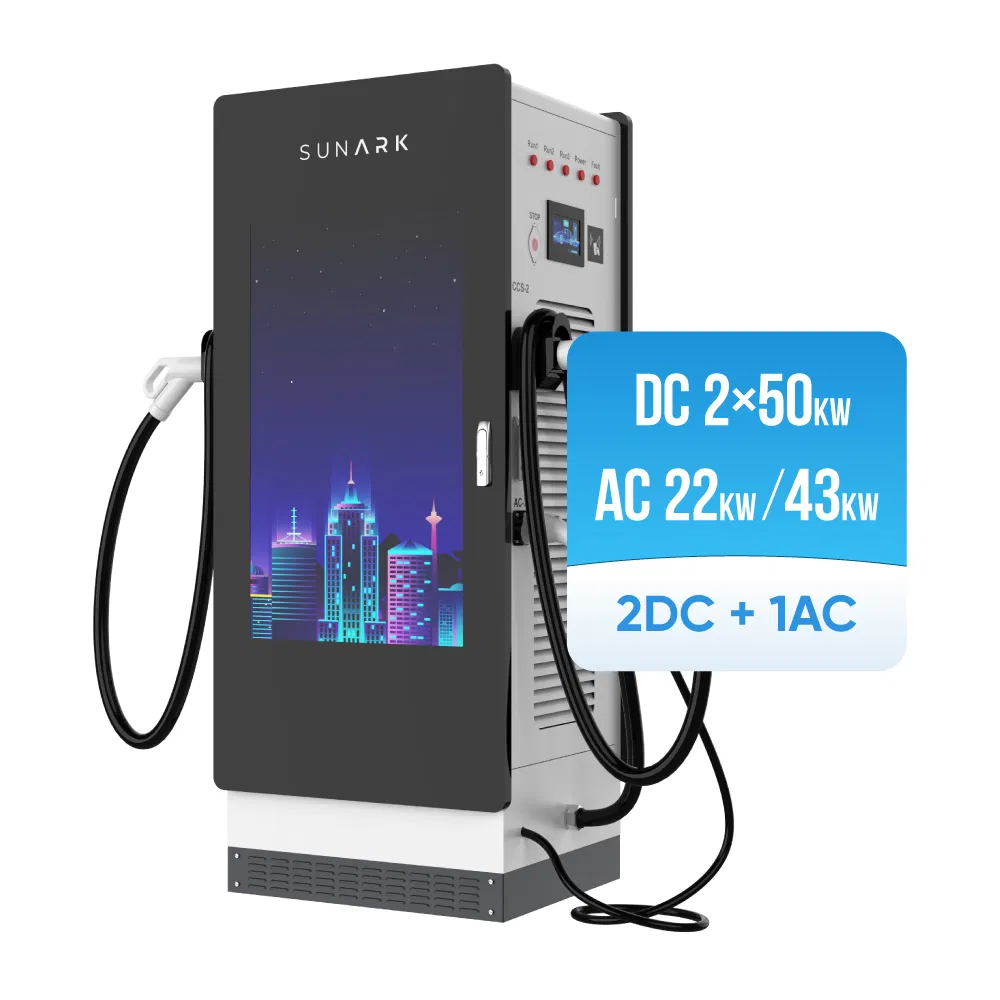

| EV Charger Type | 2DC + 1AC | / |
| Charger Capacity | 2*30KW DC + 22KW/43KW AC | 2*50KW DC + 22KW/43KW AC |
| Input Requirements | ||
| AC Supply System | Three-Phase, 5 Wire AC system | |
| Nominal Input Voltage | AC380V±15% | |
| Mechanical & Environmental | ||
| Ambient Temperature | -25 to 55°C | |
| IP Ratings | IP 54 | |
| Safety Protection | ||
| Safety Parameters | Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature | |

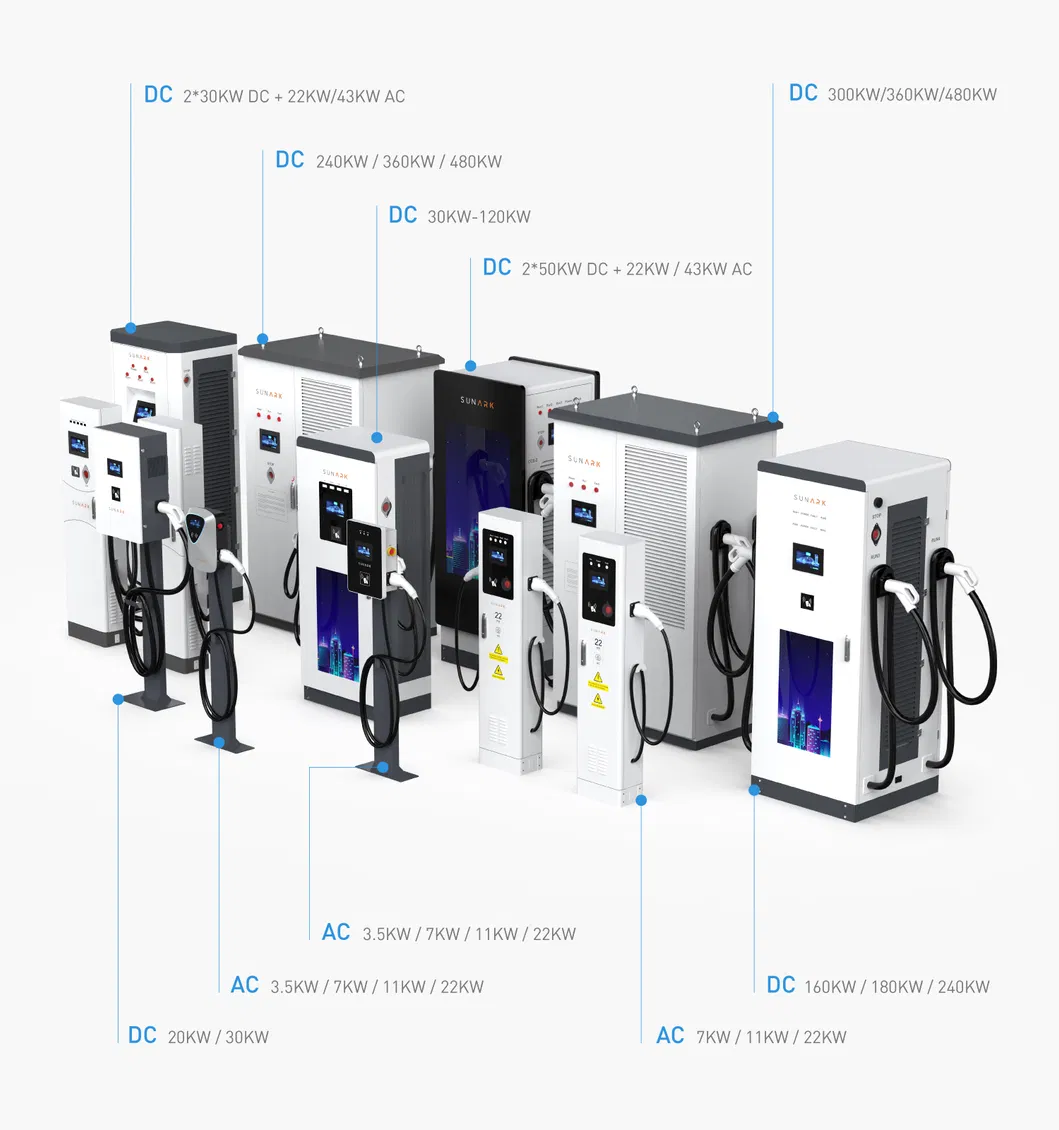

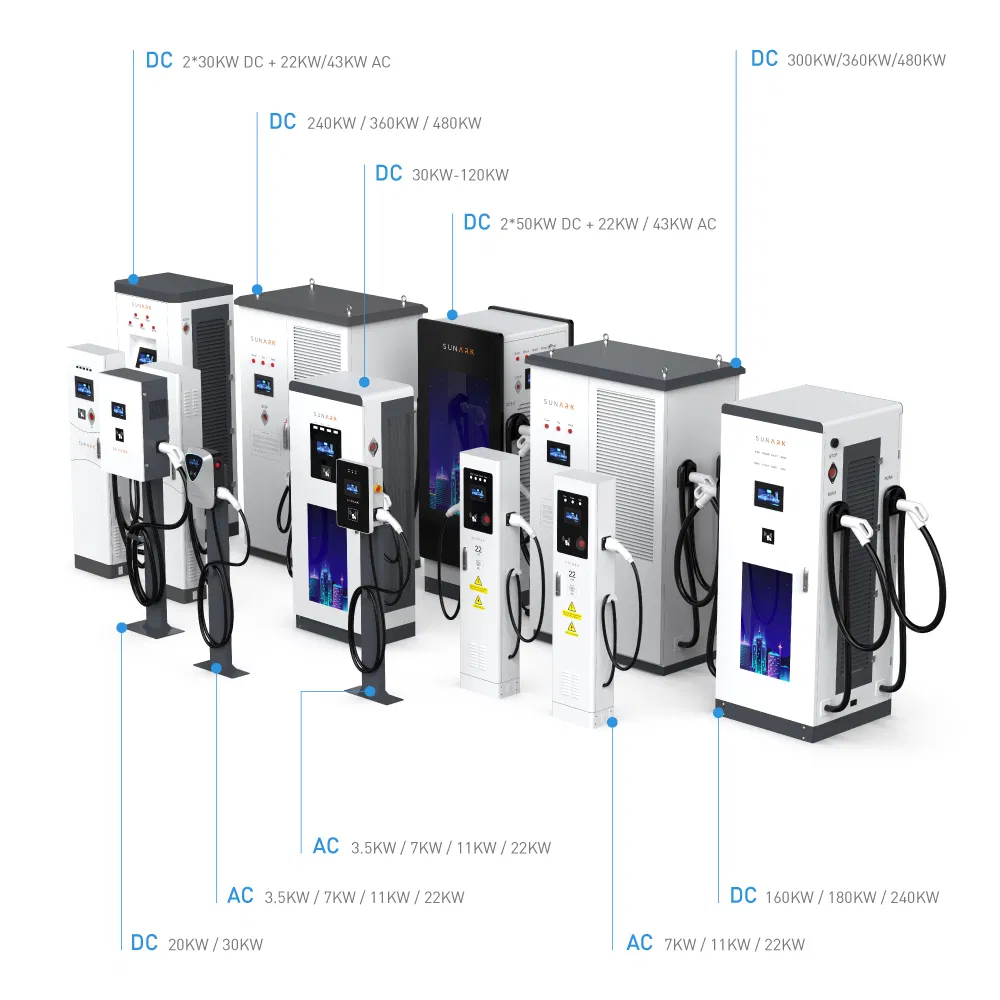

Products Series

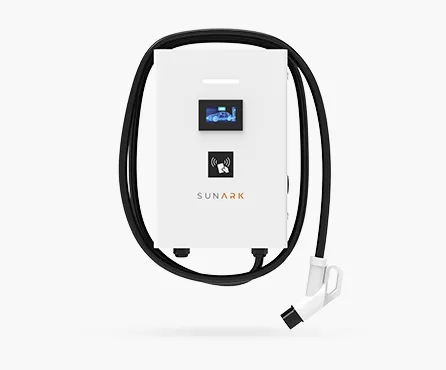

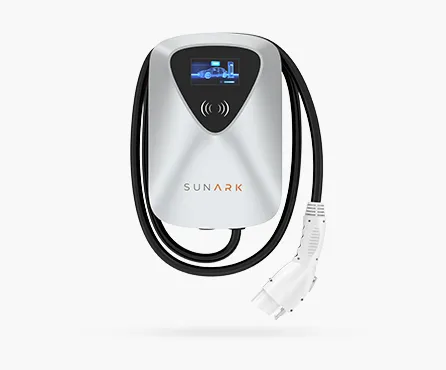

Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A
Output Voltage: 220~240V, 380-415V

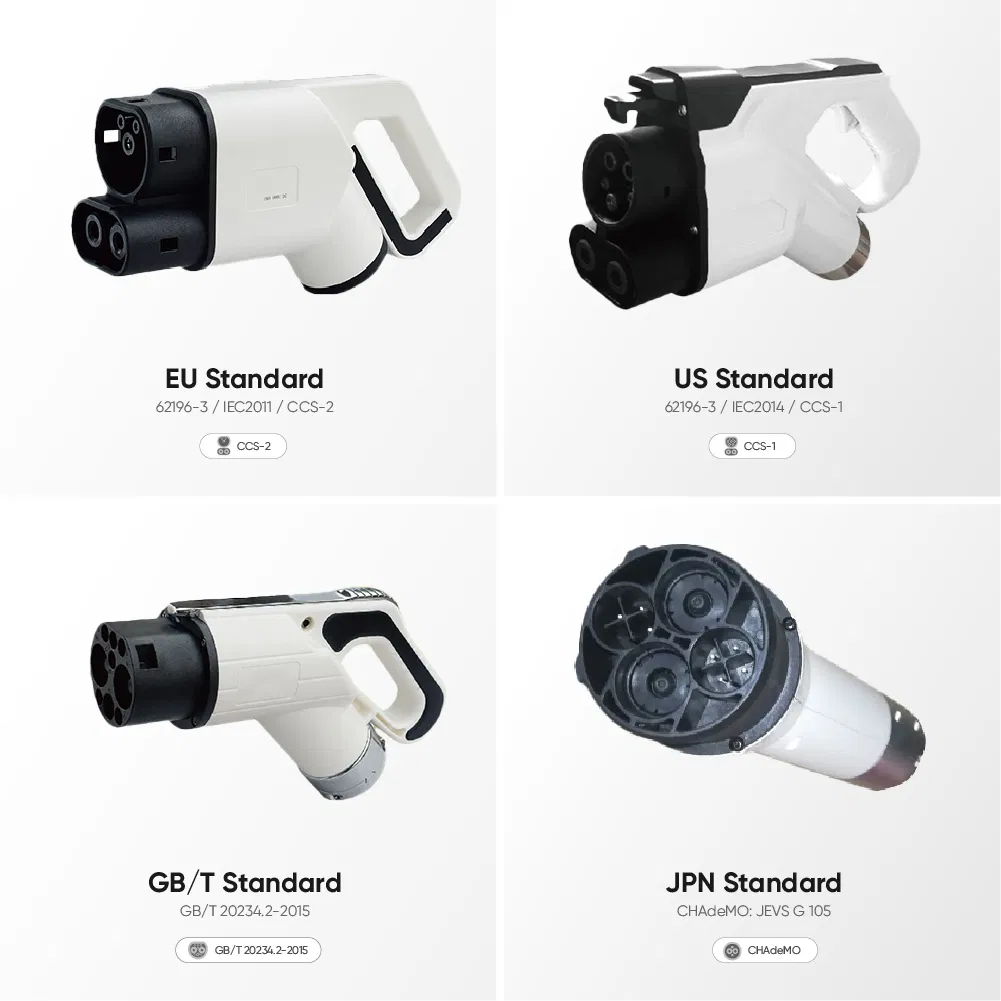

Connector: CCS1/2, CHAdeMO
Rated Power: 20/30/40/50/60/80KW
Output Current: 80/125/150/200A
Output Voltage: 200~750V
Connector: CCS1/2, CHAdeMO
Rated Power: Up to 480KW
Output Current: 200A*2
Output Voltage: 200~750V
Supports multiple terminals (4/6/8)

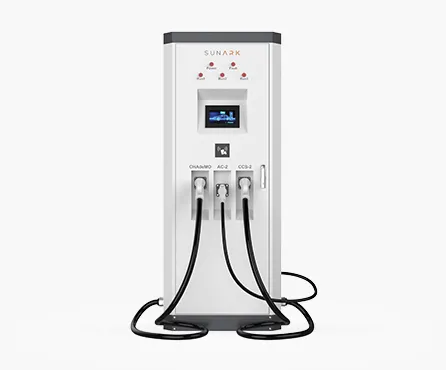

Integrated Solution: 2*30KW/50KW DC + 22KW/43KW AC
Standard: CCS-2/CCS-1, CHAdeMO
Type-2/Type-1 AC outputs included.

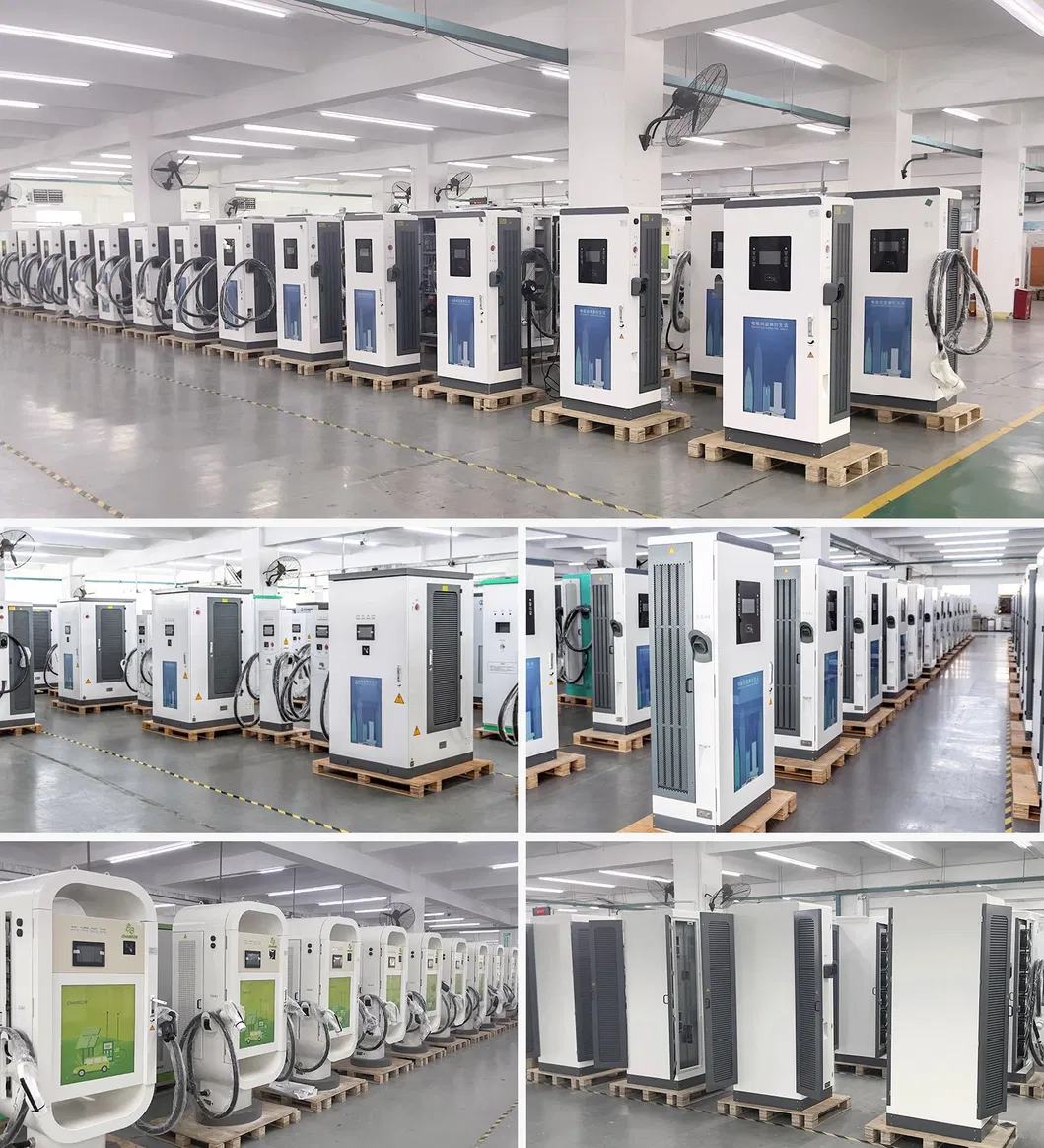

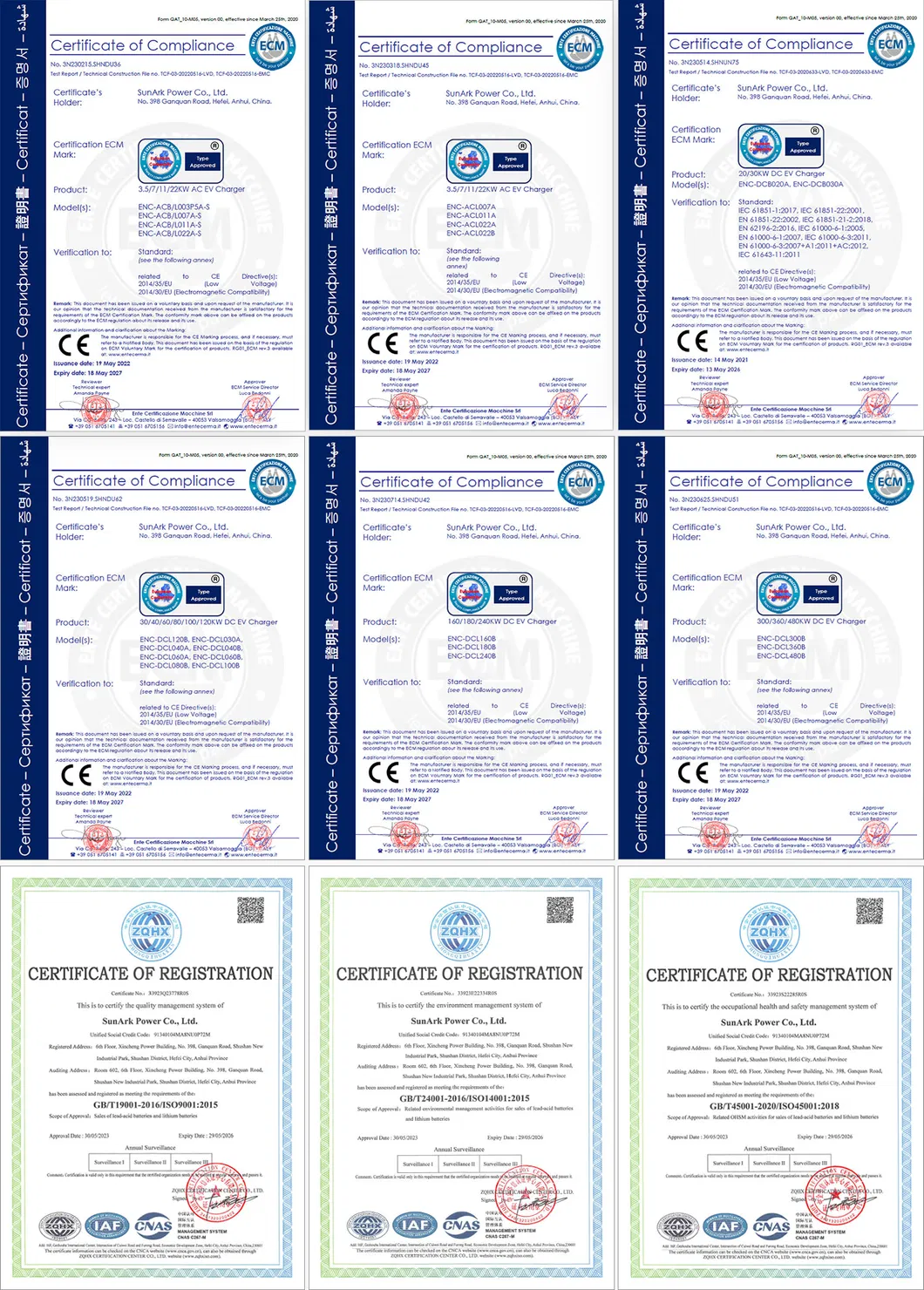

Factory & Certificates

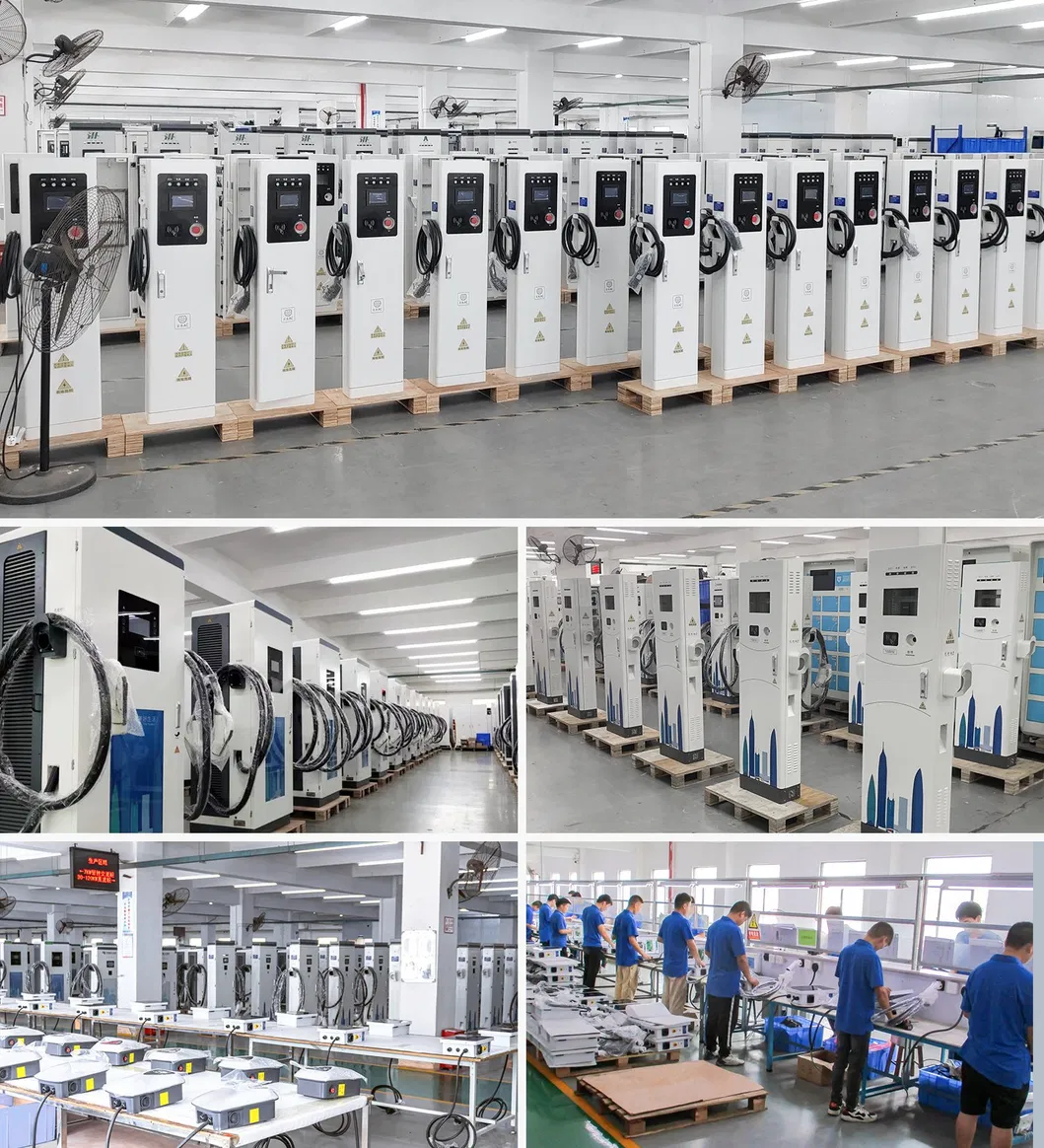

Professional Manufacturing
We are a professional manufacturer established in 2002, specializing in environmentally friendly energy solutions, including advanced battery systems and EV charging infrastructure. We develop advanced technology and adopt the world's most sophisticated production equipment and testing measures to ensure long product life, high energy density, and environmental protection features.
Our high-tech enterprise operates multiple manufacturing bases with approximately 2,000 employees, including seasoned professors with over 40 years of experience in research and over 50 specialized engineers. We invest strongly in scientific research to overcome technical difficulties in power technology. Our independently researched products meet and exceed international standards, holding numerous national and international patents.
