What Type 2 to 13A Socket Adapter Matches Schuko Plug Type F and Gbt Electric Car Charger Needs
Product Description
Basic Information
Model NO.
FD05
Standard
IEC 61851-1:2017 62196-2
Temperature Range
-20 °C to 50 °C
Applicable Altitude
≤ 2000 Meters
Certified
CE Certificate
Female Connector
Yes
Male Connector
Yes
Package Size
30cm*8.5cm*8.5cm
Production Capacity
50,000 pieces/Year
Product Description
💡
Professional Charging Solutions: We specialize in electric vehicle charging solutions, producing TYPE 1, TYPE 2, GBT, and Tesla compatible AC charging equipment. Custom logos, patterns, and molds are available to meet your specific regional requirements.

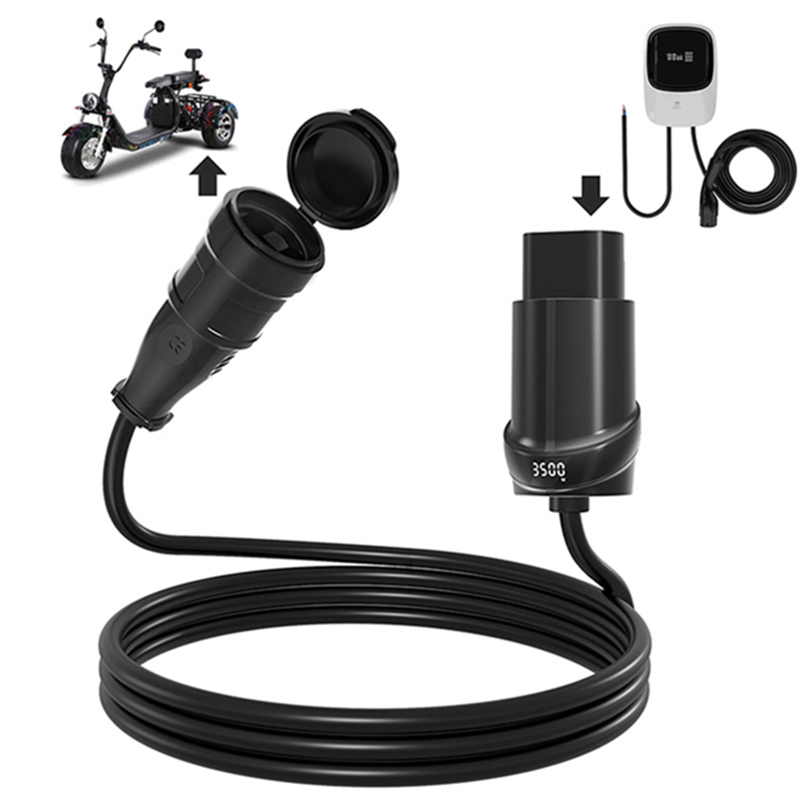

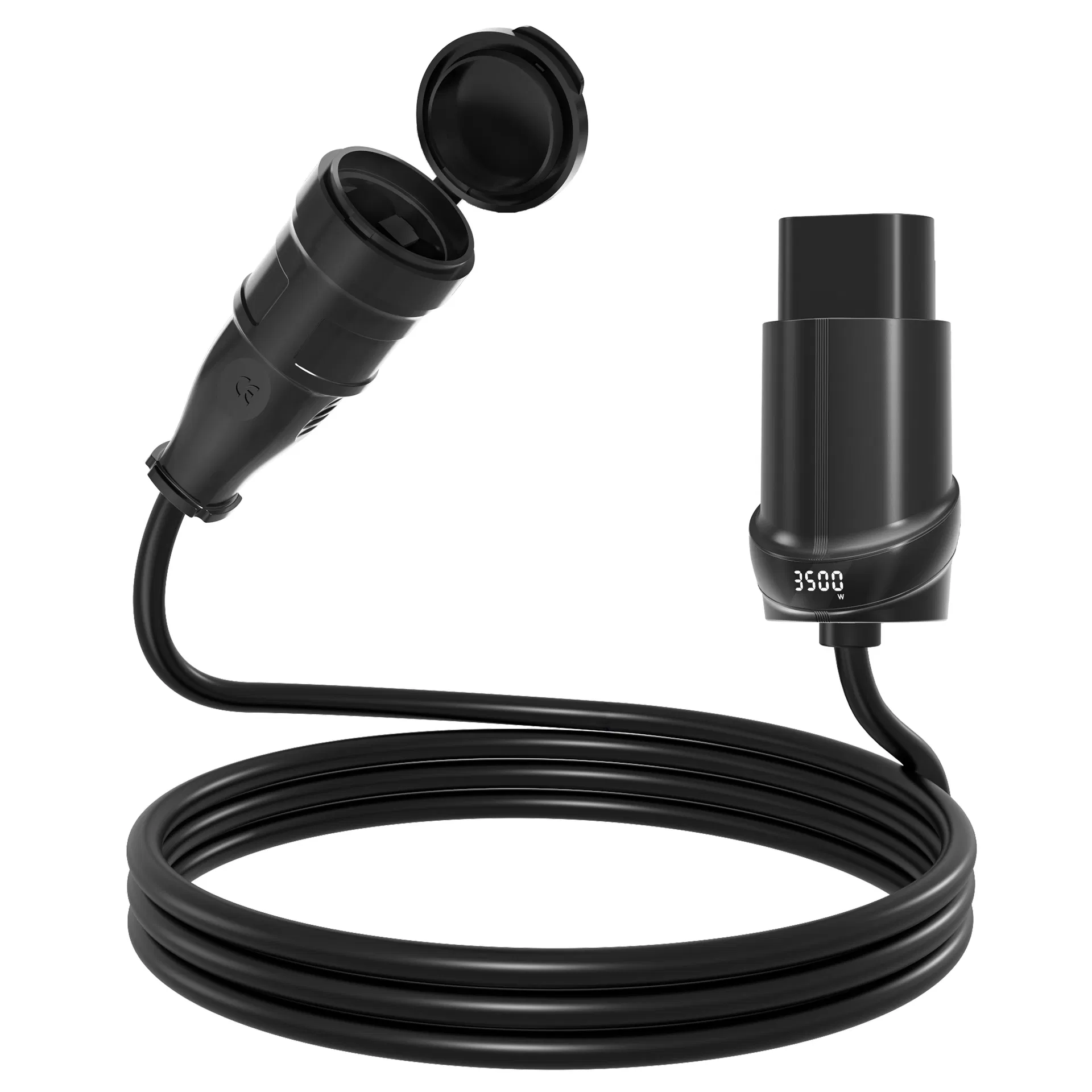

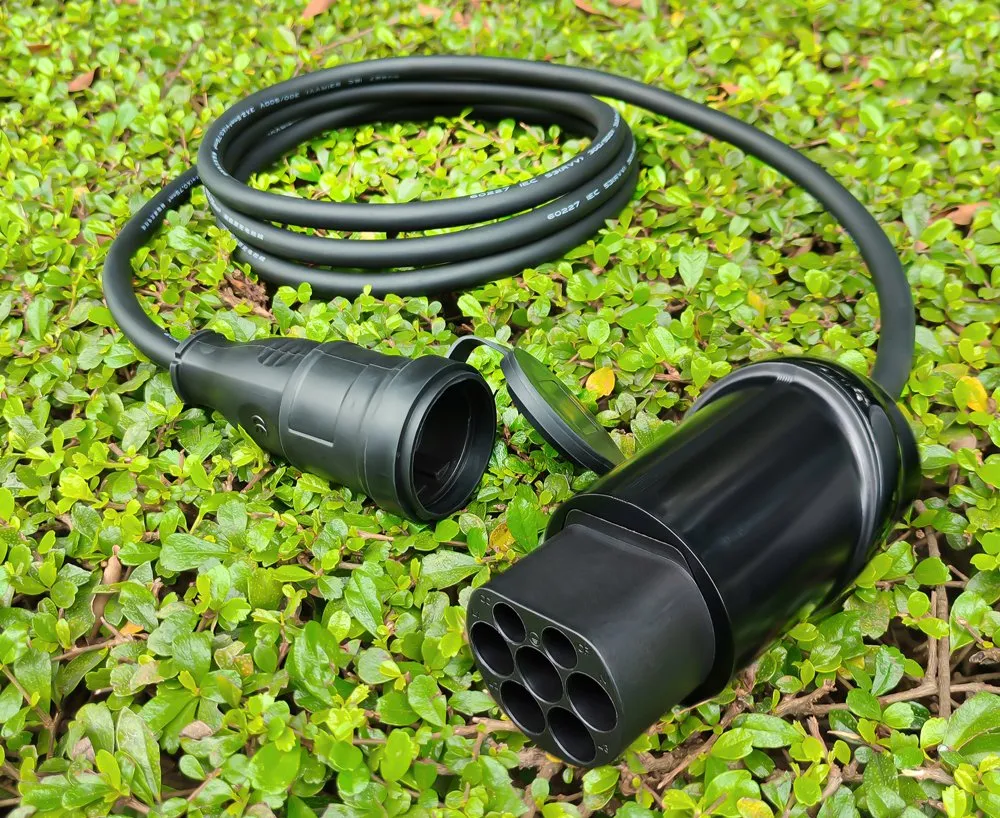

FD05 Type 2 to Schuko Adapter
- External Discharge: Allows discharging from the EV charging station to external devices.
- Broad Compatibility: Suitable for Mode 3 stations, socket stations, and Mode 2 portable chargers.
- Versatile Use: Perfect for electric motorcycles, e-bikes, scooters, floor scrubbers, and cutting machines.
- Customizable Sockets: Options include European, British, Australian, and American sockets.
- High Protection: IP55 for plug and IP44 for Schuko socket; waterproof and dustproof.

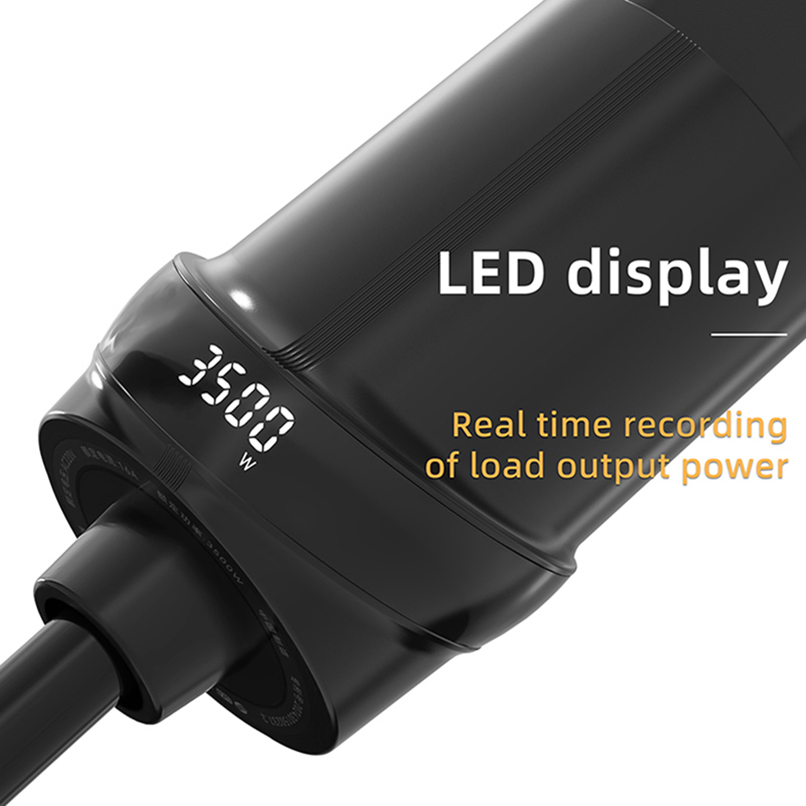

- LED Monitoring: Built-in LED display to check real-time power consumption.

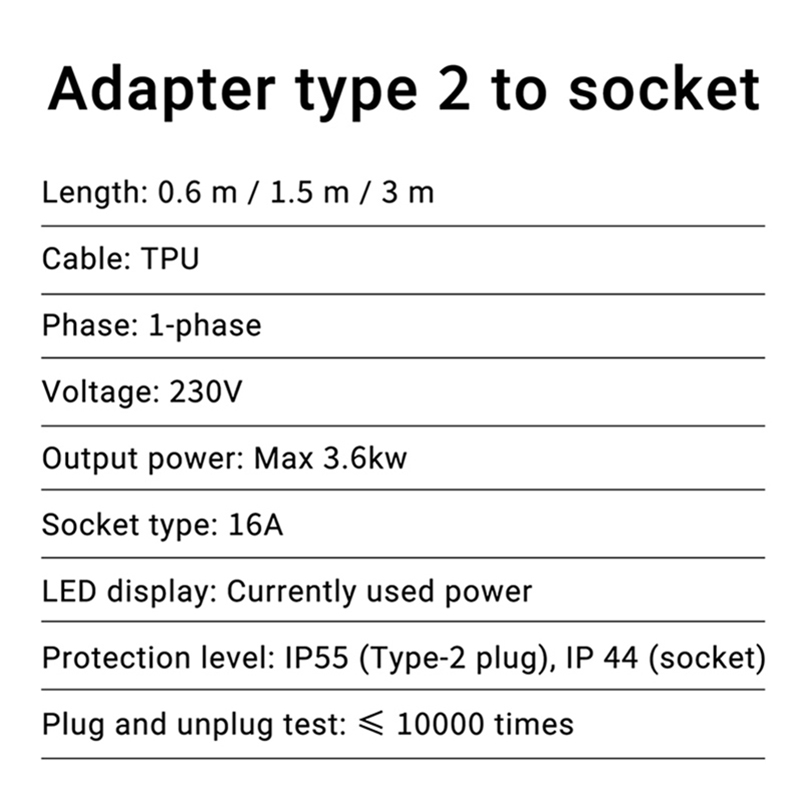

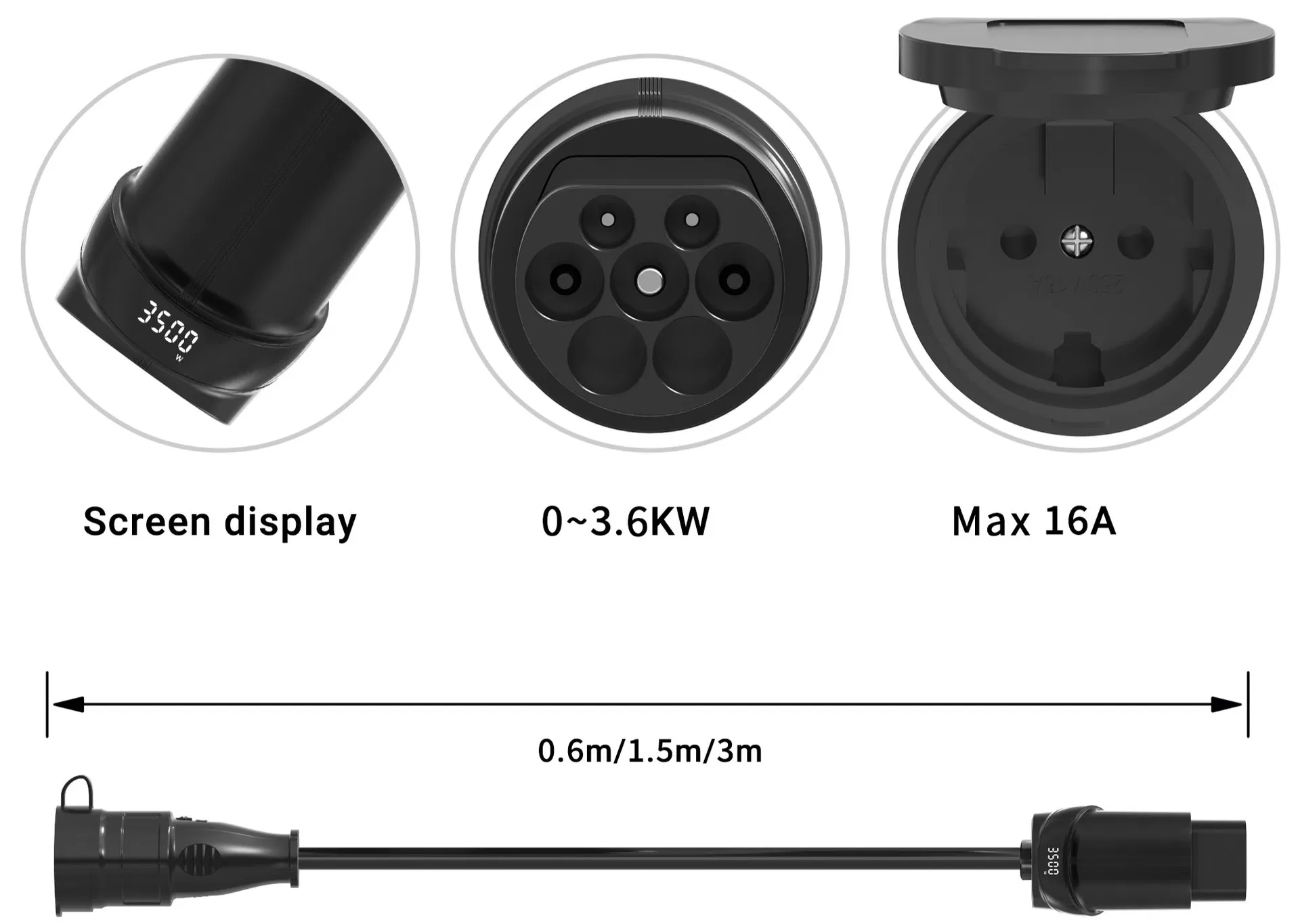

Technical Specification
| Electrical & Functional Specification | |
|---|---|
| Rated Voltage | 100V / 240V AC ± 10% |
| Rated Current | 16A |
| Rated Power | 3.5kW |
| Frequency | 47~63Hz |
| Interface Types | IEC 62196-2, SAE J1772, GB/T 18487, NACS |
| Cable Length | 1.5m / 3m / 5m (Optional) |
| Protection Rating | IP55 (Plug) + IP44 (Socket) |
| Operating Temperature | -20ºC to +50ºC |
| Cooling | Natural Air Cooling |
Packaging & Service
Standard Package includes:
- 1× Adapter Type 2 to Schuko
- 1× Carrying Bag
- 1× Instruction Manual
- 1× Airplane Box
After-Sales Support:
- 24-month warranty against defects
- Logistics damage compensation
- Professional technical team support

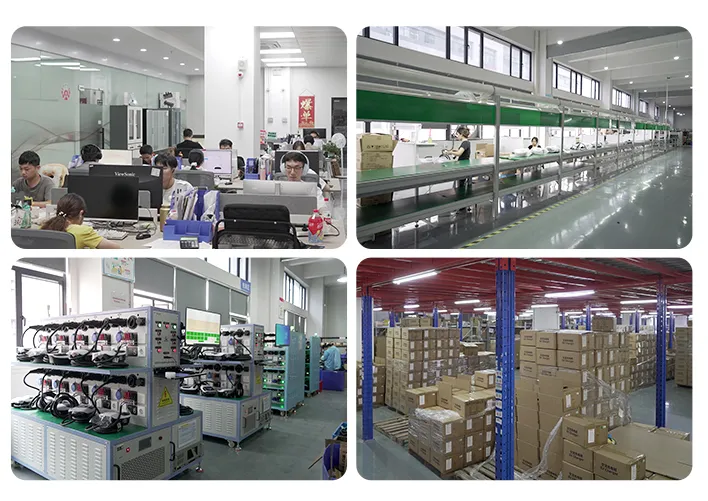

Factory Profile
Our factory is a high-tech enterprise focusing on R&D, production, and sales of NEV charging equipment, including EV charger stations, portable chargers, and V2L adapters. With over 4,400 square meters of production space and a team of 200+ professionals, we ensure strict quality control and innovation.
8+ Years Experience in EVSE Manufacturing | ISO9001/CE/ROHS/FCC Certified | 30+ Technical Patents
Frequently Asked Questions
Q1: What is the main function of this adapter?
The FD05 adapter allows you to discharge power from a Type 2 electric vehicle charging station to power external AC devices like e-bikes, scooters, or household appliances.
Q2: Can I customize the plug and socket types?
Yes, we provide OEM/ODM services. You can customize the input plug (Type 1, Type 2, GBT, Tesla) and the output socket (European, British, Australian, American, etc.).
Q3: Is it safe to use outdoors?
The adapter features an IP55 rating for the plug and IP44 for the socket, making it waterproof and dustproof for safe outdoor use.
Q4: Does the adapter show real-time power usage?
Yes, it includes an integrated LED display that shows real-time load output power and total energy consumption.
Q5: What is the maximum power supported?
The adapter supports a maximum output of 3.5kW and a rated current of 16A.
Q6: What is your warranty policy?
We offer a standard 24-month warranty against manufacturing defects. Personalized solutions for extended warranties are also available upon request.
