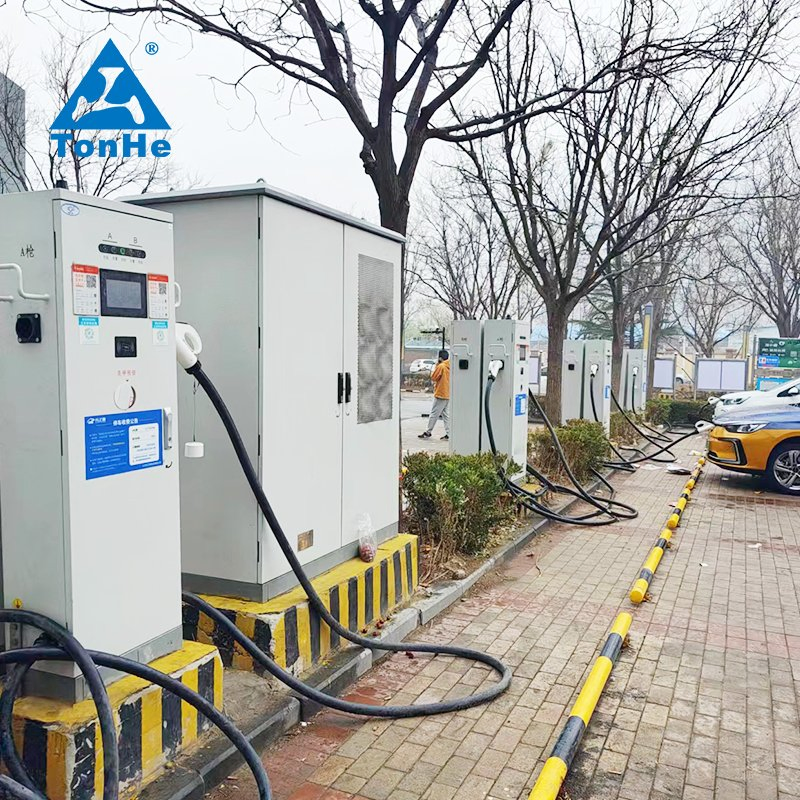

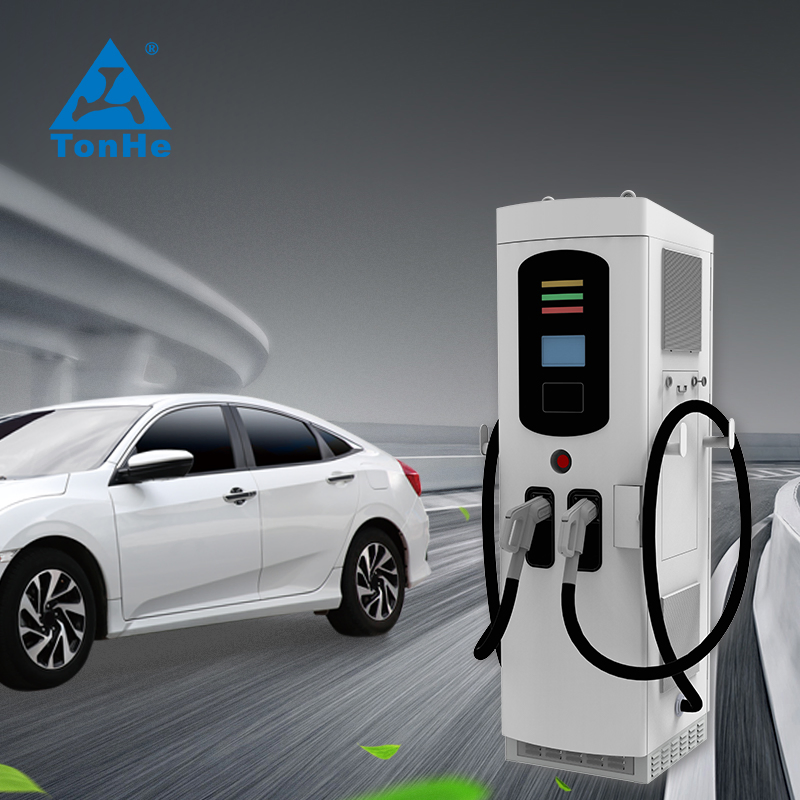

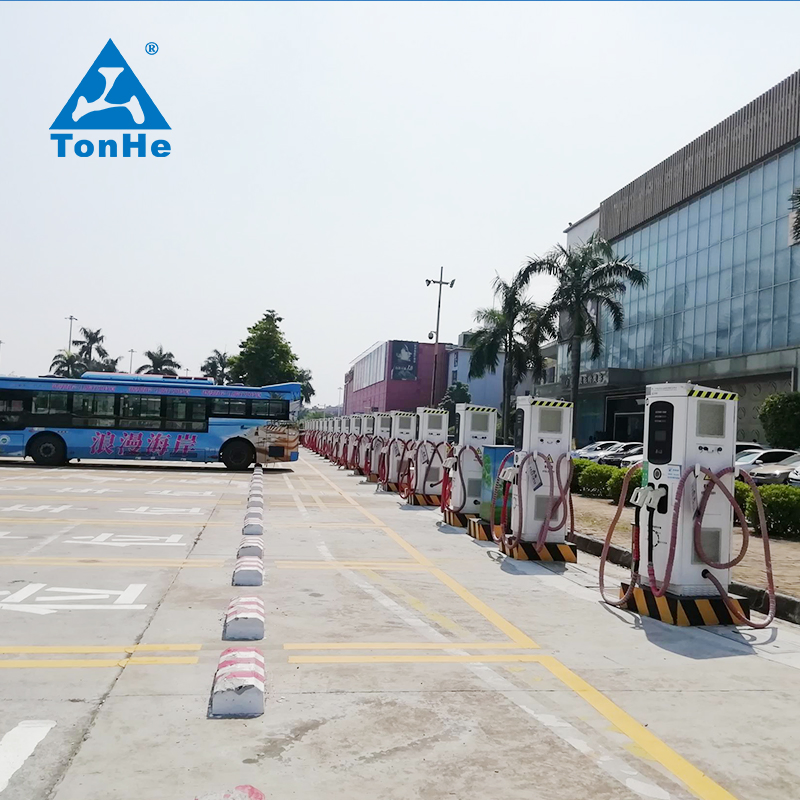

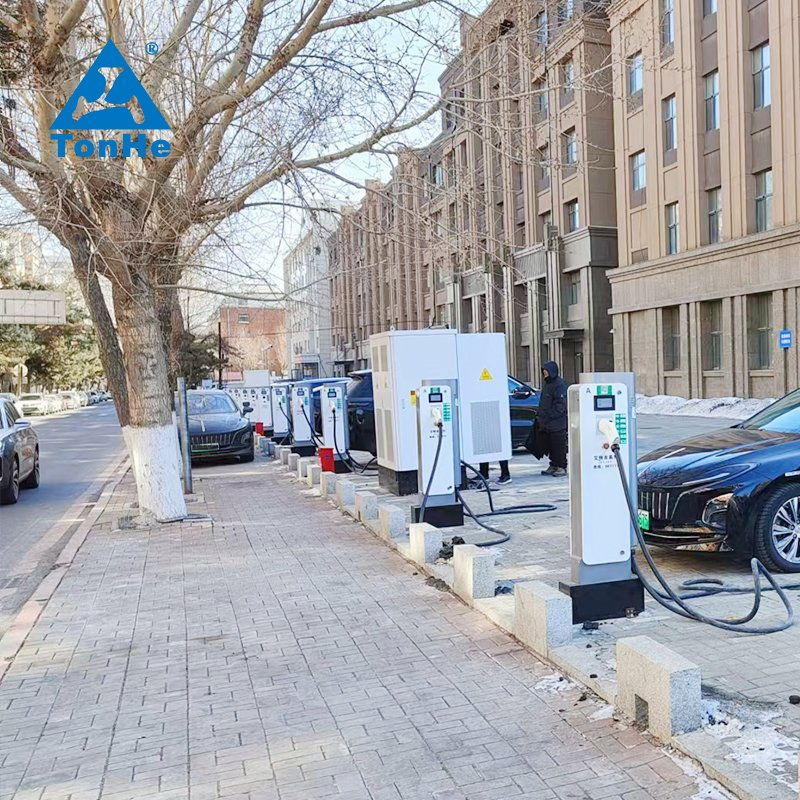

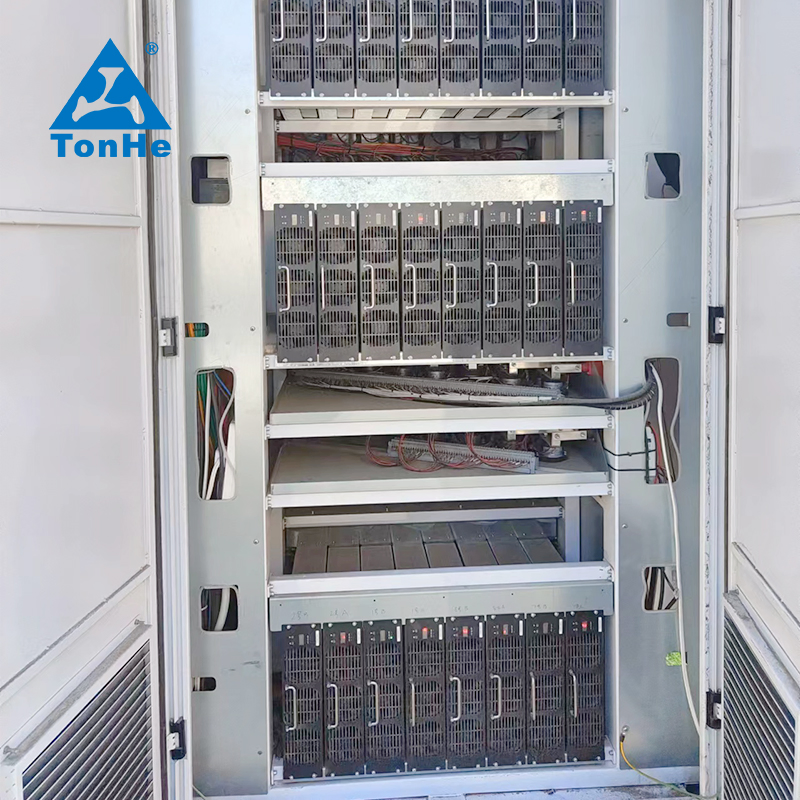

DC Fast AC 200kw EV Car Charger Solution Adapter Type 2 Electric Vehicle Station
Product Description
Model NO.

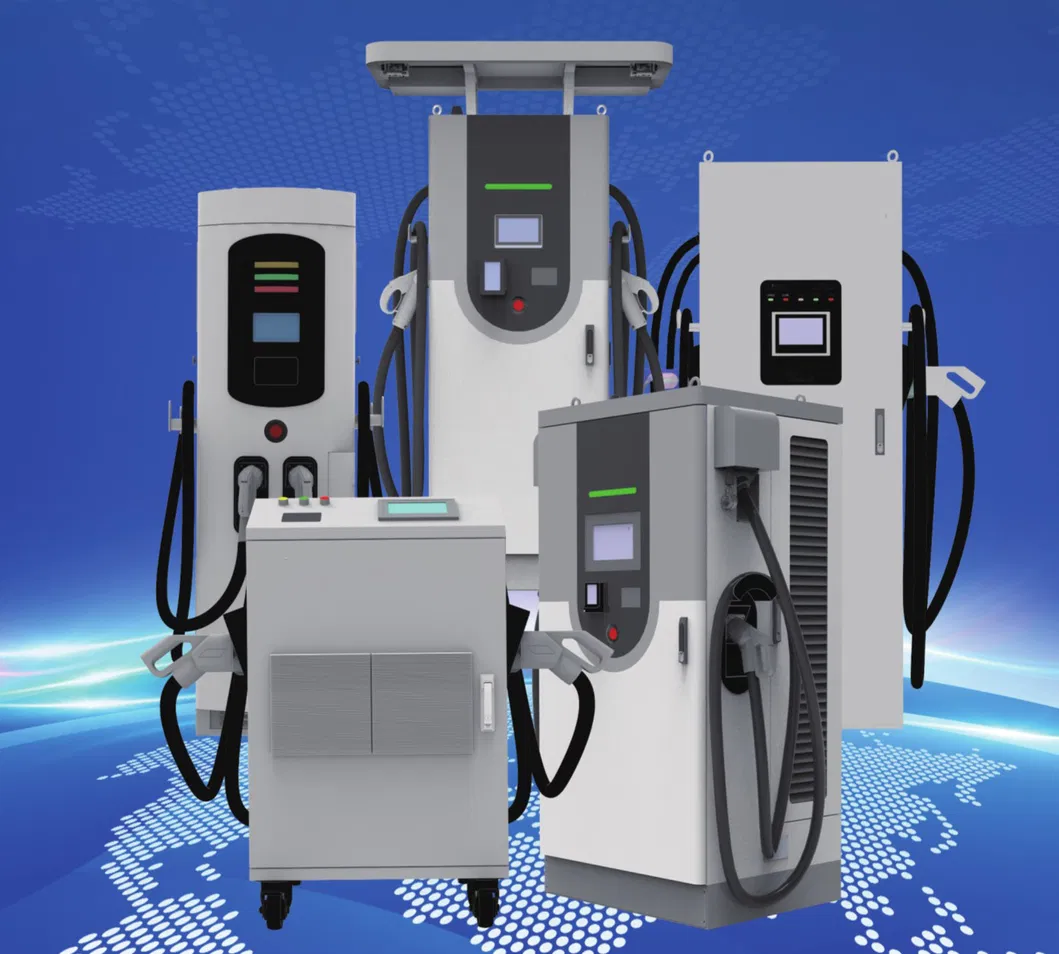

EV Charger Solution
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Charge Method
Quick Charging
Power Range
60kw - 200kw
Output Voltage
200-1000VDC
Origin
China
✔ Constant power from 200-1000VDC
✔ Average efficiency ≥94% at nominal output
✔ Dual outputs, simultaneous charging
✔ Ethernet/3G/4G communication
✔ High protection grade IP54
✔ APP or RFID authentication
✔ CE certificate NB 1282
✔ OEM/ODM & LOGO customized
| AC Input | 3 phases+neutral+PE, 380VAC±20%, 50Hz±10% | ||
|---|---|---|---|
| DC Output Power | 60 / 80 / 100 / 120 / 140 / 160 / 180 / 200 kW | ||
| Output Voltage | 200-1000VDC | ||

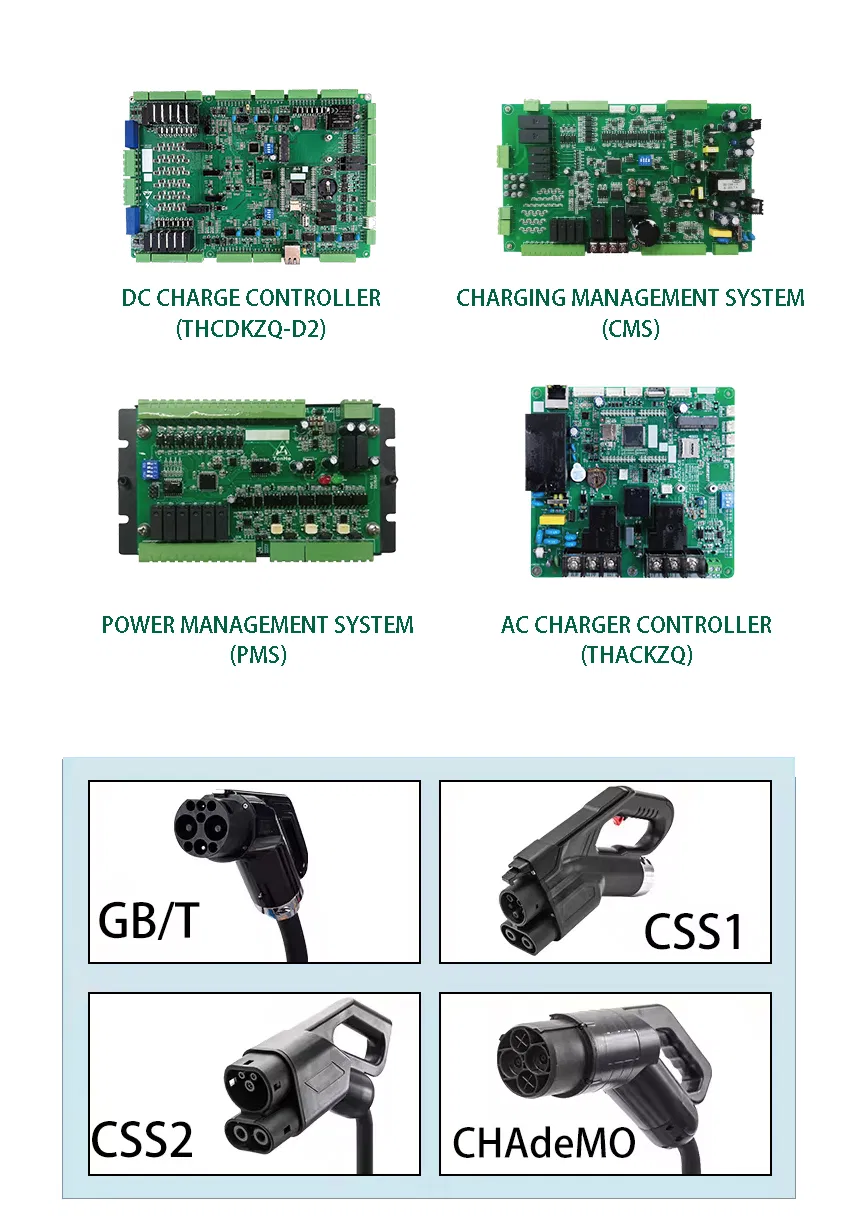

| Max Current | CCS 2: 200A, CHAdeMO: 125A, GB/T: 250A | ||
| Efficiency | ≥94% at nominal output power | ||
| Protection | Over/Under Current, Over Voltage, Surge, Short Circuit, Earth Fault, Over Temperature | ||
| Environment | Temp: -30ºC to +55ºC, Altitude: ≤2000M, IP54 |
The company sticks to technological innovation, focusing on the field of high-frequency power conversion technology. It is a leading power electronic enterprise that has realized soft switching technology for the whole process of power conversion. The company holds a number of internationally advanced core technologies. In the EV charging and swapping industry, the company is committed to innovation in technology, products, and management, providing "One-Stop Service" including R&D guidance, system solutions, and technical training.
What are the module CAN baud rate and voltage levels?
The modules operate at 125Kbs with a 5V voltage level.
Do the modules support glue filling?
Yes, all series modules can support glue filling for enhanced protection.
What are the installation requirements for the charging module?
Modules can be installed horizontally, side-standing, or upside down. For upside-down installation, a customized front panel without a handle is required.
What is your typical delivery time?
Standard modules take approximately 7 days, while standard charging piles require about 35 days. Large or customized orders are coordinated based on workshop capacity.
What customized services do you offer?
We provide comprehensive OEM and ODM solutions tailored to specific customer requirements.
What is the standard warranty period?
The standard warranty is 12 months upon receipt of the shipment.
