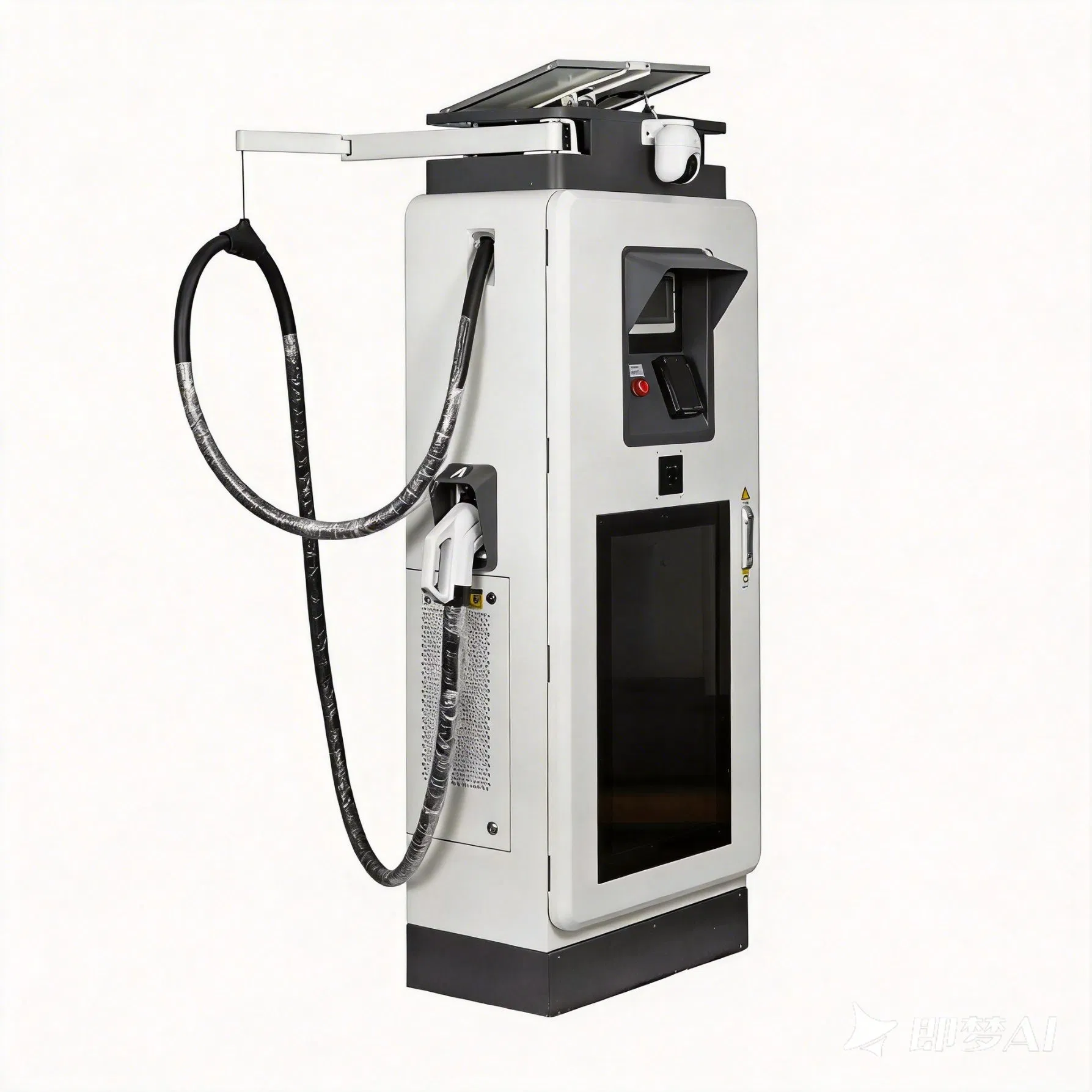

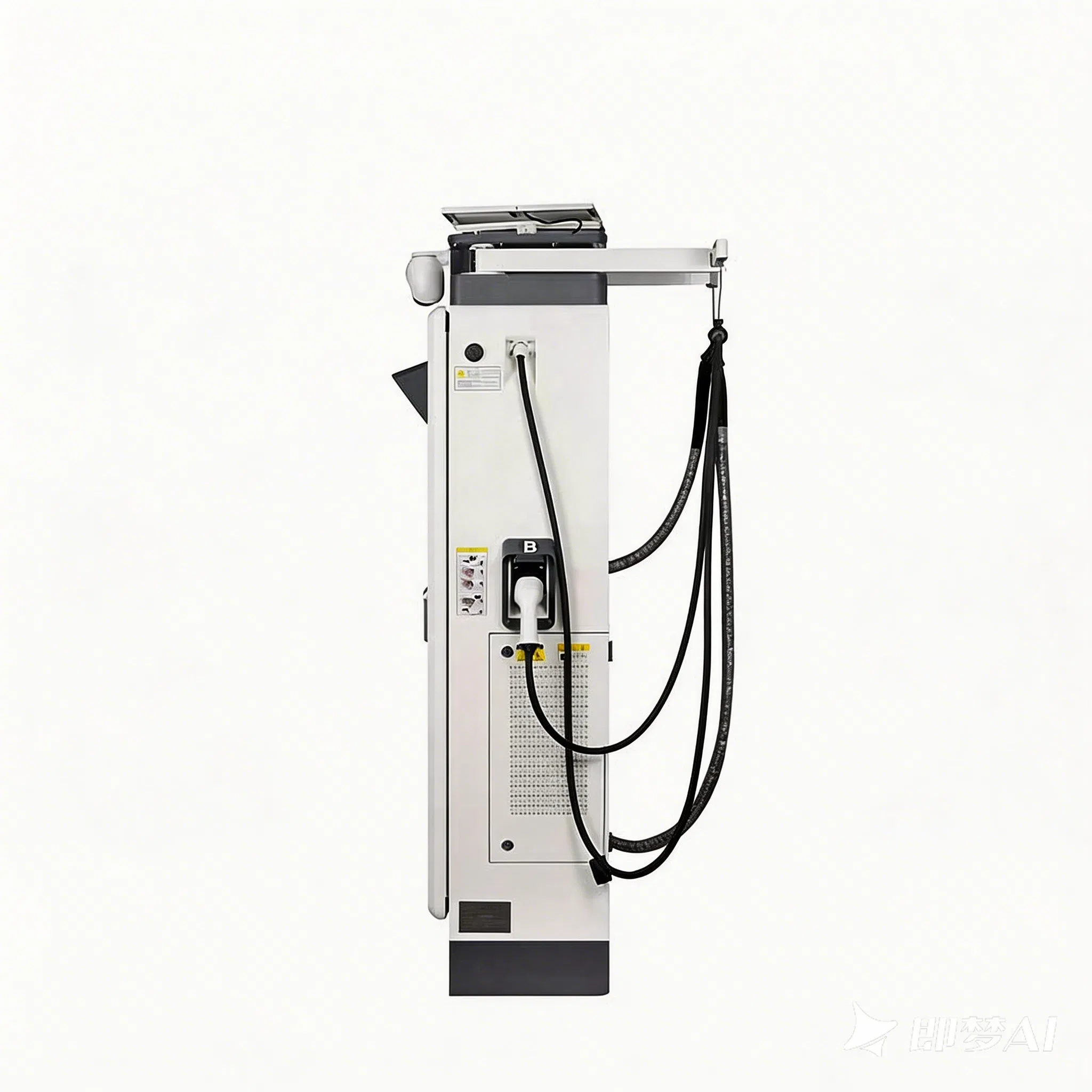

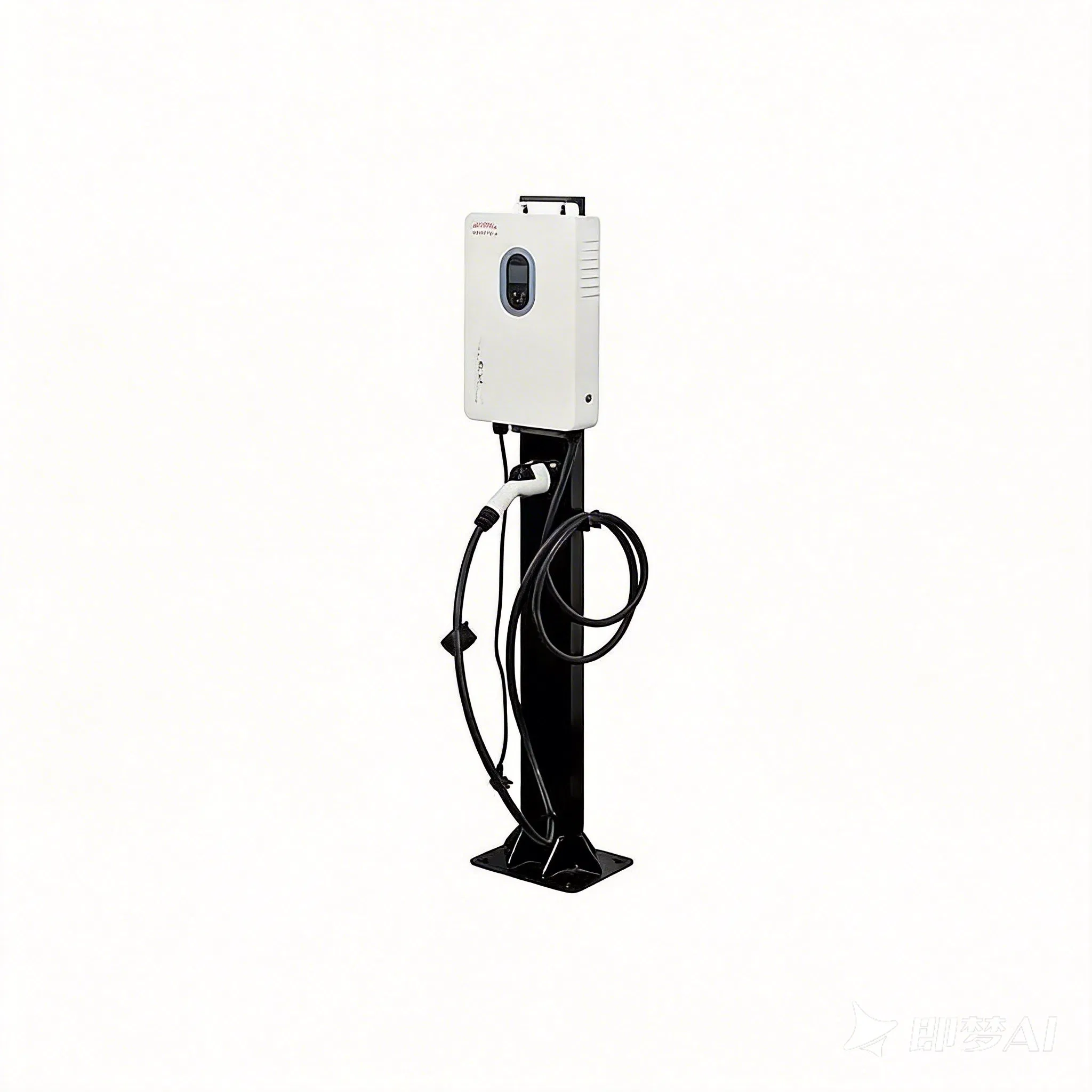

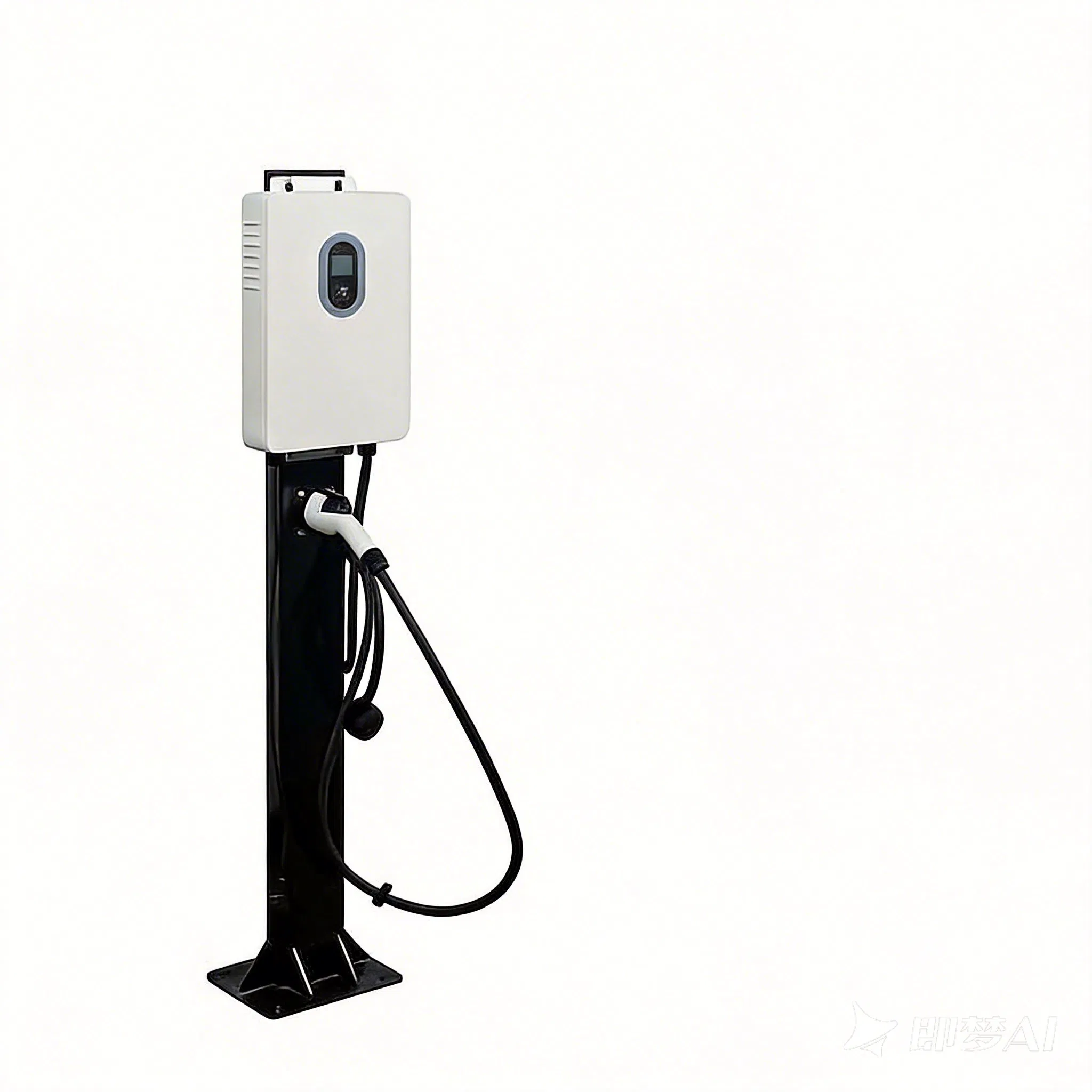

22kw Three-Phase Smart EV Charger
Product Description
📊
Basic Information
Model NO.
22kw ev charger
Output Power
501 - 1000W
Grid Type
Grid Inverter
Output Type
Single
Inverter Efficiency
93%
Input Voltage
70~280VAC
Output Voltage
220VAC-240VAC
Warranty
Three Years
Application
Home, Industrial, Commercial
Origin
China
🔌
Product Gallery & Details
⚙️
Technical Specification
| Model & Rated Power | BD-EVPD2-60/240 Rated Power: 160kW / 240kW |
| Electrical I/O | Input: AC 380V±15%, 45-60Hz, 0-320A / 0-480A Output: DC200-1000V, 5-540A / 5-800A |
| Performance Metrics | Efficiency: >95% Power Factor: 0.9950 (above 50% load) |
| Dimensions | Product Size: 820×60×1800mm Cable Length: 5m |
🏢

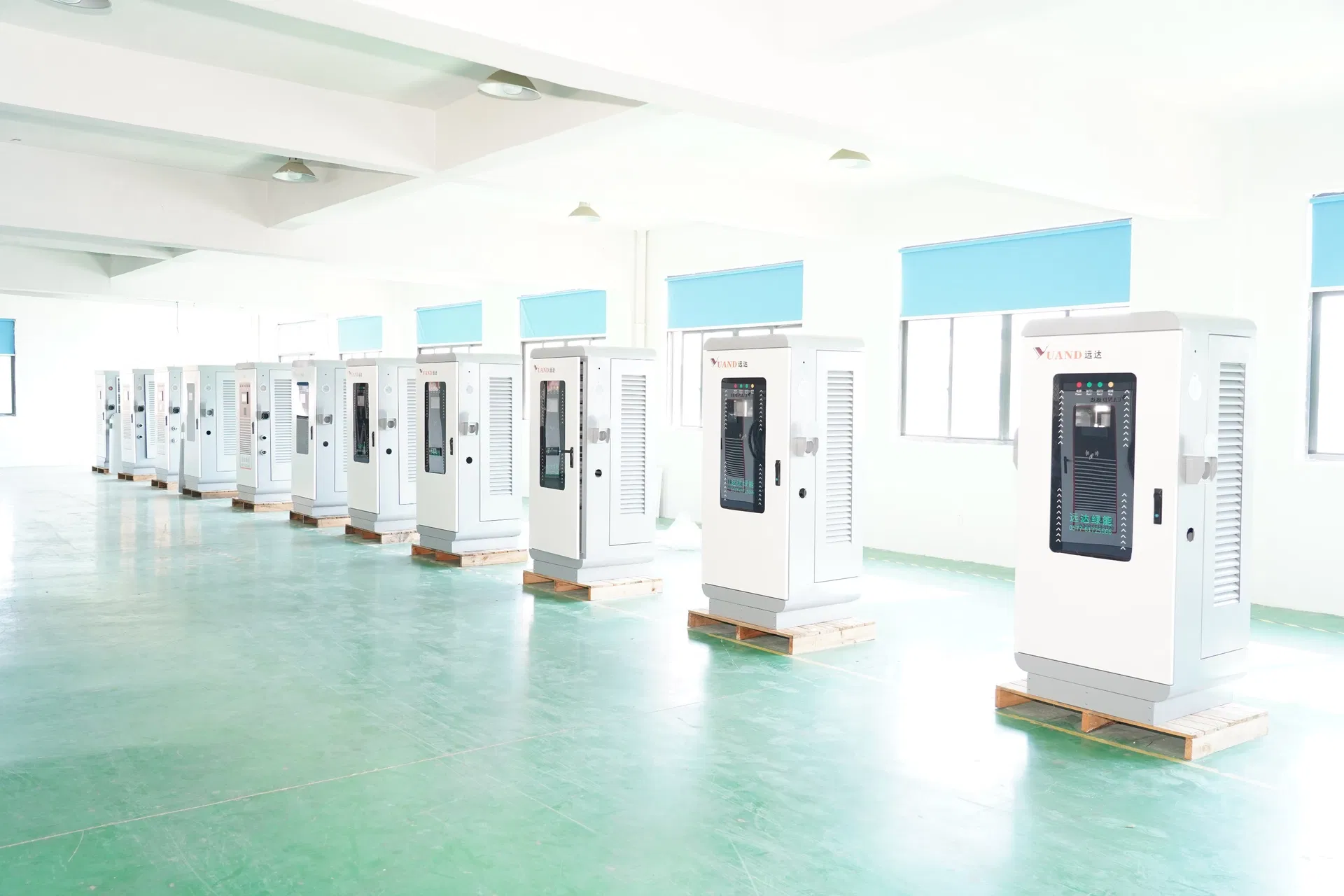

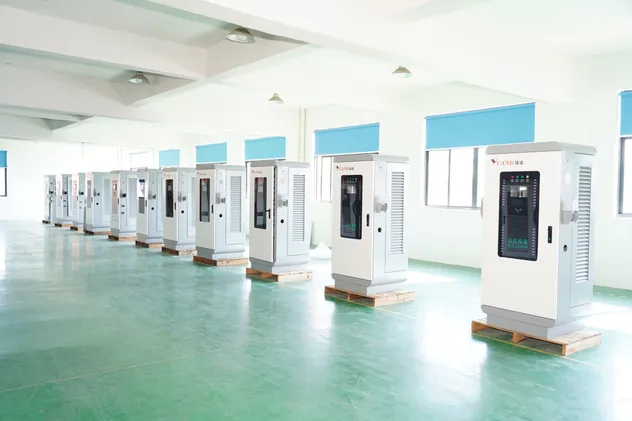

Professional Manufacturing
The company focuses on the R&D and sales of civil charging equipment, with rich experience in the implementation of community charging projects. The production base has passed the ISO9001 Quality Management System Certification, with an annual capacity of 100,000 units. It focuses on promoting cost-effective civil charging piles. The overseas market covers emerging markets such as Southeast Asia and Africa, cooperating with local real estate developers and property companies.
❓
Frequently Asked Questions
What is an electric vehicle (EV) charging pile and how does it work?
An electric vehicle charging pile is a dedicated electrical device that supplies energy to recharge EV batteries. It connects to the grid, regulates voltage/current based on the vehicle's Battery Management System (BMS), and delivers AC or DC power accordingly.
What is the difference between AC charging piles and DC fast charging piles?

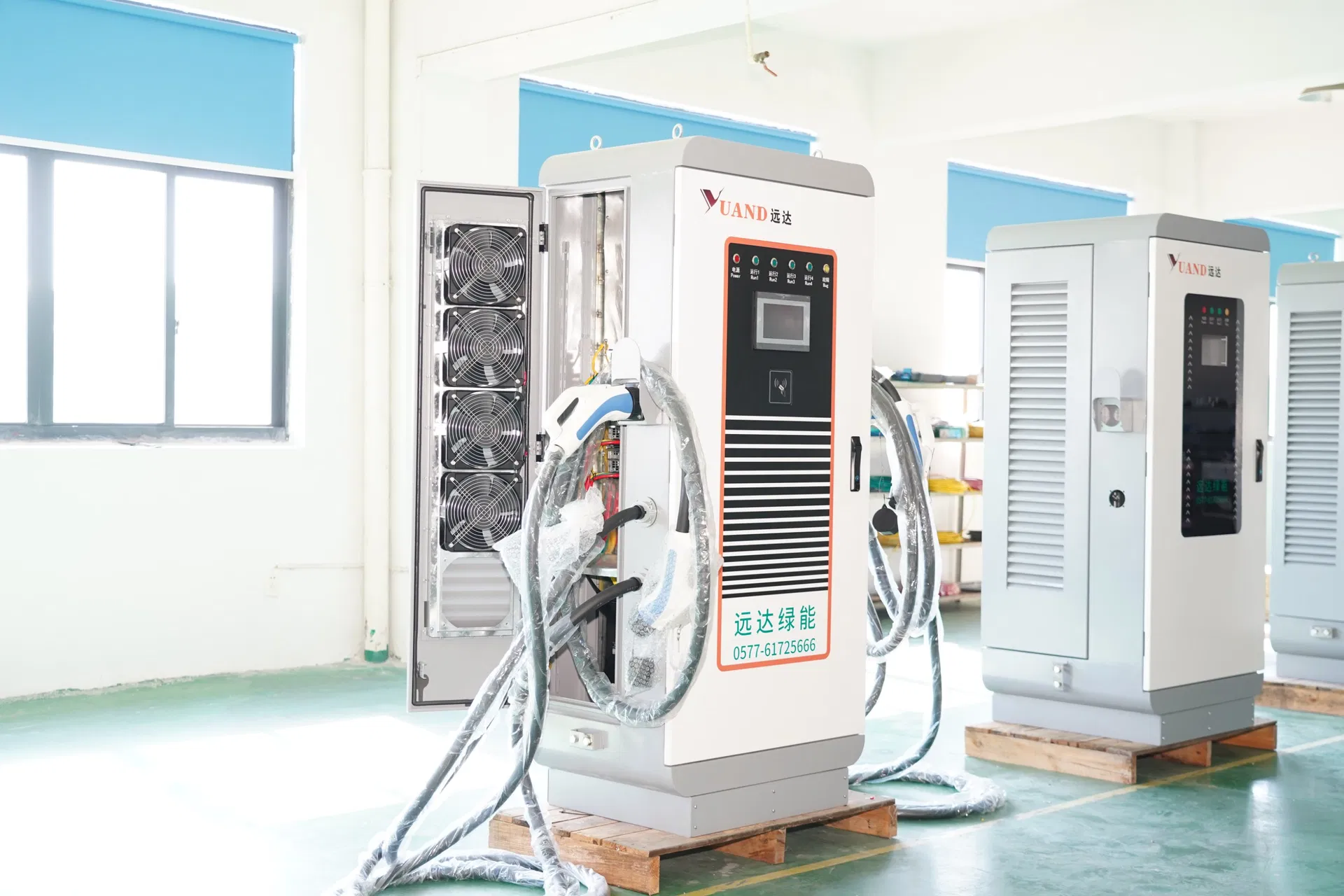

AC piles (3.6kW–22kW) are slower and rely on the vehicle's onboard charger; they are ideal for home/office use. DC fast chargers (50kW–480kW) bypass the onboard charger to supply power directly to the battery, making them suitable for rapid charging in public stations.
How do I choose the right power rating for an EV charging pile?
Check your EV's maximum supported charging power. For home use, 7kW–11kW AC is standard. For public fast charging, calculate based on battery size (e.g., a 60kWh battery needs a 120kW DC pile to charge 20% to 80% in roughly 30 minutes).
Are these chargers compatible with all electric vehicle brands?

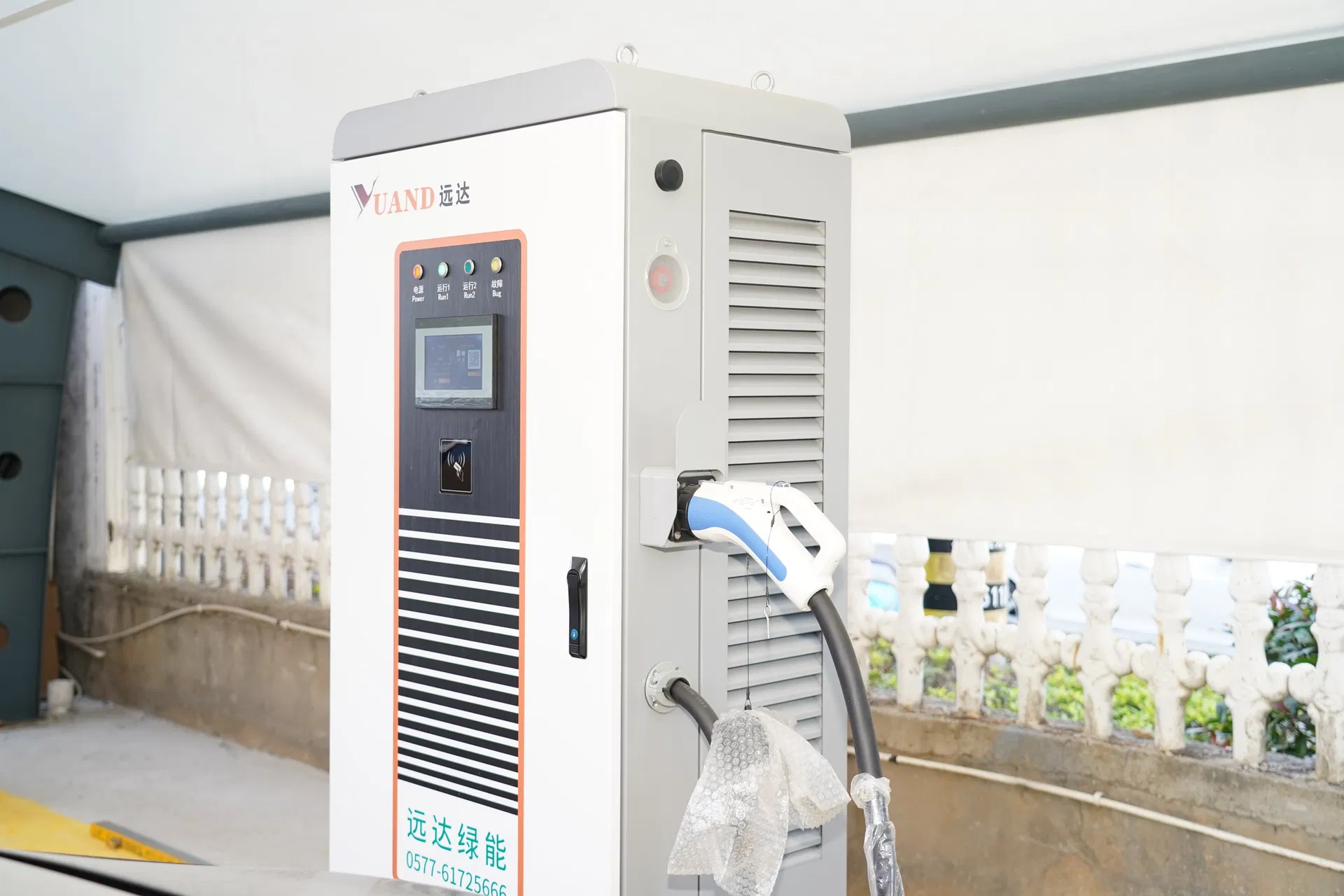

Most chargers follow international standards (like Type 2 or CCS). Our equipment is designed to be compatible with a wide range of global EV models, provided the connector type matches the vehicle's inlet.

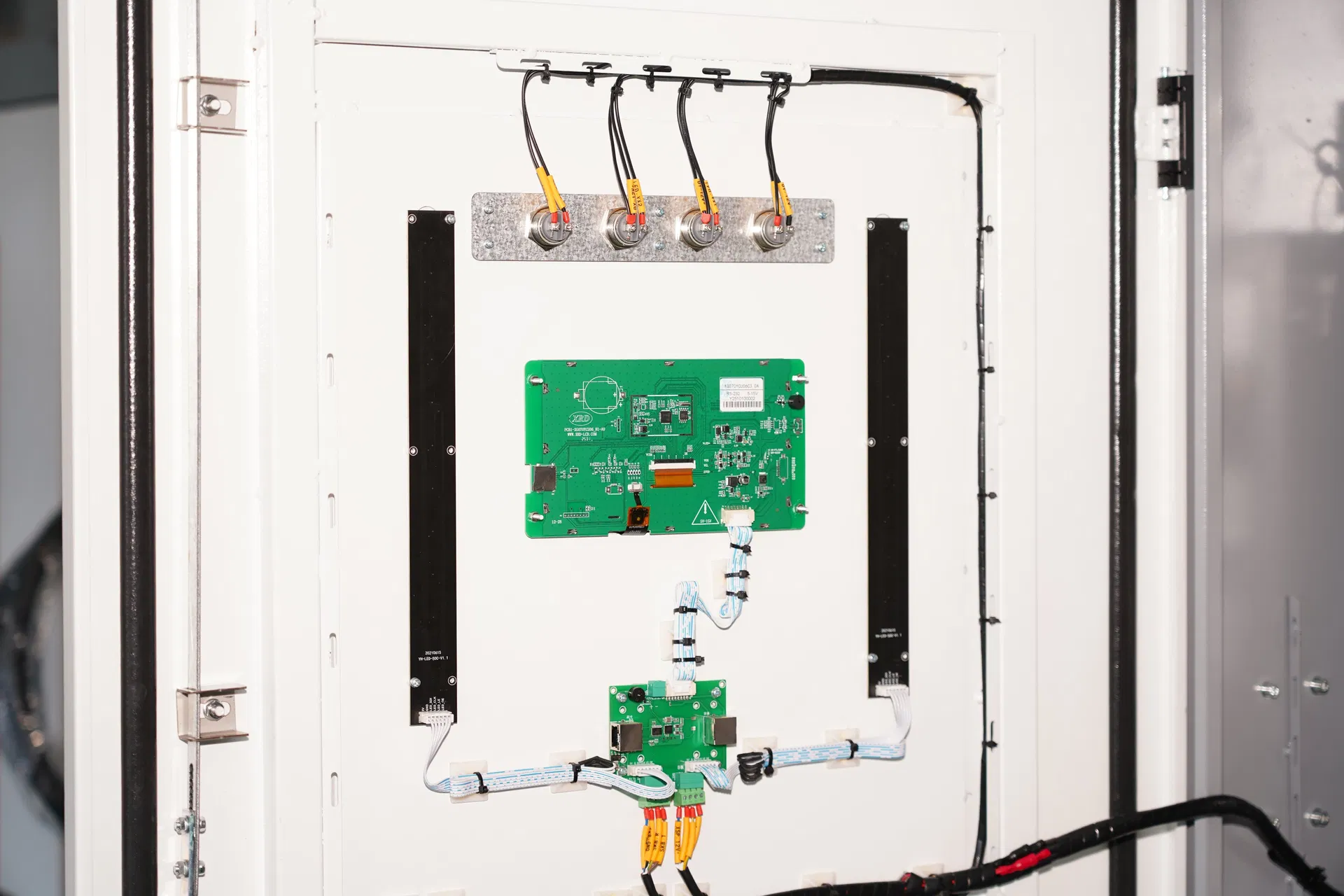

What safety protections are integrated into the charging system?
Our charging piles include multiple safety layers: over-current protection, over-voltage protection, leakage protection, lightning protection, and emergency stop functions to ensure safe operation under various conditions.
Does the charging pile support smart monitoring or app control?
Yes, many of our smart models support remote monitoring and status updates, allowing users to track charging progress and manage energy usage efficiently via integrated software systems.
