Is This EV Charger 3 Phase Suitable for Industrial Areas with 3-Phase Power Supply?
Product Description
📊 Basic Info.
Model NO.
ZD06
Charging Interfaces
One Pile with One Charge
Location
Public Use

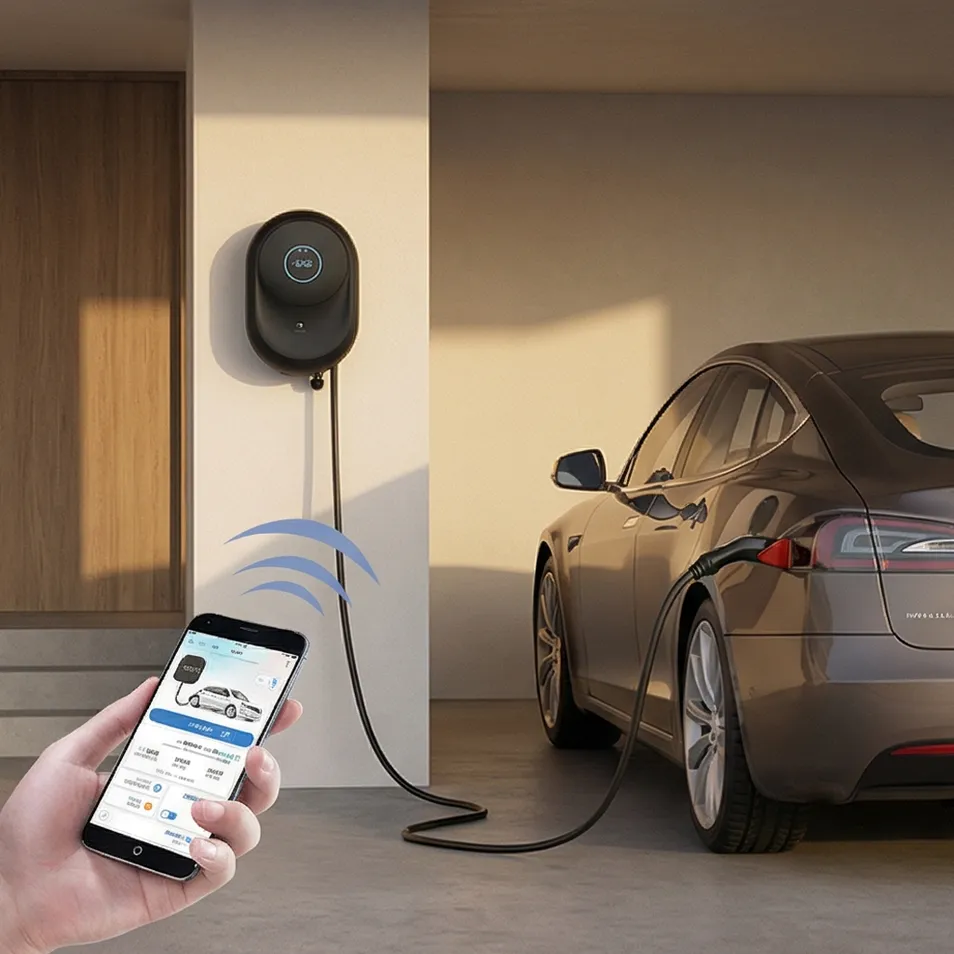

Installation
Wall Mounted
Charge Method
Quick Charge

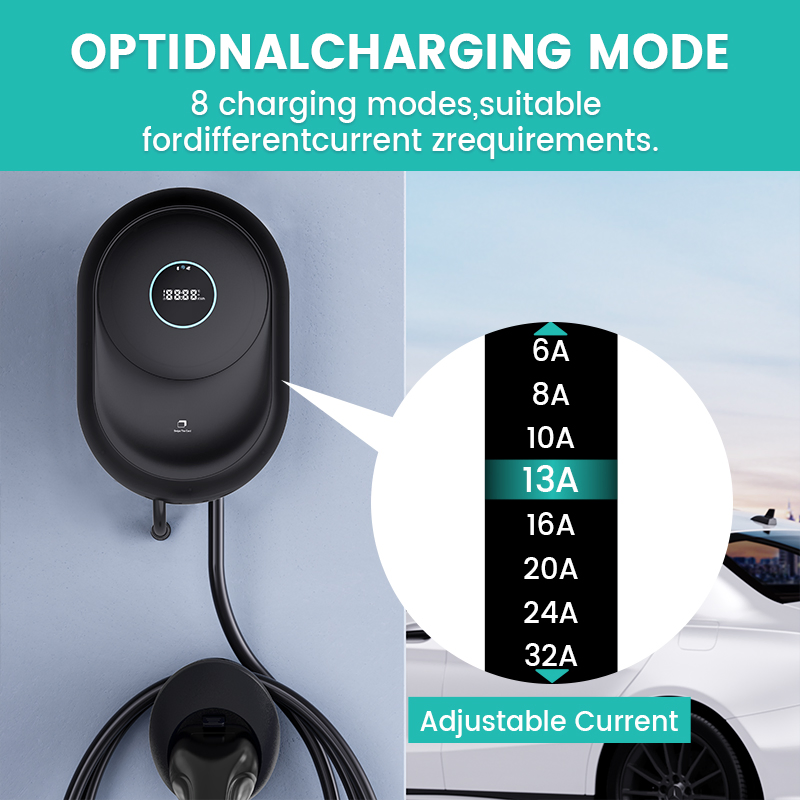

Adjust The Current
8-10-13-16-32A
Delay Charging
0~12 Hour
Phase Electricity
Single-Phase/Three-Phase
Rated Current
32A / 16A *3 / 32A *3
Rated Voltage
110V/230V±10%
IP Grade
IP65
Ik Level
Ik10
Cable Length
5 Meters / OEM
Plug Type
Type 2/Type 1/ Gbt / T-Esla
Outer Skin Material
TPU/TPE
🚗 Product Description

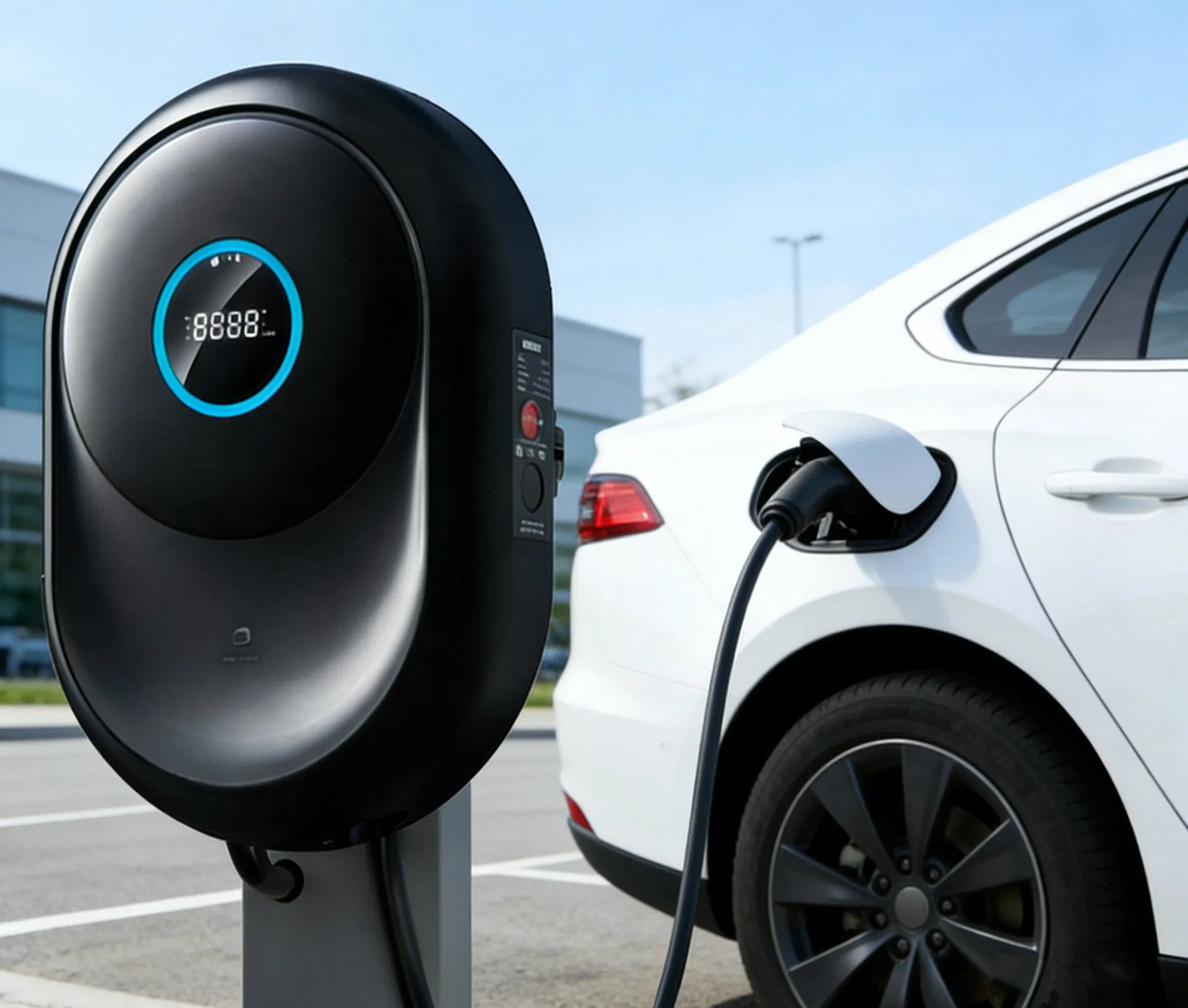

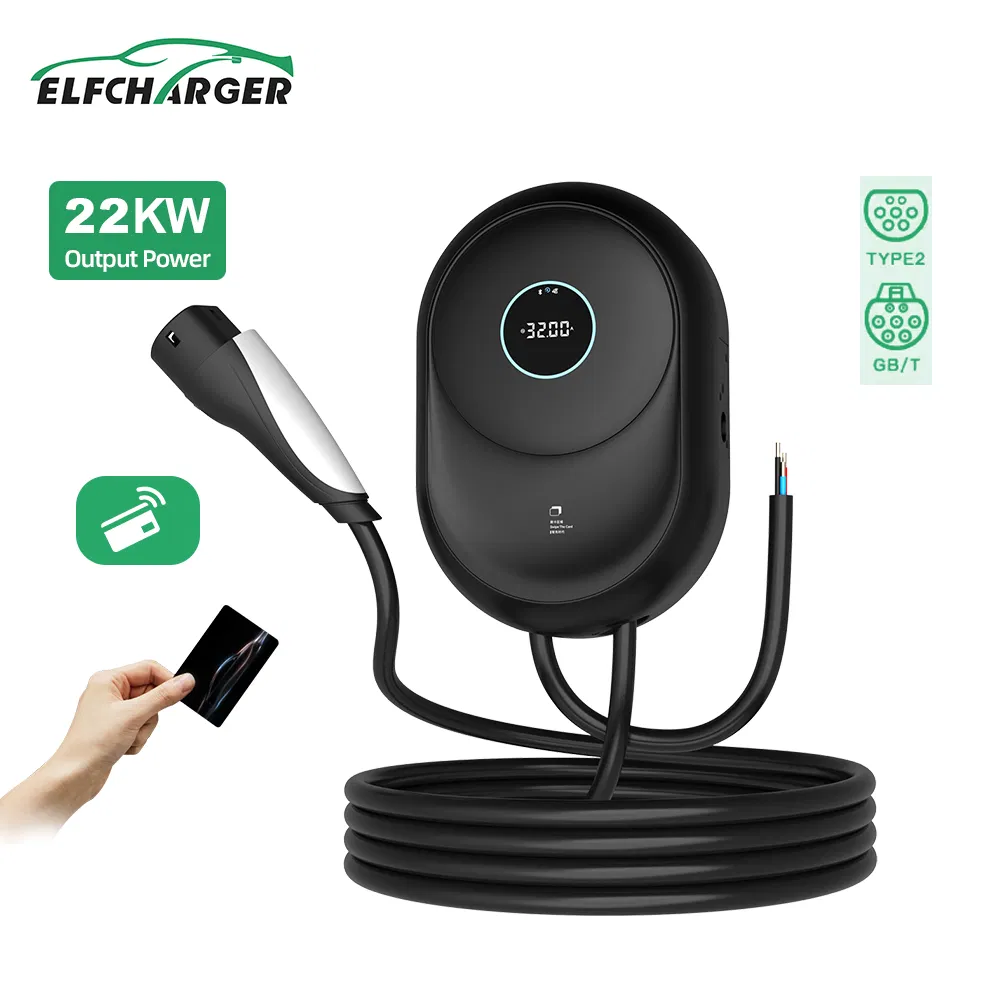

ZD06 EV charger Features:
- Suitable for electric cars with type1/type2/GBT/T-esla charging plugs.

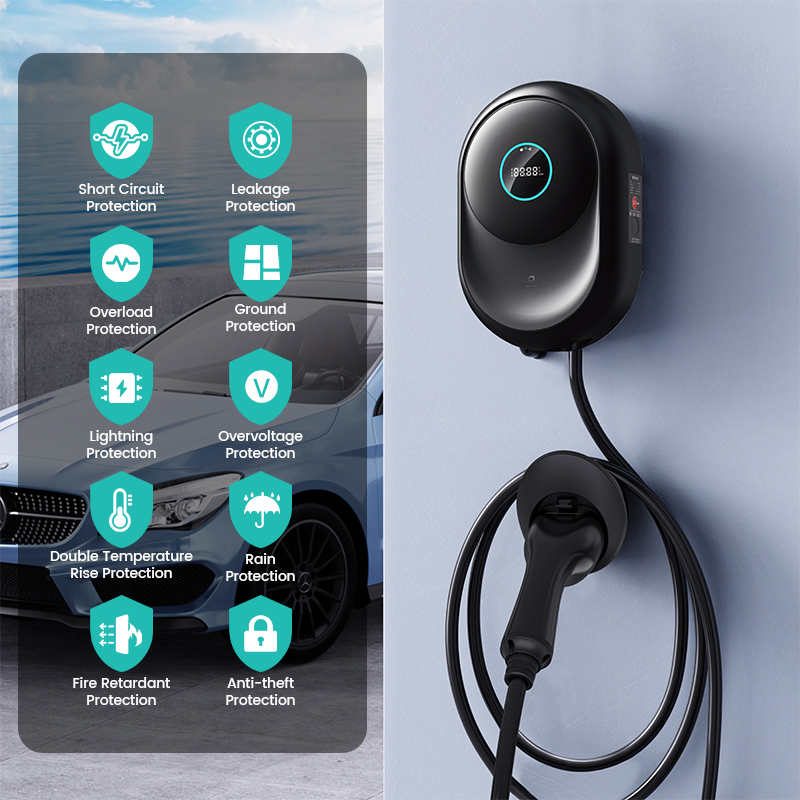

- RCD: 30mA AC+ 6mA AC Detection Safety protection.

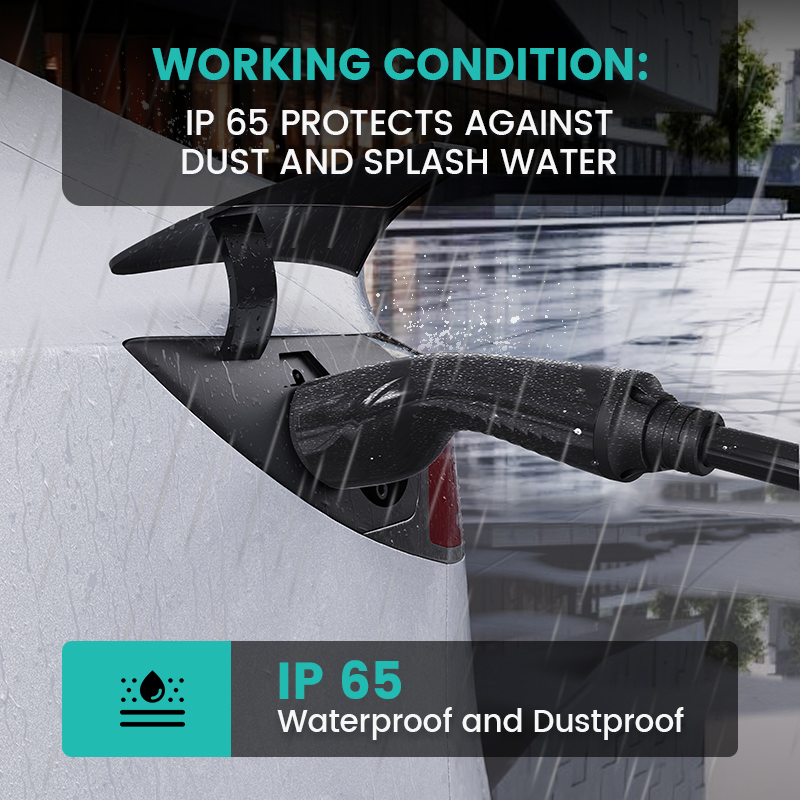

- IP65 Protection against water, oil, and dust.
- IK10 highest impact protection rating.
- Control via RFID Card, Bluetooth, WIFI, and Ethernet via free App.
- Dynamic Load Balancing and Active load management.

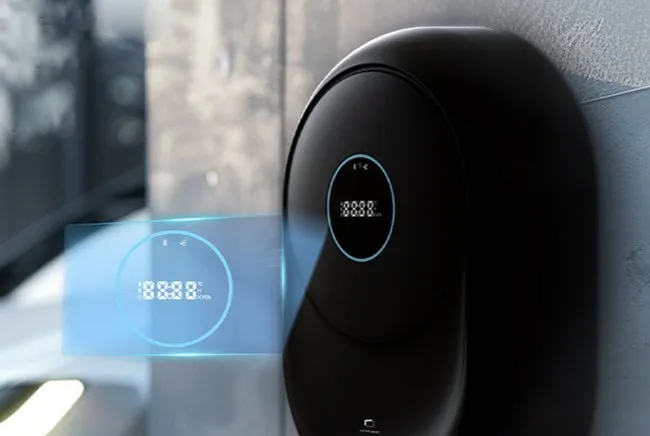

- LED display: power, voltage, current, temperature, duration.
- Certifications: CE / FCC / ISO 9001 / IP65 / IK10.

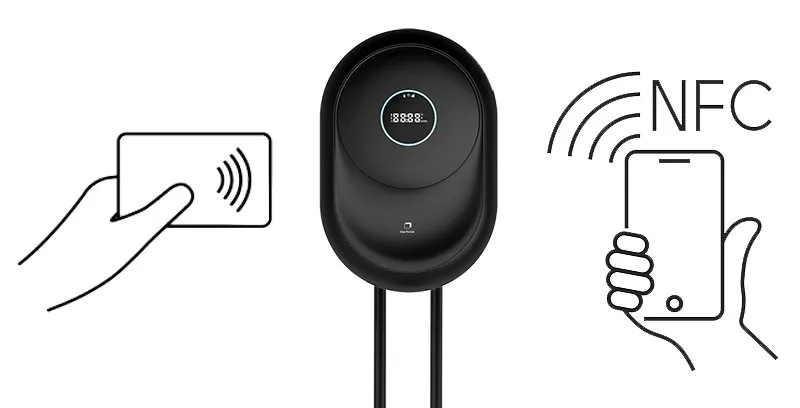

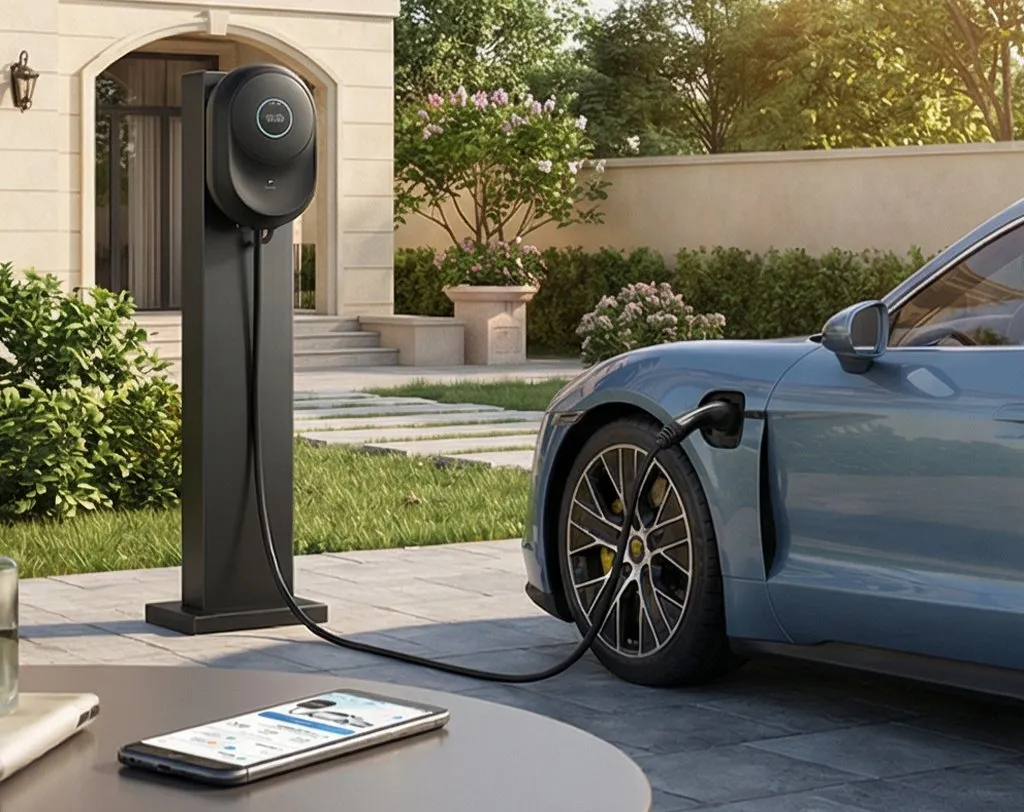

Smart Life APP & RFID Control:
Modify and view charging power, time, and status remotely via WiFi/Bluetooth. Use RFID cards or phone NFC for secure activation, ideal for basement environments without signal.
📋 Specification
| Electrical Specification | |
|---|---|
| Rated voltage | 100V/240V AC ± 10% |
| Rated current (Type 2, GBT) | 32A Single-phase / 16A/32A Three-phase |
| Rated power (Type 2, GBT) | 7kW/11kW/22kW |
| Charging interface type | IEC 62196-2, SAE J1772, GB/T 18487, NACS |
| Protection rating | IP 65 / IK 10 |
| Environment temperature | -20ºC ~+50ºC |
| Cooling | Natural air cooling |
📦 Packaging & Shipping

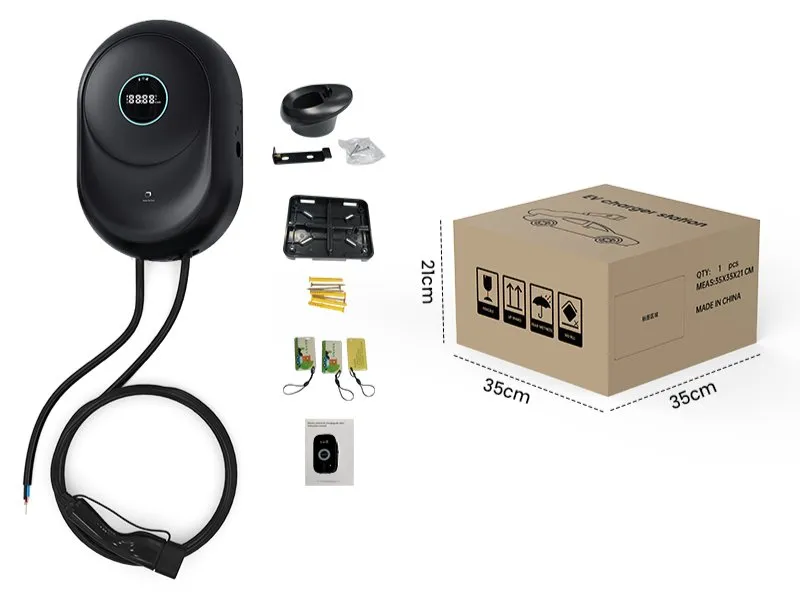

Standard Export Pack:
1× EV charger station, 1× Wall mount bracket, 3× RFID card, 1× Instruction manual, 1× Airplane Box.
1× EV charger station, 1× Wall mount bracket, 3× RFID card, 1× Instruction manual, 1× Airplane Box.
OEM Services:
Custom logo, private packaging, custom cable length, socket and plug customization.
Custom logo, private packaging, custom cable length, socket and plug customization.
🛠️ After Sales Service
🛡️
24-month warrantyagainst manufacturing defects
🚚
Package damageLogistics compensation
📞
Technical SupportProfessional technical team
🏢 Company Profile

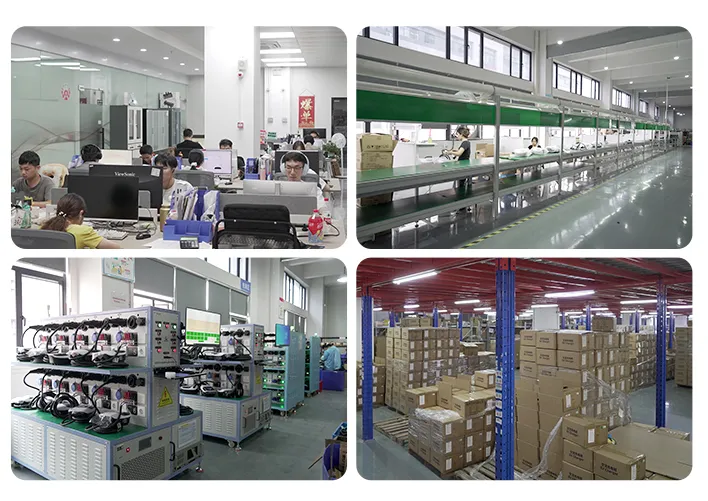

A high-tech enterprise focusing on R&D, production and sales of NEV charging equipment. Core products include EV charger stations, Portable chargers, and V2L Adapters. With 4,400+ square meter factory and 200+ professionals, we integrate "Internet Plus" into charging systems for global partners. Certified with ISO9001, CE, ROHS, FCC, and holding 30+ technical patents.
❓ FAQ
Q1: Can you provide OEM/ODM service?
Yes. We provide specific solutions for customized requirements including logo, packaging, and technical specifications.
Q2: Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can also build the molds and fixtures.
Q3: What is your sample policy?
We can provide regular samples, but the customers have to pay the sample cost and the courier cost.
Q4: Do you test all your goods before delivery?
Yes, we perform 100% testing before every delivery to ensure quality and safety.
Q5: How long is the warranty period?
We provide a 2-year warranty. We can also provide personalized solutions to extend the warranty time based on local regulations.
Q6: Is the charger suitable for outdoor use?
Yes, the charger is rated IP65 for water and dust resistance and IK10 for impact protection, making it perfect for outdoor and public environments.
