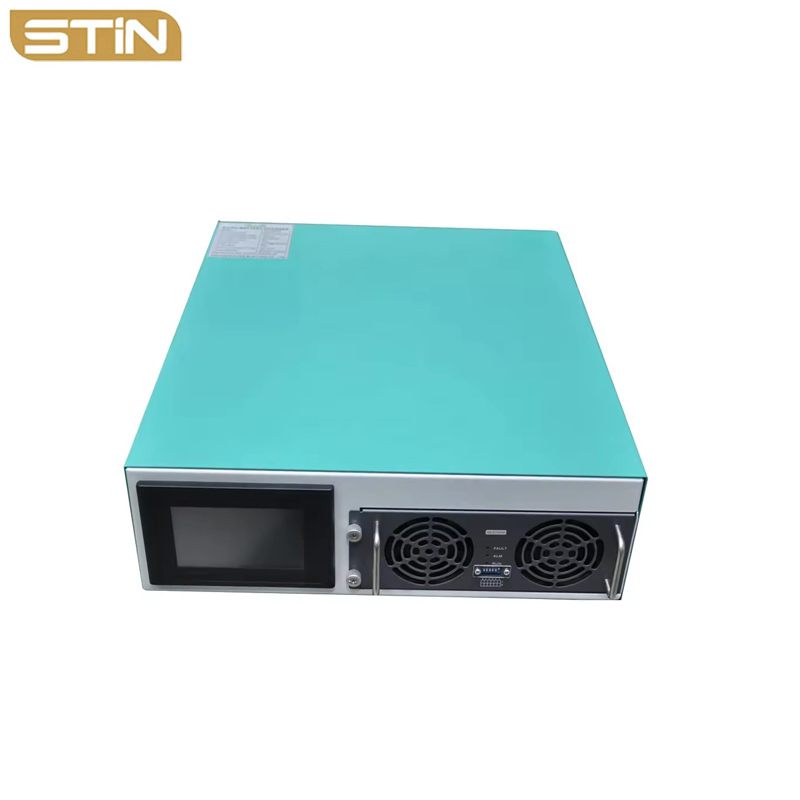

Single Phase Smart Lithium Battery Charger for EV Charging Station
Product Description
Basic Information
Nominal Voltage:
220VAC
Input Phase:
Single Phase + PE
Frequency Range:
50Hz/60Hz
Maximum Current:
<32A
Display:
LCD
Dimensions:
483*520*133 mm
Gross Weight:
25.000kg
Origin:
China
Product Description
Single phase smart lithium battery charger for EV charging station
The charger is an AC to DC charging module. It has the advantages of wide constant power voltage range, high efficiency, high power factor, high power density, minimal electromagnetic radiation and interference, and high reliability to meet the fast charging needs of various batteries. It is designed for energy saving and environmental protection.
The charger is an AC to DC charging module. It has the advantages of wide constant power voltage range, high efficiency, high power factor, high power density, minimal electromagnetic radiation and interference, and high reliability to meet the fast charging needs of various batteries. It is designed for energy saving and environmental protection.
Main Features
1
Ultra-wide output voltage range: 100-750V to meet various battery systems.
2
Built-in intelligent discharge circuit: improves system reliability.
3
Full load range efficiency: More energy-saving compared to industry standards.
4
Three-proof design: Anti-salt spray, anti-moisture, and anti-mildew protection.
5
Wide temperature range: -40ºC to +75ºC, adaptable to various scenarios.
6
Digital Control: DSP design ensures high reliability of control.
Product Parameters
| Parameter Name | Specifications | |
| AC Input | Input Phase | Single phase + PE |
| Voltage Range | 180-260Vac | |
| Frequency | 50Hz/60Hz | |
| DC Output | DC Voltage Range | 100~750Vdc |
| Output Power | 7KW @ voltage >350VDC | |
| Maximum Current | 20A (1~20A adjustable) | |
| Efficiency | ≥94.5% (@750V, 50%~100% load) | |
| Noise | ≤50dB(A) (1m away) | |
| Dimensions | 483 × 520 × 133mm | |

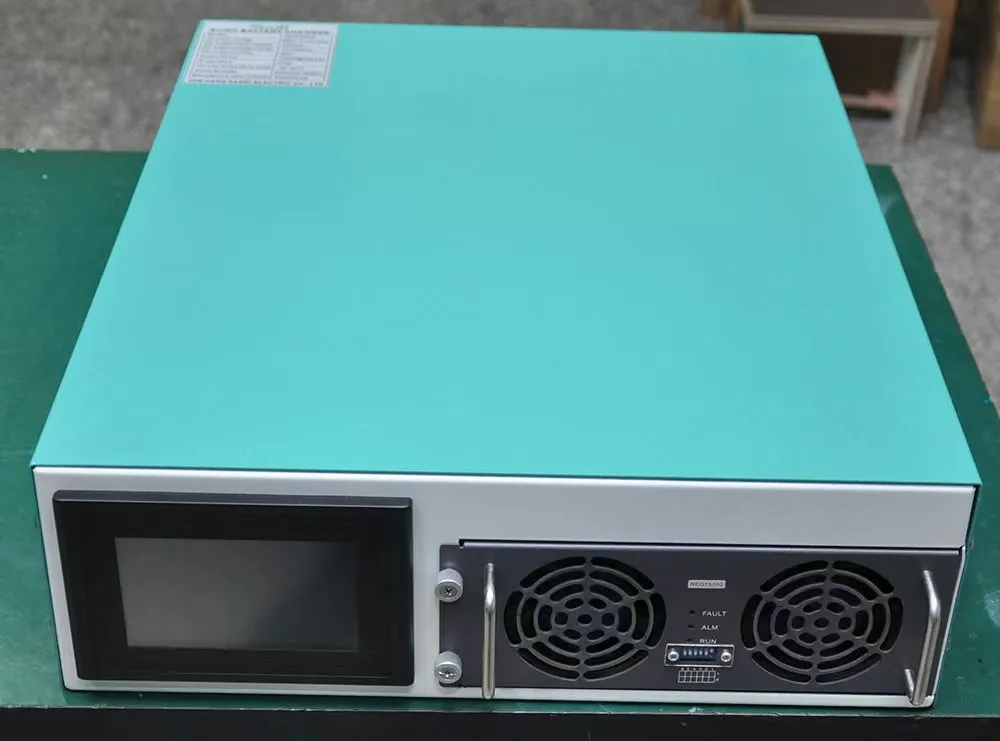

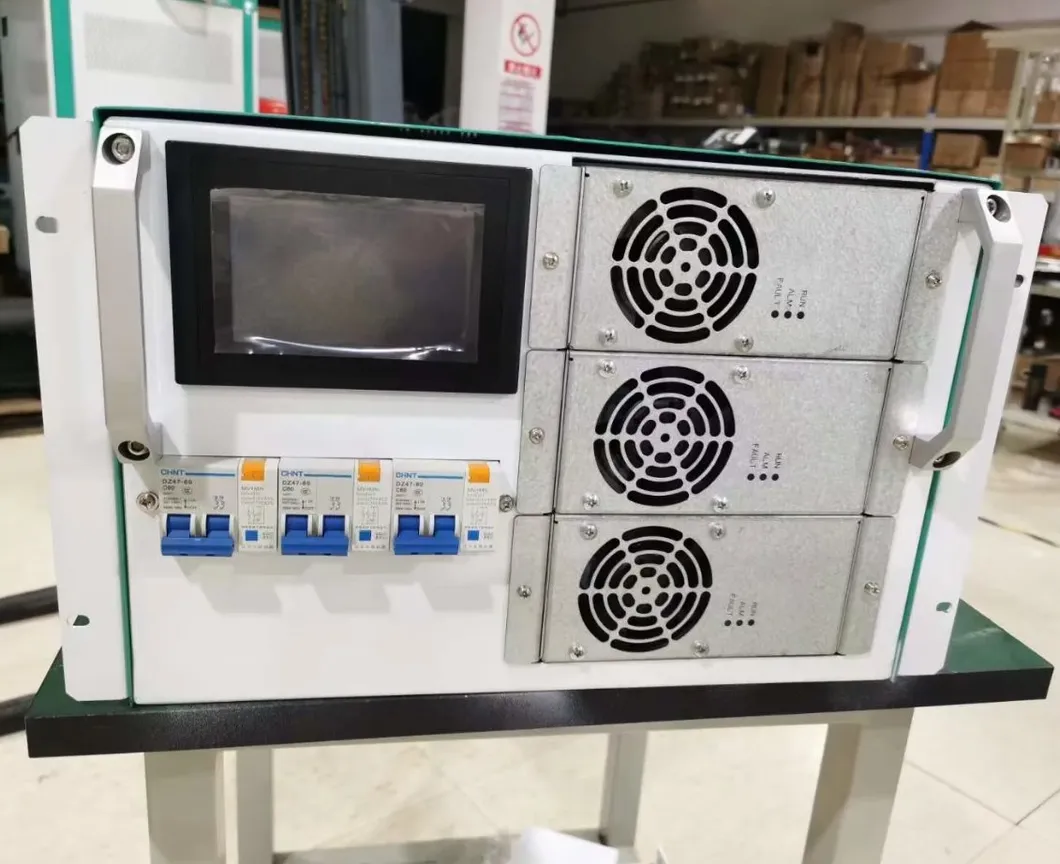

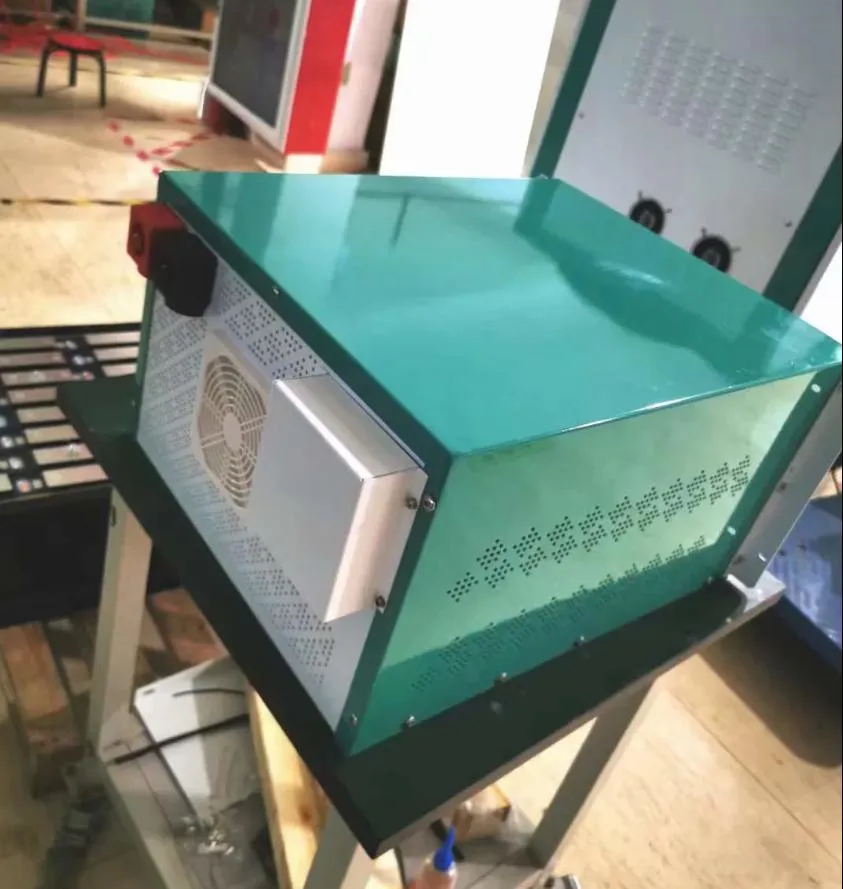

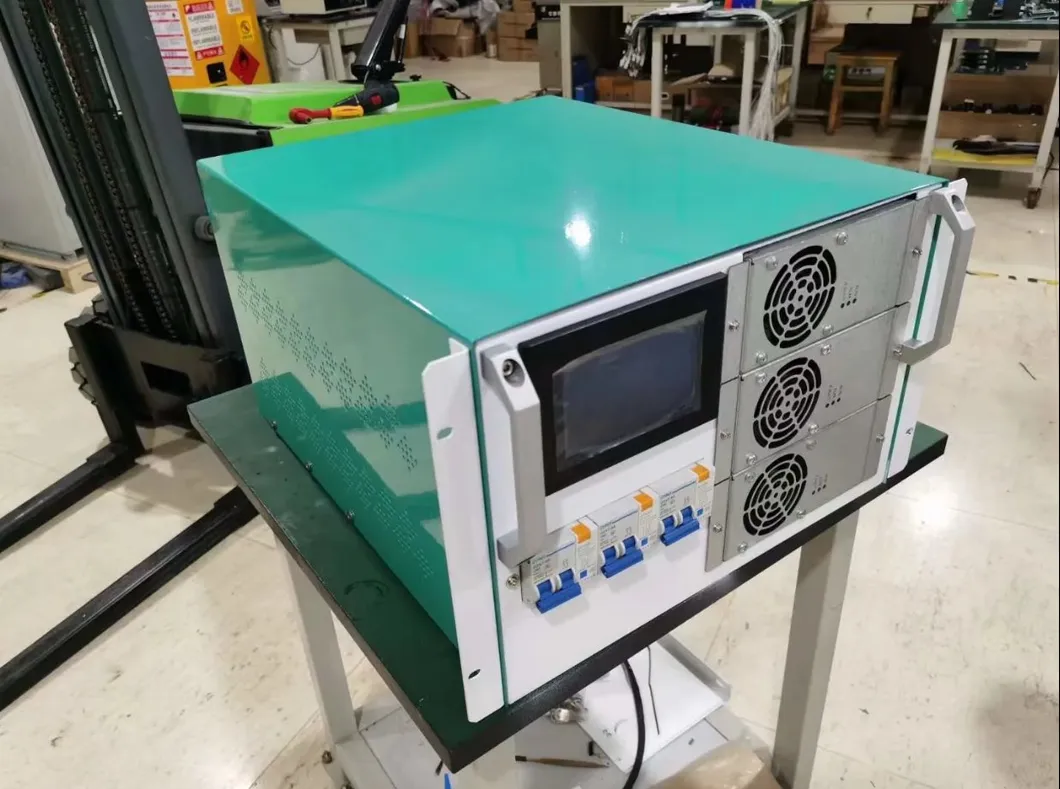

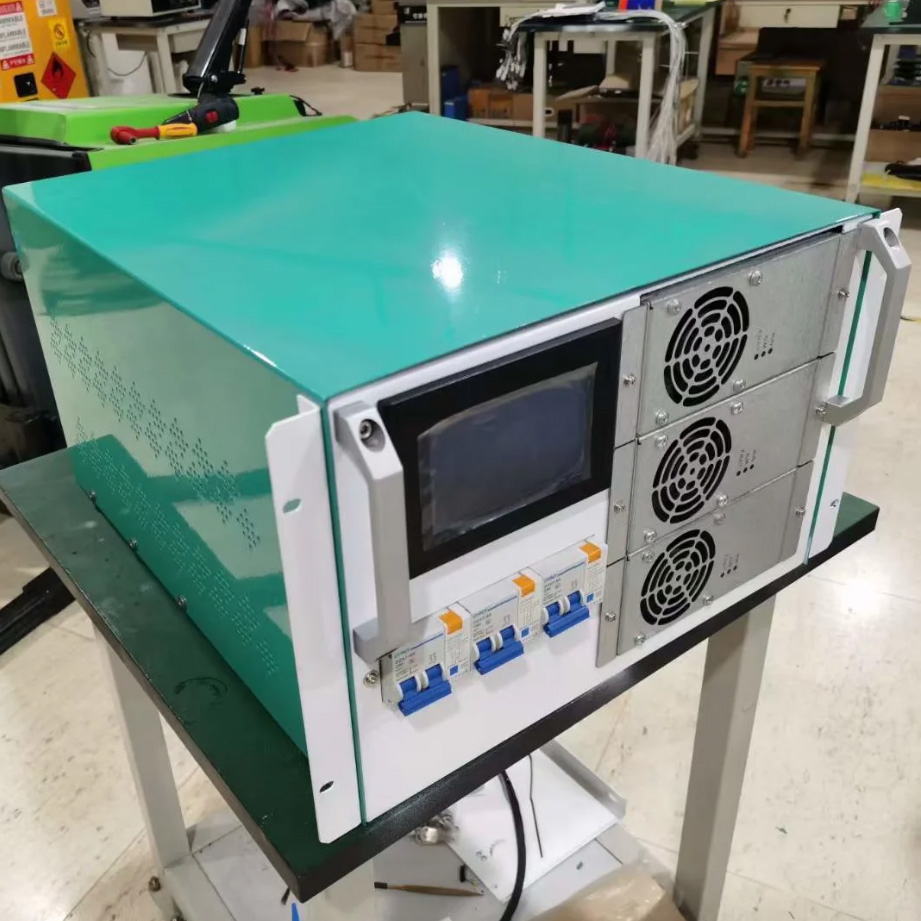

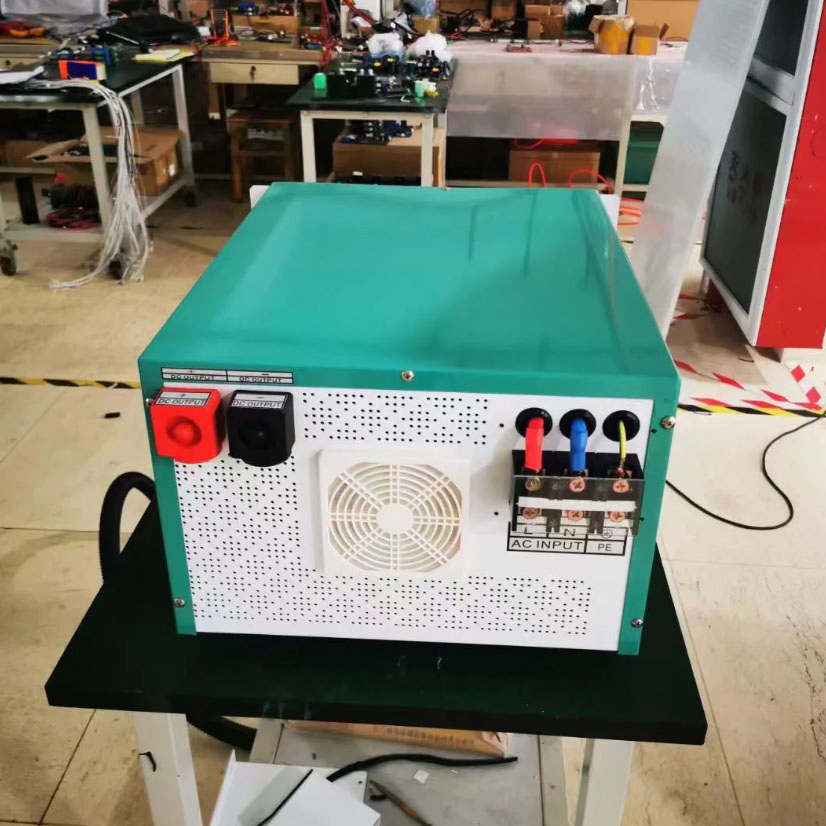

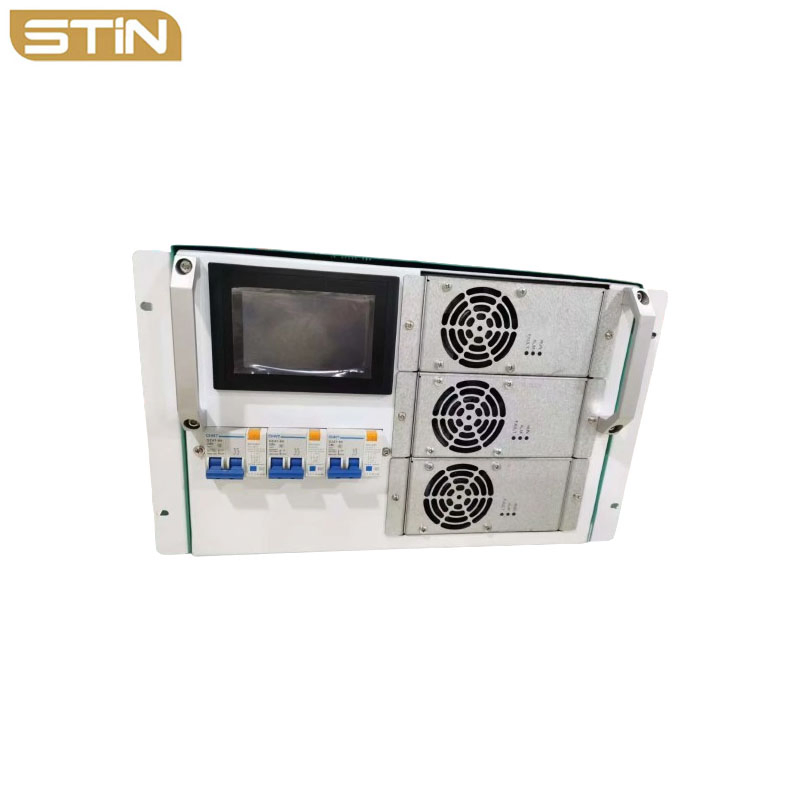

Detailed Photos
About Us
The company is dedicated to being a Total Solution Provider based on clean sustainable solar energy. Our business spans polysilicon, ingot, wafer, cell, and module production, as well as PV Equipment, EPC, and O&M services. We strive for global green energy independence and solve environmental problems by supplying high-quality raw materials and residential solutions worldwide. We value the importance of green energy and endeavor to protect these precious resources for future generations.
Frequently Asked Questions
1. What are your main product categories?
We provide mono and poly solar panels, gel and lithium-ion batteries, on-grid and off-grid solar systems, inverters, and MPPT/PWM charge controllers.
2. What is the output voltage range of this charger?
This smart lithium battery charger offers an ultra-wide output range of 100V to 750V DC to accommodate various battery systems.
3. Can the charging parameters be adjusted?
Yes, the system settings are flexible. Charging voltage, current, and time can be easily set via the color LCD touch screen.
4. Is the charger suitable for outdoor use?
The module is rated IP20, which is primarily for indoor applications or installation within a protected charging station cabinet.
