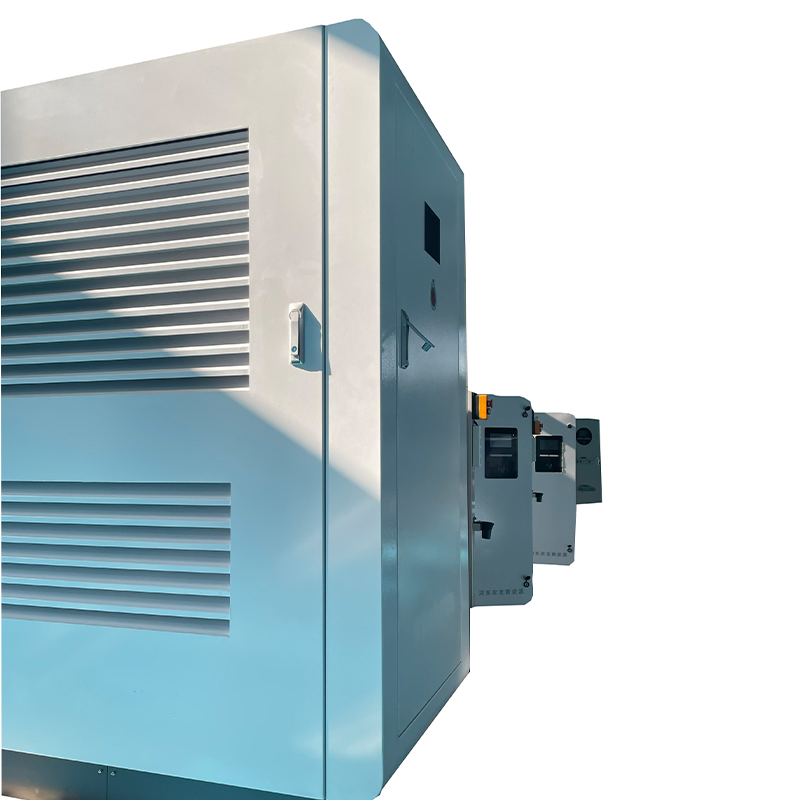

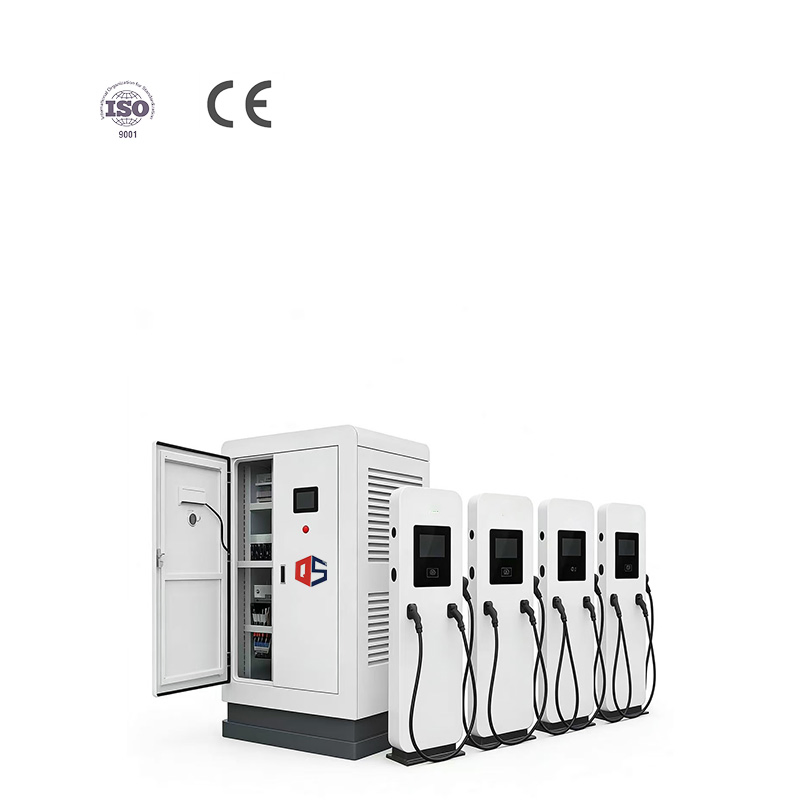

Smart Home 240kw Home EV Electric Car Charging Stations
Product Description
📋
Basic Information
Model NO.QSCDD
Rated Current2A; 63A; 100A; 200A; 300A
Rated Power7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw
Protection GradeIP54 / IP65
Service Life8 - 10 Years
Charging TypeAC / DC / Integrated Charging
Charging Efficiency≥93% (AC); ≥95% (DC)
Power Factor≥0.95
⚡
Product Description
Flexible Expansion & Wide Compatibility | Certified Safety | Effortless Operation

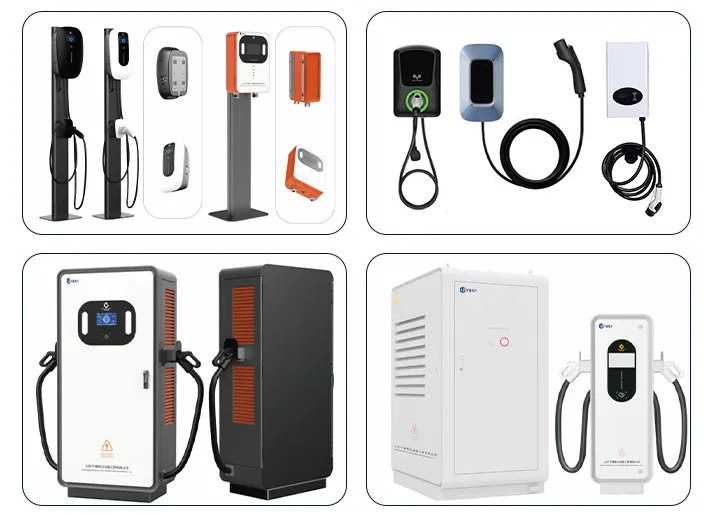

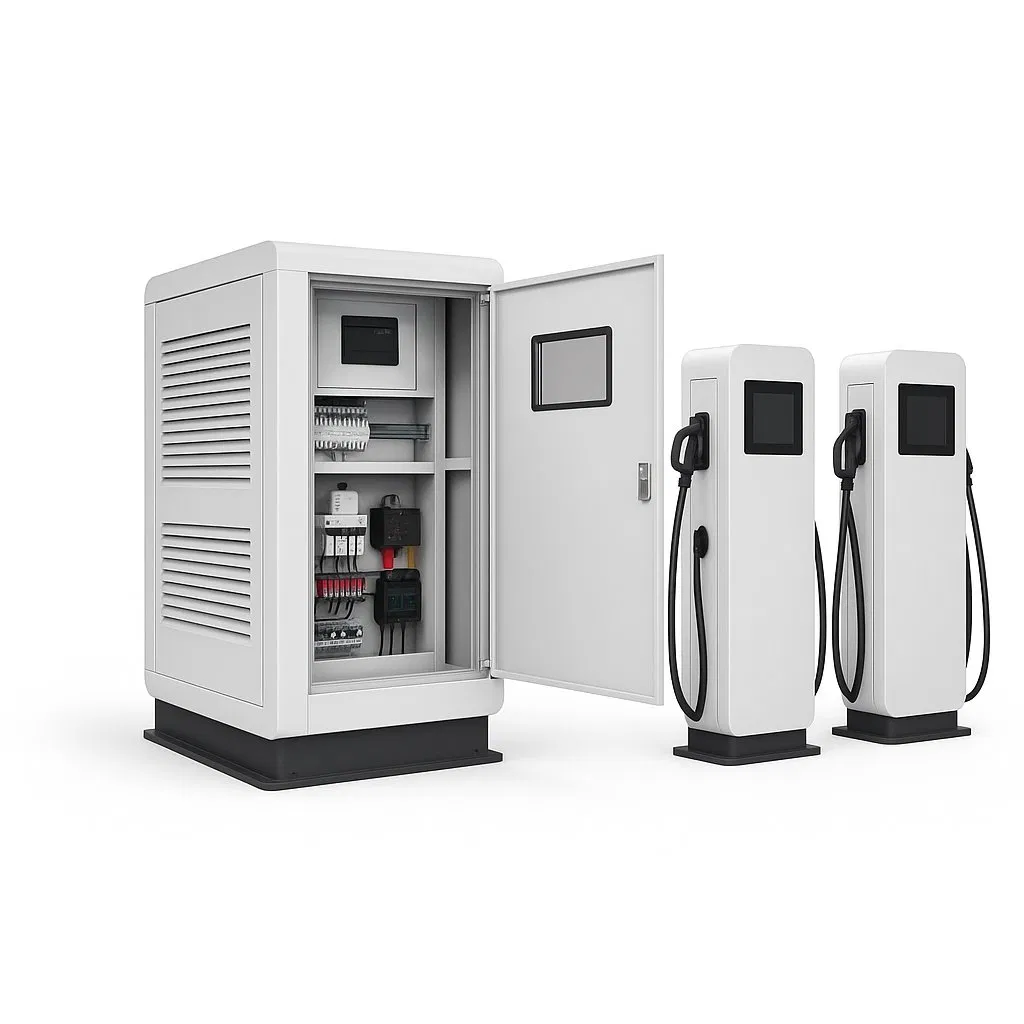

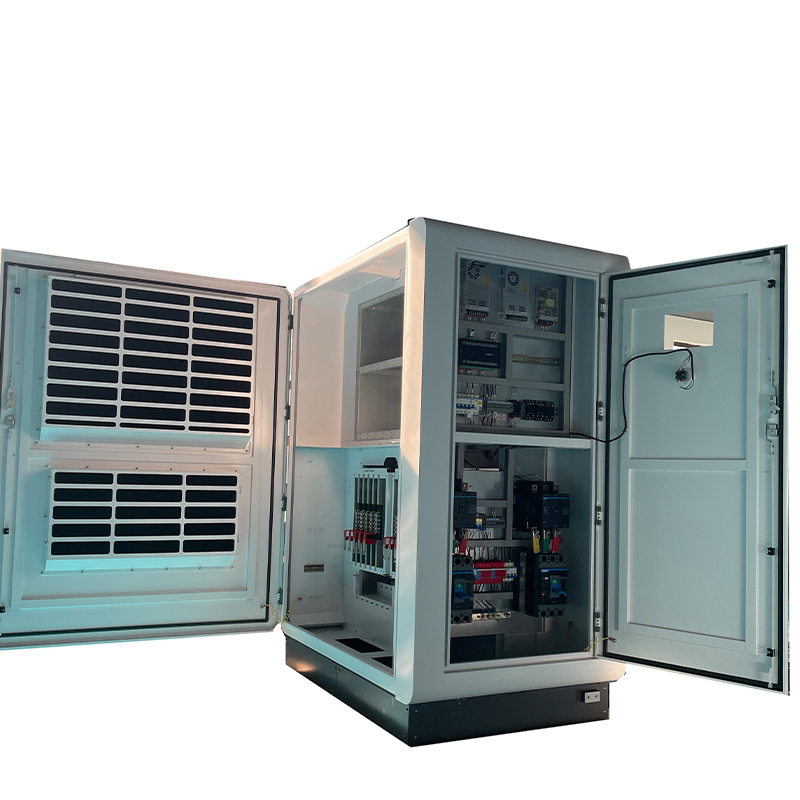

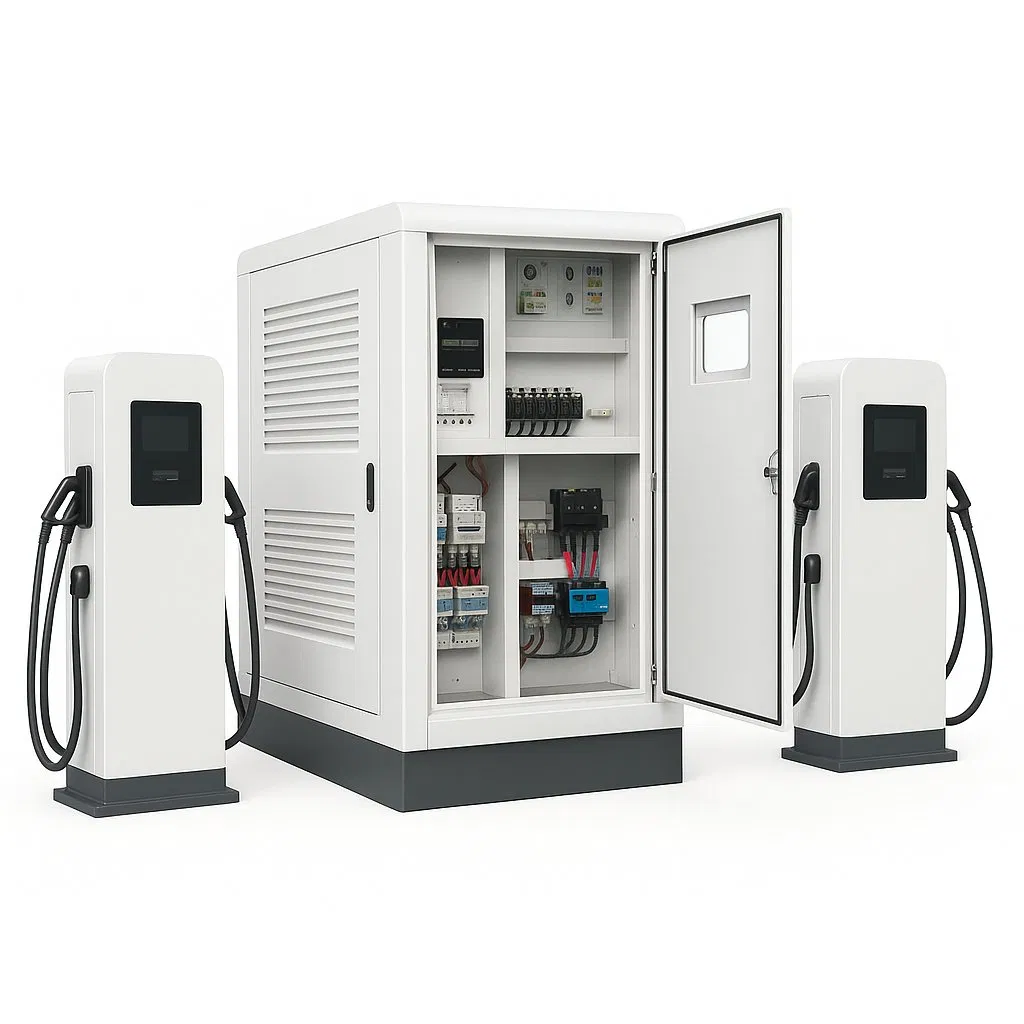

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and complete functionality make them suitable for residential and commercial use.
⚙️
Technical Specification
| Type | EV charging station |
| Power | 20KW 40KW 120KW 160KW 240Kw |
| Input Rating | 110V/220V/380V±15% |
| Working Frequency | 50/60±10% |
| Output Voltage | 200~1000V |

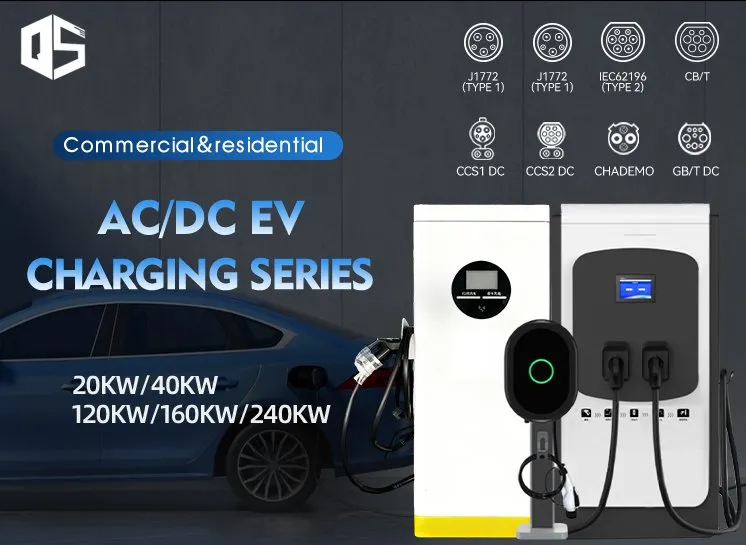

| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Communication | OCPP1.6J (OCPP2.0 upgradable) |
| Protection | IP55 |
🏆
Best Sellers

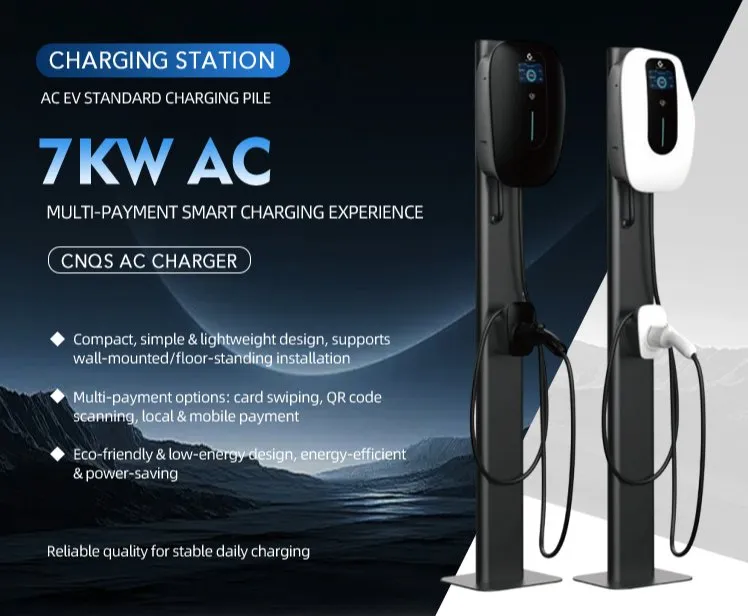

7KW AC Charger
- CE/UL/PSE/KC Certified, 100% compliance rate.
- Supports ISO 15118-20 standard + PNC Plug & Charge.
- V2G vehicle-to-grid protocol compliant.

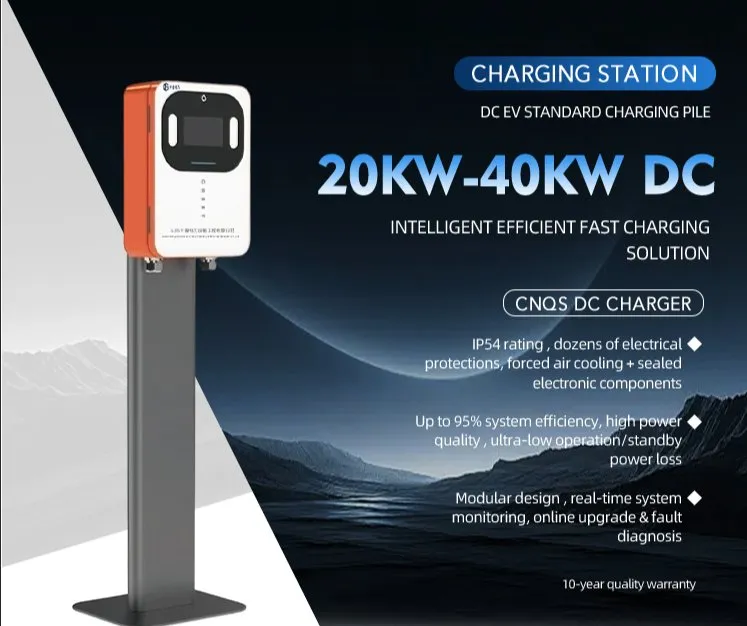

20KW-40KW DC Charger
- 80% power replenished in 30 mins.

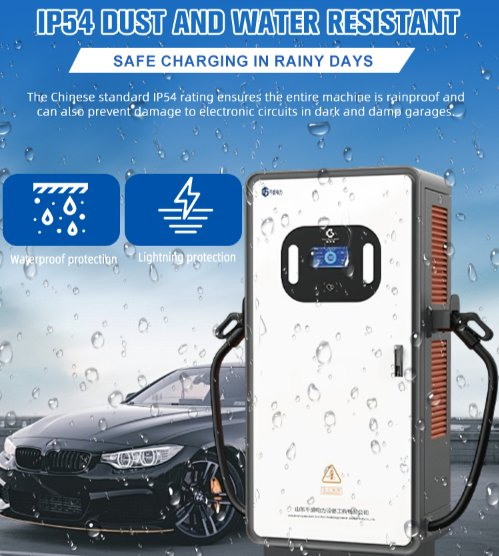

- IP65 dustproof & waterproof (-30℃ to 60℃).

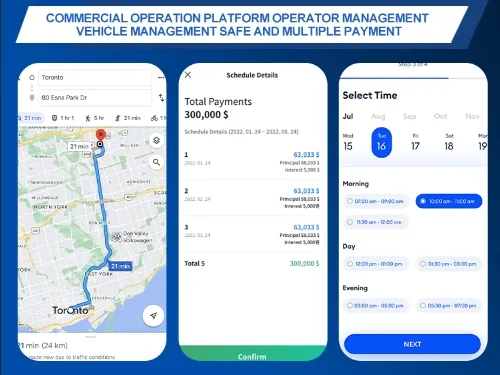

- Supports Apple Pay/Google Pay/Credit Card.

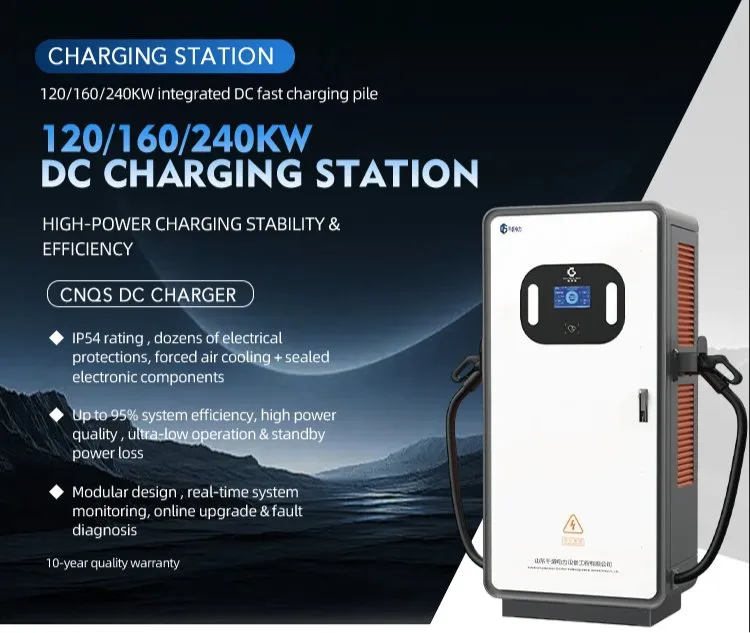

120/160/240KW DC Station
- Dual-gun simultaneous charging.
- 300+km range replenished in 30 mins (120kW).
- Ultra-fast 240kW: 80% battery in 15 mins.
🔍
Product Details

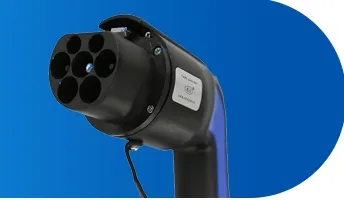

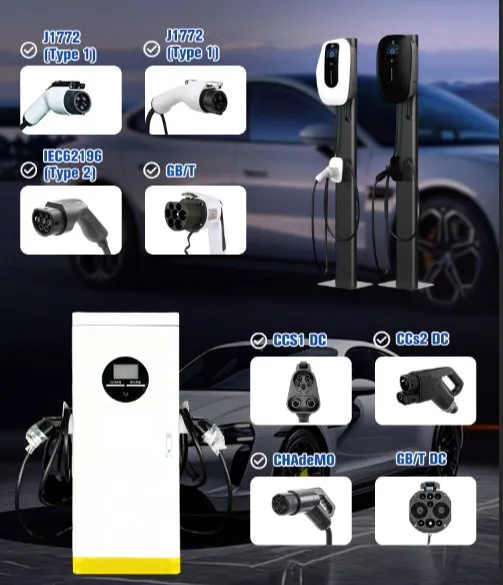

- Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

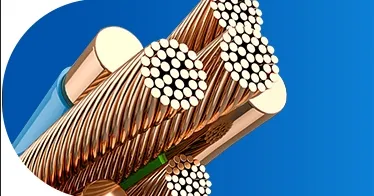

- Thickened high-temperature resistant special cables.
- Customizable cable length with self-locking anti-drop connectors.
✨
Product Features
📦
Packaging & Shipping
Package Size120.00cm * 45.00cm * 155.00cm
Gross Weight60.000kg
Package TypeWooden Box
🏢

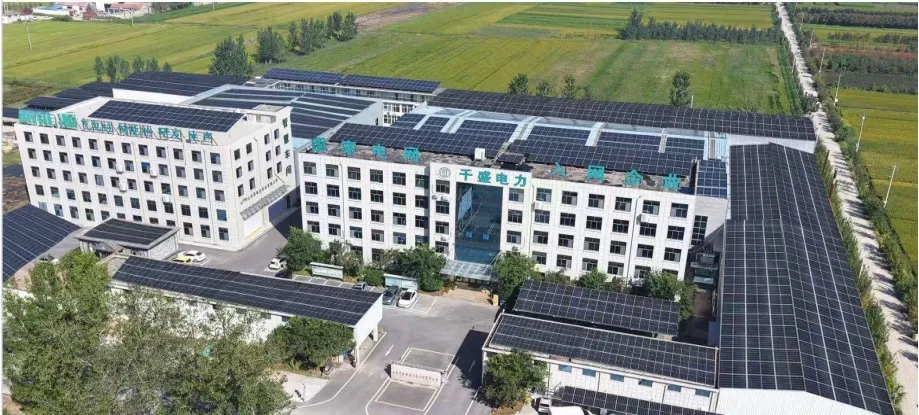

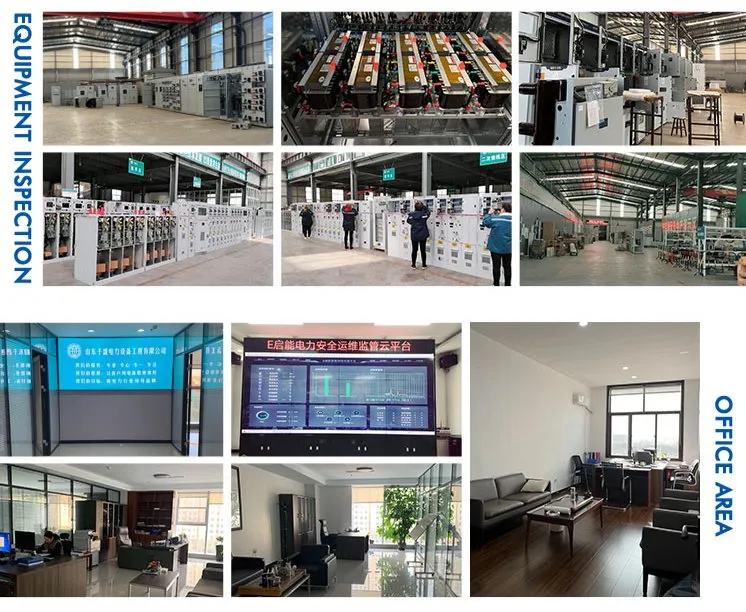

Professional Manufacturer Profile
With over 20 years of industry expertise, we serve global markets with reliable power distribution and new energy solutions. Our facility covers over 16,000 square meters and employs a professional team of technicians and managers.
We hold ISO9001, Environmental Management, and Occupational Health certifications, alongside CCC and CQC product qualifications. Our focus is on safe production and quality first.
Frequently Asked Questions
1. What situations are not covered by the warranty?
Includes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation/maintenance, external voltage abnormalities, and force majeure (fire, earthquake, etc.).
2. Is regular maintenance service provided?
Yes, we provide free annual inspections including electrical safety testing, mechanical tightening, cleaning, and software updates. Quarterly packages are available for commercial units.
3. Does the service comply with local data security requirements?
Fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). Maintenance data is encrypted to protect user privacy.
4. Can the warranty period be extended?
Paid extensions are available: 2 years for residential chargers and 1-3 years for commercial chargers, covering the main unit and core parts.
5. Is after-sales service universal across different regions?
Our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East. Standard services are available locally with equipment serial numbers.
6. How do I choose between wall-mounted and floor-standing models?
Wall-mounted models are ideal for space-saving residential use, while floor-standing models are typically preferred for commercial sites requiring higher charging speeds and accessibility.
