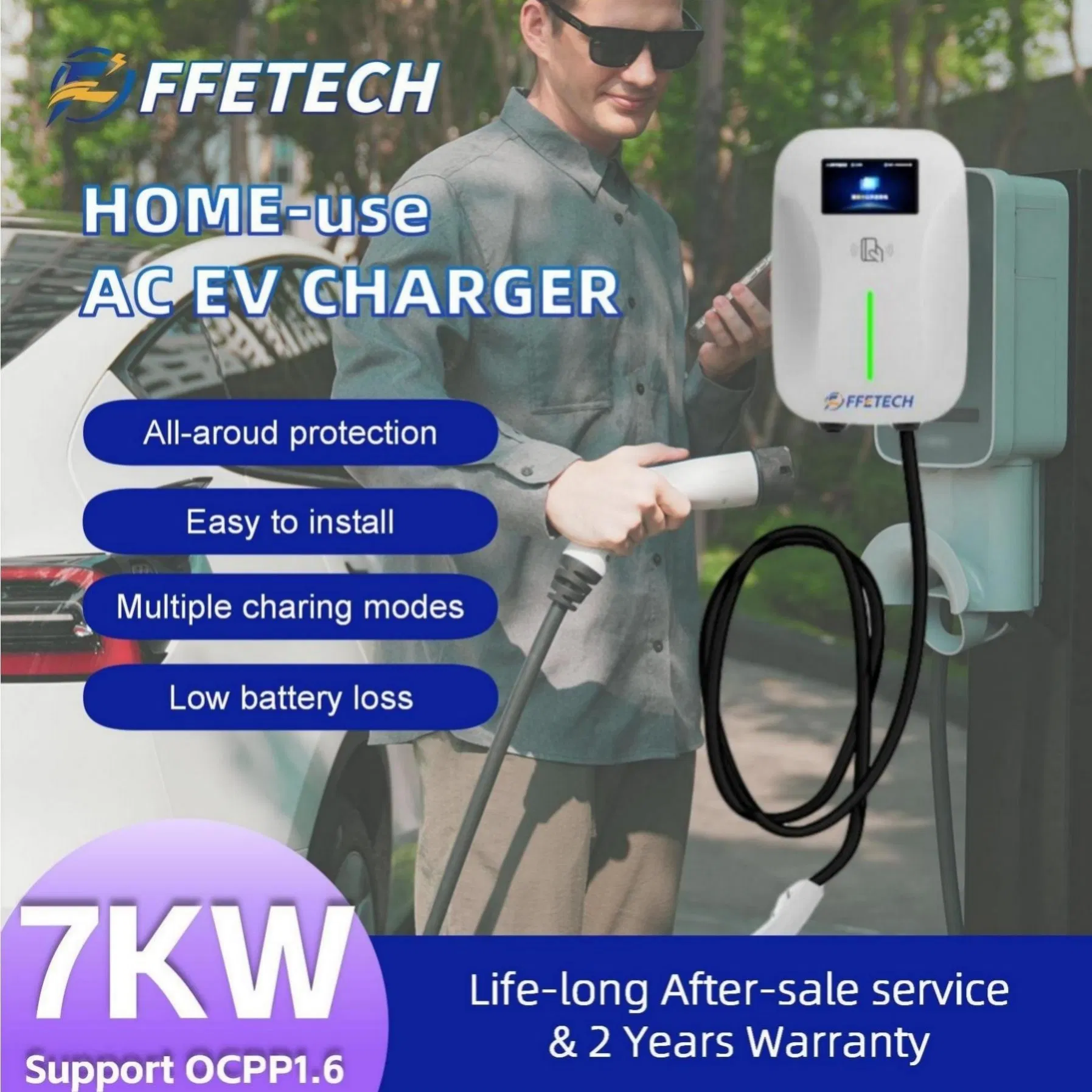

Smart 7kw EV Charger with WLAN 4G and Bluetooth Integration
Product Description
📋
Basic Information
Model NO.
FH-EA-7KW
Charging Interfaces
One Pile with One Charge
Installation
Wall Mounted
Charge Method
Normal Charge
AC Input Voltage
230VAC /Single Phase; 400VAC/Three Phase
Output Power
7kW
Cable Length
Rated 5m, Customized 10m Max
Authentication
4G, Ethernet, WiFi, Bluetooth
Type
Slow EV Charging Station
Certification
EMC Class B, TUV CE, Cqm, ISO and UL
Warranty
12 Months
Package Size
26.00cm * 28.00cm * 49.00cm
⚡

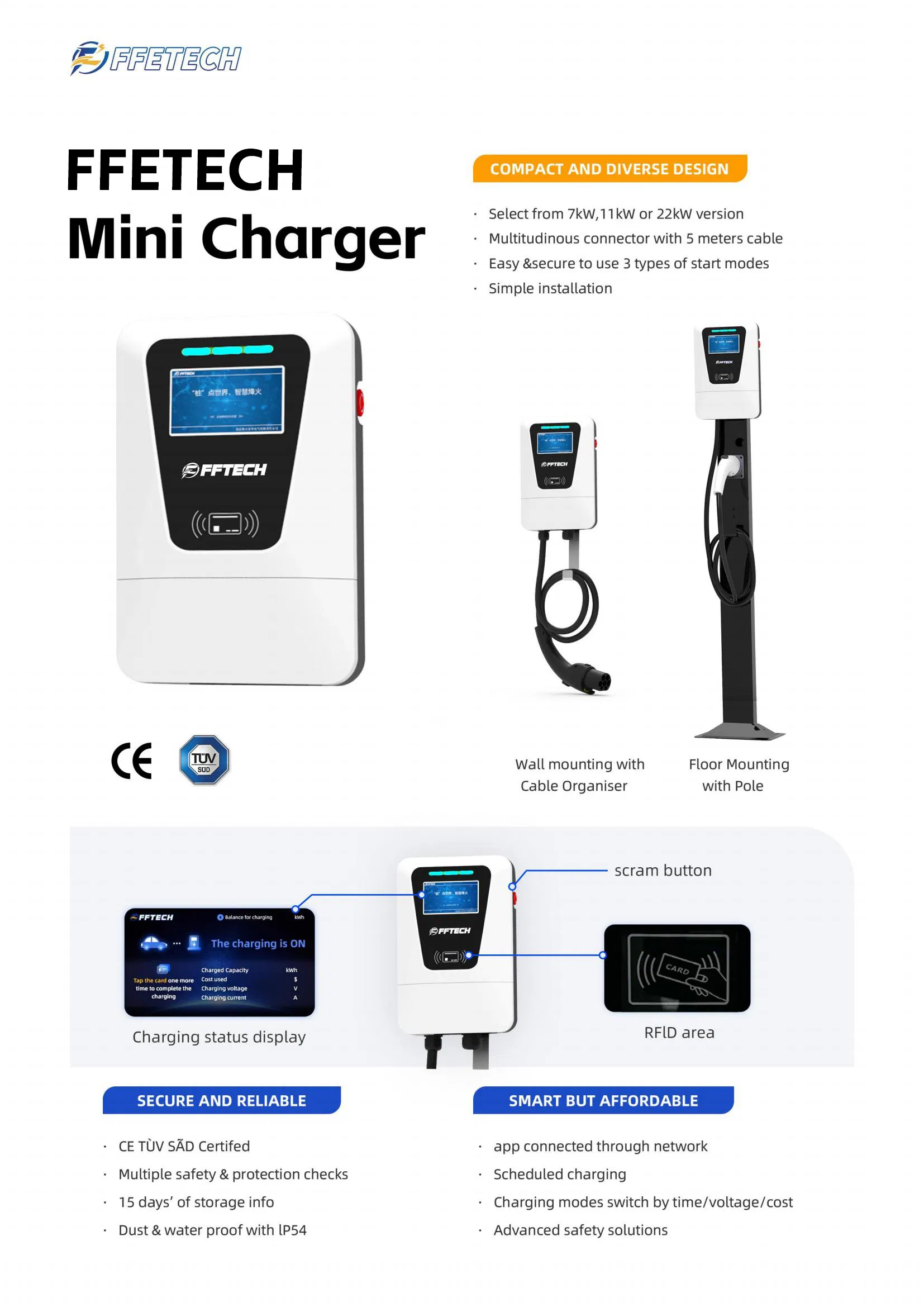

AC Mini Charger 7kW
This series of products is suitable for private villas, residential areas, commercial office buildings, urban complexes and other parking lots or urban public charging stations where slow charging can be performed for a long time. In addition, it is suitable for new energy vehicle workshop commissioning areas and road rescue occasions where frequent changes or temporary charging are required.
⚙️
Product Parameters
| Titles | AC Charging Pile Specifications |
|---|---|
| Category | 7kW AC |
| Input Voltage | 220VAC±15% |
| Input Current | 32A |
| Grid Connection | L+N+PE |
| Output Power | 7kW |
| Ingress Protection | IP54 |
| Cable Length | 3.5 meters (optional) |
| MTBF | >8760h |
| Communication | 4G/Ethernet/OCPP (optional) |
| Startup Method | Local/Card/Plug & Charge/App |
| Dimensions | 250*180*400mm |
| Safety Standards | IEC 62196, IEC61851, GB/T Standards |
🌟

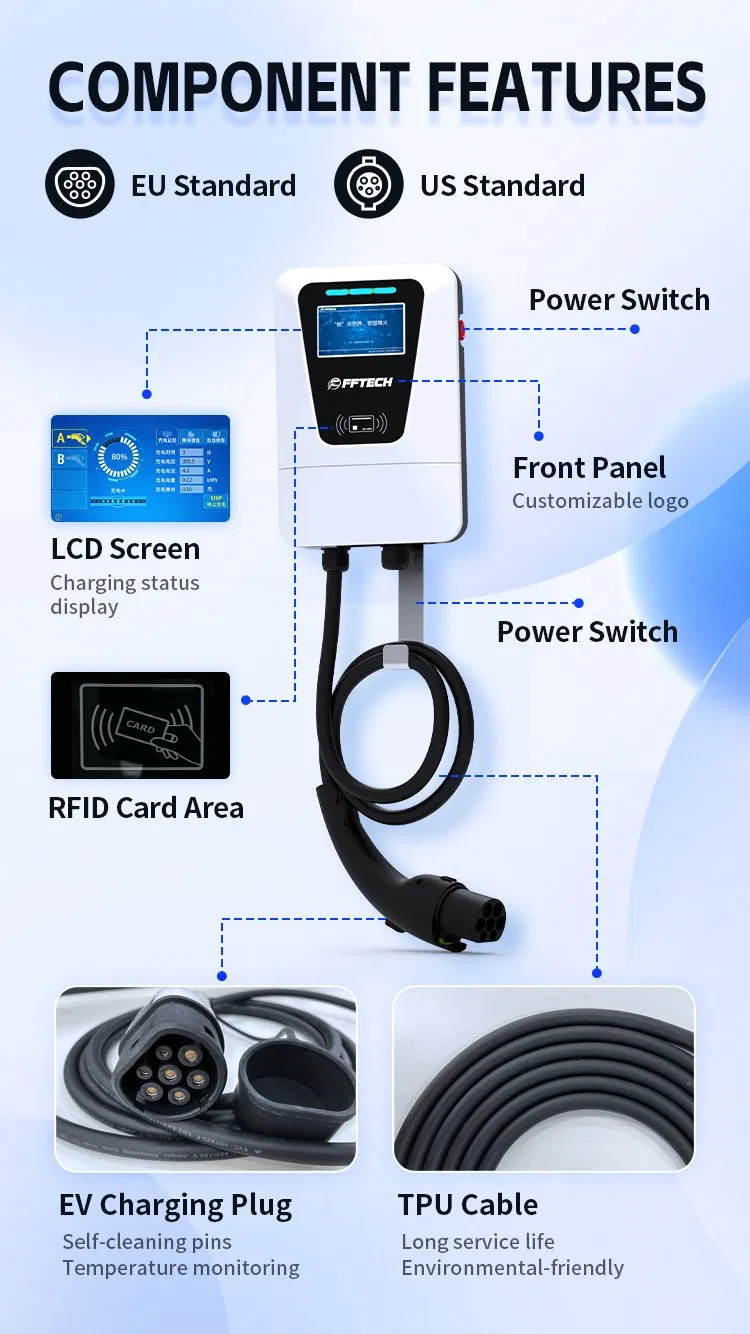

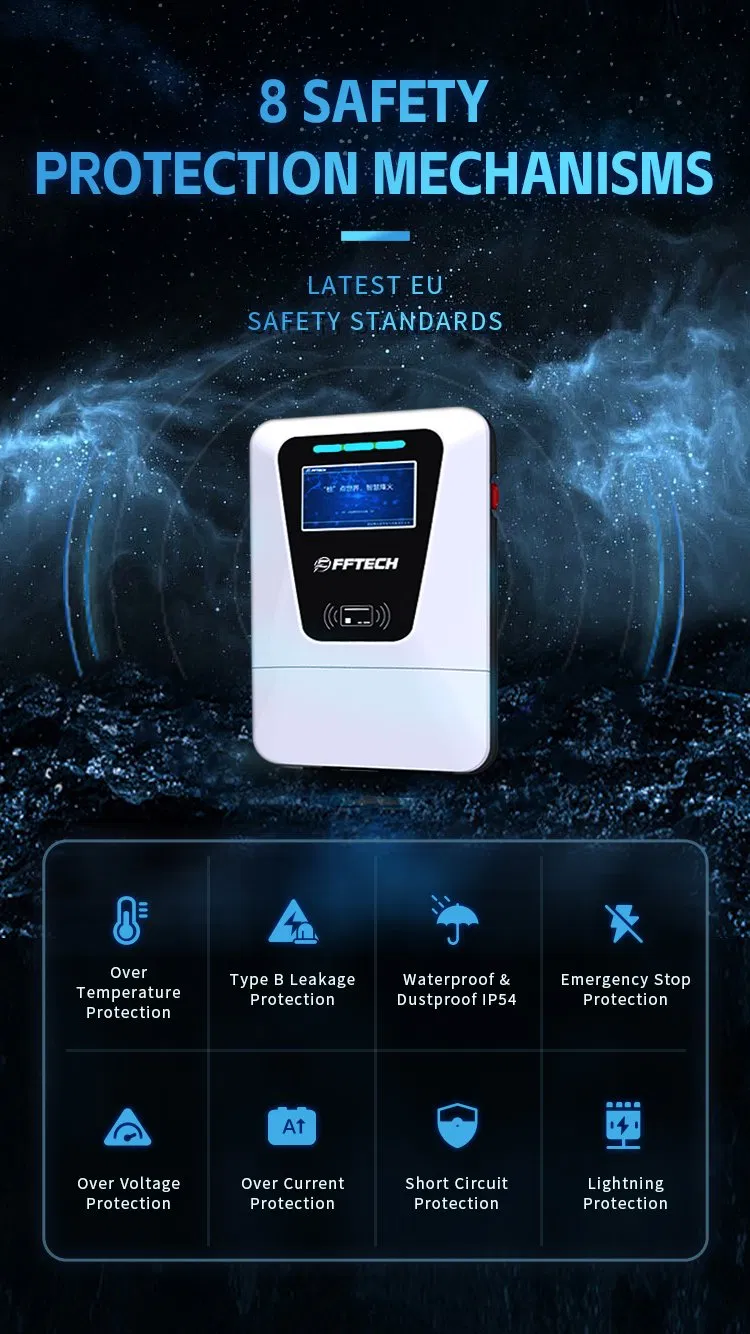

Product Features
🏭

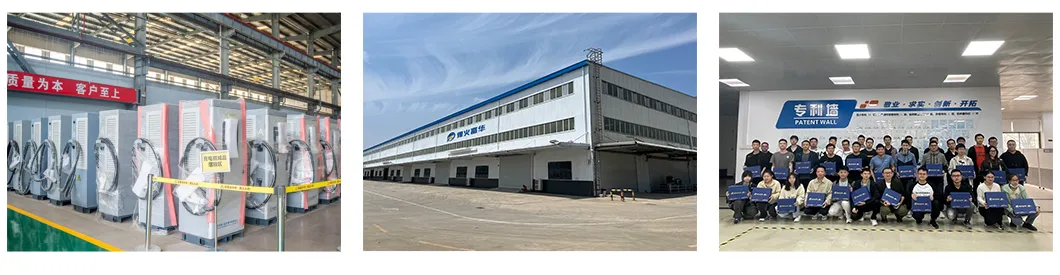

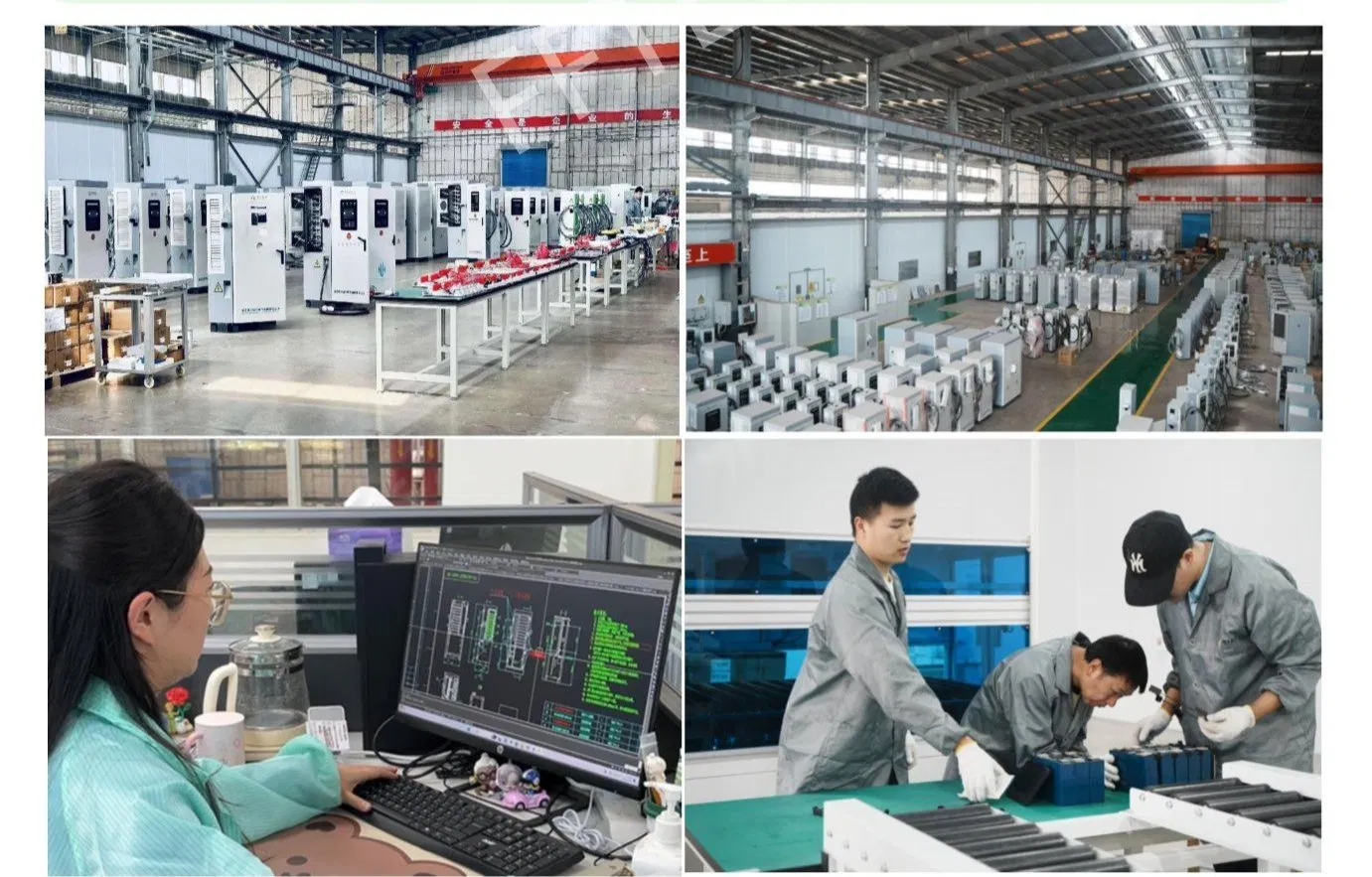

Production Process & Facility
📍
Typical Cases

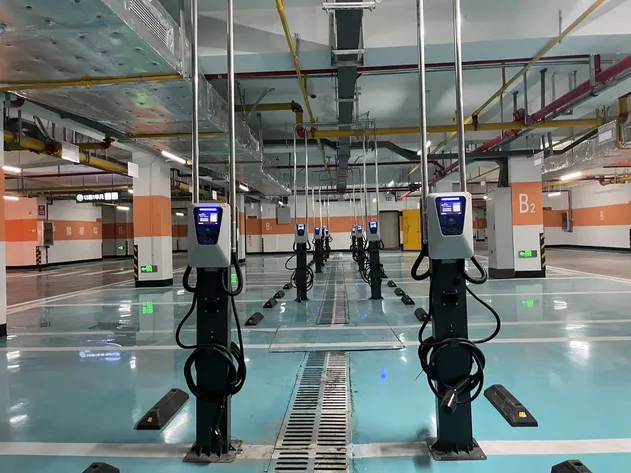

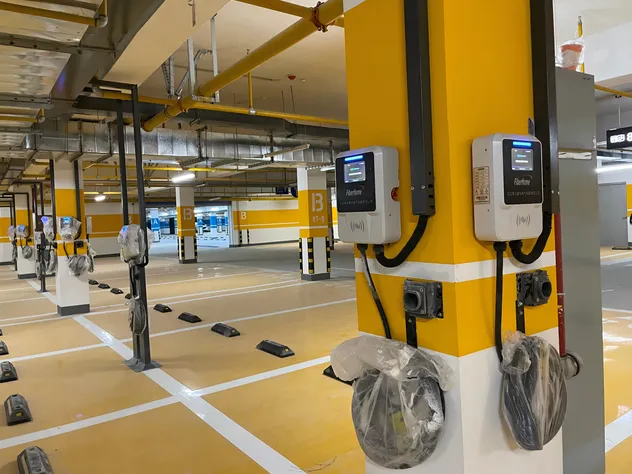

Residential Area
Underground parking lot, ~50 stations. Turnkey solution including design and supply.
Underground parking lot, ~50 stations. Turnkey solution including design and supply.

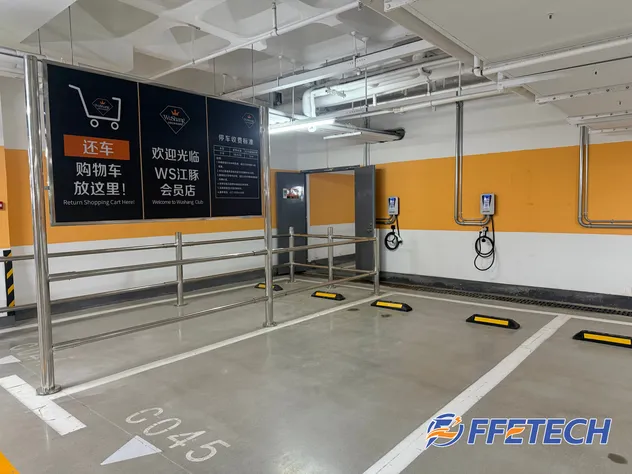

Shopping Mall
Commercial area operator-managed. High traffic usage with ROI within 3 years.
Commercial area operator-managed. High traffic usage with ROI within 3 years.
Scenic Spot
Outdoor parking serving ~40 vehicles daily. Enhances infrastructure for travelers.
Outdoor parking serving ~40 vehicles daily. Enhances infrastructure for travelers.
❓
Frequently Asked Questions
Q1. Do you have inspection before delivery?
Yes. We have a specialized QC team to conduct random and 100% inspections before delivery to ensure product quality.
Q2. What is the standard lead time?
The standard lead time is normally 15-25 days, though it may vary depending on the order volume and peak seasons.
Q3. Can you provide customized services?
Yes, we offer comprehensive OEM and ODM services. We also provide various customized options for specific product categories to meet your needs.
Q4. Are you a manufacturer?
Yes. We are a dedicated manufacturer with a strong R&D team focused on innovative EV charging solutions.
Q5. What are the packaging details?
Most products are packed in sturdy carton boxes. Custom packaging is also available upon specific request.
Q6. What installation options are available for the 7kW charger?
The charger supports both wall-mounted installation for space-saving and stand-alone landing installation for open parking areas.
