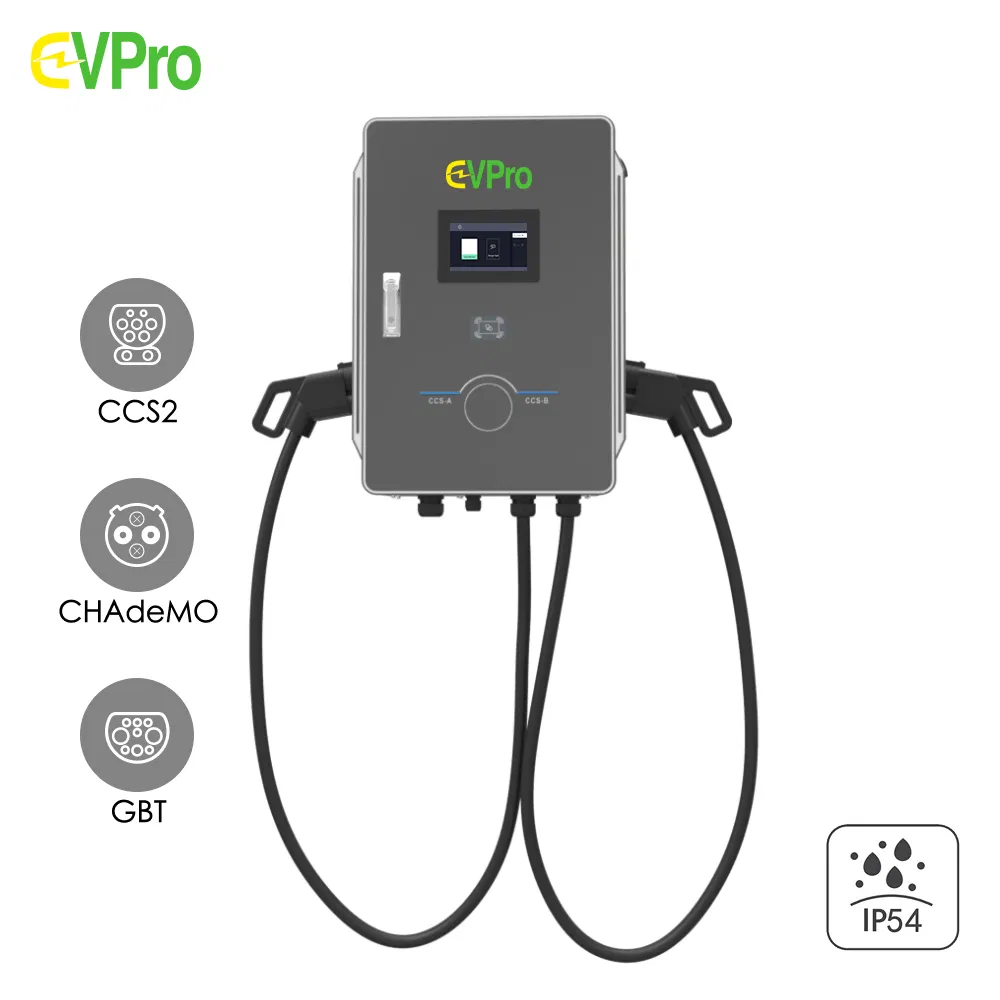

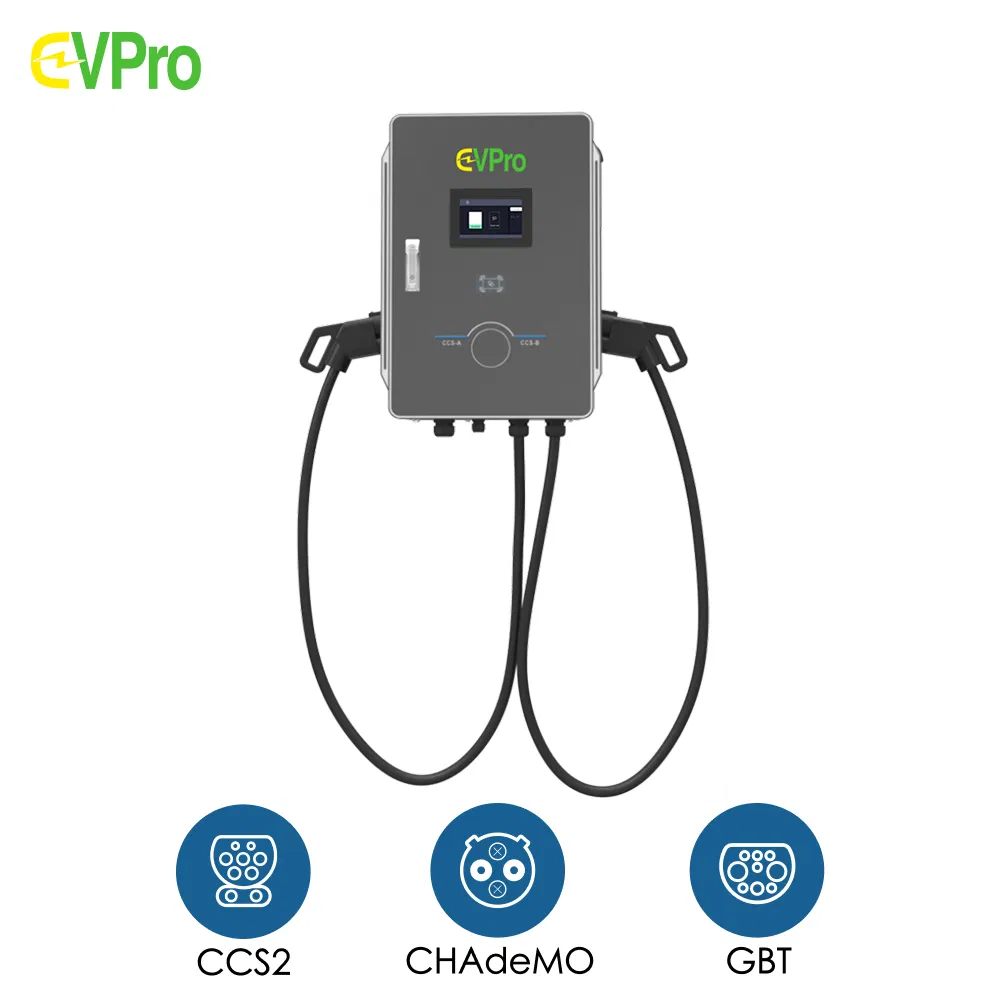

Evp 4300 DC 40kw Home Energy Storage Integrated Dual-Gun Charging IP54 Multi-Payment Options (RFID/APP) Fire Alarm Ice EV Charger with 95.2%+ Efficiency
Product Description
Basic Information

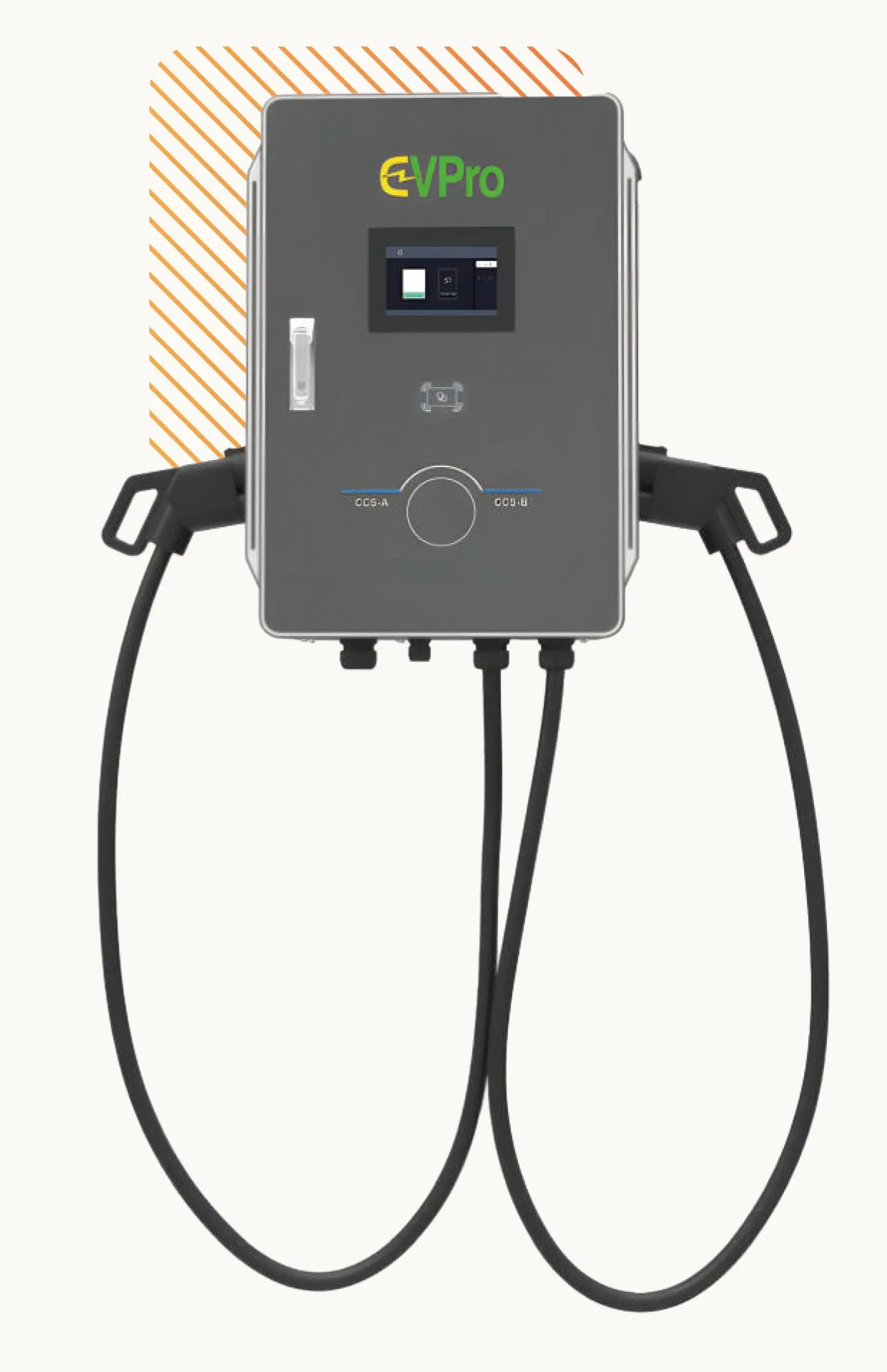

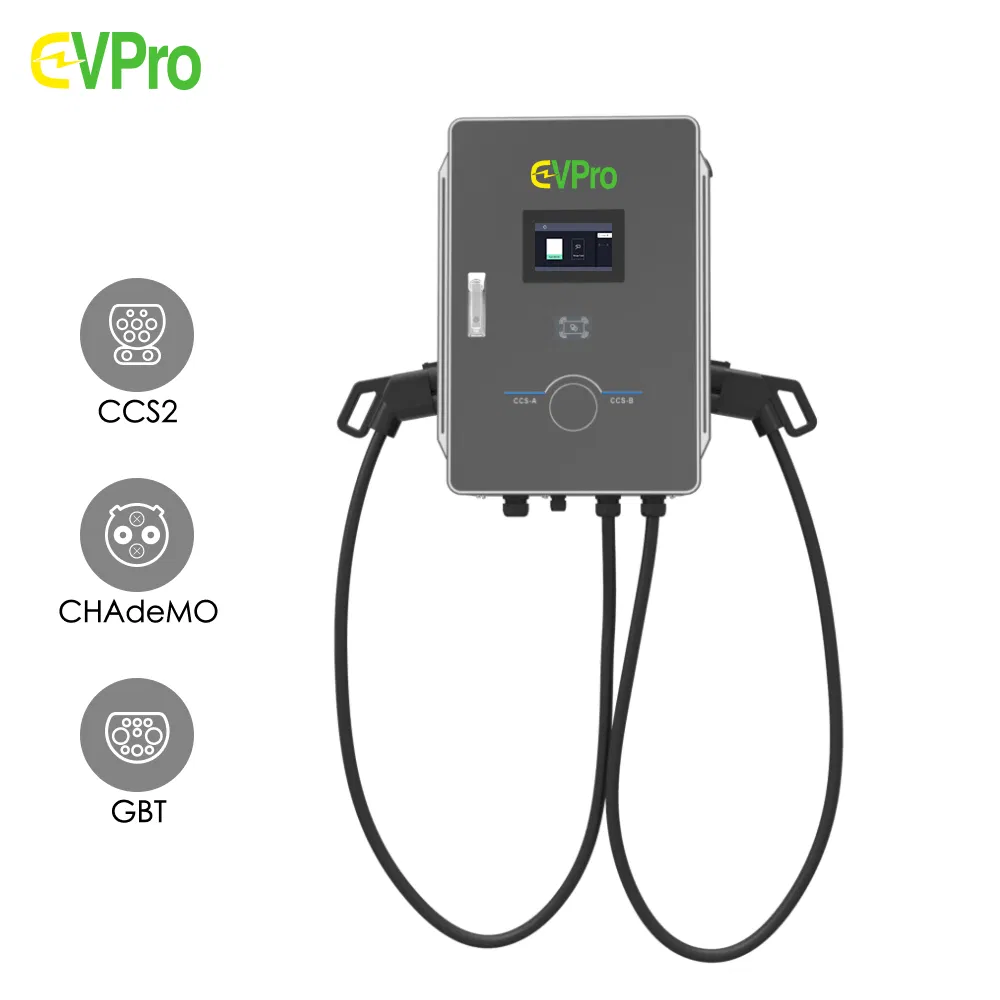

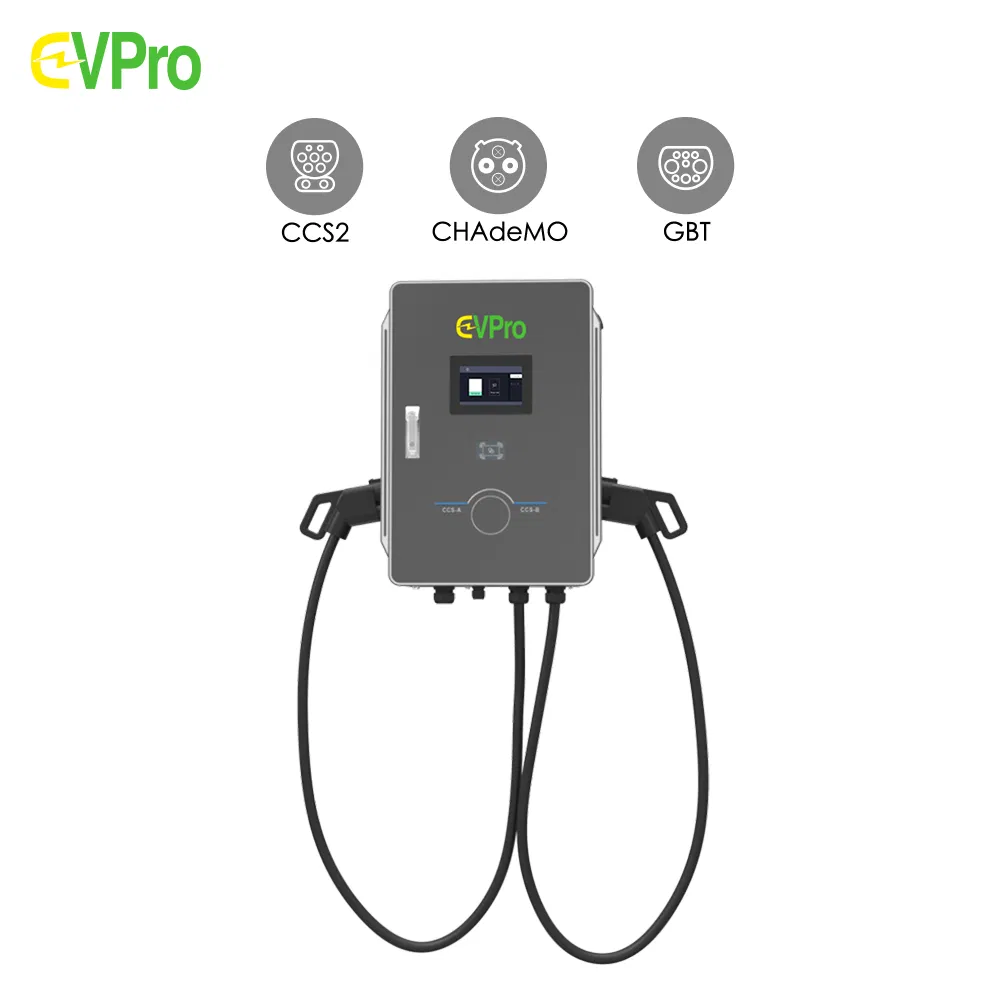

40kW Series DC EV Charger
This charger delivers 40kW power with 95.2%+ efficiency, featuring dual-gun charging (CCS2/CHAdeMO/GBT), IP54 waterproofing, and smart features like a 7" LCD touch-screen, multi-payment options (RFID/APP), and OCPP 1.6J compliance. Its A-type RCD protection and fire alarm/auto-extinguishing system ensure top-tier safety.
Product Features
- Single and Dual Connectors

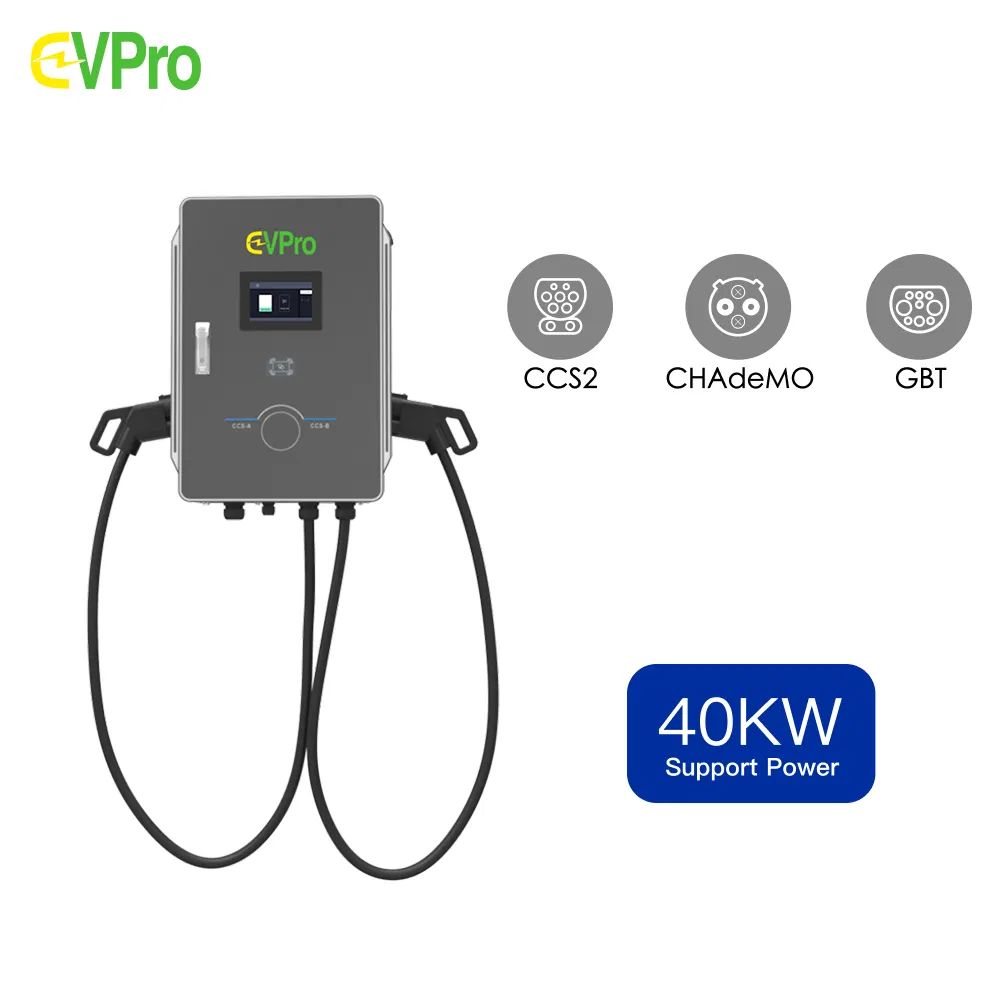

- Support 40kW charging power
- Efficiency > 95.2%
- Power Factor > 0.98 (50%~100% load)
- Waterproof level: IP54
- Type A RCD leakage protection
- Support Load Balance System
- 7" LCD Touch Screen, High brightness
- Support RFID card/APP/Kiosk
- OCPP 1.6J Compliance
- Fire hazard alert & Auto extinguishing
Technical Parameters
| Category | Data Parameters |
|---|---|
| Input | AC 380V 3P+N+PE 63A 50~65HZ |
| Output Voltage | DC 150V~1000V |
| Output current | MAX. 100A |
| Connectors | CCS2/ CHAdeMO/ GBT |
| Operating temperature | -25℃~50℃ |

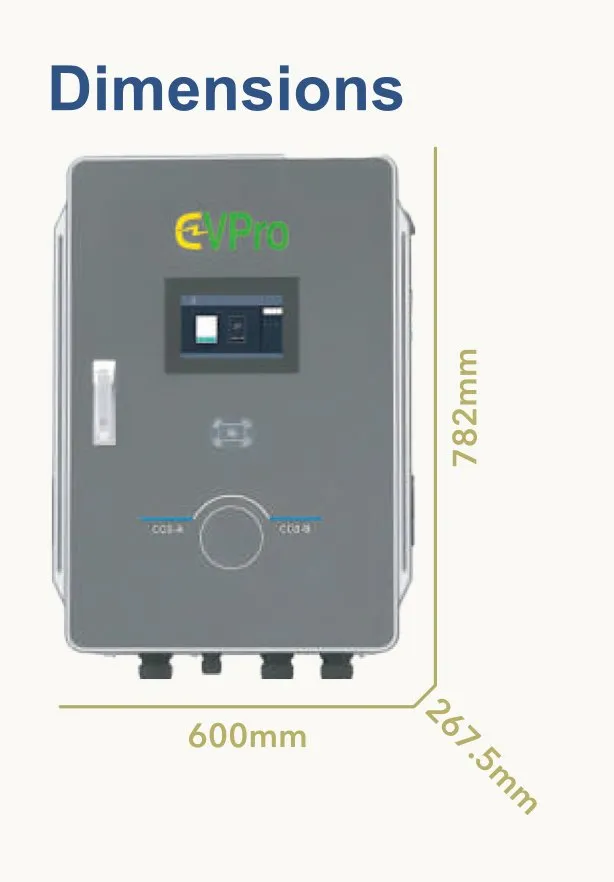

| Dimensions (L x D x H) | 782mm X 600mm X 267.5mm |
| Communication | Ethernet/ WiFi/ 3G / 4G |
| Surge Protection | 20 KA |
| Emergency Stop | Equipped |

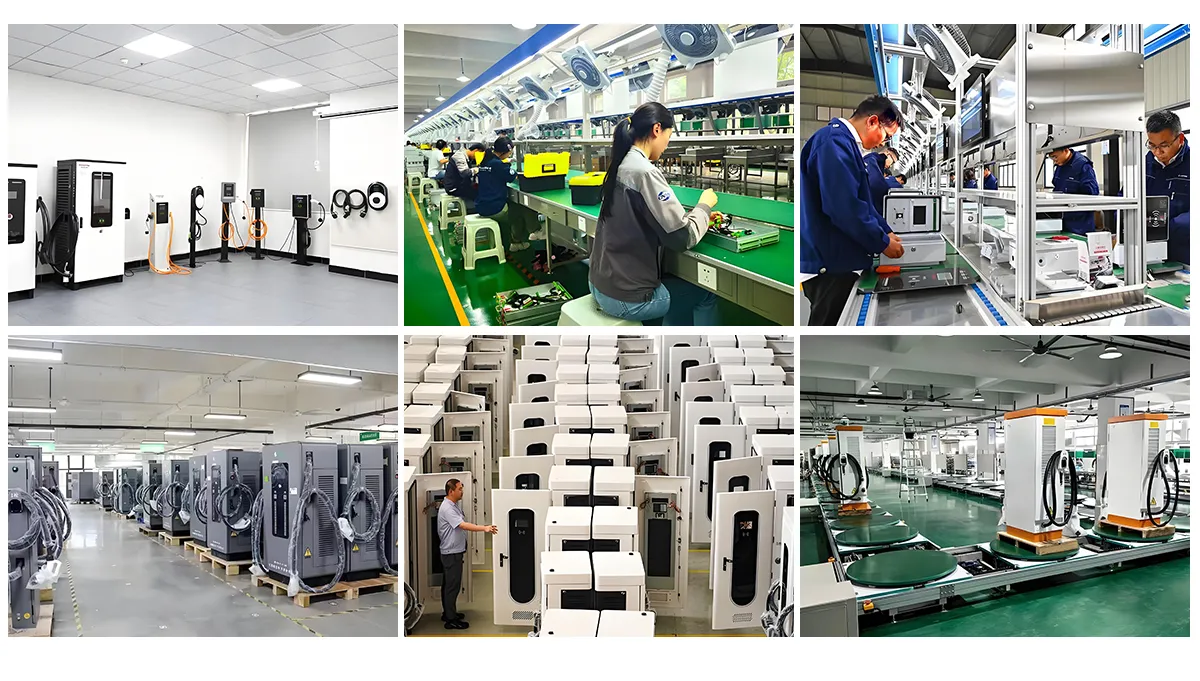

Core Technology & Manufacturing
We control every stage of the EV charging ecosystem to deliver superior quality and cost-competitive solutions. We operate our own manufacturing facility producing both AC and DC chargers with custom hardware configurations and rigorous quality control standards compliant with IEC 61851 and IEC 62196 standards.
Our platform actively harnesses solar energy while utilizing AI to dynamically manage power flows between solar panels, the electrical grid, building loads, and EV batteries. The V2G capabilities transform EVs into mobile energy storage units that can feed power back into buildings or the grid.
