VoltNode Charger

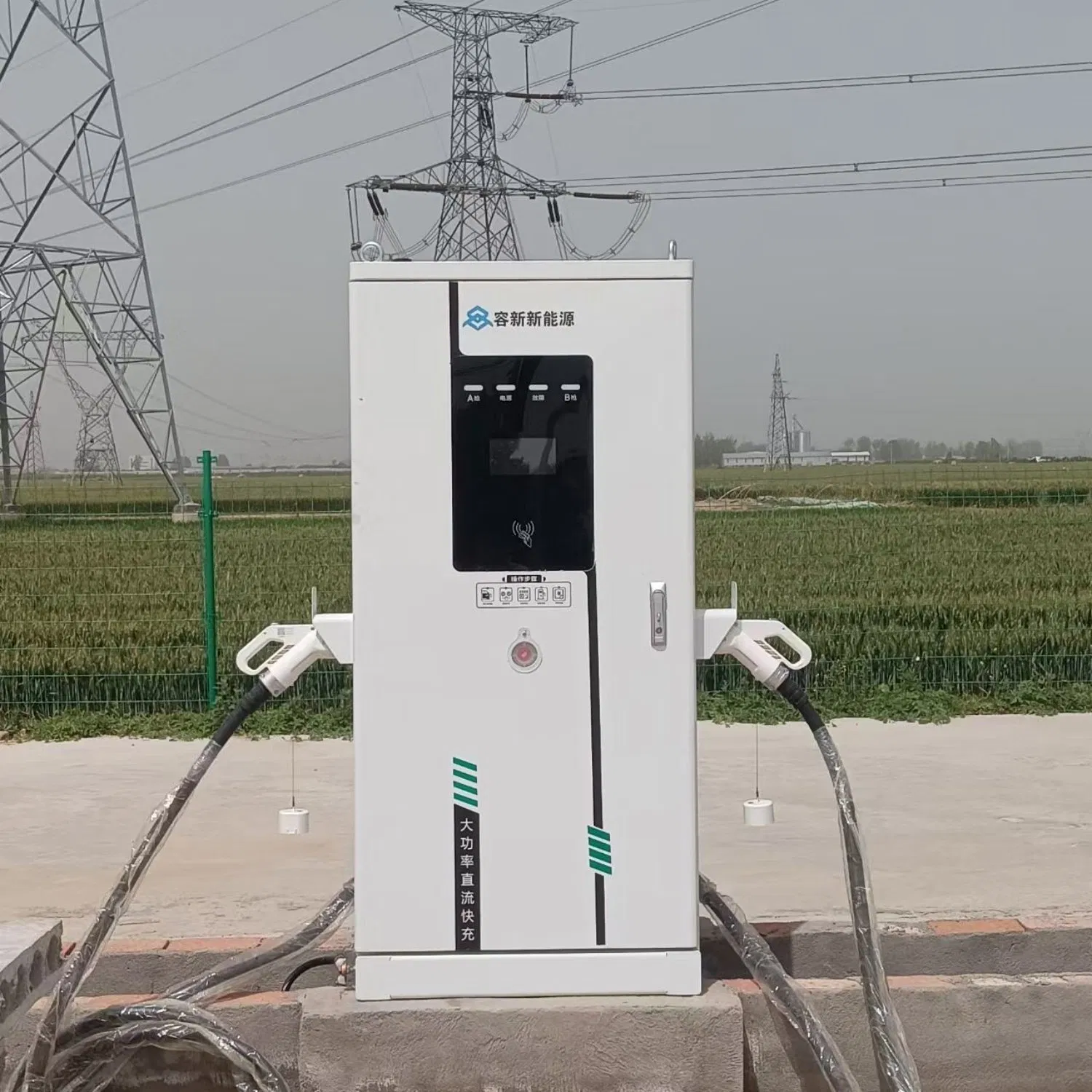

Smart Dual Port Load Balancing Fast EV Charger Charging Station
Product Description

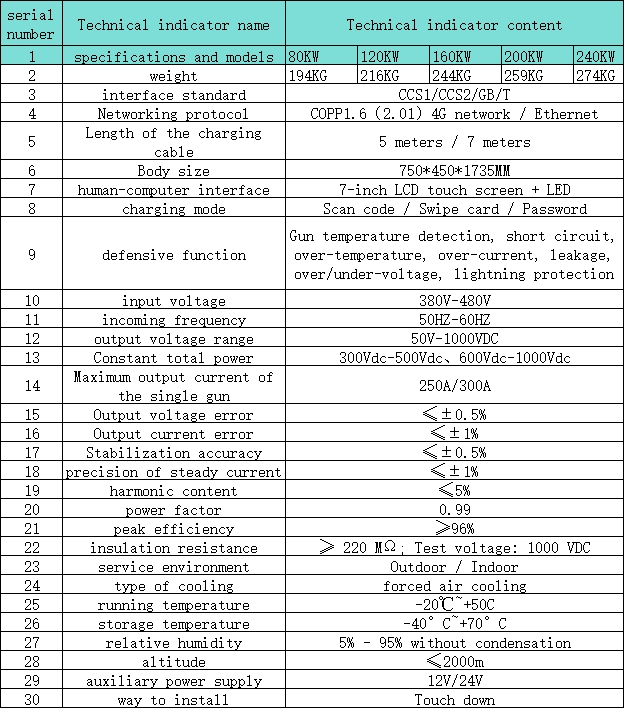

Basic Information
| Model NO. | 80KW-600KW | Location | Public Use |
| Interfaces | One Pile with Multiple Charges | Connector Type | CCS1, CCS2, Chademo, GB/T |
| Rated Power | 40kw To 600kw | Weight | 194kg-274kg |
| Gun Barrel Length | 5 Meters / 7 Meters | Body Size | 750X410X1700(mm) |
| HMI | 7-Inch LCD Touch Screen + LED | Connectivity | 4G All-Network / Ethernet |
| Origin | China | Production Capacity | 50,000 Units Per Year |
Product Description

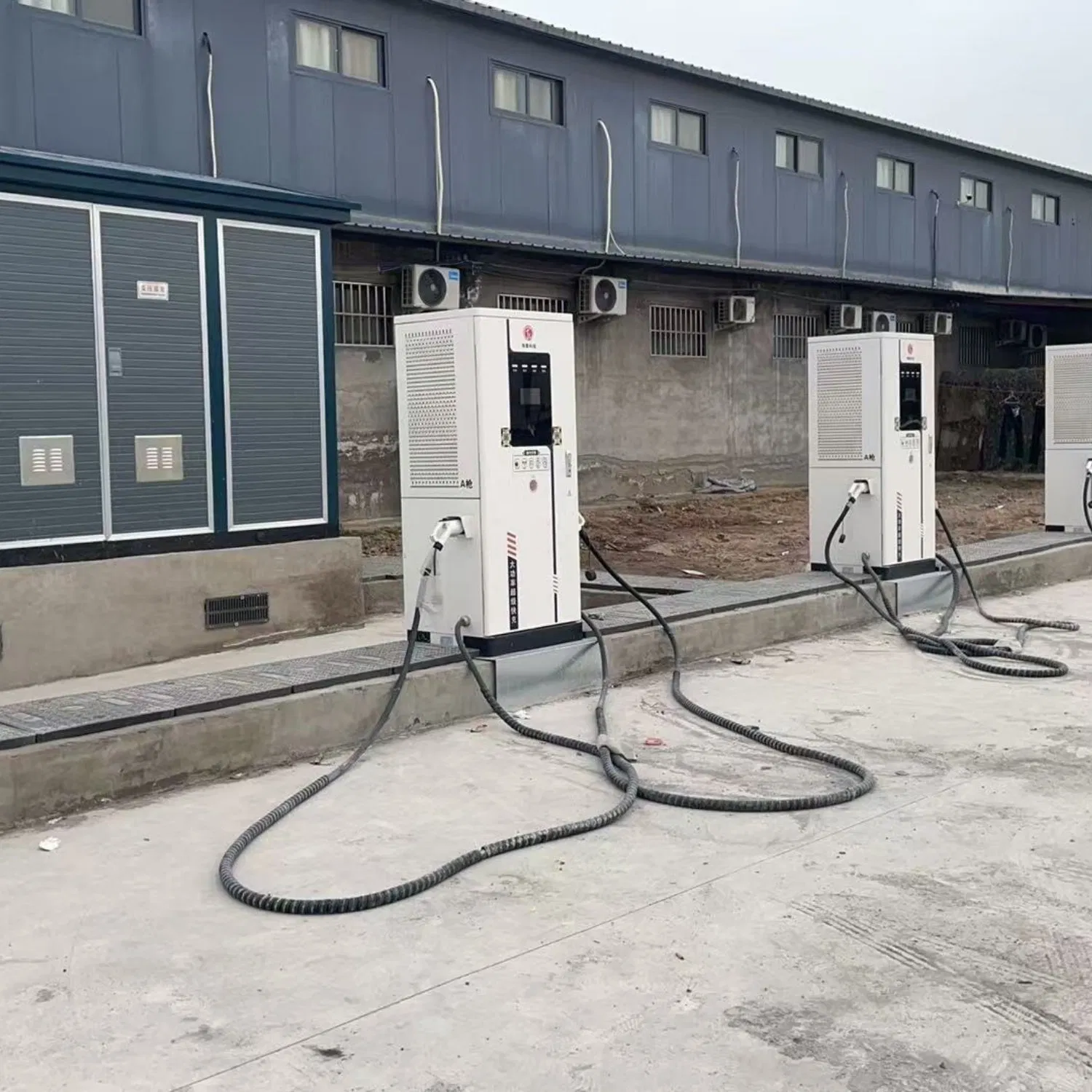

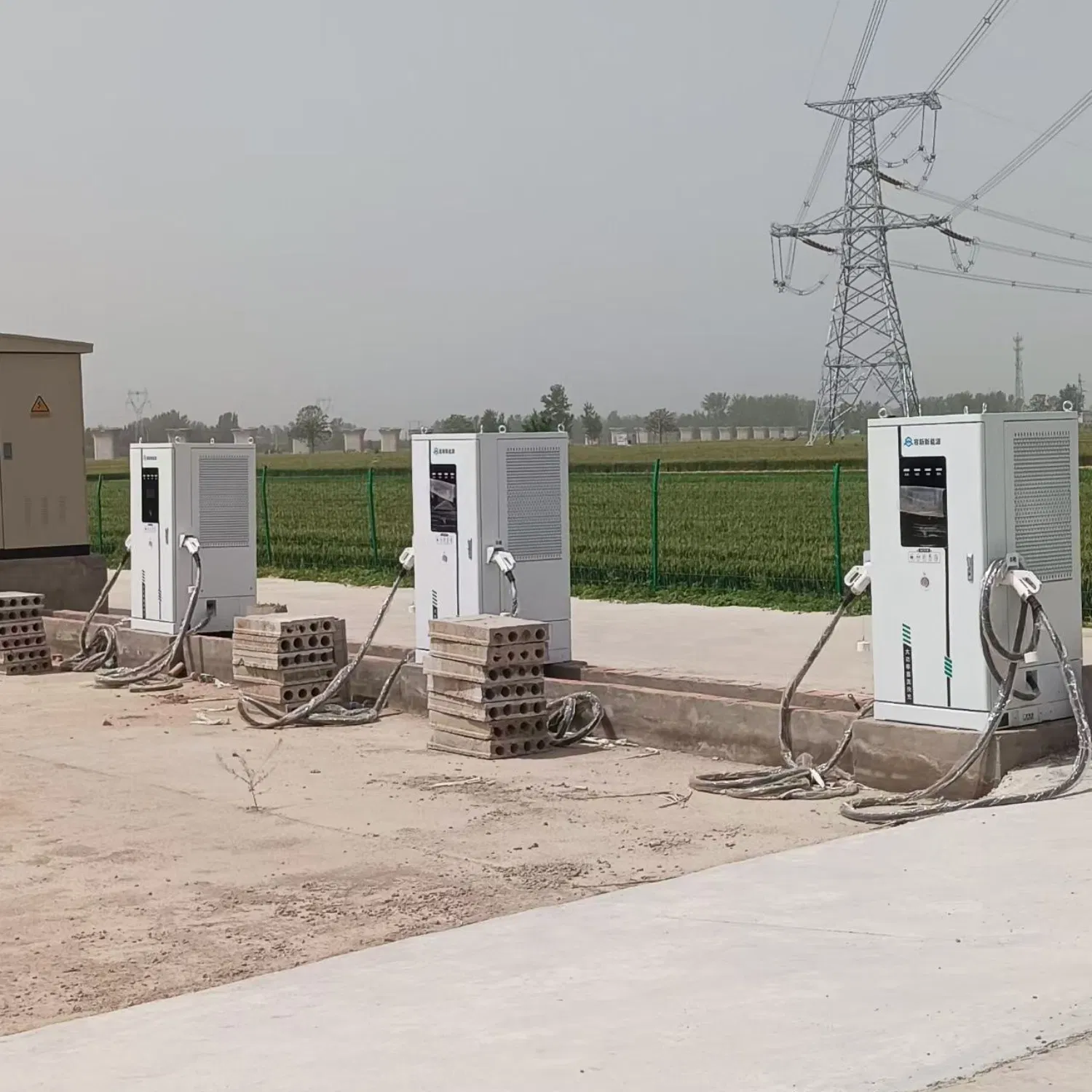

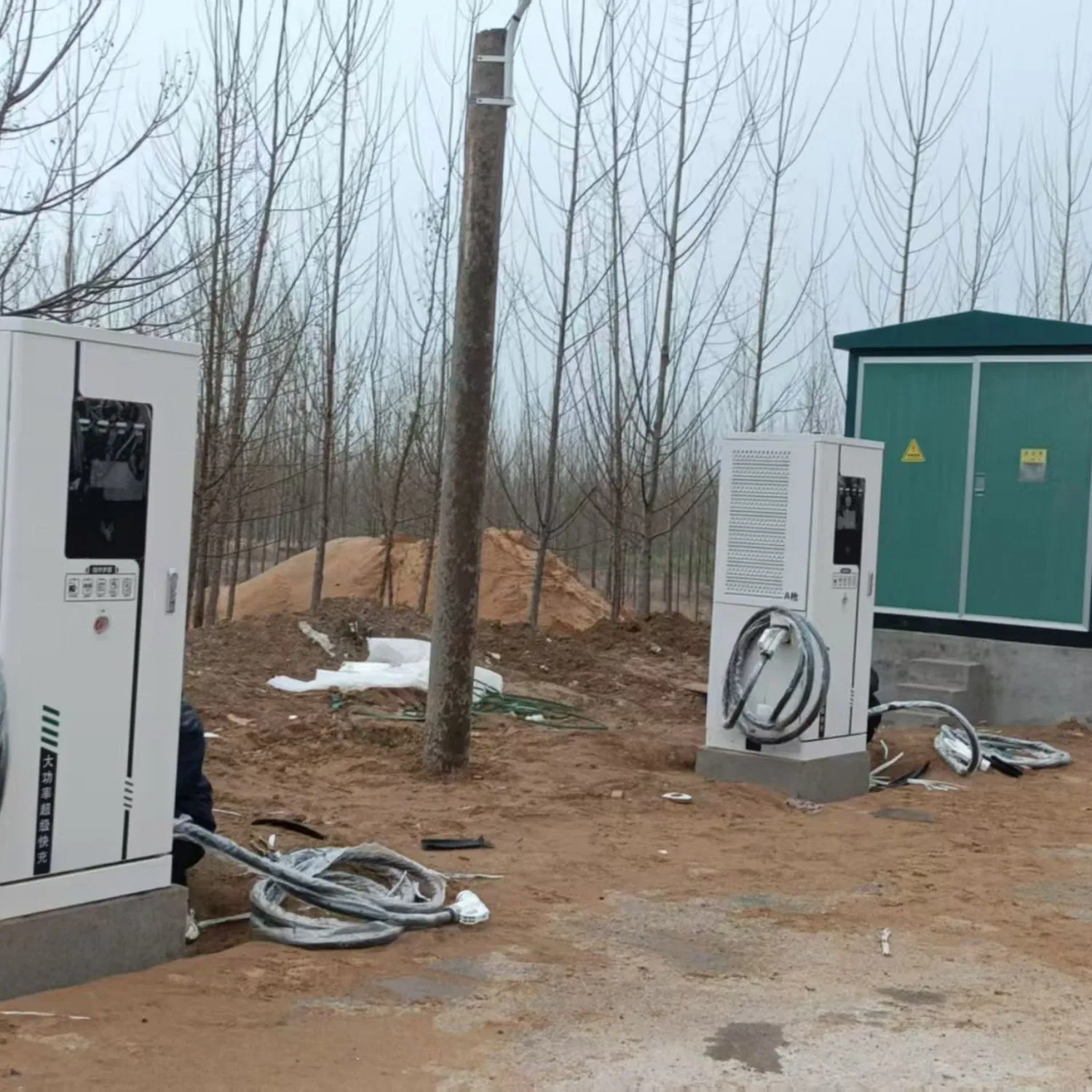

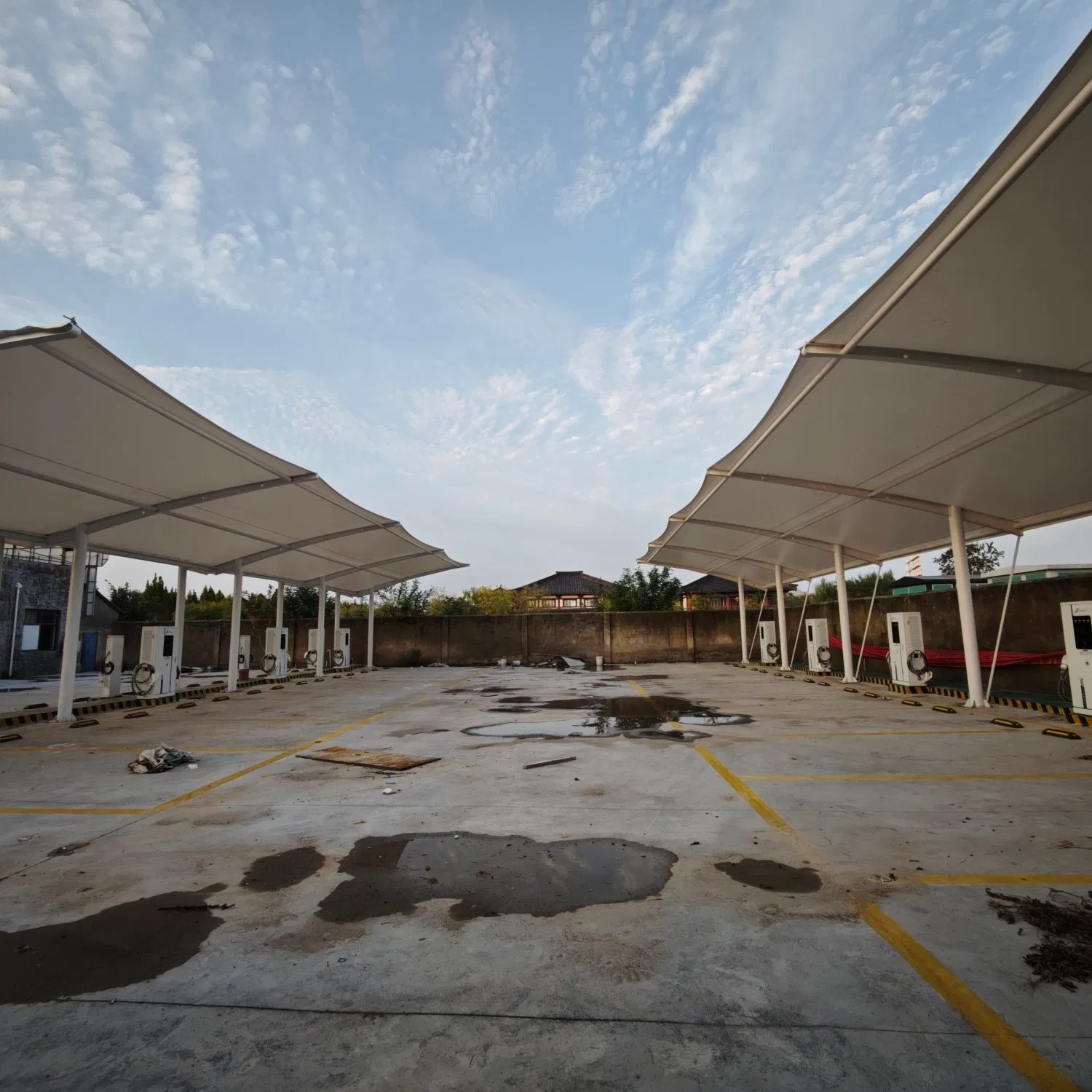

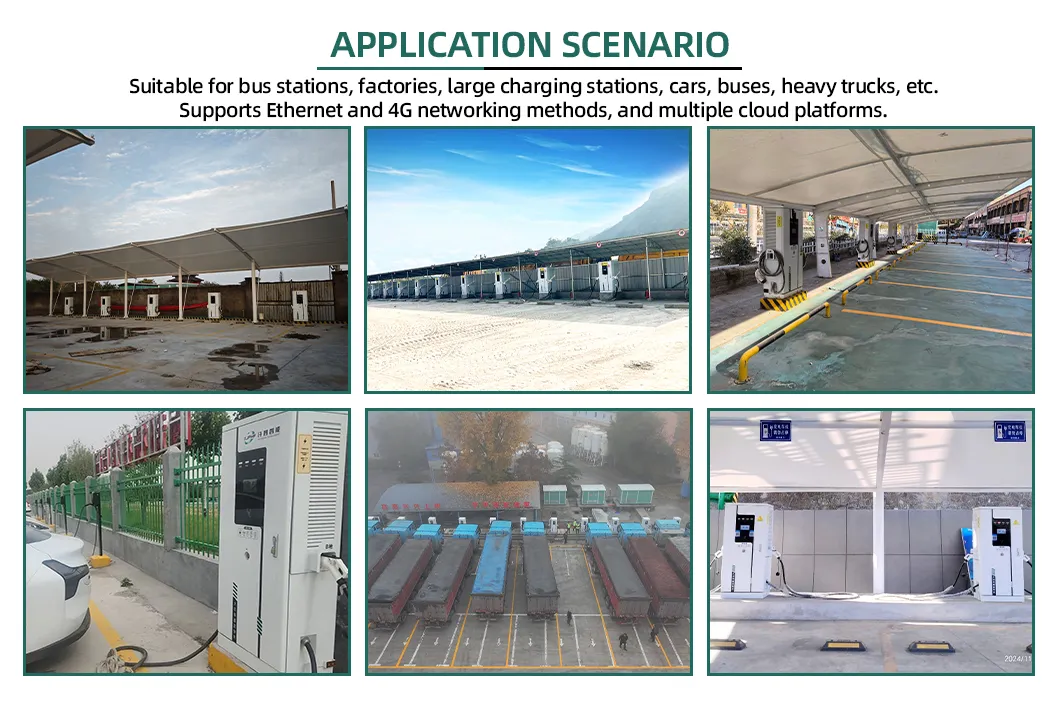

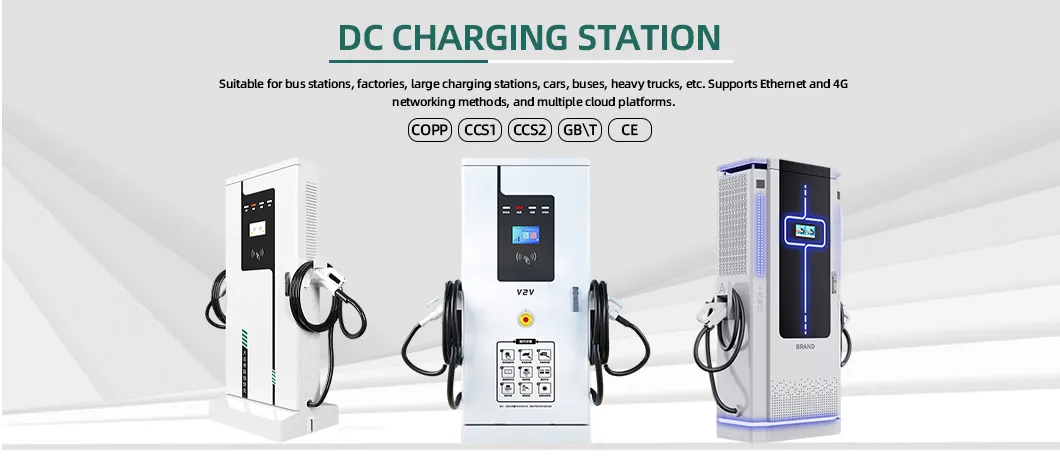

Advanced DC Fast Charging Technology: Our charging stations provide a power range from 40KW to 600KW, supporting OCPP protocol, CCS1, CCS2, and GB/T standards. Designed for high efficiency, it features a continuous adjustable voltage range of 50-1000V, making it ideal for bus stations, factories, and large-scale charging hubs.
Superior Protection: Built with an IP54 waterproof rating, the unit includes comprehensive safety features such as gun temperature monitoring, short circuit protection, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.

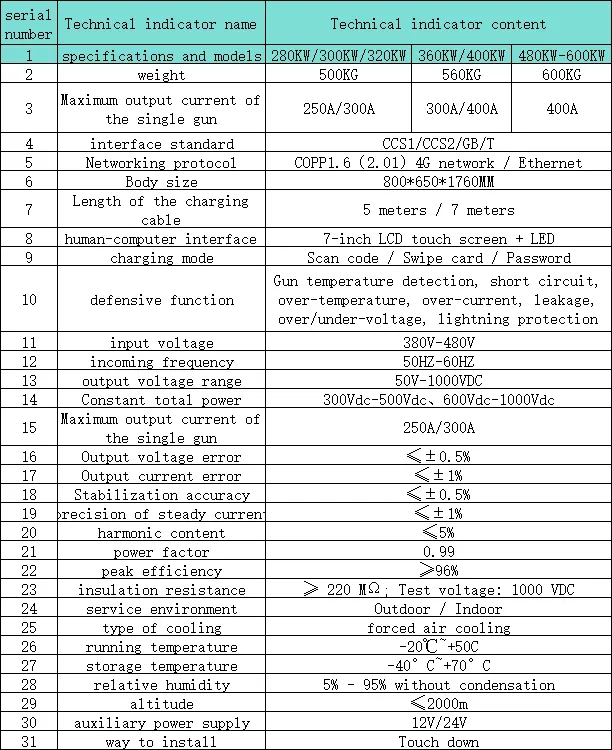

| Product Mode | 40KW-600KW | Dimensions | 750x410x1700(mm) |
| Design Standard | CCS1, CCS2, GB/T | Protection Level | IP54 |
| Charging Mode | Scan code, RFID card, VIN code, Password | Cloud Platform | OCPP 1.6 / 2.0.1 |
Quality Assurance
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and third-party inspection reports for our equipment. Our products have been successfully deployed in various large-scale projects globally.
Packaging & Shipping
We utilize specialized heavy-duty packaging to ensure the safety of the equipment during transit. Our logistics support sea transportation, air transportation, and land transportation to meet global delivery requirements.
