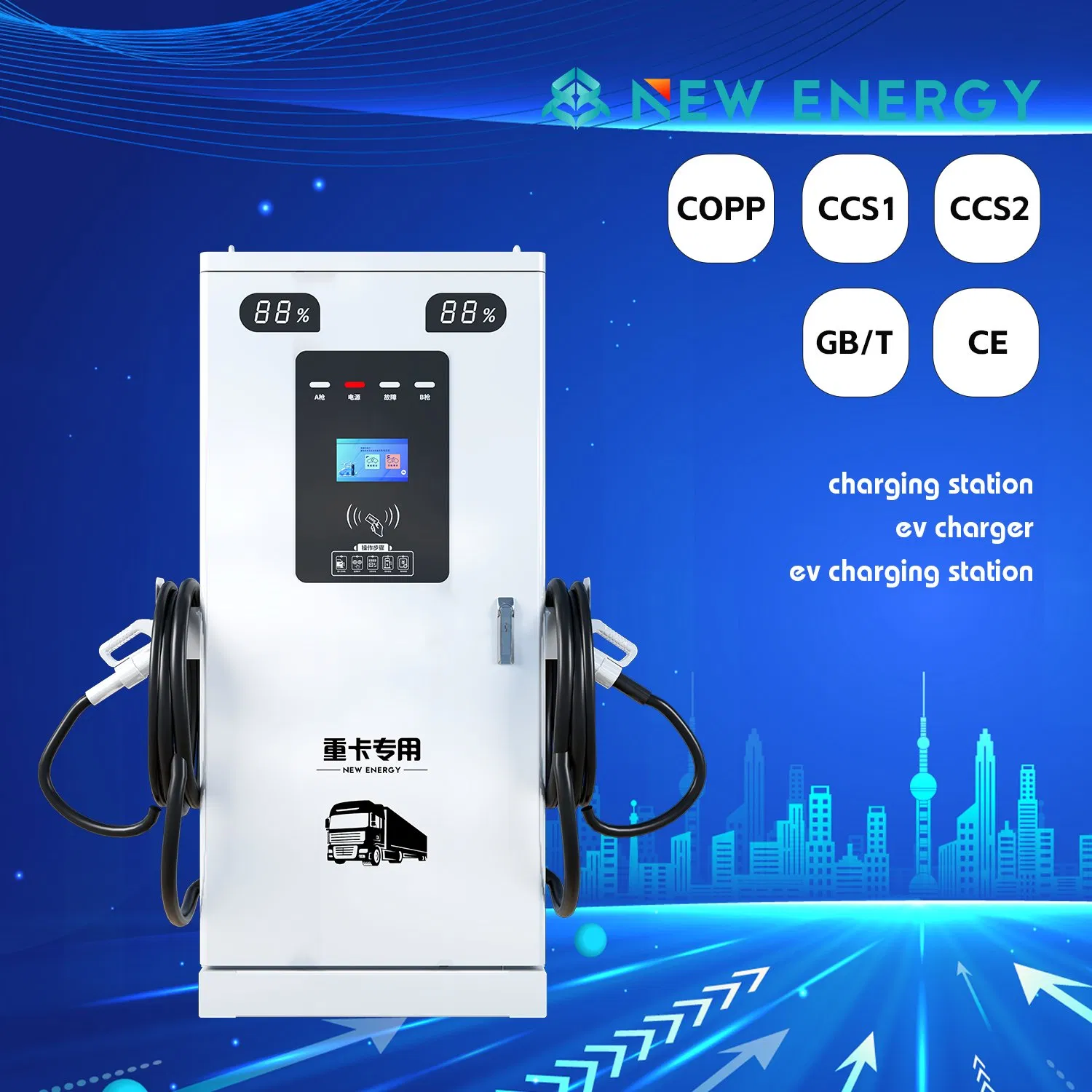

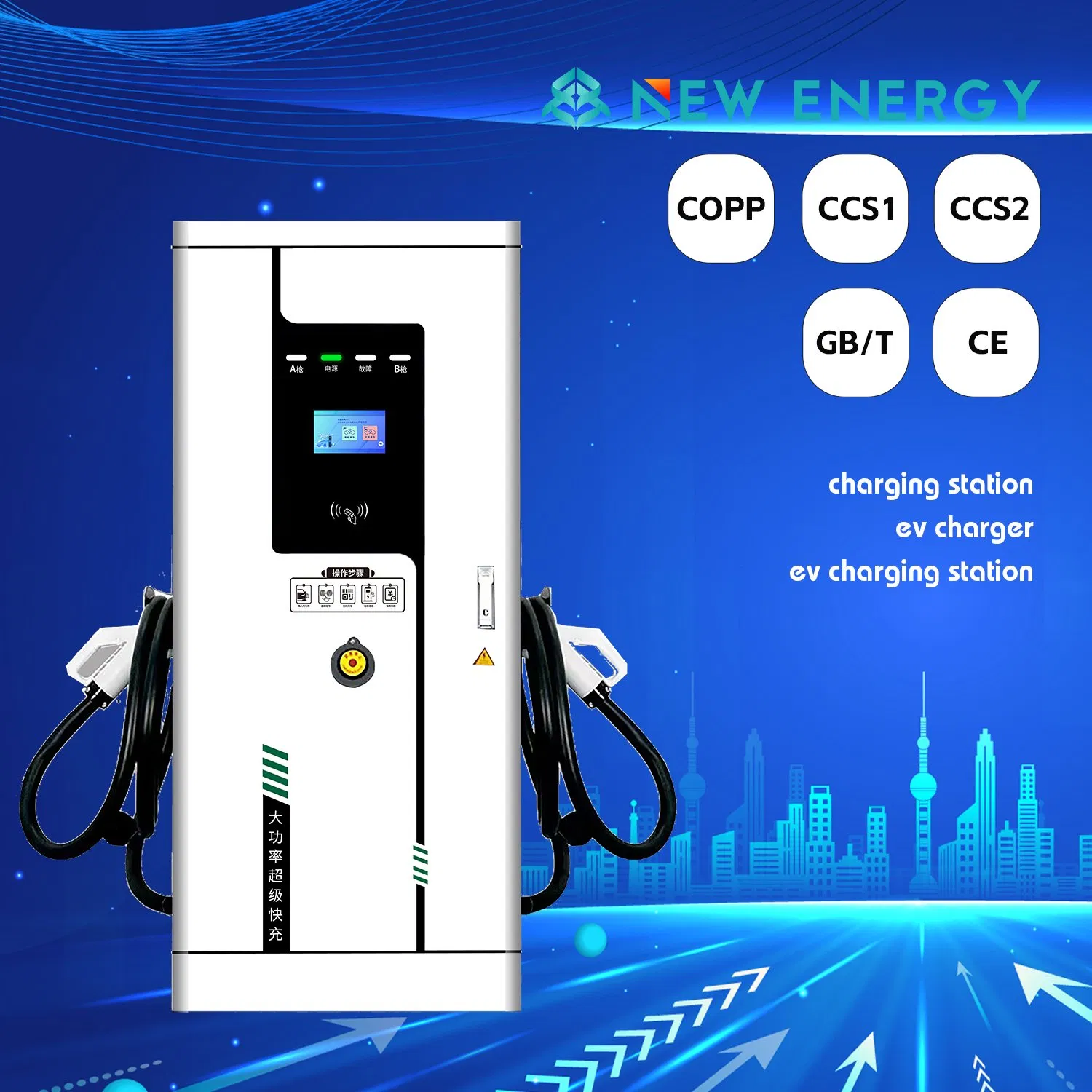

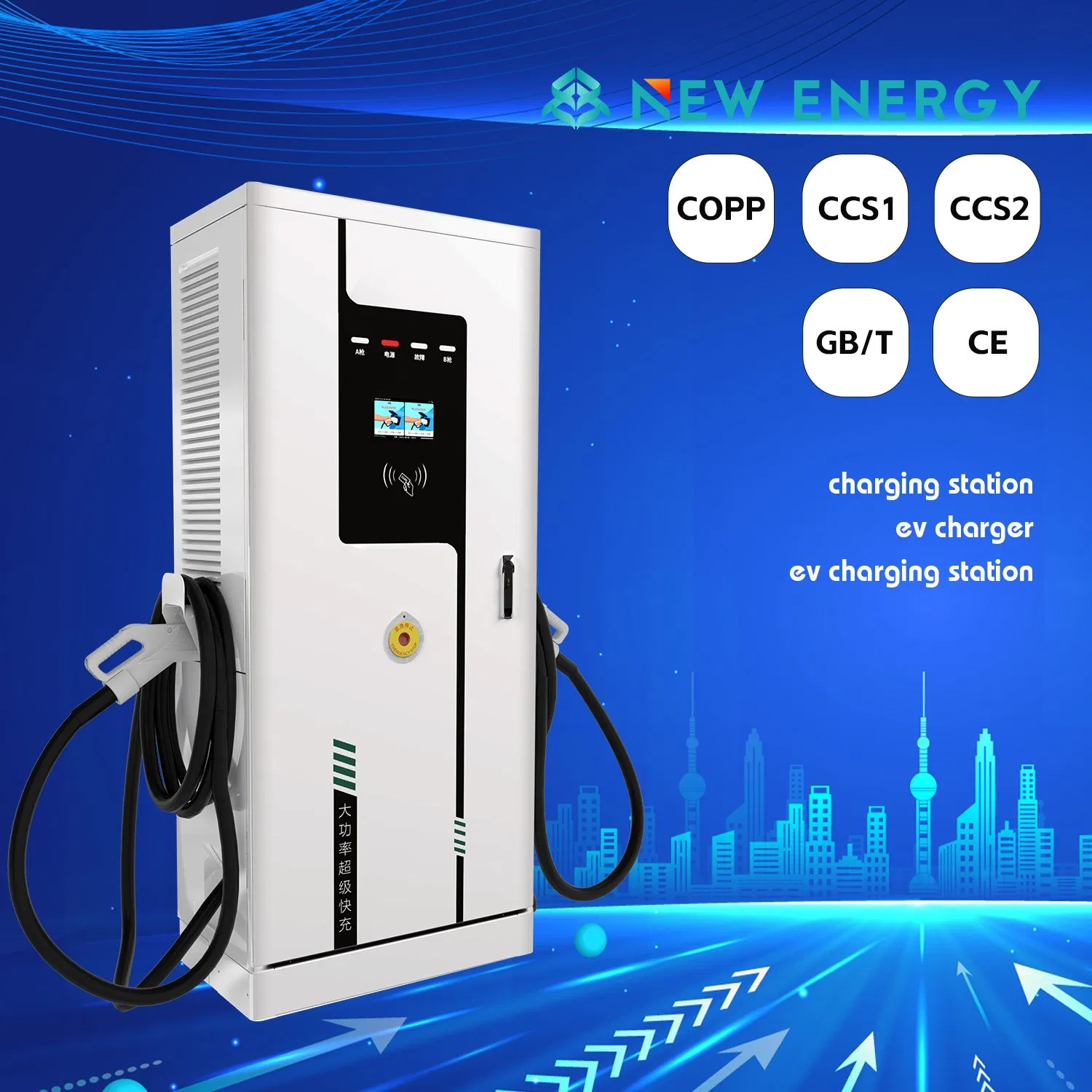

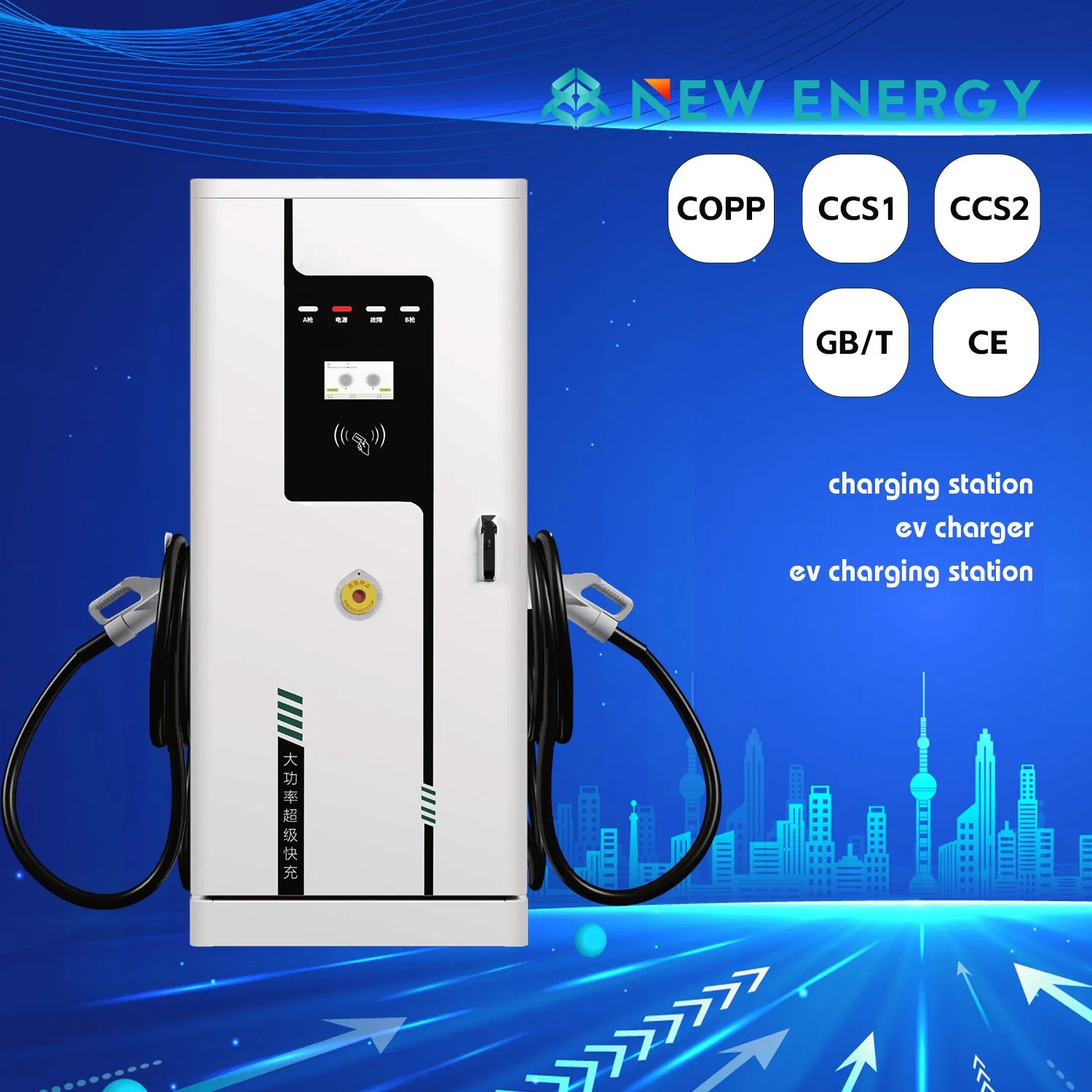

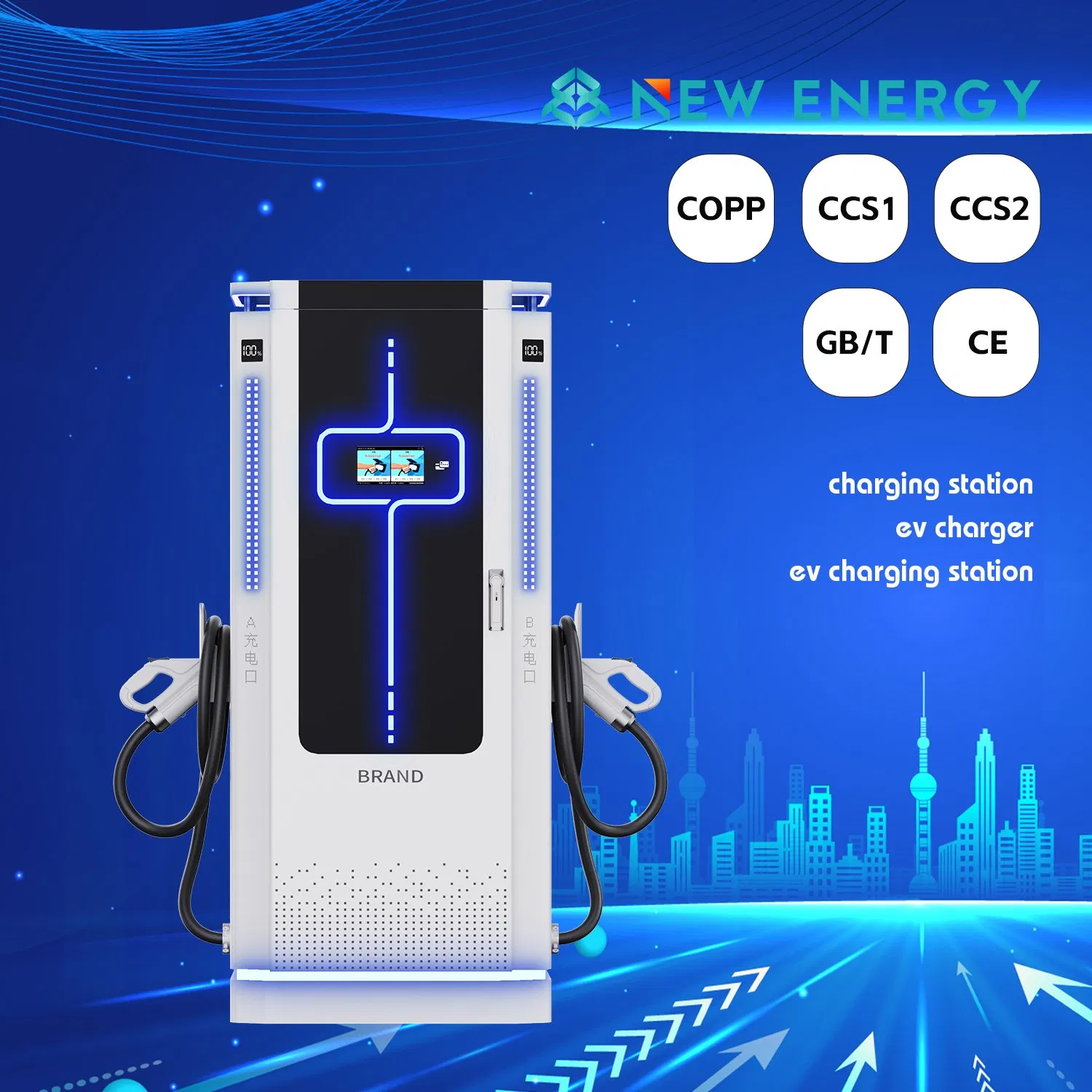

Dual Port Fast DC EV Charger Intelligent Load Balancing EV Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
80KW-600KW
Location
Public Use
Charging Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Rated Power
40kw To 600kw
Weight
194kg-274kg
Gun Barrel Length
5 Meters / 7 Meters
Body Size
750X410X1700(mm)
Interface
7-Inch LCD Touch Screen + LED
Protection
IP54

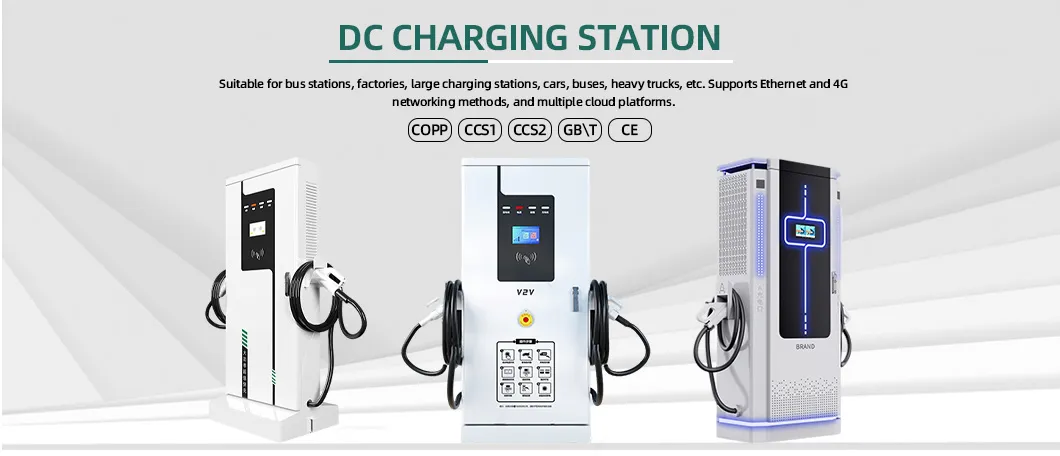

Fast DC EV Charger
Intelligent Load Balancing
Product Introduction

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc.

Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. It adopts advanced DC fast charging technology, providing rapid energy replenishment and improving charging efficiency.

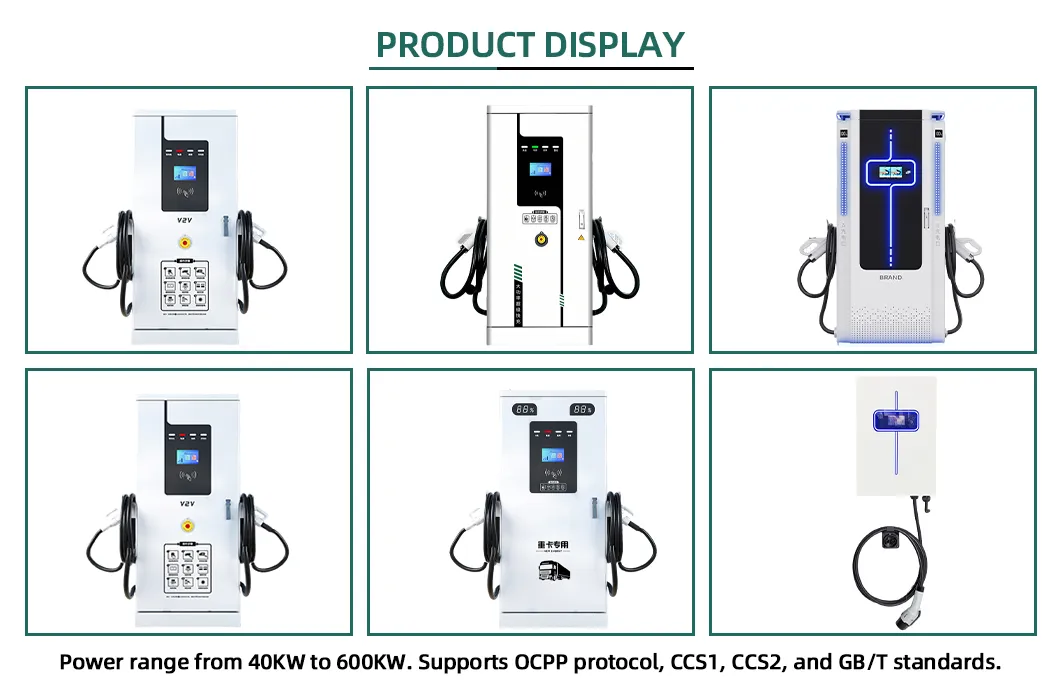

DC EV Charging Station

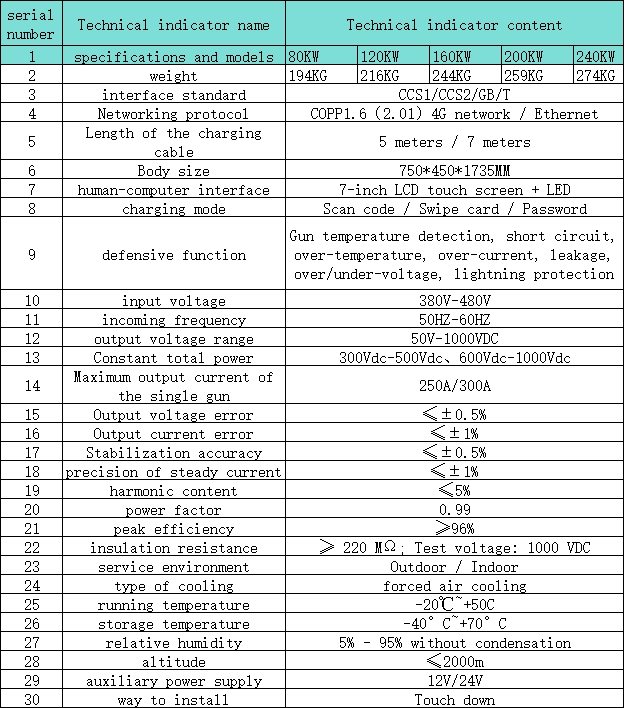

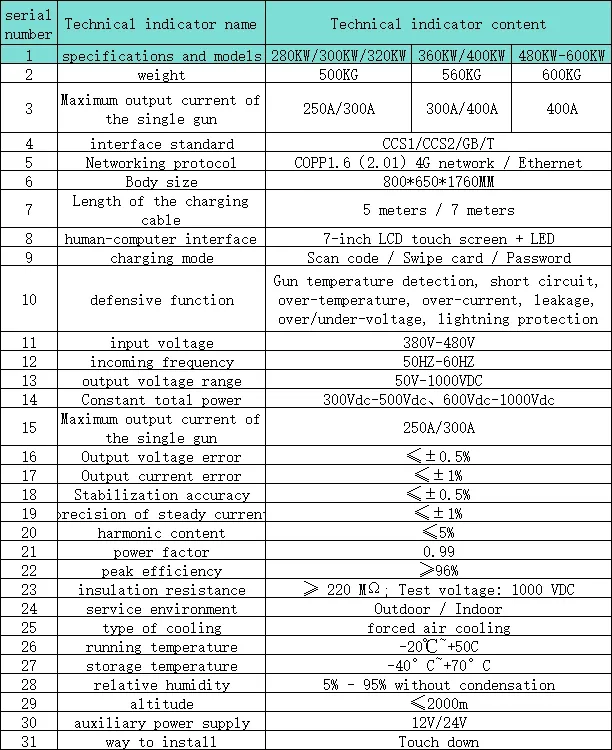

EV Charger Detail 1 EV Charger Detail 2
⚙️ Technical Specifications
Product model40KW-600KW External dimension750x410x1700(mm)
Rated power40KW-600KW Weight194KG-274KG
Design criterionCCS1, CCS2, GB/T Gun barrel length5 meters
Charging guns2 individual HMI7-inch LCD touch screen + LED
Protection LevelIP54 Connection4G / Ethernet
Charging ModeScan code, Swipe card, VIN, Password Cloud PlatformOCPP 1.6 (2.01)
🎬 Product Video Demonstration

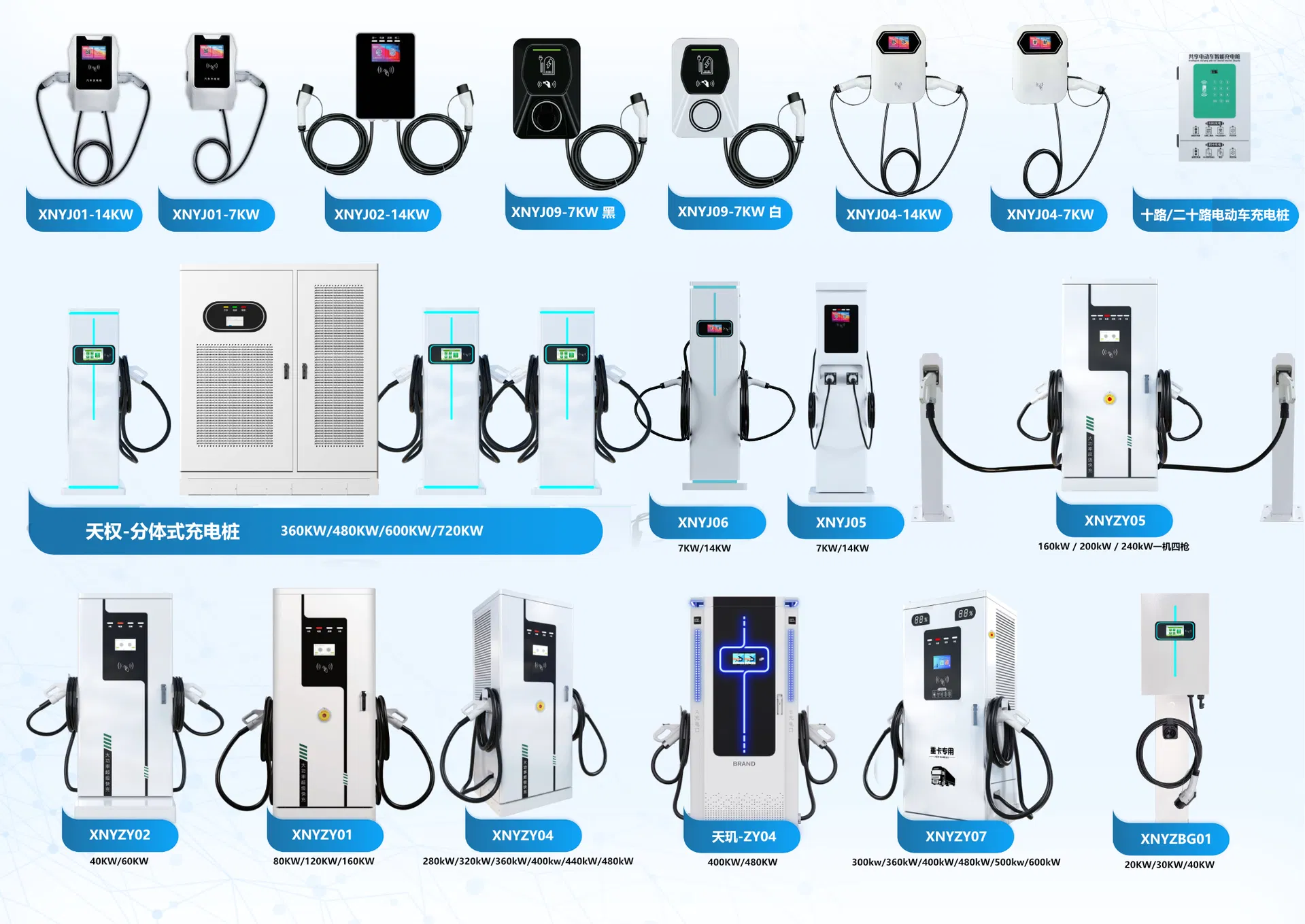

Versatile EV Charger

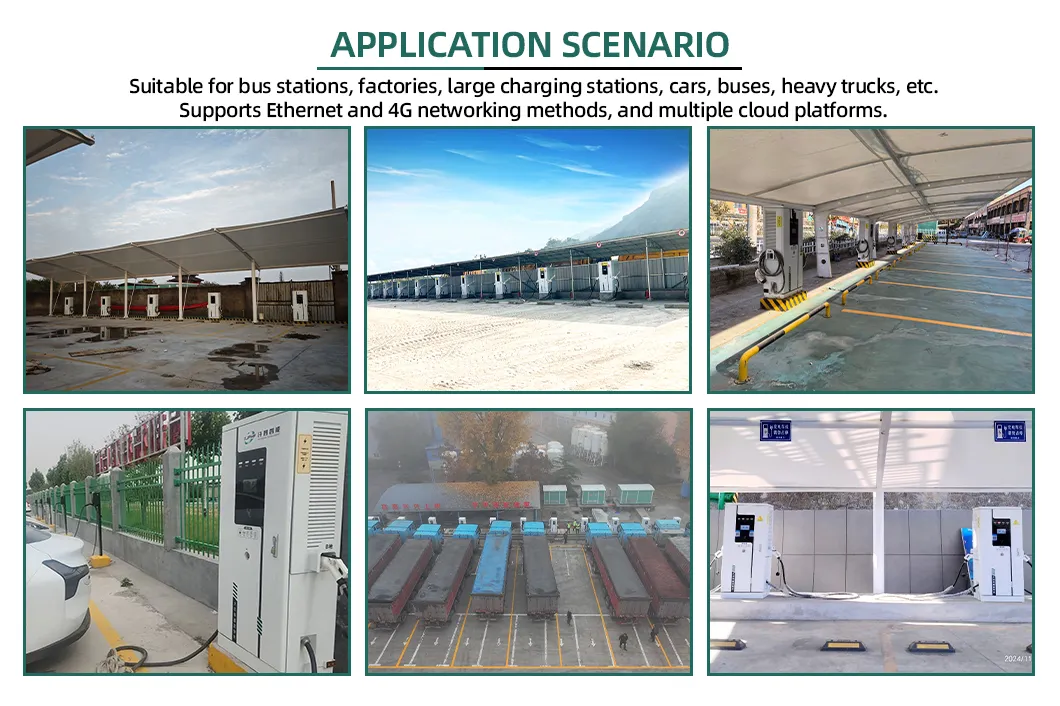

Charging Station Layout
🏢 Professional Qualifications

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We possess numerous software copyrights and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises globally.

Factory Qualification 1 Factory Qualification 2
📦 Packaging & Shipping
Packaging Method

We adopt robust packaging methods to protect the equipment, supporting sea, air, and land transportation.

Frequently Asked Questions
Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What products can we buy from you?
We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage, and Solar System products.
Can you customize the design and put our logo on the products?
Yes, we can provide customized designs and apply your logo to the products.
What are your payment terms?
T/T 30% as deposit, 70% paid before delivery. We will provide photos of the products and packages before the final payment.
How about your delivery time?
Generally, it takes 7 to 35 days after receiving your advance payment. The specific time depends on the item and order quantity.
Do you test all your goods before delivery?
Yes, we perform a strict final inspection of all goods before they are dispatched.
