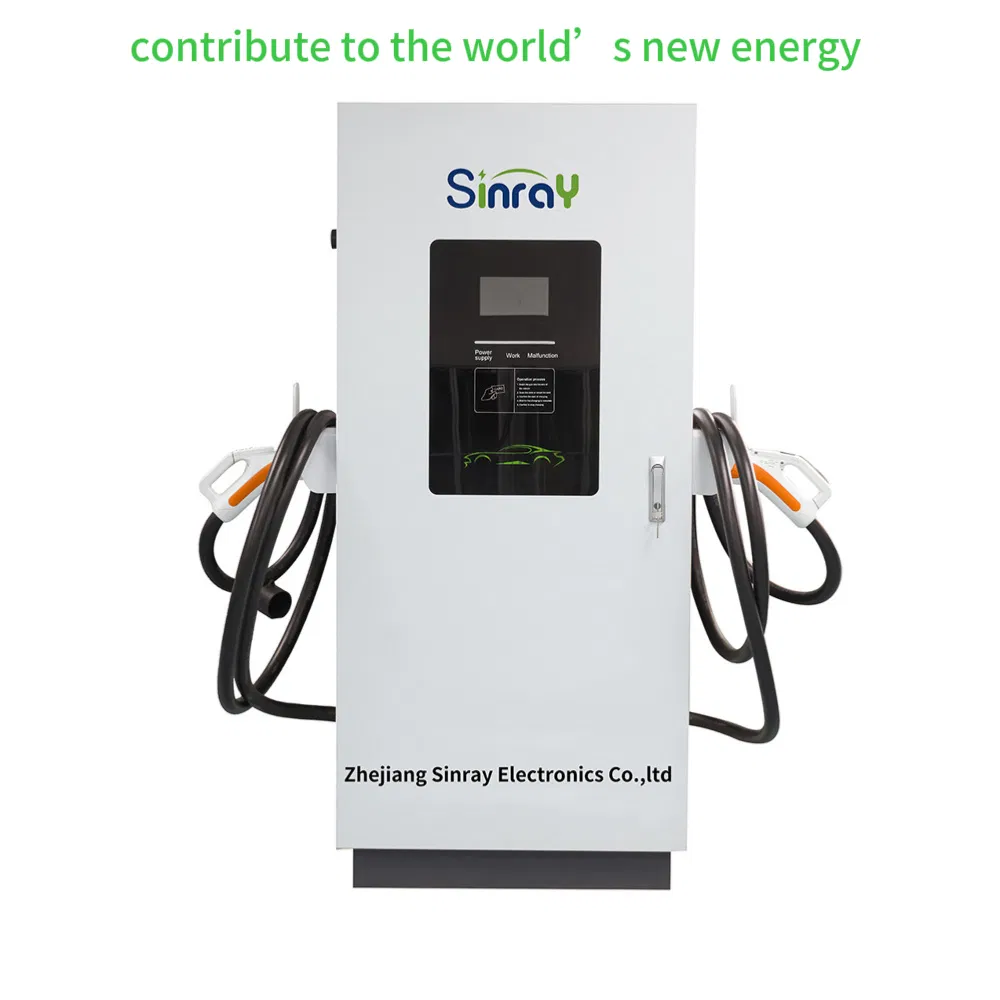

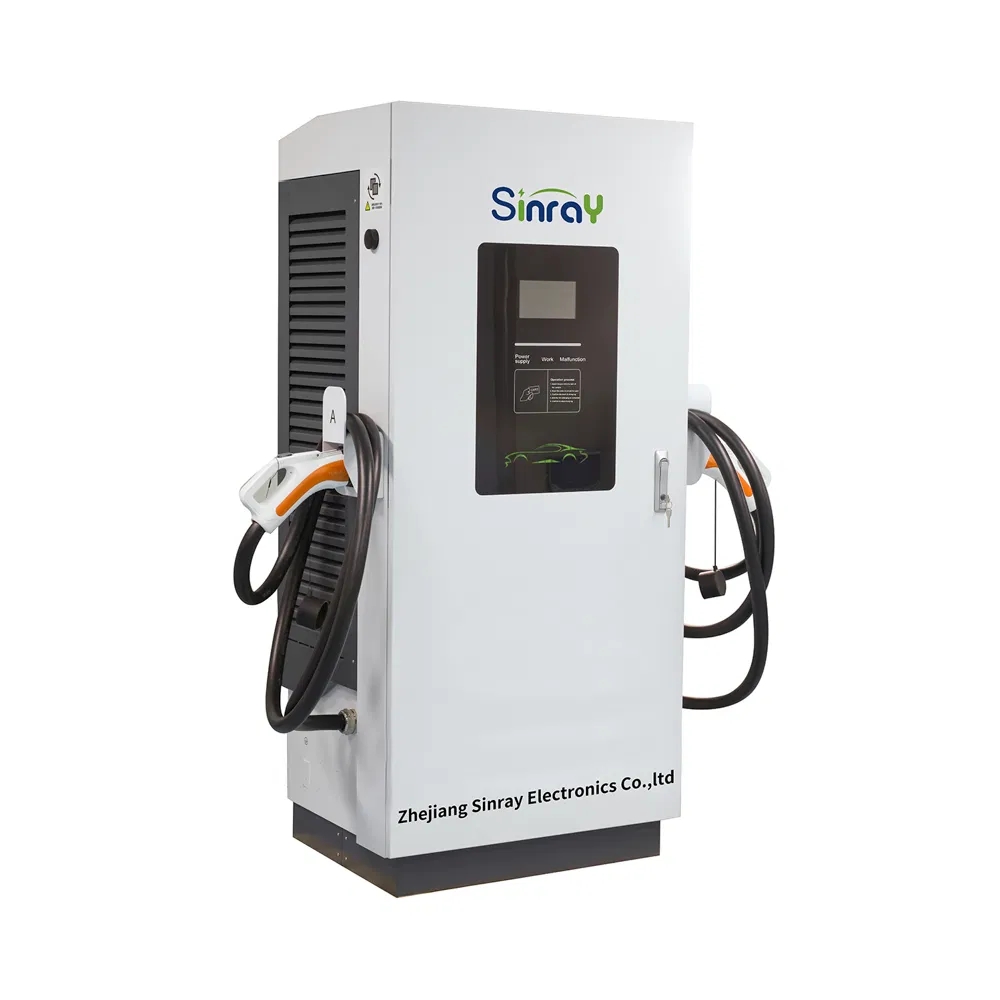

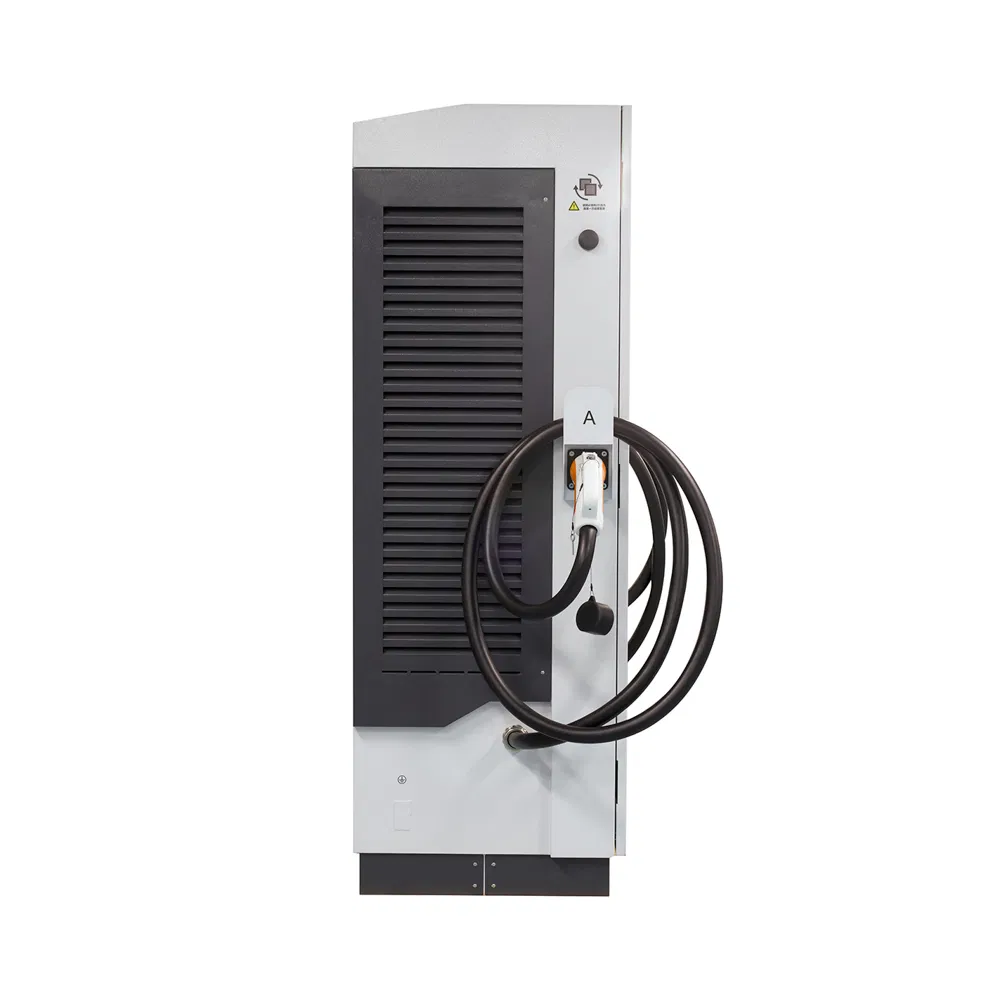

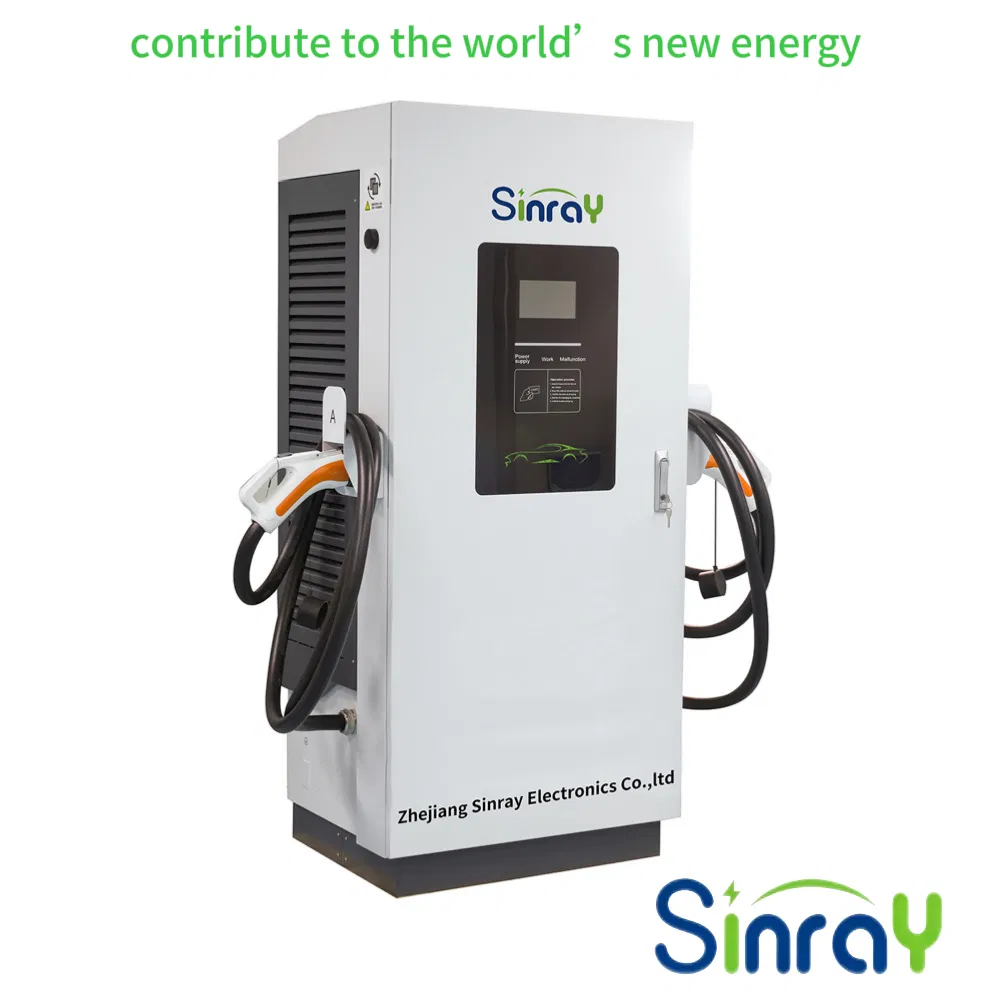

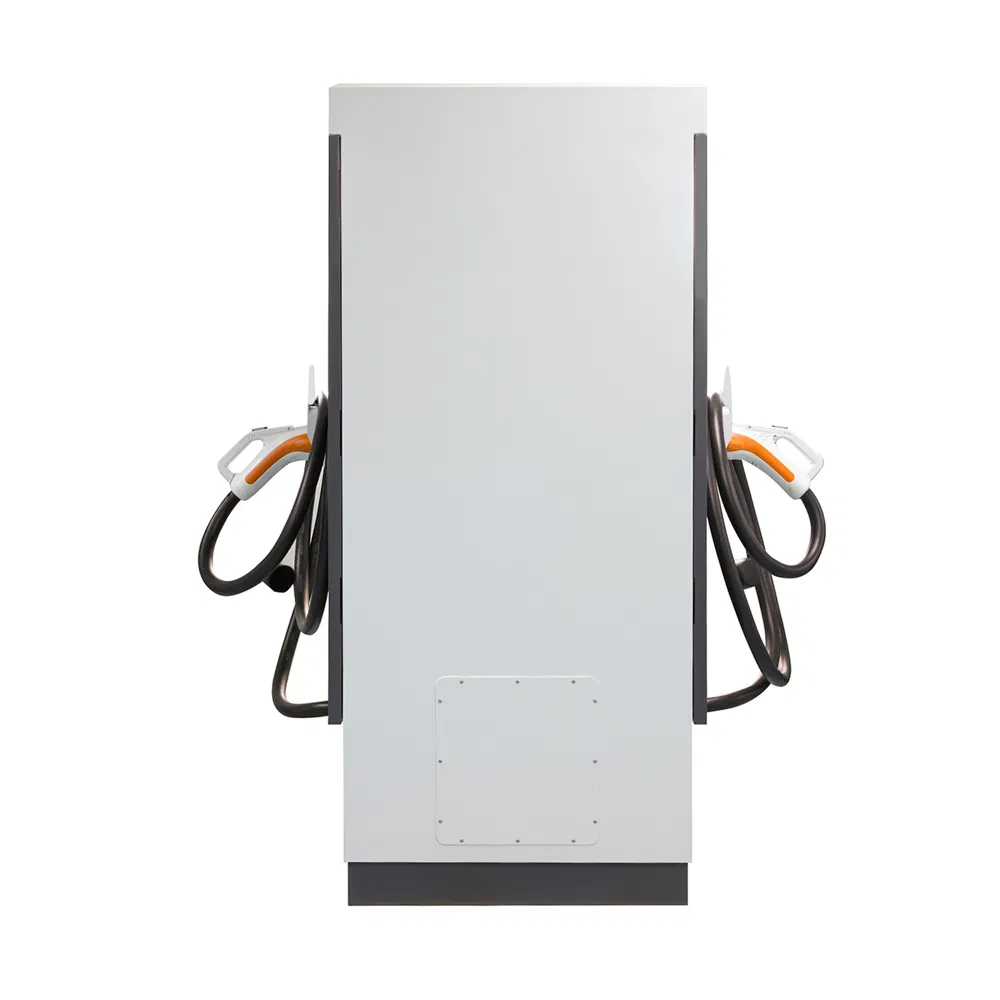

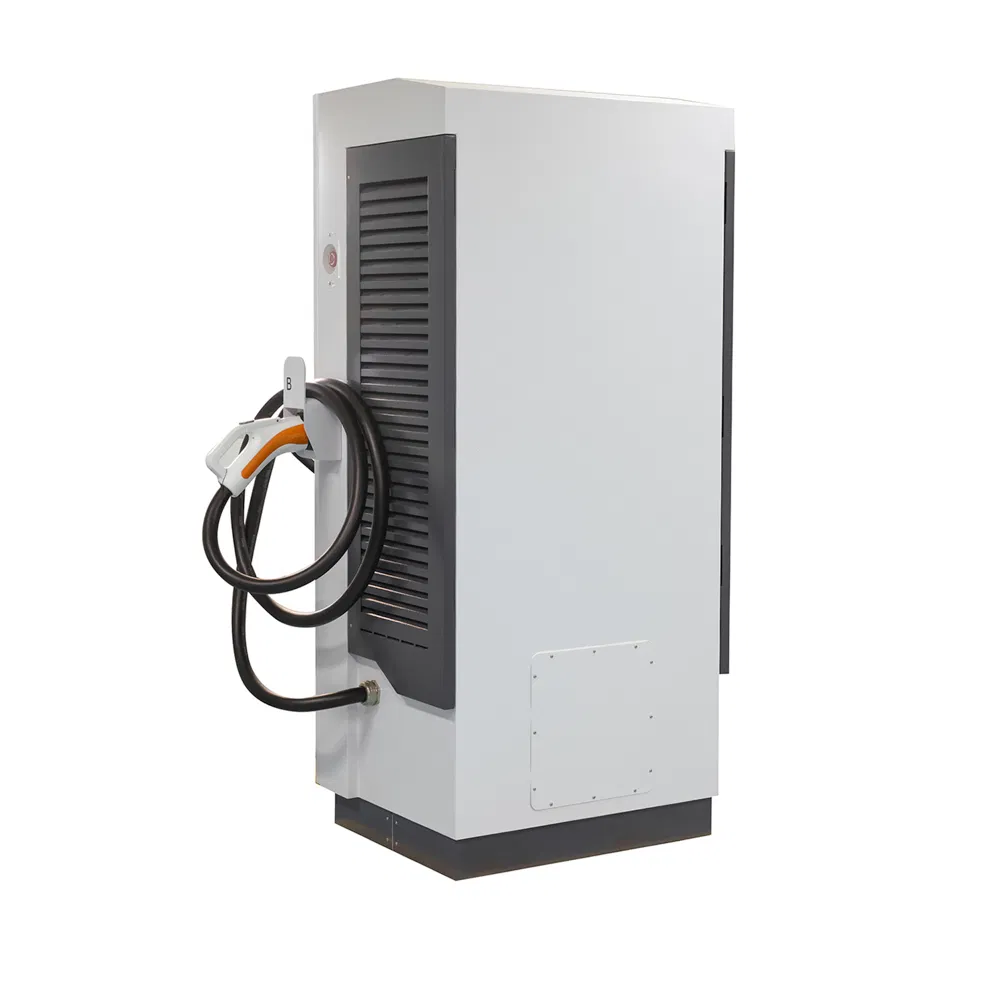

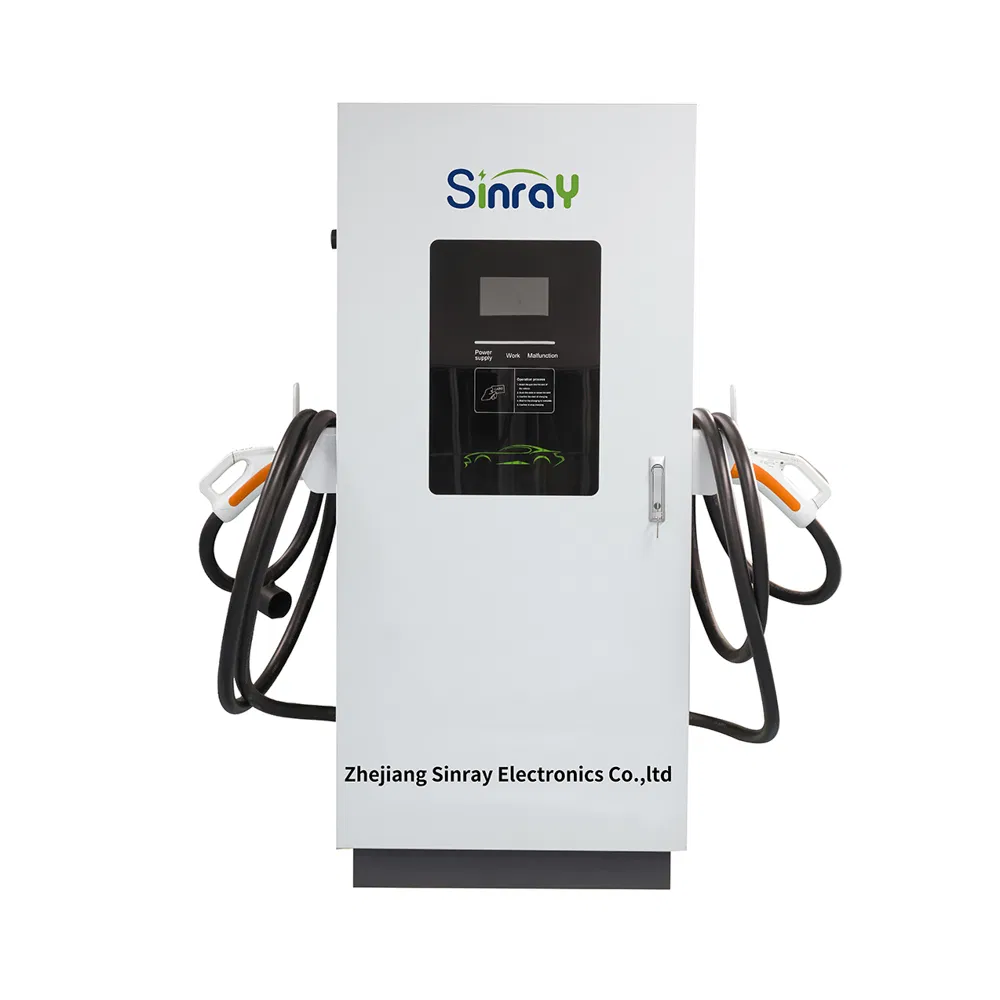

Sinray EV Charging Industrial DC EV Charger Electric Car Fast Commercial DC EV Fast Charger Charging Station CCS Gbt Chademo Double Guns
Product Description
i
Basic Specifications
Model NO.
K065
Location
Public Use
Charging Interfaces
Multiple Charges
Power
DC 80kw / 120kw
Input Voltage
AC 380V±20% (3 Phase)
Rated Output
DC 150-1000V
Frequency
50-60Hz
Protocol
Ocpp 1.6j
HMI
7-Inch Touch Screen
Cable Length
5m
Connection
4G / Ethernet / RFID
Protection
IP54
Operating Temp
-20°C to +50°C
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Origin
China
★
Product Description
| Item Name | DC Fast EV Charging Station (Single/Double Gun) |
| Connector Type | CCS / CHADEMO / GBT |
| Voltage Range | 250Vdc ~ 750Vdc (Error ± 1Vdc) |
| Efficiency | High stability current accuracy ≤ ± 0.5% |

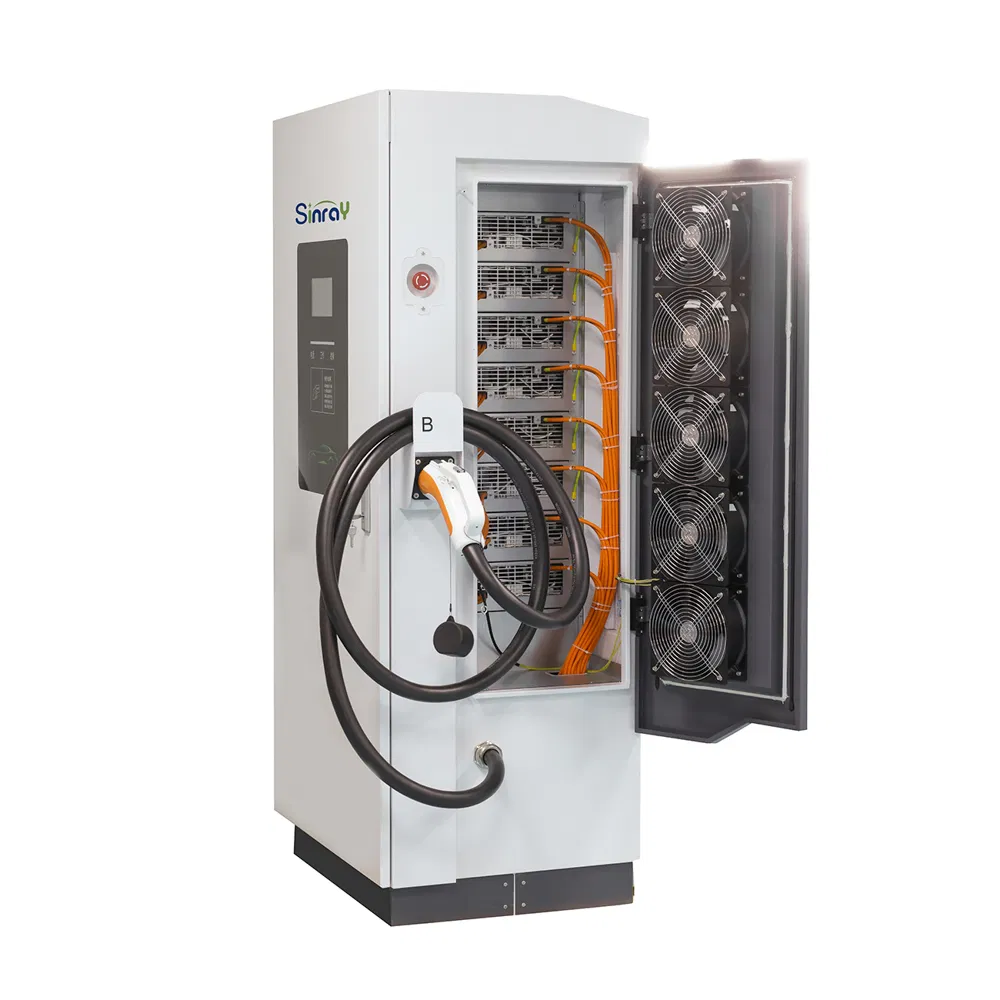

Technical Highlights: The system adopts an open cover maintenance method for reliable installation. Features include harmonic current ≤ 3%, ripple coefficient ≤ ± 0.2%, and noise levels ≤ 65dB. Peak impulse current is strictly limited to 10% of the maximum rated current to protect equipment. Temperature rise strictly complies with GB18487 and NB/T33001 standards.
?
Frequently Asked Questions
What is the output power of the K065 charging station?
The K065 model supports high-speed DC charging with power options of 80kW and 120kW.
Which charging protocols does this station support?
It fully supports the OCPP 1.6J communication protocol, ensuring compatibility with most network management systems.
Can this charger be used outdoors?
Yes, it features an IP54 protection level and an operating temperature range of -20°C to +50°C, making it suitable for outdoor public use.
What types of connectors are available?
The station is compatible with CCS, CHADEMO, and GBT connectors to serve a wide range of electric vehicles.
What are the safety features of the system?
The system includes voltage stabilization (≤ ± 0.5%), low ripple coefficient, and noise control (≤ 65dB), along with comprehensive temperature rise protection.
Does the station have a user interface?
Yes, it is equipped with a 7-inch touch screen (HMI) for easy operation and monitoring of the charging process.
