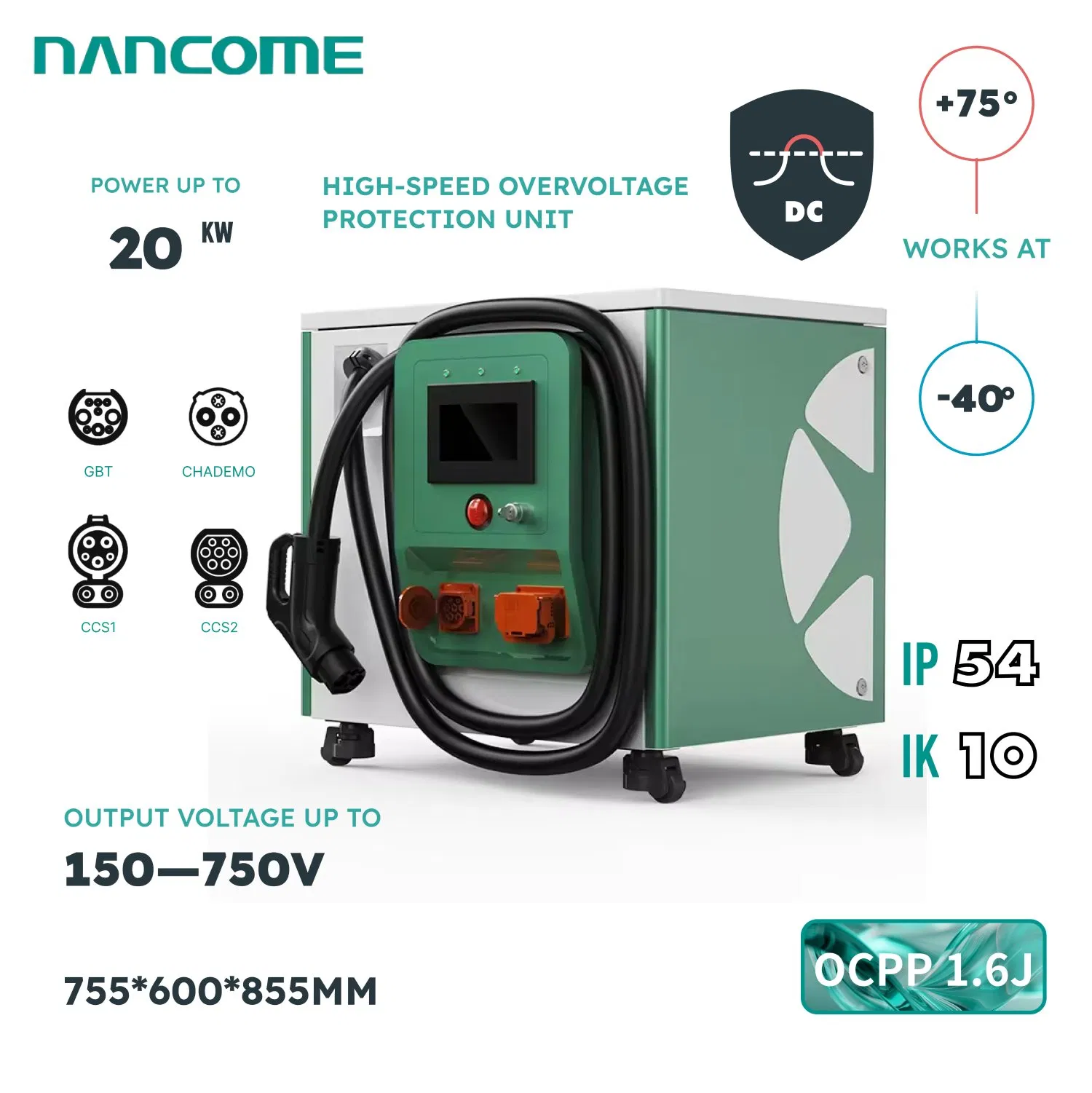

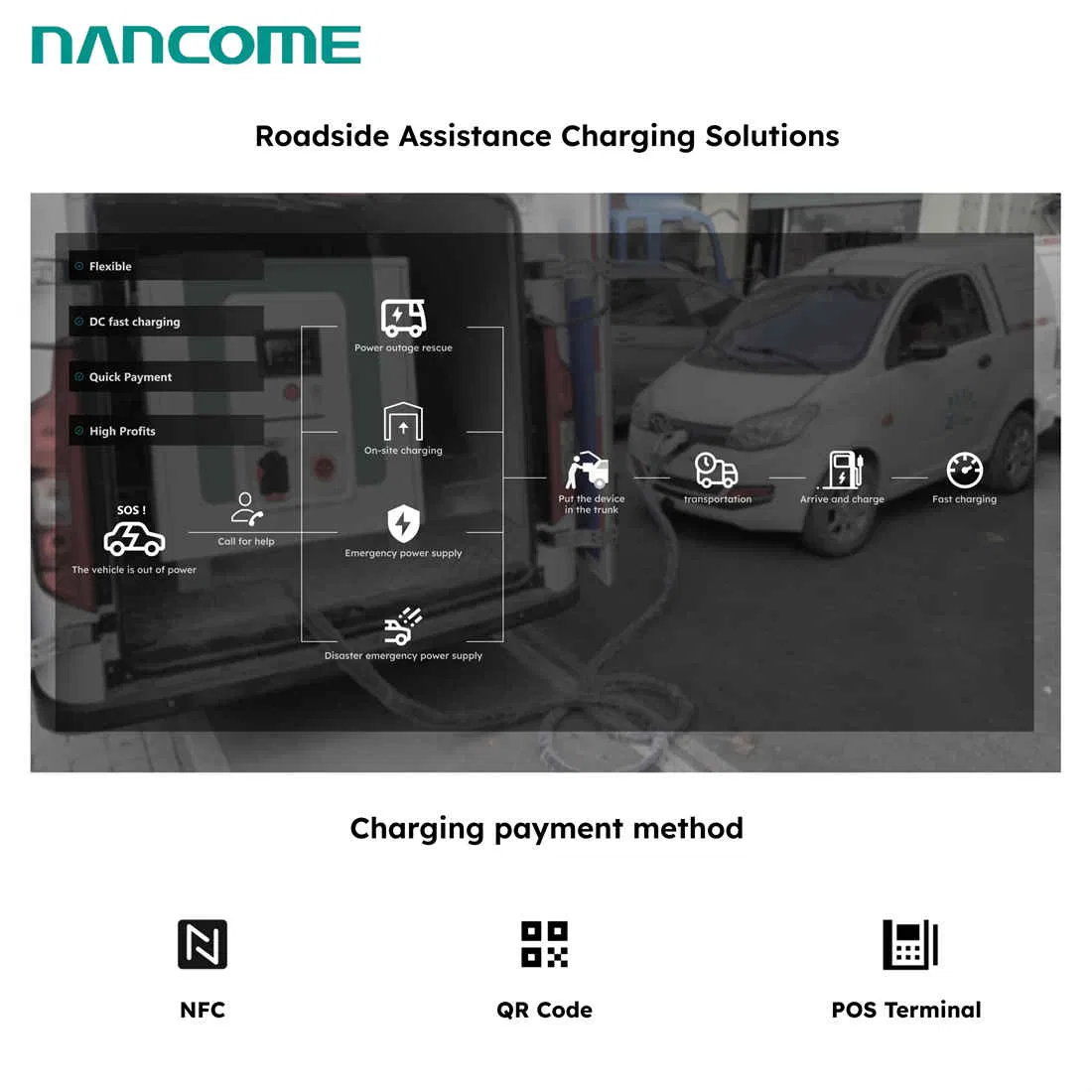

High-Speed DC EV Charger for Roadside Assistance Vehicles
Product Description
Basic Specifications
Model NO.NCEL011101
LocationPublic Use
InterfacesOne Pile with One Charge
Start ModeRFID Authentic
Charge MethodQuick Charge
Battery Capacity11.5kwh LiFePO4
Output Power20kw
Output Current0~50A
Output VoltageDC150V~750V
Working Temp.-10°C ~ +60°C
Recharge ModeAC220V/7kw
Dimensions75.5*60*85.5cm
Product Highlights
Advanced Technology & Superior Performance
Boasting an impressive LifePo4 battery capacity of 11.5kWh, our charger is not only reliable but incredibly enduring. The robust output power of 20KW means rapid, efficient charging, ready to match the pace of your needs.
Universal Voltage Compatibility
Our charger caters to diverse electric vehicle needs with an output voltage range from DC150V to 750V and an adaptable current of 0 to 50A. It communicates flawlessly with your car's battery, optimizing charging efficiency.
Robust, Reliable and Road-Ready
Eradicate range anxiety with this mobile charging station. Weighing less than 160KG, it defines portability for roadside rescue scenarios, ensuring you are always only a plug away from continuing your journey.
| Technical Data Sheet | |
| Model | 11.5KWH NCEL011101 |
| Battery Capacity | 11.5kwh LifePo4 |
| Output Power | 20KW |
| Output Voltage | DC150V ~ 750V |
| Output Current | 0 ~ 50A |
| Cable Length | 5M |
| Interface | 7" Touch Screen (English) |
| Connector Options | GBT (CCS1/CCS2/ChadeMO) |
| Product Dimension | 74*46.5*89cm |
| Gross Weight | <160KG |
Frequently Asked Questions
What types of EV chargers do you provide?
We offer a wide range including Wallbox/Portable AC chargers (3.5kw-44kw), floor-mounted fast DC charging stations (30kw-480kw), and mobile chargers with energy storage batteries (3.5kwh-161kwh).
Can I customize the products with my own logo?
Yes, we provide OEM services including custom designs and logo placement on the products and packaging, subject to MOQ requirements.
How long is the delivery time?
Generally, it takes 7 to 35 days after receiving advance payment. The specific timeframe depends on the items and the quantity of your order.
Do you test the goods before delivery?
Yes, we conduct a 100% final inspection on all goods before delivery to ensure quality and safety.
What is your warranty policy?
We provide a two-year warranty for the hardware and a lifetime warranty for the software. Our technical team also provides remote video guidance support.
Are your products compliant with local standards?
Our products have passed relevant international certifications (CE, 3C, ISO 9001) recognized globally, ensuring smooth customs clearance and local compliance.
