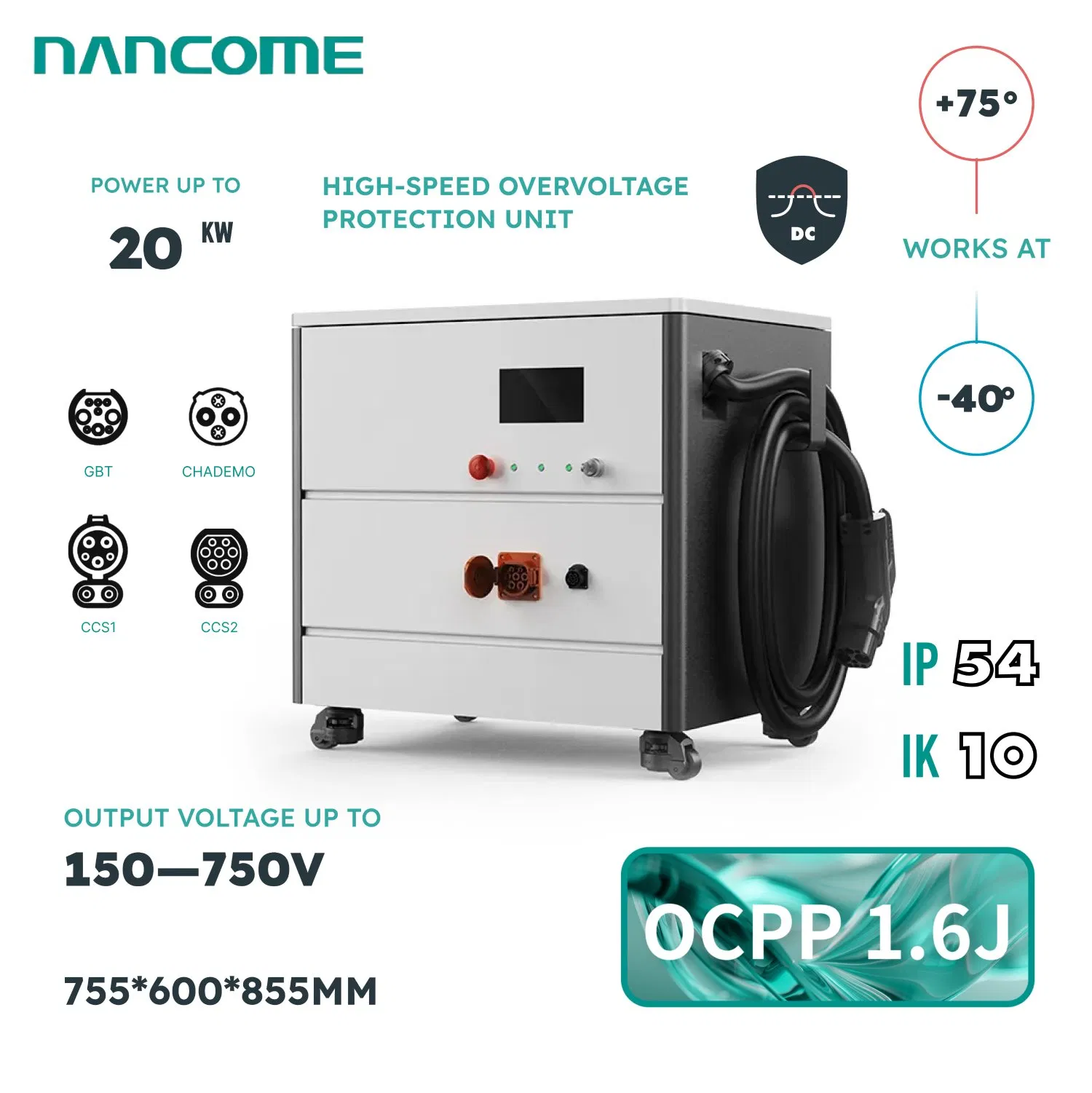

20kw CCS Commercial Road Rescue Pile Mobile DC EV Fast Charger Station
Product Description
◈
Basic Specifications
Model NO.
NCEL011101
Location
Public Use
Charging Interfaces
One Pile with One Charge
Start Mode
RFID Authentic
Charge Method
Quick Charge
Battery Capacity
11.5kwh LiFePO4
Output Power
20kw
Output Current
0~50A
Output Voltage
DC150V~750V
Working Temperature
-10°c~+60°c
Recharge Mode
AC220V/7kw
Application Scenario
New Energy Vehicle Road Rescue
Transport Package
1PCS/Wooden Box
Specification
75.5*60*85.5cm
Origin
Made in China
HS Code
8504409999
Production Capacity
2000pieces/Month
✦
Product Description
Advanced Technology, Superior Performance
Boasting an impressive LifePo4 battery capacity of 11.5kWh, our charger is not only reliable but incredibly enduring. The robust output power of 20KW means you won't be left waiting; charging is rapid, efficient, and ready to match the pace of your life.
Universal Voltage Compatibility
Our charger speaks your EV's language, with an output voltage ranging from DC150V to 750V and an adaptable output current of 0 to 50A. It forms the bridge between power and necessity, catering to the diverse needs of various electric vehicles.

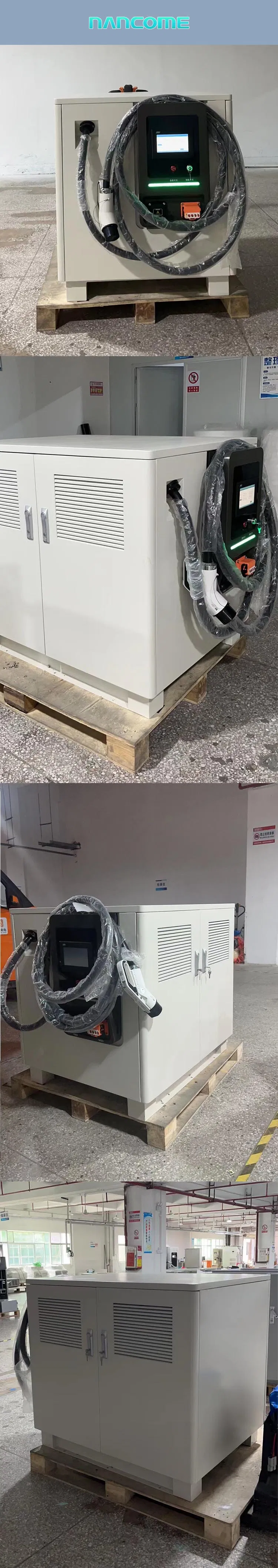

Roadside Rescue in a Refined Package
Encased in a suave grey and white exterior, our charger defines what it means to be both powerful and portable, weighing in at less than 160KG.
Take Charge of Your Charging Experience
Engineered to serve your needs swiftly and securely, it liberates you from the constraints of stationary charging points, giving you the autonomy you crave for your electric mobility.
⚙
Technical Parameters
| Model | 11.5KWH NCEL011101 |
| Battery capacity | 11.5kwh LifePo4 |
| Output power | 20KW |
| Output voltage | DC150V ~ 750V |
| Output current | 0 ~ 50A |
| Cable length | 5M |

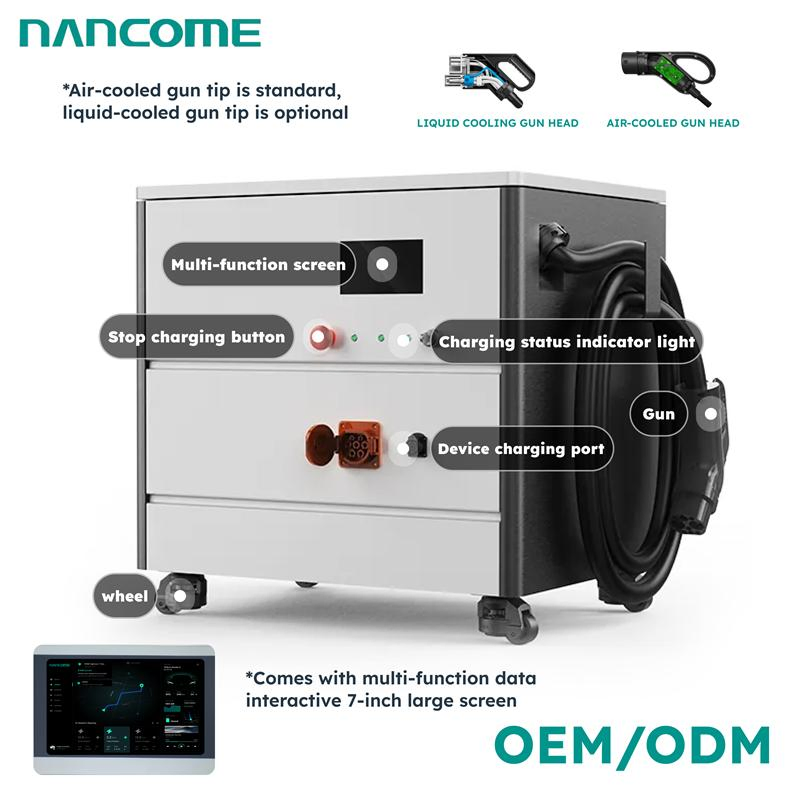

| Man-machine interface | 7" touch screen (English) |
| Emergency stop | Included |
| Plug-and-Play | Yes |
| De Charger gun | GBT (CCS1/CCS2/ChadeMO) |
| Product Dimension | 74*46.5*89cm |
| Gross Weight | <160KG |
?
Frequently Asked Questions
What products do you offer for EV charging?
We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), and mobile chargers with energy storage batteries (3.5kwh-161kwh).
Do you support custom designs or logos?
Yes, we can implement your design and place your logo on the products. We also provide related packaging customization services subject to MOQ.
How is the product quality ensured before delivery?
We perform a final inspection and test all goods before delivery to ensure they meet our performance and safety standards.
What is the typical delivery time?
Generally, it takes 7 to 35 days after receiving your advance payment. The specific timeframe depends on the items and the quantity of your order.
What kind of warranty do you provide?
We provide a two-year warranty for the whole machine and cover the hardware replacement costs. Our software includes a lifetime warranty with remote technical support.
Do your products meet international standards?
Our products have passed relevant certifications (such as CE, 3C) and are sold worldwide. We ensure standardized packaging to meet local customs clearance requirements.
