Evp 2300 20-30kw Series Commercial/Home Use CCS Ocpp Fast DC Electric Car/Vehicle/Battery EV Piles Charger
Product Description
Basic Information
Model NO.EVP2300
LocationPublic Use
InterfacesMultiple Charges
Start ModeRFID / Mobile / Card
Input Voltage400VAC (3p+N+PE)
Output Voltage200 - 750VDC
Output Current80A
Charging Module20 - 30 Kw
Efficiency≥94%
Weight40kg
StandardISO 15118
OriginChina
Product Description

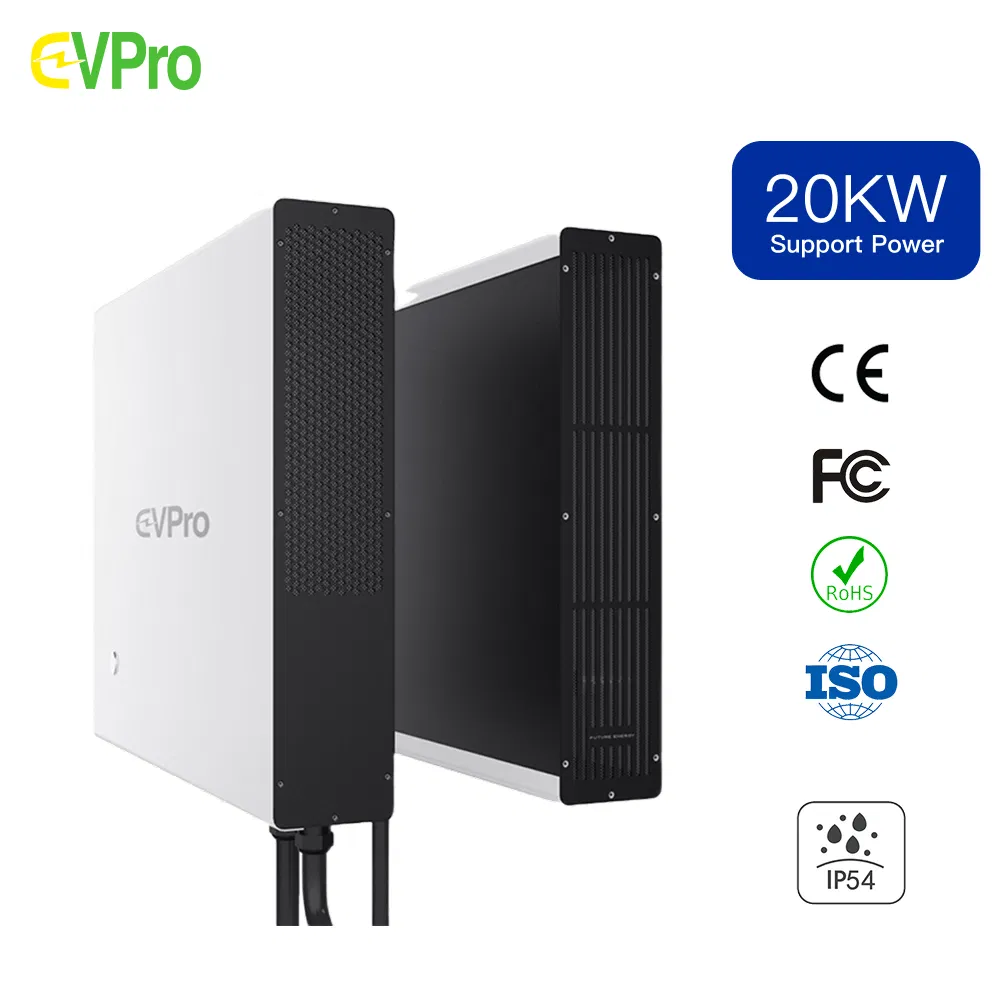

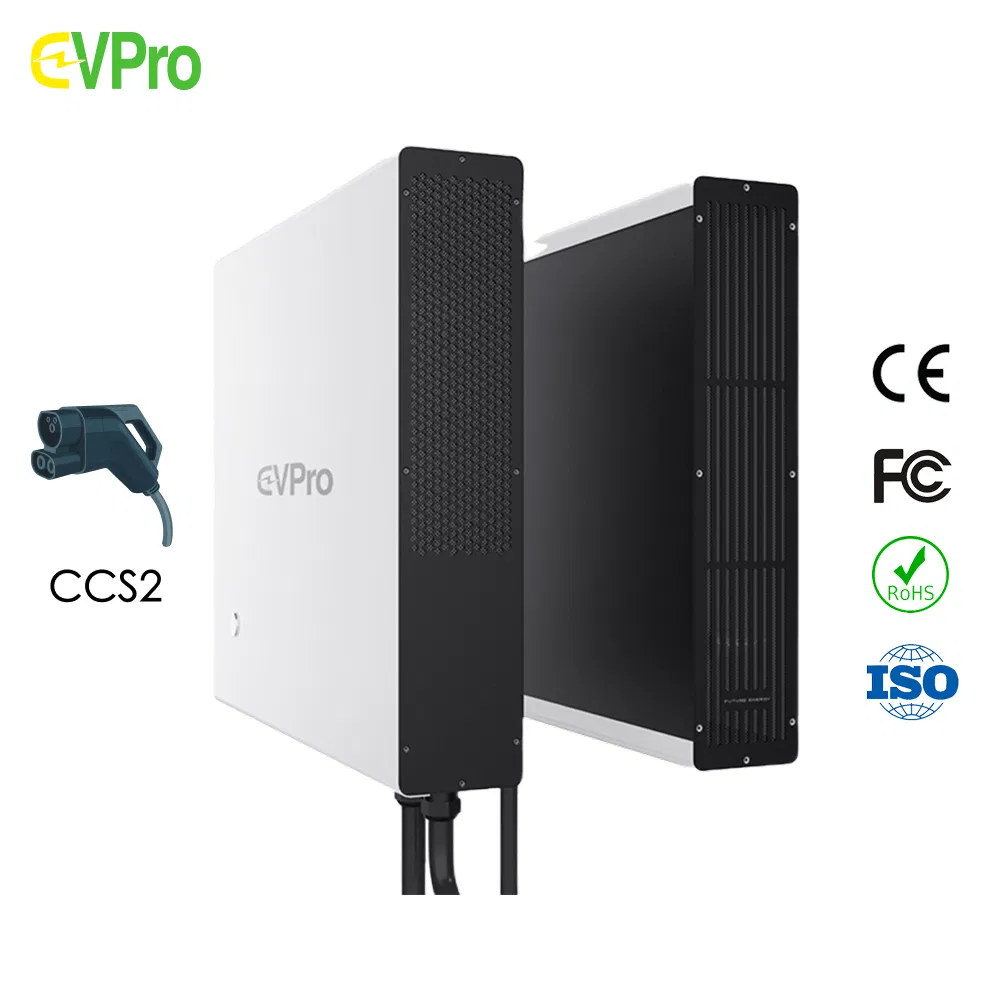

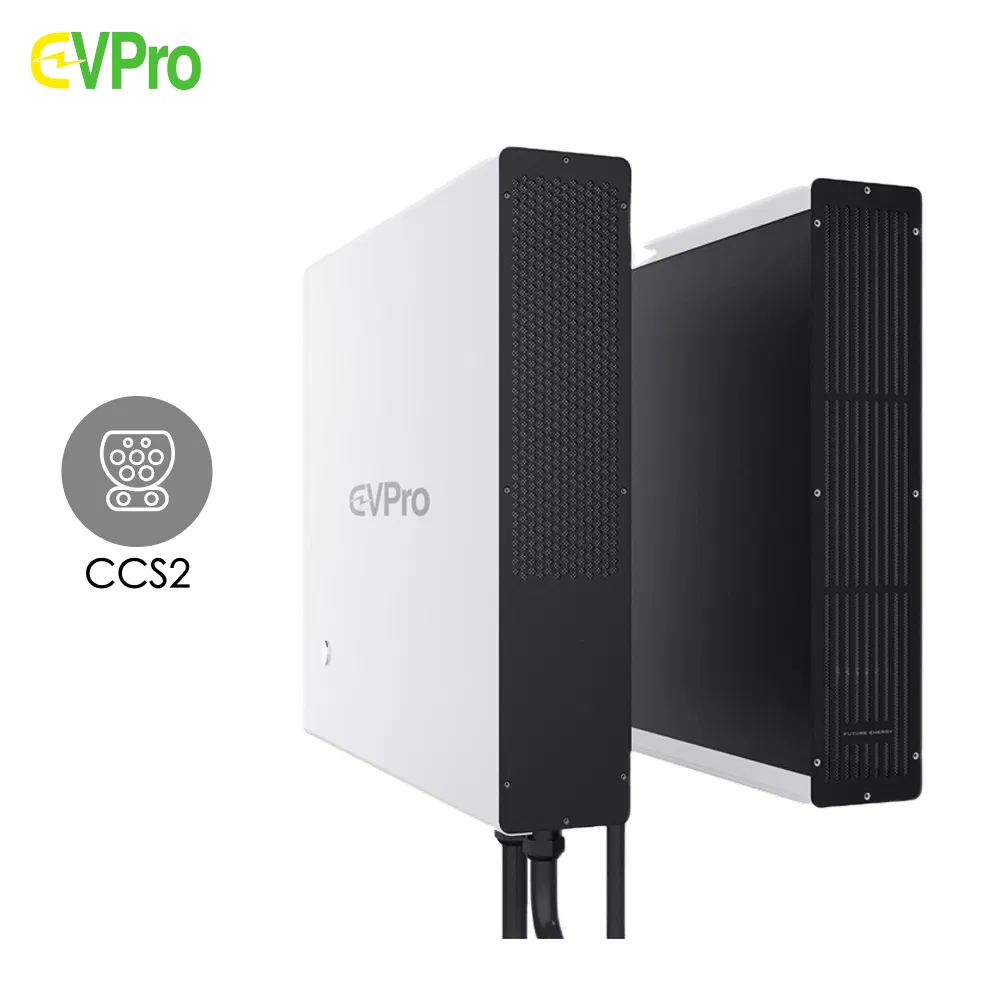

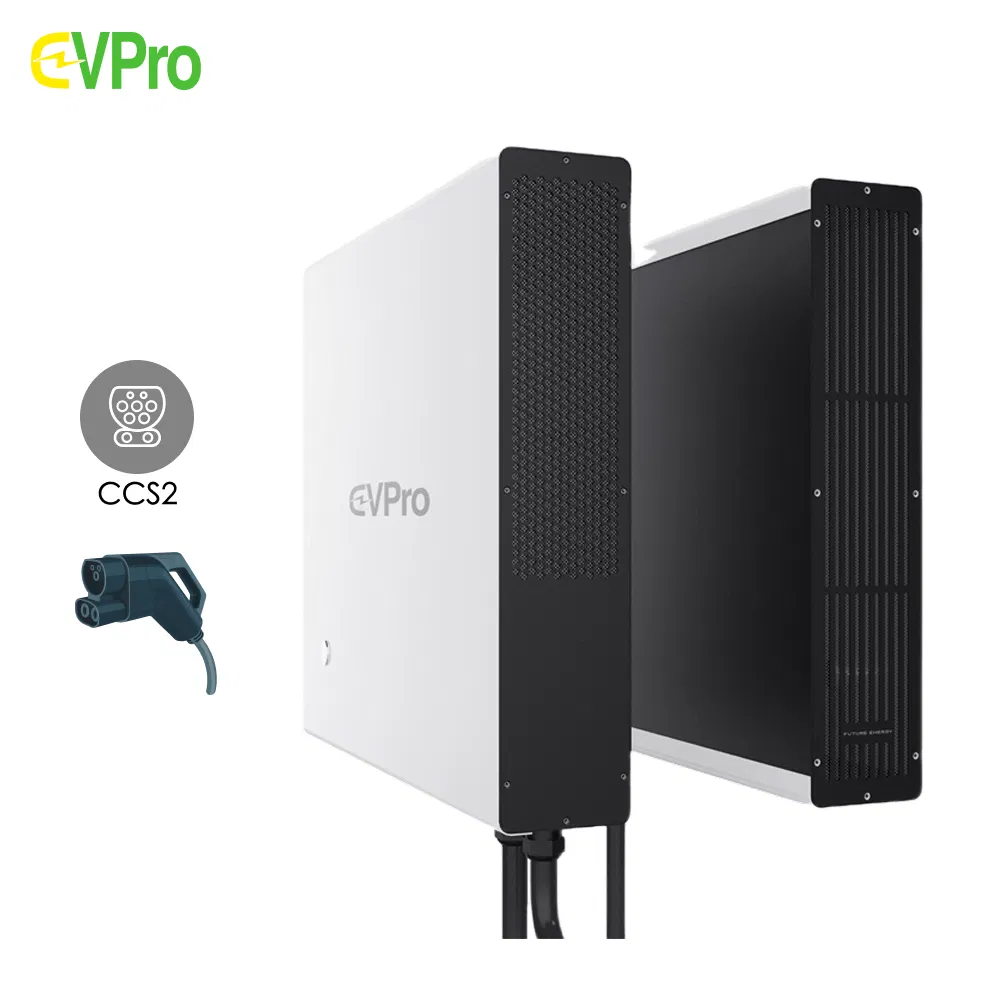

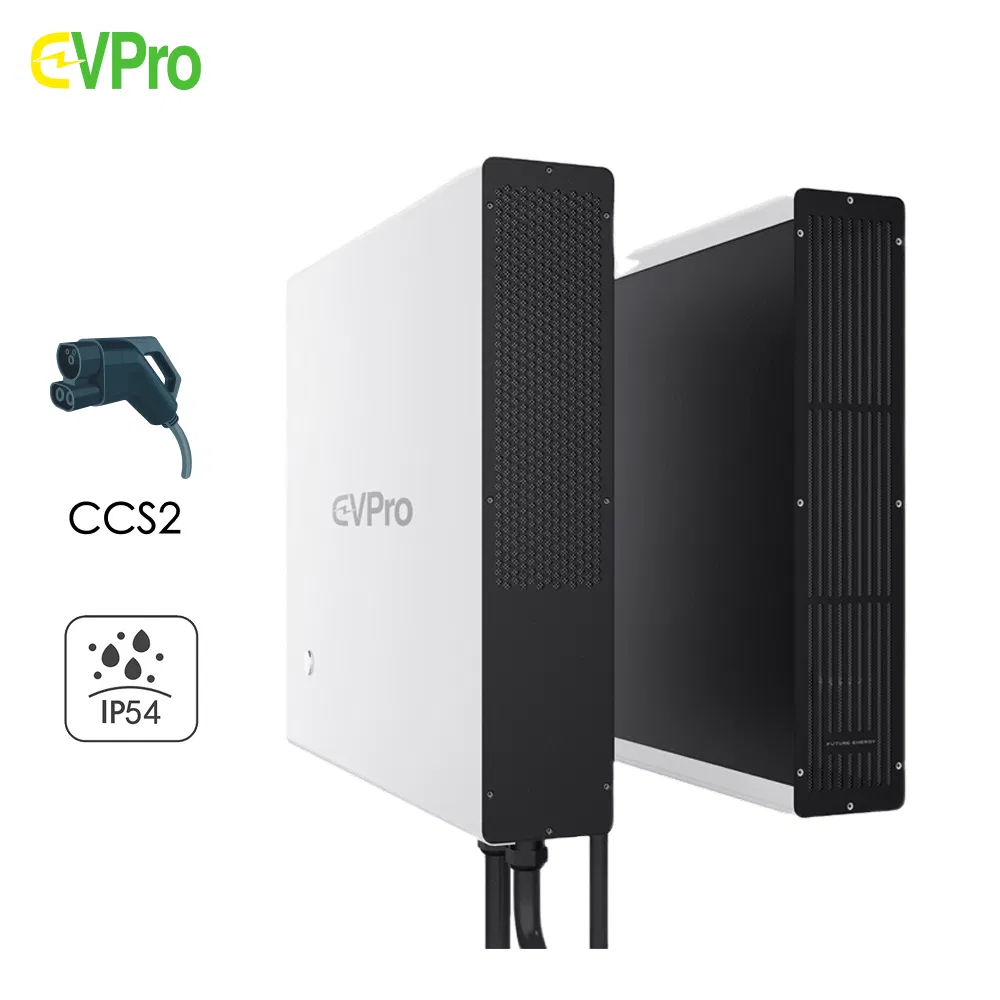

20-30kW Series DC EV charger
This is a small wall mounted DC charger, simple and elegant, without any complicated details. The operation is very simple and suitable for use by all groups of people. 20kw and 30kw are optional for the module.
Key Features
- ✓ 80A High-quality Cable
- ✓ 30kW Charging Module
- ✓ One-click Easy Start
- ✓ Minimalist Installation
- ✓ Low Failure Rate
Technical Specifications
| Category | Data Parameters |
|---|---|
| Input Voltage | 400VAC (3P+N+PE) 50/60Hz |
| Output Voltage | 200 - 750VDC |
| Output Current | 80A |
| Efficiency | ≥94% at nominal power |
| Operating Temperature | -30℃ to 75℃ |
| Altitude | ≤ 3000M |
| Protection | IP30 / Insulation >2.5kV |
| Dimensions | 600mm × 470mm × 300mm |
| Cooling | Air Cooled |
| Safety Features | Over/Under Voltage, Short Circuit, Over Current |
Product Showcase
Integrated Smart Energy Solutions
Our platform actively harnesses solar energy during daylight hours while utilizing artificial intelligence to dynamically manage power flows between solar panels, the electrical grid, building loads, and electric vehicle batteries. The V2G capabilities take this further by transforming EVs into mobile energy storage units that can feed power back into buildings or the grid when needed most.
Frequently Asked Questions
1. Are your chargers certified for international markets?
Yes. Our chargers comply with international standards IEC 61851 and IEC 62196, making them suitable for most global markets.
2. Can you customize hardware or software for specific needs?
Absolutely. We offer custom hardware configurations and software adaptations, including branding, tailored user interfaces, and integration with local energy management systems.
3. How does your smart energy management system work?
Our platform uses AI to dynamically optimize power flow between solar panels, the grid, building loads, and EVs. It maximizes solar utilization and reduces grid dependency.
4. Do your chargers support Vehicle-to-Grid (V2G) functionality?
Yes. Our V2G-enabled chargers allow EVs to feed energy back into buildings or the grid, turning EVs into mobile energy storage units.
5. What after-sales support do you provide?
We offer comprehensive support including warranty, technical assistance, remote diagnostics, and software updates.
6. Do you assist with installation and commissioning?
We provide detailed installation guides, training, and remote support to ensure smooth deployment of the charging units.
