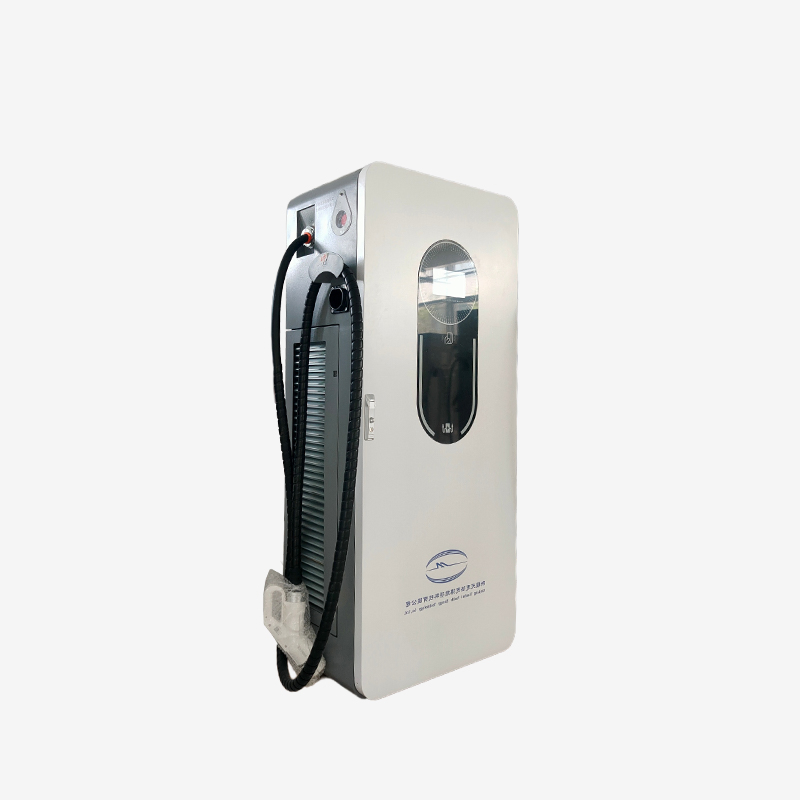

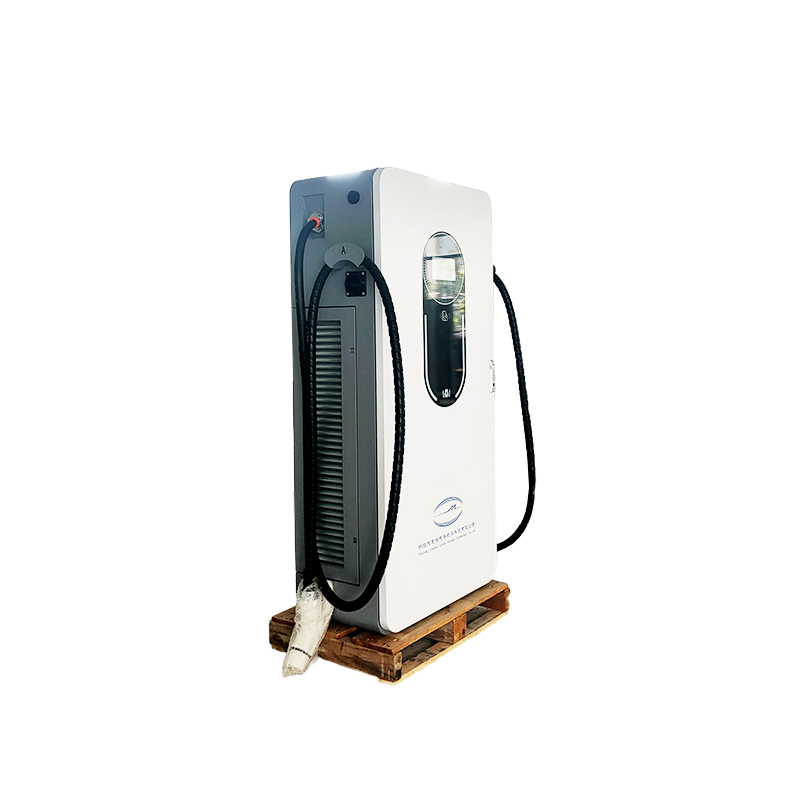

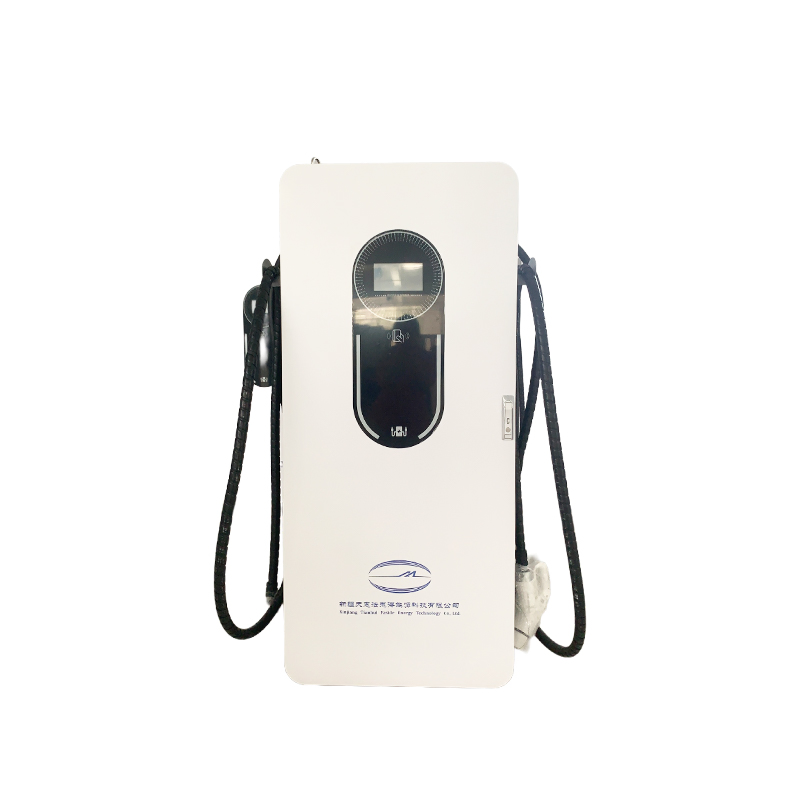

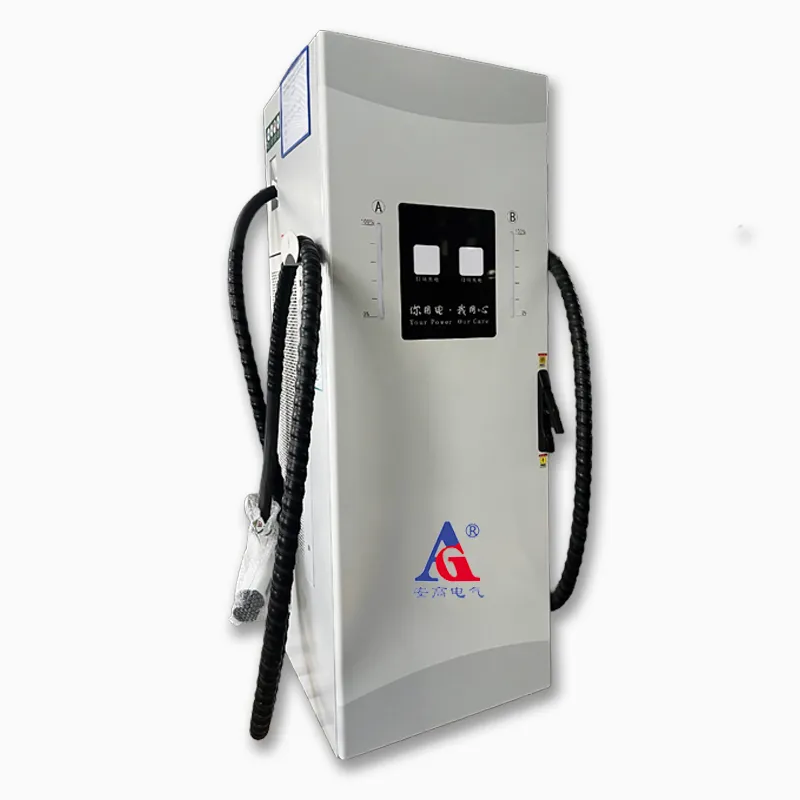

Fast Charging 120kw DC Dual Port EV Charging Station for All Vehicles
Product Description
📋
Basic Specifications
Model NO.
MECS-120-Y2-D3
Rated Power
120kw

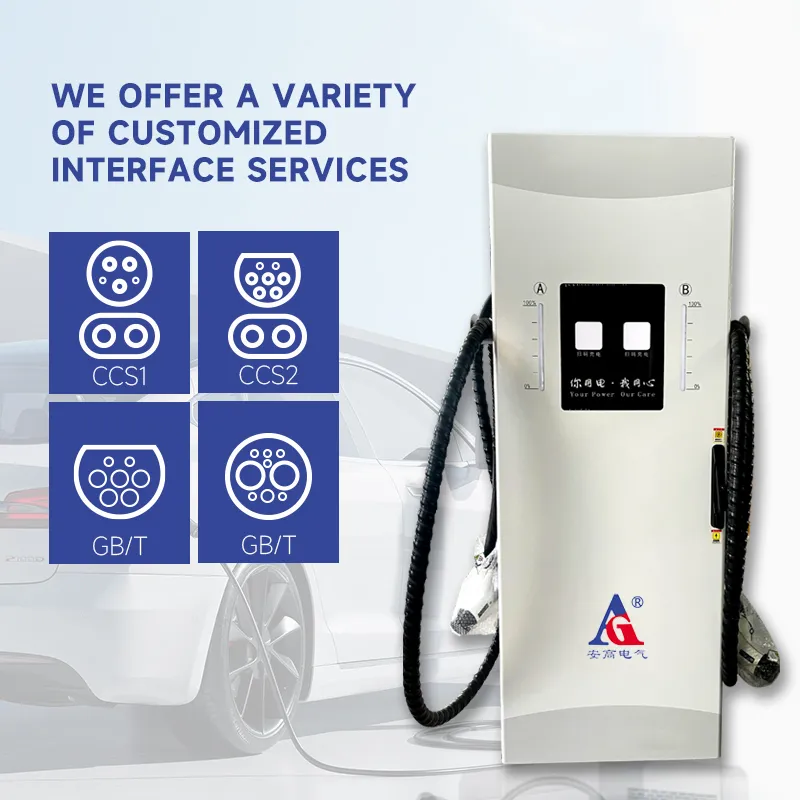

Charging Interfaces
Multiple Charges
Charging Guns
Two Guns
Start Mode
RFID, Mobile App, Credit Card, Ethernet/4G
Display
7-Inch Touch Screen
Output Voltage
200V-1000V
Environment
Indoor/Outdoor (IP54)
Efficiency
>95.0%
Power Factor
>0.99
⚡
Feature Introduction
New generation integrated DC fast charging pile for electric vehicles. The module adopts an isolated air channel potting design, ensuring high reliability.

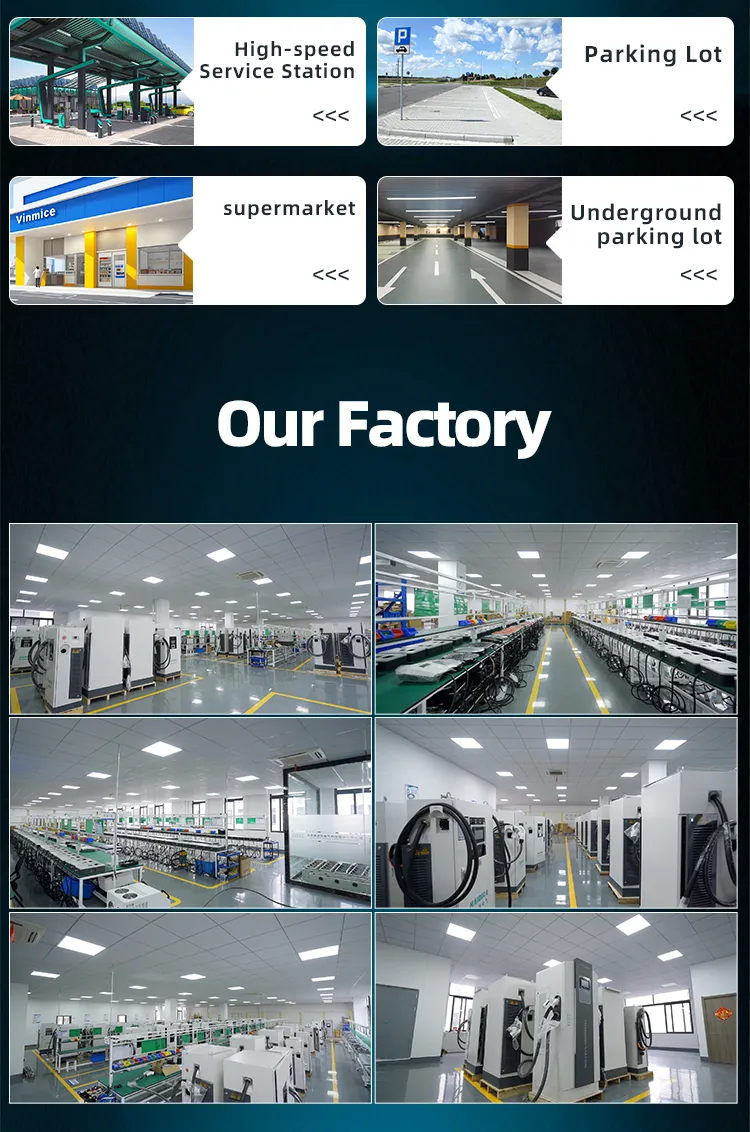

System compatibility with 160kW/120kW/80kW power configurations, meeting the charging needs of various vehicles. Suitable for convention centers, shopping malls, large parking lots, and amusement parks.
🚀 Powerful Performance
- Charging efficiency up to 95%.
- Excellent power quality and low output ripple.
- Ultra-low operating losses and standby power consumption.
⚙️
Technical Parameters
| Product Name | Smart DC charging pile |
| Product Model | MECS-120-Y2-D3 |
| Input Voltage | Three-phase five-wire AC input, 380VAC ± 15% |
| Output Maximum Power | 120kW |

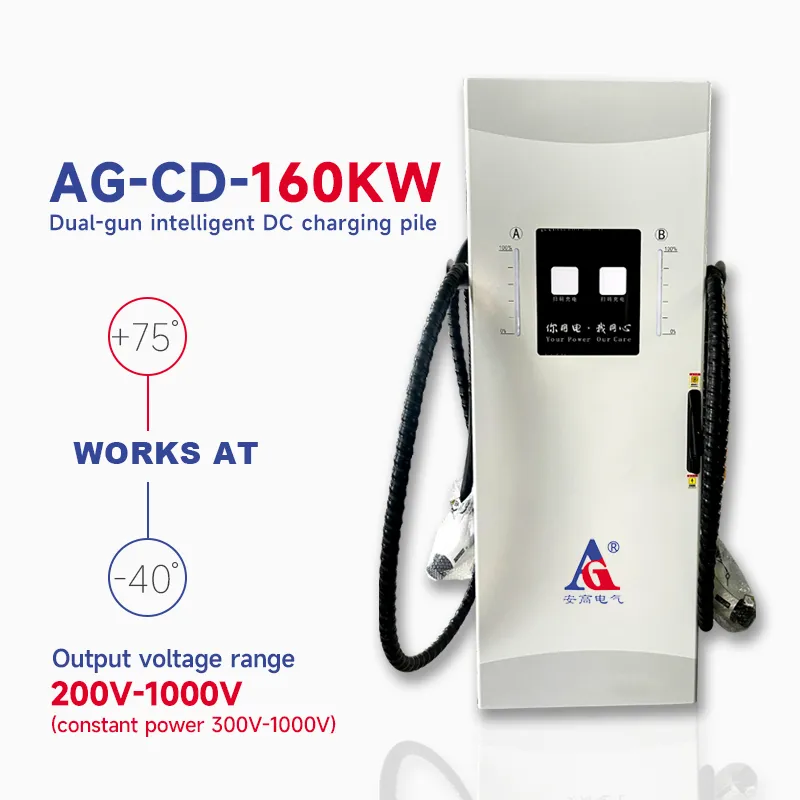

| Output Voltage Range | 200V-1000V (constant power 300V-1000V) |
| Output Maximum Current | 250A*2 |
| Operating Temperature | -30 to +70°C |
| Storage Temperature | -40 to +75°C |
| Operating Humidity | 0~95% |
| Operating Altitude | ≤ 2000 meters |
| Heat Dissipation | Intelligent air cooling |
| Product Size | 1900*700*700mm |
📸

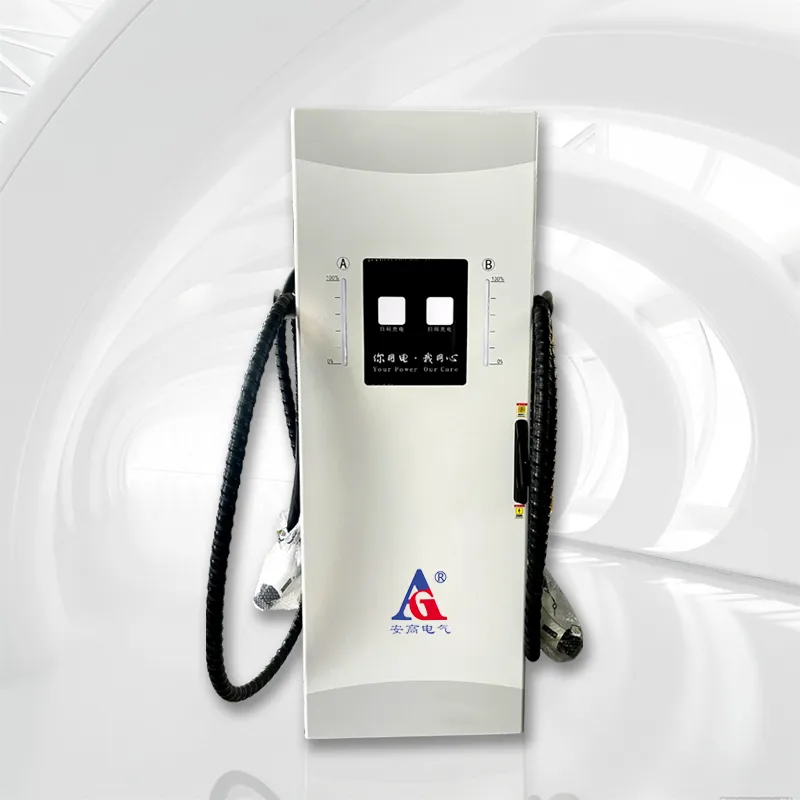

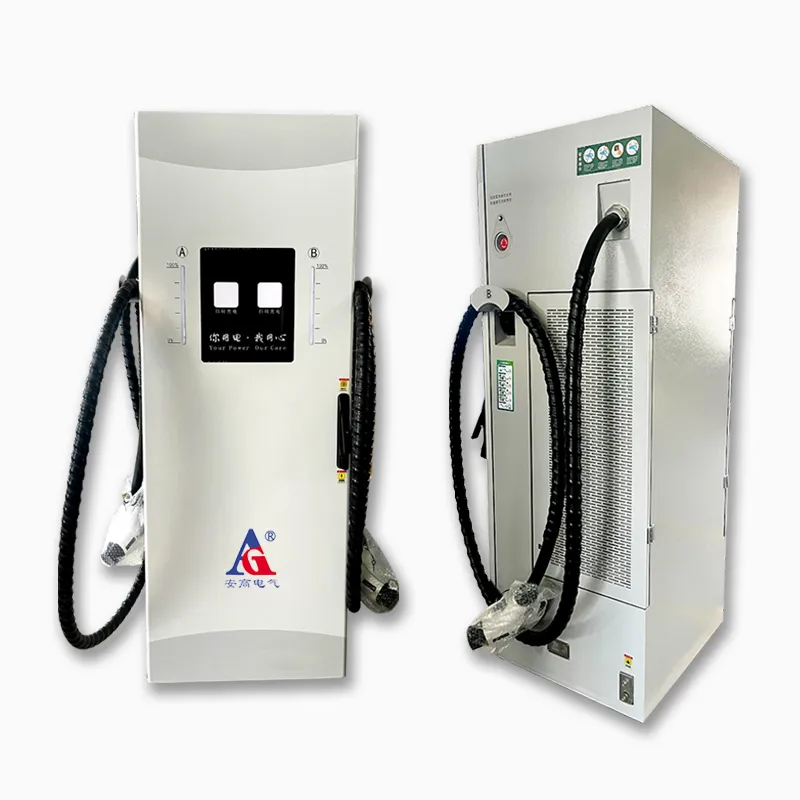

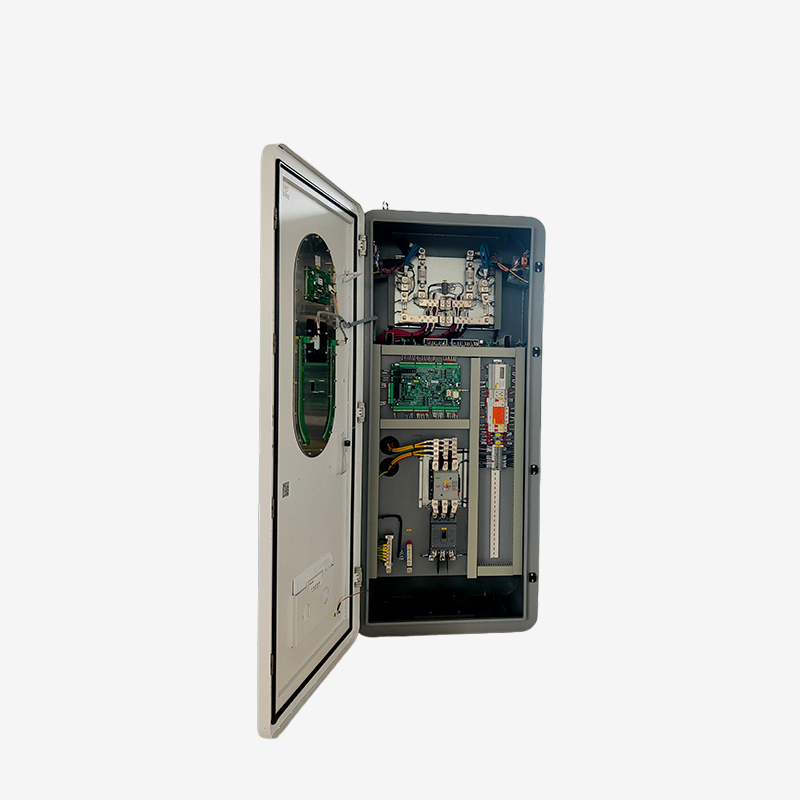

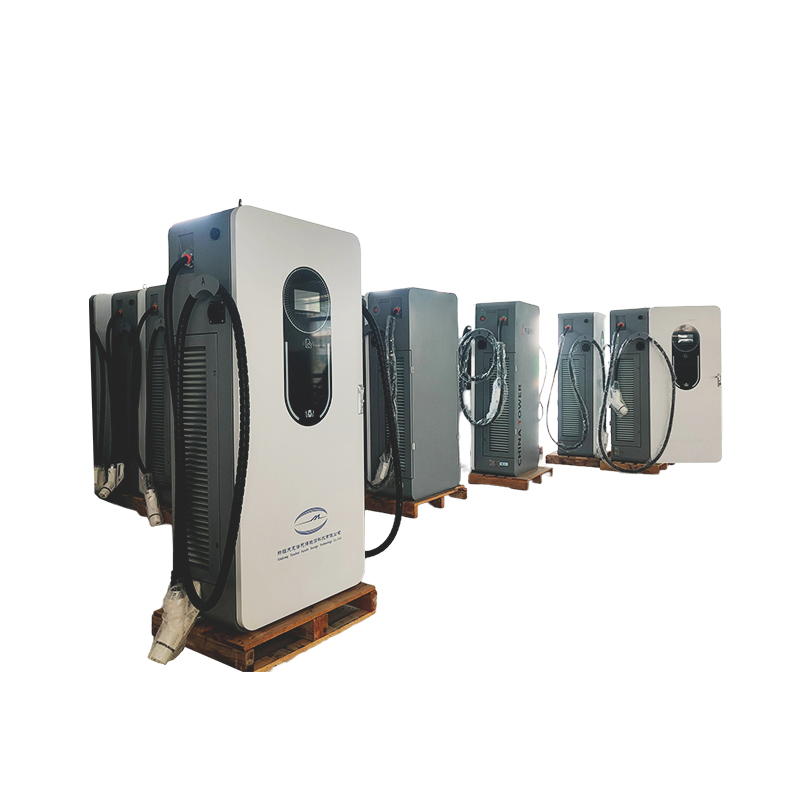

Product Display
🛡️ Safe and Reliable
High protection design, anti-rain and snow, wind-proof sand, salt spray and anti-condensation. 7-inch capacitive screen with front door windproof design.
💎 Quality Assurance
Perfect product research and development quality system standards. All devices are selected from international and domestic first-class brands. Strict EMC and temperature testing.
❓
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A1: We are a professional factory with 19 years experience in the field of High and low Voltage switch gear, Substation, transformers, and electric vehicle charging stations.
Q2: What is the payment term?
A2: 30% T/T in advance, 70% before shipment. West Union and L/C are also acceptable.
Q3: How about the delivery time?
A3: Usually it will take about 15-20 days.
Q4: How do you solve quality problems?
A4: Please provide detailed photos of quality problems. Our technical and quality testing department will analyze and provide a satisfied solution within 2 days.
Q5: What is the warranty time?
A5: Within 12 months from the date of the bill of lading.
Q6: Do you accept product customization?
A6: Yes. Please provide specific drawings or parameters, and we will quote you after evaluation.
